High Speed 16L Pesticide Drone Crop Sprayer High speed 4k agriculture price 16L Drone Agriculture Spray For Sale
- Category: >>>
- Supplier: Shandong Joyance Intelligence Technology Co. Ltd.
Share on (1600698990718):
Product Overview
Description

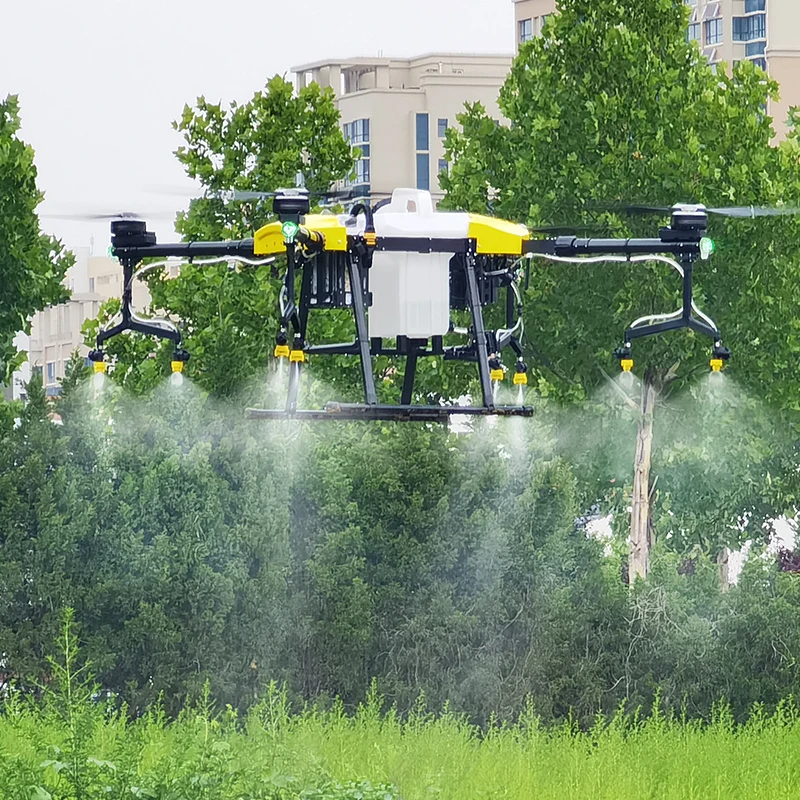

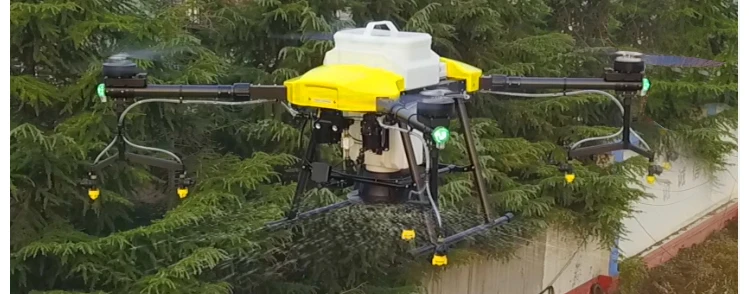

16L Pesticide Drone Crop Sprayer High speed 4k agriculture price 16L agro drone agricultural spraying
The Details of sprayer drones
Granular spreader specifications | ||
Voltage range | 12~14s (40~60V) | |
Turntable pwm | 1148us~1832us | |
Servo voltage range | 5-8.4v (requires external power supply) | |
Servo opening pwm | 500~2230us | |
Rated power | 60W | |
Power range | 20-180W (idling - maximum flow rate) | |
Rated current | 1A | |
Current range | 0.3-3 | |
Turntable speed | 800~1500rpm/min | |
Sowing range width | 5-10m | |
Diameter of the discharge opening | 115mm (matching the diameter of the material box) | |
Opening area | 47 square centimeters (three sectors) | |
Sowable particle diameter | 0.5-5mm | |
The maximum feeding speed | 80 kg/min (take urea as an example) | |
Weight | 2.2kg/2.5 kg | |
Size | 16L: W335mm x L640mm x h300mm 30L: W360mm x L740mm x h340mm | |

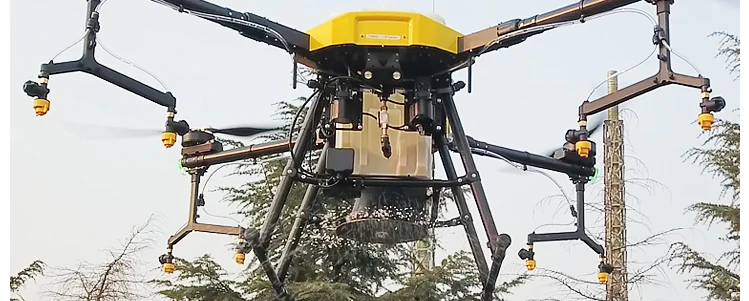

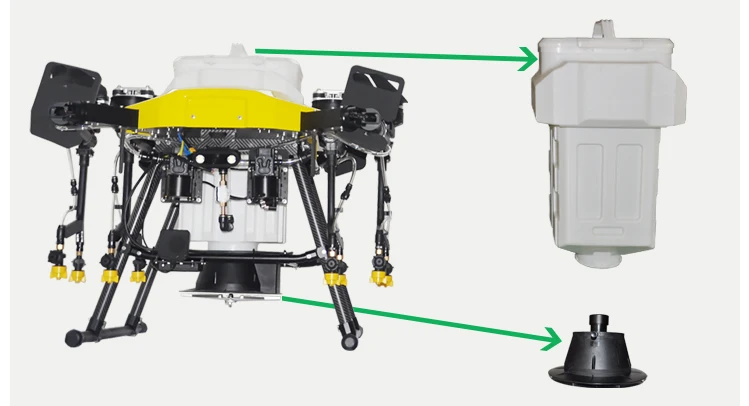

Joyance agriculture sprayer drone with granule spreader
1. Joyance agriculture sprayer drone with granule spreader can spread solid fertilizers granule fertilizer, seeds, sows, feed and so on.
2. Spreading width up to 10m, bin volume 16/30 liters, maximum spreading speed up to 80KG/Min, accurate and efficient spreading.
3. Large flow discharge port, the opening area is 47 square centimeters, and the spreading fertilizer can reach 80kg per minute.

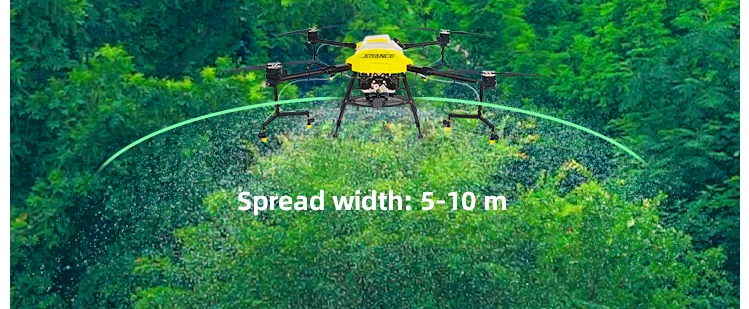

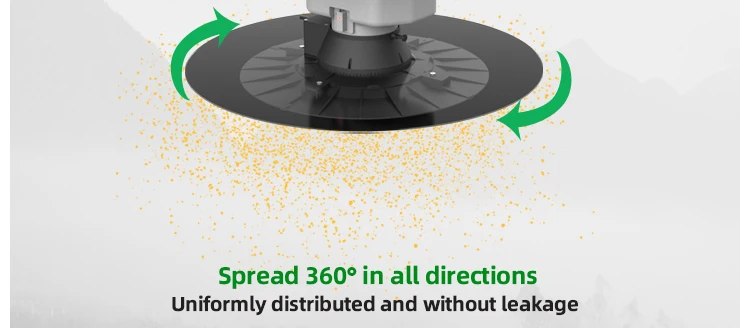

4. The rotation speed is 800~1500RPM, and the broadcast width is adjustable from 5 to 10 meters.
5. Quick bolt locking design, stable installation, and not affected by vibration. The spreader can be quickly disassembled, installed, and inspected, IP67 waterproof and dustproof.
Model | JT16L-404QC | JT30L-606 | ||
Pesticide Tank | 16L | 30L | ||
Net Weight | 18kg | 27.5kg | ||
Take-off Weight | 40kg | 67kg | ||
Flying Time | 10~15min | 10~15min | ||
Spread Size | W1.40m x L1.35m x H0.7m | W2.2m x L1.85m x H0.8m | ||
Folded Size | W0.85m x L0.85m x H0.7m | W1.25m x L0.9m x H0.8m | ||
Motor | Brushless | Brushless | ||
Propeller | Carbon Fiber | Carbon Fiber | ||
ESC | Rapid Throttle Response | Rapid Throttle Response | ||
Flight Control | K++ V2 | K++ V2 | ||
Remote Controller | Joyance Datalink H12 RC | Joyance Datalink H12 RC | ||
Battery / Quantity | 14S 20000mAh / 1pc | 14S 28000mAh / 1pc | ||
Adapter + Charger | Dual-Channel Charger 3000W | Dual-Channel Charger 3000W | ||
Aluminum box size / weight | 98*92*75cm / 65kg | 154*109*94cm / 100kg | ||
Toolkit | Maintenance/Repair Tools | Maintenance/Repair Tools | ||

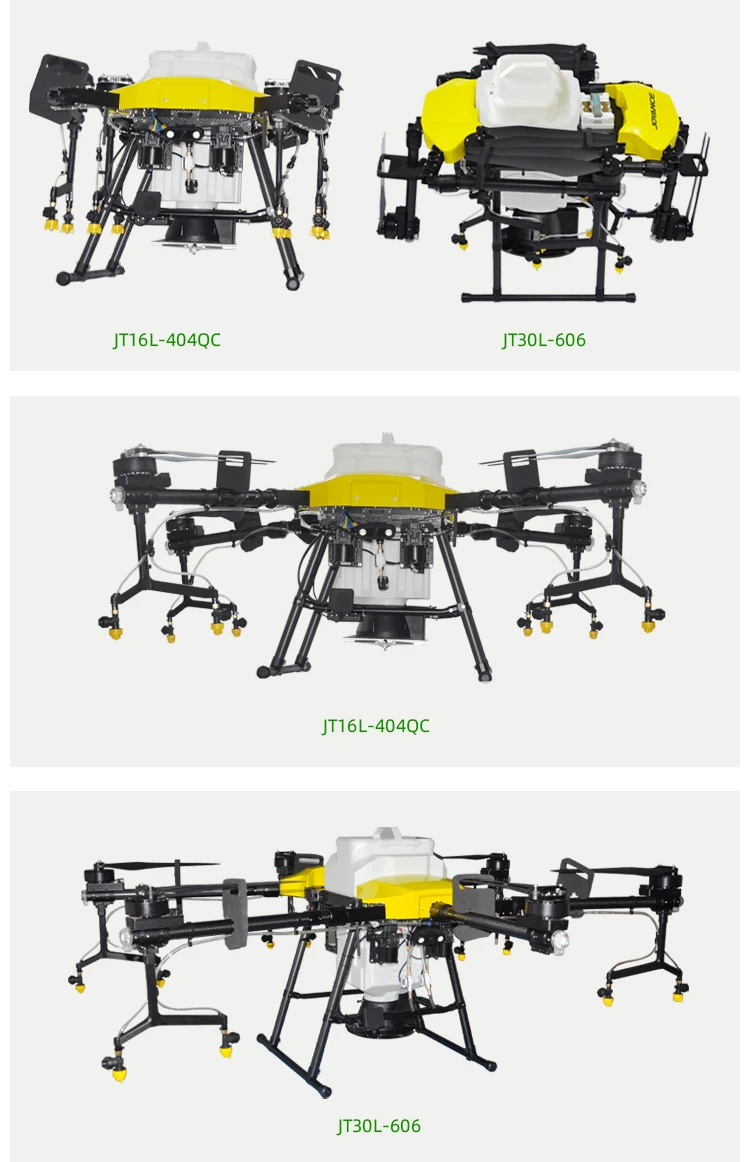

We also have different series agriculture sprayer drones, as below:
About Joyance Tech company
Shandong Joyance Intelligence Technology Co., Ltd.
● Leading & professional sprayer drone solution provider
● 9 years of R & D experience
● 200 units per month output
● Shortest delivery time ≤3 working days, sufficient spare parts in stock
● Real users in 73 countries & regions
● Overseas technical support
● Lifetime online after-sales service
● CE, FCC, RoHS, ISO 9001 certification
● Top quality & Competitive price & Your reliable partner
● Looking forward to dealers or agents all over the world
● Leading & professional sprayer drone solution provider
● 9 years of R & D experience
● 200 units per month output
● Shortest delivery time ≤3 working days, sufficient spare parts in stock
● Real users in 73 countries & regions
● Overseas technical support
● Lifetime online after-sales service
● CE, FCC, RoHS, ISO 9001 certification
● Top quality & Competitive price & Your reliable partner
● Looking forward to dealers or agents all over the world
JOYANCE drone is the best in all over the world, thank you so much.
After-sales & Services
√ Warranty: 3 years for the agriculture drone frame; 12 months for main drone spare parts; 3 months for wearing spare parts.
√ Ready to fly and quality control:100% tested before delivery.
√ Lifelong after-sales service, offer operation manual and videos, timely online technical support is available.
√ Free training in our factory, including operation and maintenance, takes 2-3 days.
√ Ready to fly and quality control:100% tested before delivery.
√ Lifelong after-sales service, offer operation manual and videos, timely online technical support is available.
√ Free training in our factory, including operation and maintenance, takes 2-3 days.

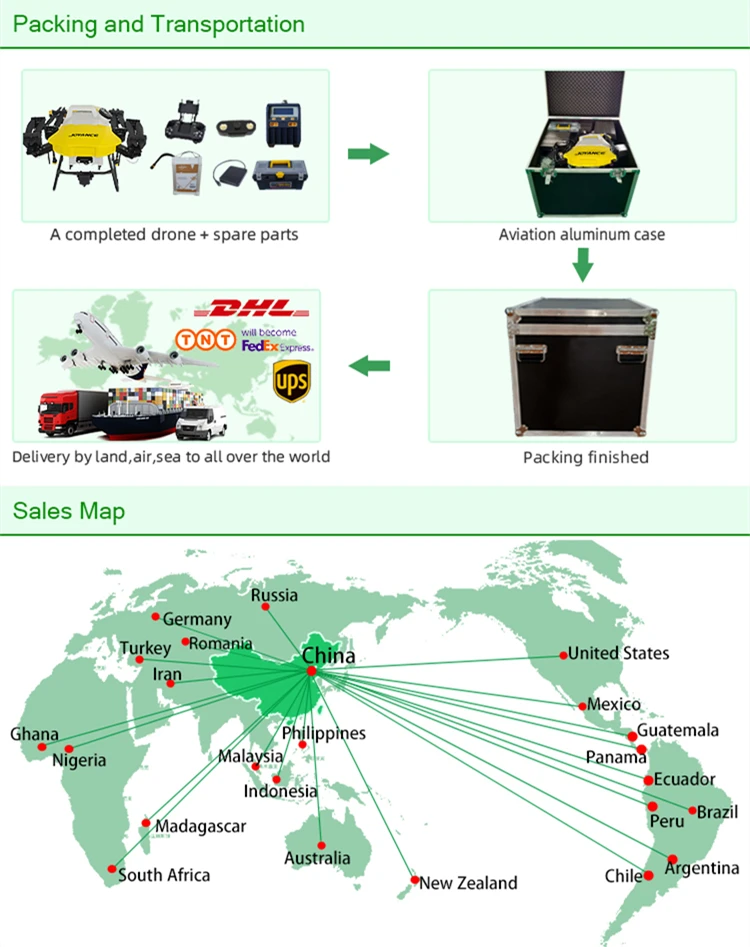

Packing and Transportation
FAQ
Q1. Are you sprayer drone factory?
A1:Yes, we are a professional manufacturer of agricultural spraying drones: sprayer drone, spreader drone, fogger drone, and biological control drone.
Q2. Is uav sprayer drone ready to fly?
A2: Yes. Before dispatch, JOYANCE will assemble the agriculture drone, set parameters and test flight in the field, ensure that all the drones are 100% qualified and ready to fly.
Q3. What's your MOQ of agricultural drone?
A3: MOQ ≥1. More than 100 units order is available. Besides, we are looking for dealers and agents all over the word. Welcome to contact us for more.
Q4. What's the delivery time of sprayer drone?
A4: 2-3 days for one, please contact us for mass order.
Q5. What's your payment term?
A5: 50% deposit, balance before delivery. We accept T/T, credit card, paypal and western union, etc. payment methods.
A1:Yes, we are a professional manufacturer of agricultural spraying drones: sprayer drone, spreader drone, fogger drone, and biological control drone.
Q2. Is uav sprayer drone ready to fly?
A2: Yes. Before dispatch, JOYANCE will assemble the agriculture drone, set parameters and test flight in the field, ensure that all the drones are 100% qualified and ready to fly.
Q3. What's your MOQ of agricultural drone?
A3: MOQ ≥1. More than 100 units order is available. Besides, we are looking for dealers and agents all over the word. Welcome to contact us for more.
Q4. What's the delivery time of sprayer drone?
A4: 2-3 days for one, please contact us for mass order.
Q5. What's your payment term?
A5: 50% deposit, balance before delivery. We accept T/T, credit card, paypal and western union, etc. payment methods.
