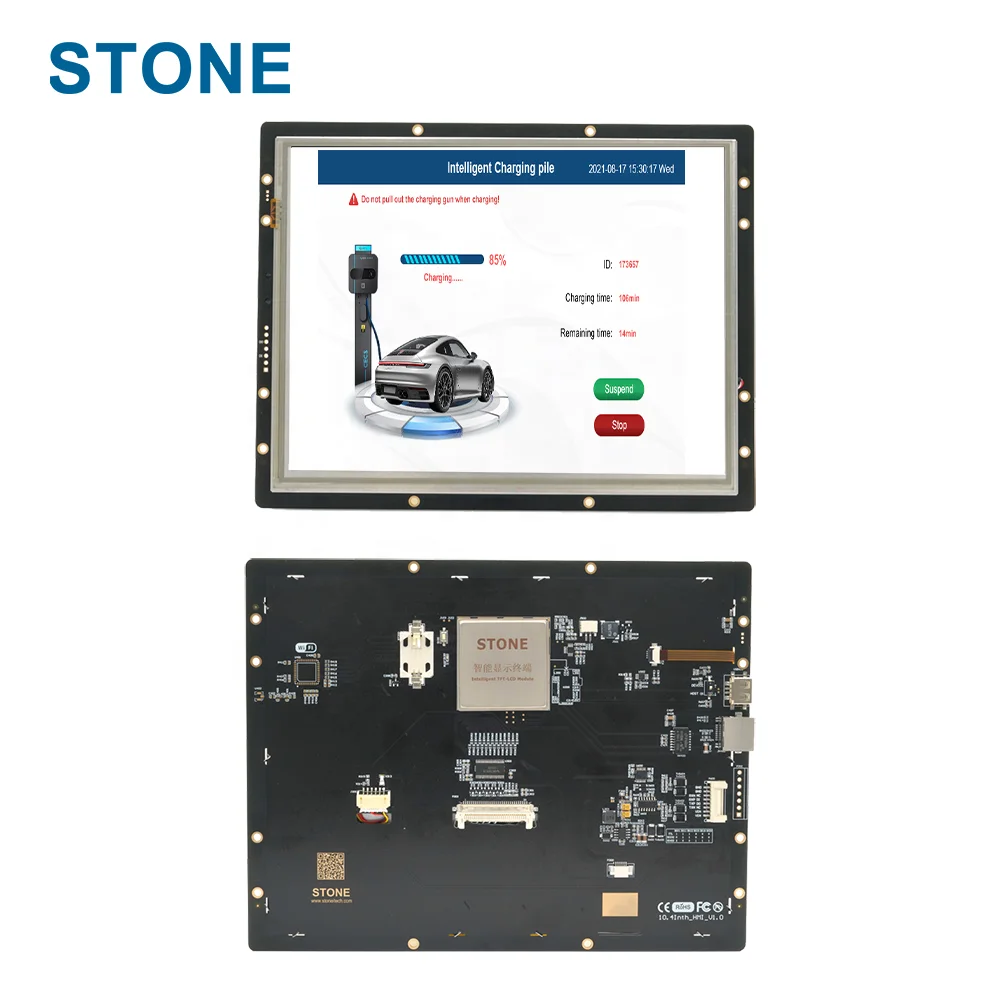

STONE 10.4 inch tft LCD Module 1024*768 resolution 262K Colors UART HMI Touch Screen Display LCD Module
- Category: >>>
- Supplier: Beijing Stone Technology Co. Ltd.
Share on (1600698994298):
Product Overview
Description
Description

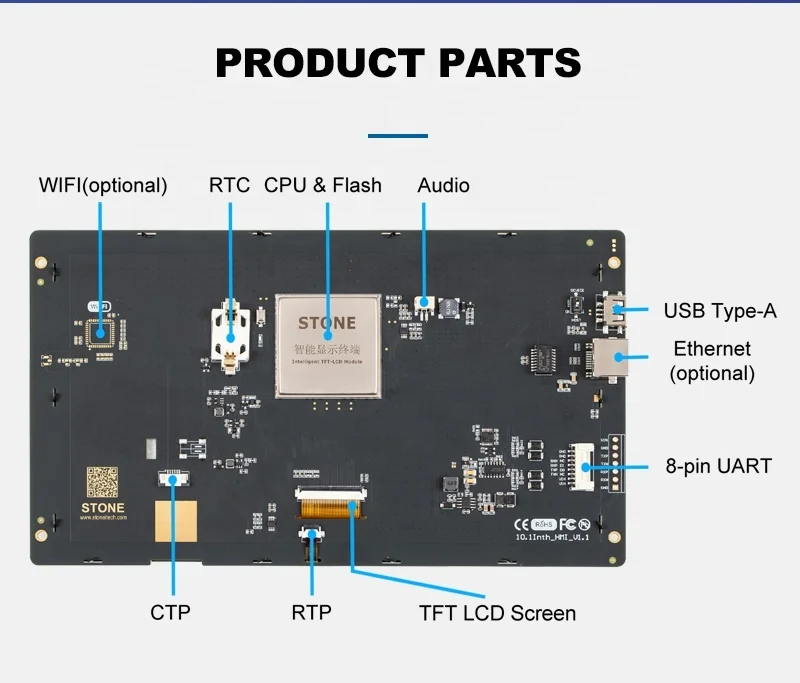

Hardware
Cortex A8 1Ghz CPU | 256 MB Flash｜ Touch screen
Interface
Uart｜RS232｜RS422｜RS485｜TTL｜Lan｜WIFI | USB
Documents
Vector font｜Image｜Video｜Audio
Characteristics
Tem : -30°C to 80 °C｜Anti-electromagnetic interference｜Medical grade
Cortex A8 1Ghz CPU | 256 MB Flash｜ Touch screen
Interface
Uart｜RS232｜RS422｜RS485｜TTL｜Lan｜WIFI | USB
Documents
Vector font｜Image｜Video｜Audio
Characteristics
Tem : -30°C to 80 °C｜Anti-electromagnetic interference｜Medical grade
Technical Parameters
Physical Parameter | |
Size | 10.4 inch |
Resolution | 1024×RGB×768 |
Color | 262,144 colors (18 bit) |
Display Dimension | 229.4mm ×176.4mm |
Net Weight | 805g (T) |
Display Parameters | |
Backlight Type | LED |
Brightness | 350cd/m2 |
Contrast | 1000:1 |
Backlight life | 30,000 hours |
Viewing Angle | 80°/80°/80°/80°(L/R/U/D) |
TFT Panel | A Class Industry Panel |
Touch Screen | 4 Wire Resistance Touch /Capacitive Touch / Without Touch Screen |
Interface | |
Serial Interface | RS232 / RS422 / RS485 / TTL level |
Ethernet interface | 10M/100M (Optional) |
Wireless interface | WIFI |
Power Supply | |
Rated Voltage | +12V DC or +5V DC |
Permissible Voltage Range | +7V DC...+28V DC or +5V DC |
Max. Permissible Transients | +28V |
Power Consumption | 3.0 W |
Electric Current | 2A |
Support Device | |
UART Port | Support RS232 / RS422 / RS485 / TTL |
Network Port | Support Ethernet Port / WIFI |
Flash Memory | Support Standard 256MB, Extend 1GB or 2GB |
Buzzer | Support |
RTC | Support |
USB port | Support Online Download By USB Cable |
U Storage Disk Interface | Support. Offline Download or Copy User Data |
Touch Screen | 4 Wire Resistance / Capacitive |
Vector Font | Standard TTF Format |
Image | Support PNG/JPG/BMP/SVG/GIF Format |
Audio Interface | Support WAV format The length of single audio file is not limited, theoretically up to 4096 audio files, speaker power is 8 ohms 2 watts or 4 ohms 3 watts |
Command Set | Unified Simplified Command Sets |
AI - Series Product | ||||||||||||||
3.5'' | STWI035WT-01 | 320*240 (4:3) | DC 5.0-28 | Ethernet/WIFI | RS232/RS422/RS485/TTL | 300cd/m² | 0.8 | |||||||
4.3'' | STWI043WT-01 | 480*272 (16:9) | DC 5.0-28 | Ethernet/WIFI | RS232/RS422/RS485/TTL | 500cd/m² | 1.0 | |||||||
5'' | STWI050WT-01 | 800*480(16:9) | DC 5.0-28 | Ethernet/WIFI | RS232/RS422/RS485/TTL | 350cd/m² | 1.3 | |||||||
5.6'' | STWI056WT-01 | 640*480 (4:3) | DC 5.0-28 | Ethernet/WIFI | RS232/RS422/RS485/TTL | 300cd/m² | 2.2 | |||||||
7'' | STWI070WT-01 | 800*480 (16:9) | DC 5.0-28 | Ethernet/WIFI | RS232/RS422/RS485/TTL | 300cd/m² | 2.6 | |||||||
8'' | STWI080WT-01 | 800*600 (4:3) | DC 5.0-28 | Ethernet/WIFI | RS232/RS422/RS485/TTL | 300cd/m² | 2.8 | |||||||
10.1'' | STWI101WT-01 | 1024*600 (16:9) | DC 5.0-28 | Ethernet/WIFI | RS232/RS422/RS485/TTL | 400cd/m² | 3.0 | |||||||
10.4'' | STWI104WT-01 | 800*600 (4:3) | DC 5.0-28 | Ethernet/WIFI | RS232/RS422/RS485/TTL | 350cd/m² | 3.0 | |||||||
