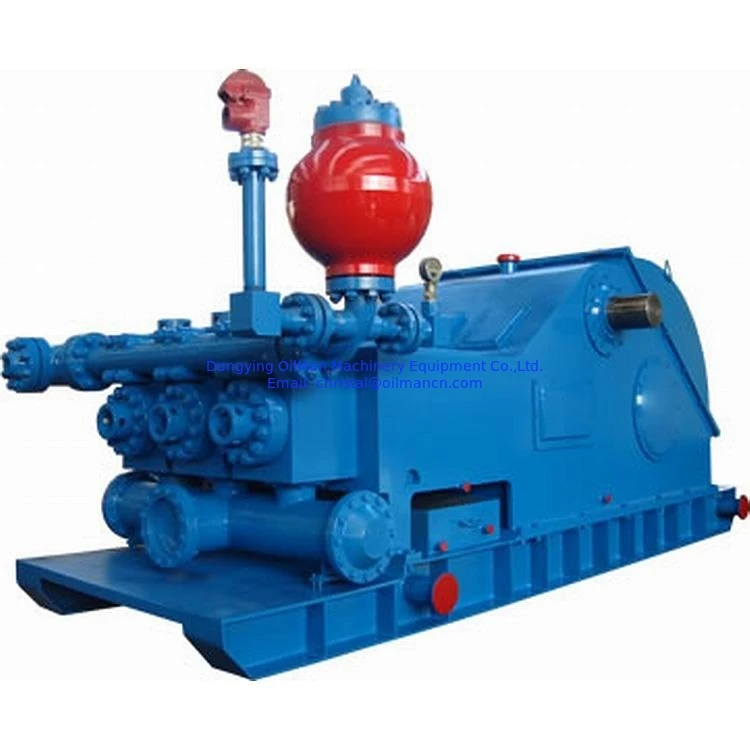

API oil oilfield Mud Piston Pump For Drilling Rig F1600 F1300 F1000 F800 NB 1300 NB 1600

Product Overview

Description

  API oil oilfield Mud Piston Pump For Drilling Rig F1600 F1300 F1000 F800NB-1300 NB-1600

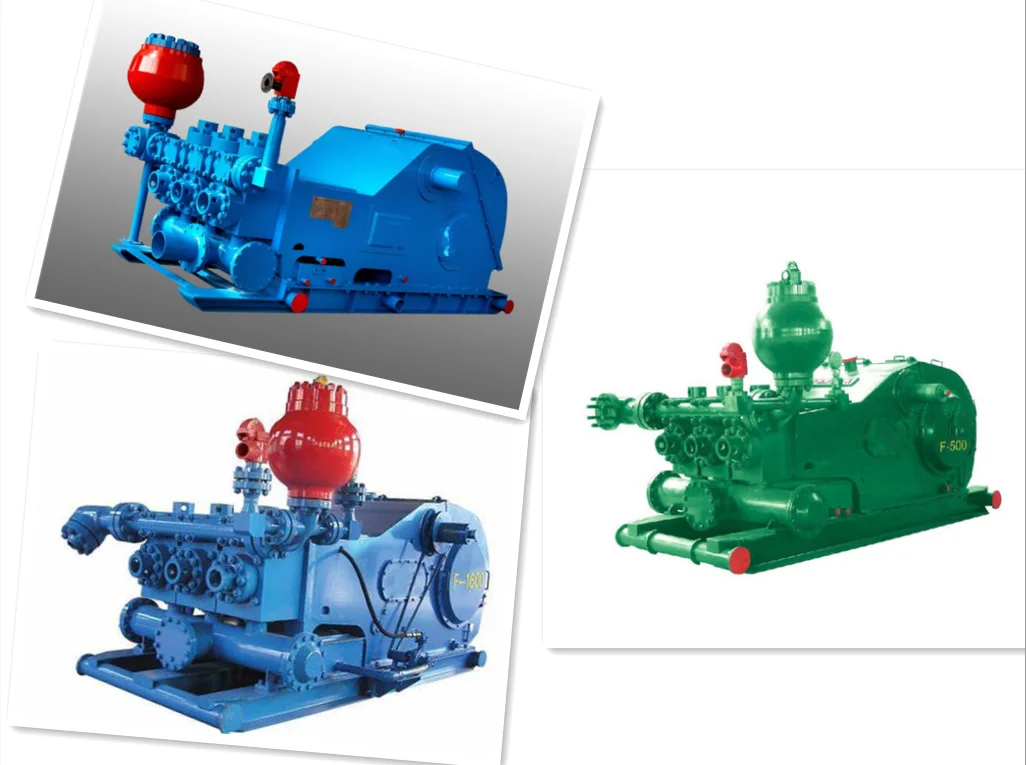

F series mud pump is applicable to the requirement of high pump pressure in oil field and high displacement technology of well drilling with its solid and compact structure, small volume and outstanding operation performance.



F series mud pump has long stroke maintaining operation at lower frequency resulting in enhancing the performance of giving water effectively and prolonging the lifetime of the consumable hydrokinetic parts. The air-suction kit is advanced in structure and reliable at operation to reach the optimized absorbing target of air suction into linepipe.



F series pump powering side adopts the combined lubrication featured with reliable lubrication and adding the operation lifetime of powering part.



 The series pump is widely used in oil field and other lines of industrial and mining enterprise, operation of drilling well and well repairing etc F-1300 mainly with adapted drilling machine32-45.

The series pump is produced strictly according to API Spec 7K “the equipment specification of well Drilling and Repairing”, and performanced the EX-Work test under the specification thereof.



Model	F-500	F-800	F-1000	F-1300	F-1600
Type	Triplex single acting	Triplex single acting	Triplex single acting	Triplex single acting	Triplex single acting
Rated Power	373kw 500HP	596kw 800HP	735kw 1000HP	969kw 1300HP	1193kw 1600HP
Rated Speed	165 SPM	150 SPM	140 SPM	120 SPM	120 SPM
Stroke(mm/inch)	190/7 1/2	228.6/9	254/10	305/12	305/12
Max.Liner Dia.	170/6 3/4	170/6 3/4	170/6 3/4	180/7	180/7
Gear Type	Herringbone	Herringbone	Herringbone	Herringbone	Herringbone
Valve Pot	API-5	API-6	API-6	API-7	API-7
Gear Ratio	4.286:1	4.185:1	4.207:1	4.206:1	4.206:1
Suction Inlet	203/8	254/10	305/12	305/12	305/12
Discharge Inlet	4Flange 5000 psi	5Flange 5000 psi	5Flange 5000 psi	5Flange 5000 psi	5Flange 5000 psi
Lubrication	Forced& Splash	Forced& Splash	Forced& Splash	Forced& Splash	Forced& Splash
Max. Pressure	27.2Mpa 3945 psi	34.5Mpa 5000 psi	34.5Mpa 5000 psi	34.5Mpa 5000 psi	35Mpa 5080 psi
Overall Size(in)	144*106*86	156*79*66	163*89*70	174*121*78	181*129*106
Weight(kg)	9770	14500	18790	24572	24791
