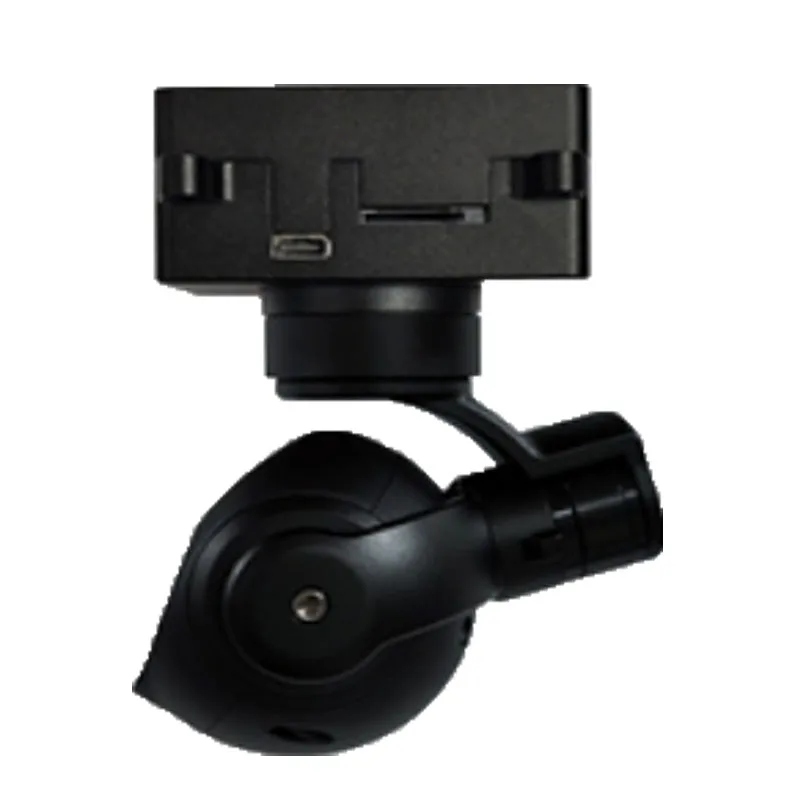

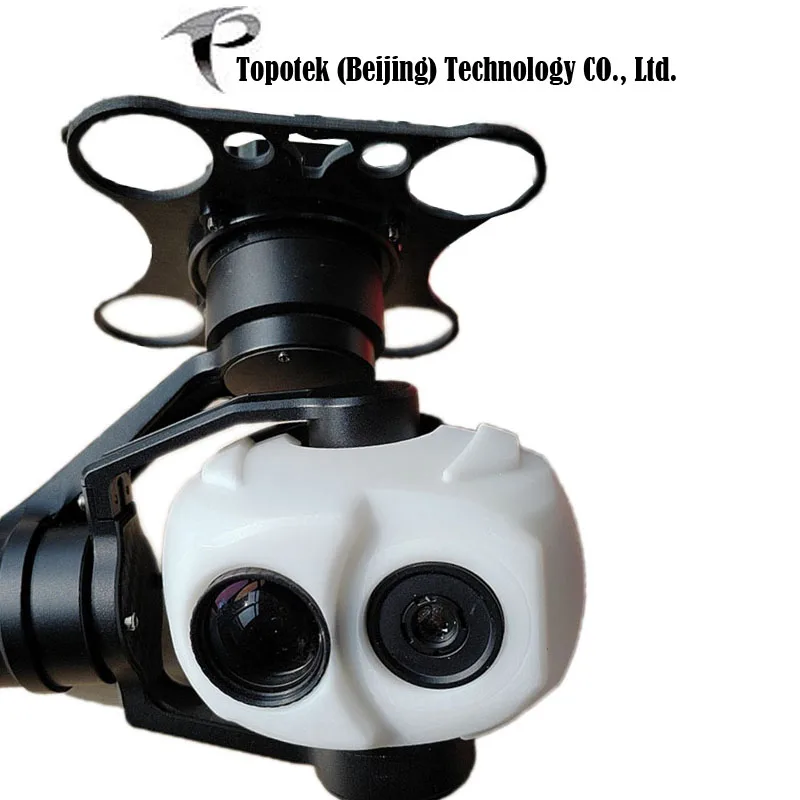

1080P visible light +256 thermal imaging dual light with dual output 200g small pod camera wireless Security gimbal
KHP290G207 9X digital zoom + 256x192 thermal imaging, thermal len 7mm
IP/HTMI Output 3-Axis Dual Light Gimbal Camera. 200g Support IP/HDMI and serial port control(SBUS and PWM control) and Ground App control
Key Features:
Ø 1080p visible light +256 thermal image
Ø A variety of thermal imaging pseudo color mode
Ø Support multiple picture in picture mode
Ø 170 ms low latency RTSP stream output
Ø Supports dual output of IP/HDMI
Ø Supports 9X digital zoom
Ø 3-axis stabilization pods
Ø Network and UART control
Ø Light weight pod, 200 grams
Ø TF card dual recording with visible and thermal light.Input network IP to read and show TF card content.
KHP290G207 1080P visible light +256 thermal imaging dual light with dual output 200g small pod | ||
| ||
Voltage | 3S / 6S(12V/24V) | |
Power | Dynamic 4w | |
Operating characteristic | Roll Angle action range | -45~+45° |
Pitch action range | -105~+80° | |
Yaw angle action range | -150°~+150° | |
The amount of angular jitter in pitch and roll direction | ±0.02° | |
Horizontal Angle jitter | ±0.03° | |
One-click return function | One-click automatic quick return to the initial position | |
The speed of the head control is adjustable | The speed adaption is carried out based on the current speed mode and the multiple of the visible light camera. | |
Control mode | Support network IP control and serial port control (optional SBUS and PWM control) | |
White light photography parameter | CMOS Size | CMOS SENSOR pixel: 2mega pixels |
Digital zoom | Support 9x digital zoom | |
Compressed storage mode | H264,H265,video streaming local TF storage | |
field of view (FOV) | FOV: 60°x 43° | |
HDMI video | Micro-D HDMI 1080P 30fps | |
Network output mode | 1080P 30fps | |
Therma imagery | Resolution ratio | |
Space between pixels | 12μm | |
Type | Uncooled vanadium oxide infrared thermal imagery instrument | |
Wavelength coverage | 8~14μm | |
Heat sensitivity(NETD) | ≤65mk @F1.0@ 25℃ | |
Field angle | 7mm lens, Angle: 24. x 18. | |
Measurement function (optional) | Central point, the highest temperature and lowest temperature display temperature function; Global temperature measurement function. | |
Dimensions | 53mm×66.1mm×91.5mm | |
Work environment | -10℃ to +45℃ / 20% to 80% RH | |
Stored Environment | -20℃ to +60℃ / 20% to 95% RH | |
Main application | Drone aerial photography | |
Weight | 200±10g | |
