Product Overview

Description

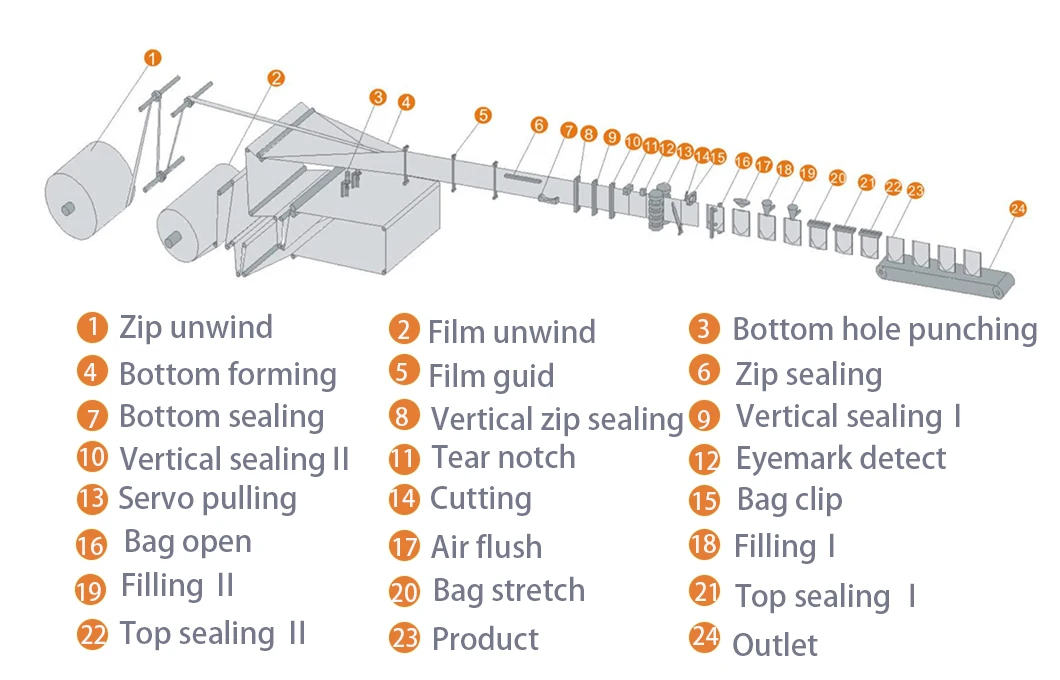

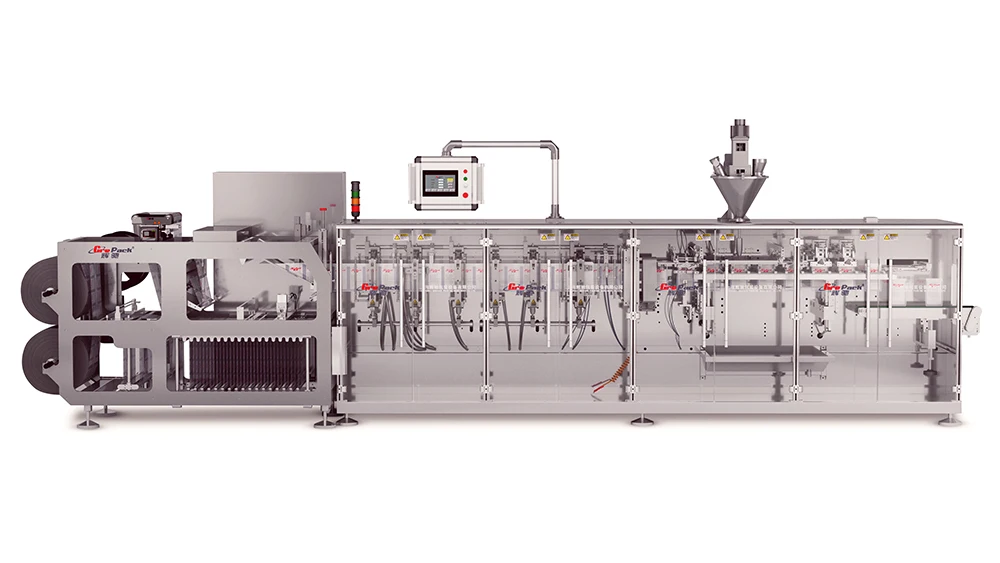

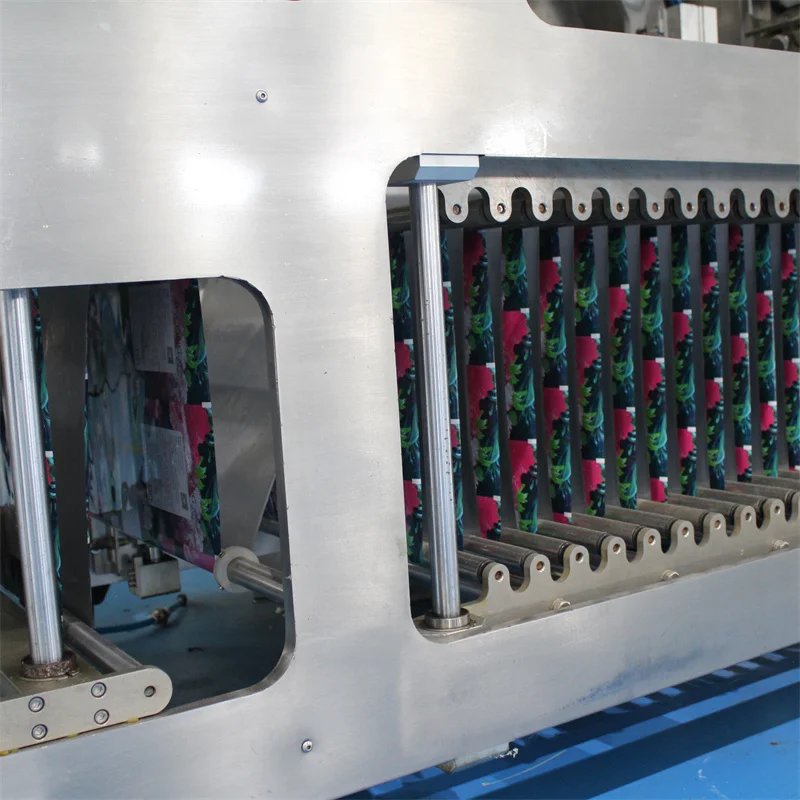

Horizontal Zip Stand Pouch package Machine
The zip stand Pouch Packing Machine Series is specially designed for the needs of zipper bags. It can also add special functions, such as: hanging holes, special-shaped and so on. The series also has a large bag series. To meet the needs of large-dose packaging in zipper stand-up pouch packaging.
Advantages
1) Omron PLC control, English and man-machine interface, operating easy and simple maintain.
2) Advanced photoelectric sensor tracking system and servo motor pull for precise bag width and position of film.
3) Omron Motion control system : for example , when you change the speed of the main machine on the touch screen , then speed of the film unwind , film pulling and piston filling will be changed automatically .with Omron motion control system , you will save lots of film and time during adjusting , because all speed synchronous .
4)the machine with automatic film align and adjust device

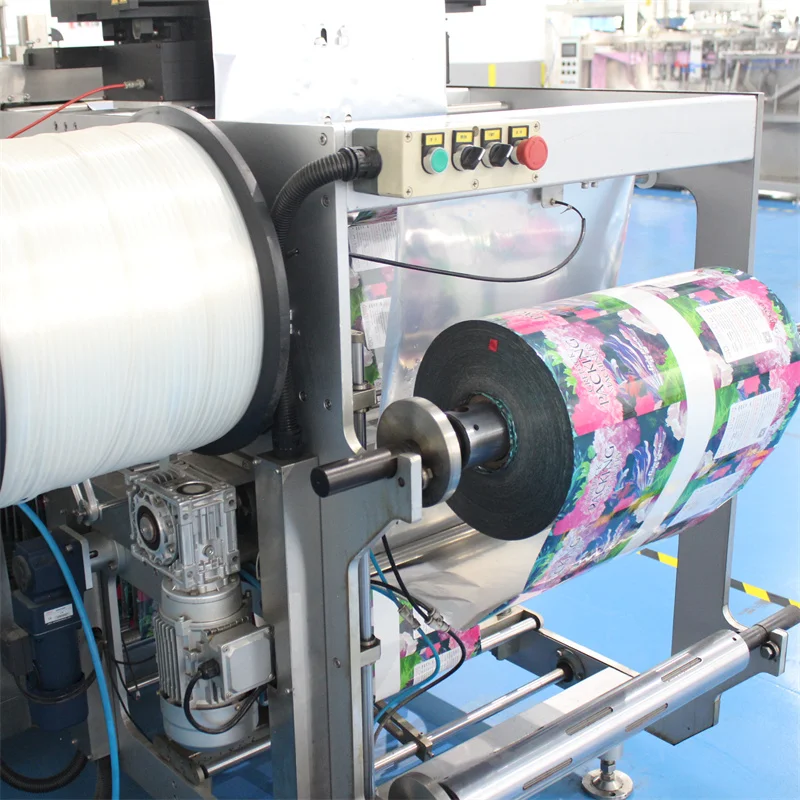

5)Non-stop machine film changing function , when film run out, no need to stop machine with design of two film rolls ,enough film storage and connection tape detection.
6) Omron 's PLC has the remote-control function , if there is fault during the production in your factory , you can send the report to us , and we can fix it online .








Model
HC-180SZ
HC-240SZ
Pouch Type
zip Stand Pouch
Min pouch
70×100mm
110×150mm
Max pouch
180×250mm
240×320mm
Speed
＜50 Pouch/min
＜50 Pouch/min
Filling range
max 1000ml
max 2000ml
Filling station
2
2
Main Power
10kw
9kw
Volt
380V 3P 50Hz
380V 3P 50Hz
Air consumption
500L/min
400L/min
Ai Pressure
0.7MPa
0.7MPa
Max Film roll Dia
500mm
500mm
Film roll Core dia
70-80mm
70-80mm
Weight
2500kg
2500kg
film thickness
60-180μ
60-180μ
Machine Dimension
7200×1500×2000mm
8700×1500×2000mm
