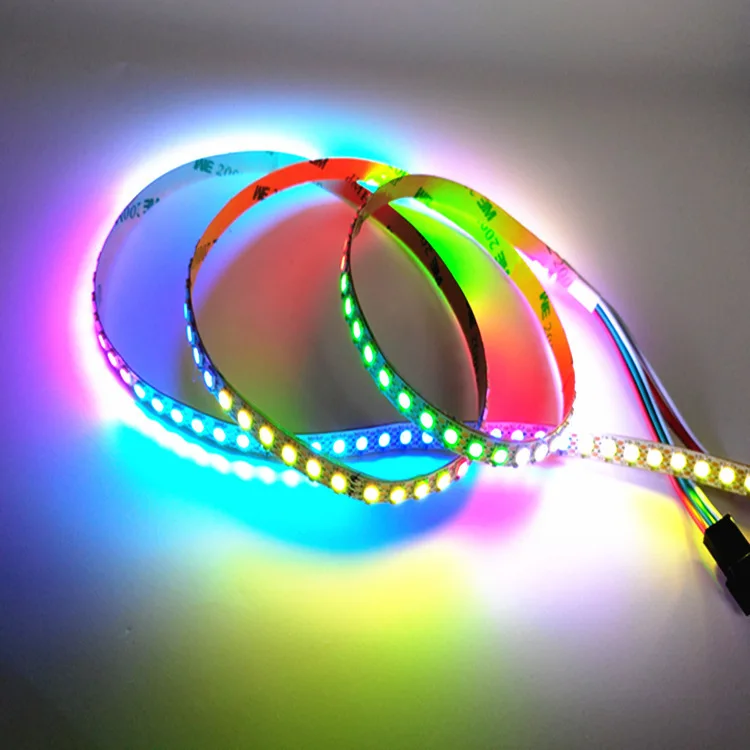

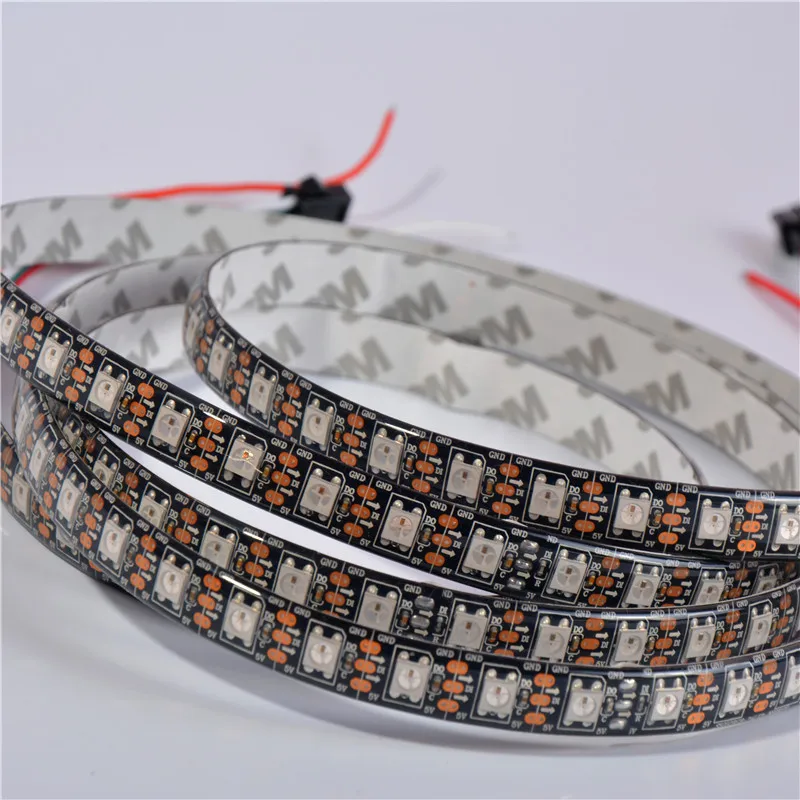

16.4ft 96 LEDs/M ARGB WS2812B Individually Addressable Programmable RGB LED Strip Signal Break Point Continuous Transmission 5V

Product Overview

Description

16.4ft 96 LEDs/M ARGB WS2812B Individually Addressable Programmable RGB LED Strip Signal Break-Point Continuous Transmission 5V

Parameter:

• Light source: 5050 RGB LED


• LED Qty: 96pcs per meter


• Wave length (NM): R,620~625nm ; G,515~525nm; B,465~475nm


• The gray level: 256


• Color: full color (24-bit )


• View angle:120°


• Voltage: DC 5V


• Power:18W/M


• Waterproof: Waterproof IP67


• Dimension: 5000*10mm


• Package: 16.4ft/roll


• Life span:≥50000hrs


• Port scanning frequency reaches to 2KHz/s


• Data transmitting speed is up to 800Kbps


• RGB order: Green/Red/Blue


• Red wire: 5V+ /  Black Wire: GDN / Yellow wire: Data / Green wire: Backup Data



Kindly note:

• Must use a 5V DC power supply t power these strips, not use higher than 6V that will destroy the entire strip.


• ower supply need to be selected according to the total power of LED Strip. We recommend to use 80% max power of power supply. We recommend  5V 15A or 20A power supply.


• It is better to inject power between each 5 meters when connect them in series in case of voltage drop.

 Package:

• 1x 16.4ft 480 pixels WS2812b led strip


• 1x Female 4PIN JST connector
