Rotary Table Shot Blast Machine
- Category: >>>
- Supplier: Hangzhou Color Powder Coating Equipment Co. Ltd.
Share on (1600699033110):
Product Overview
Description
Product Description

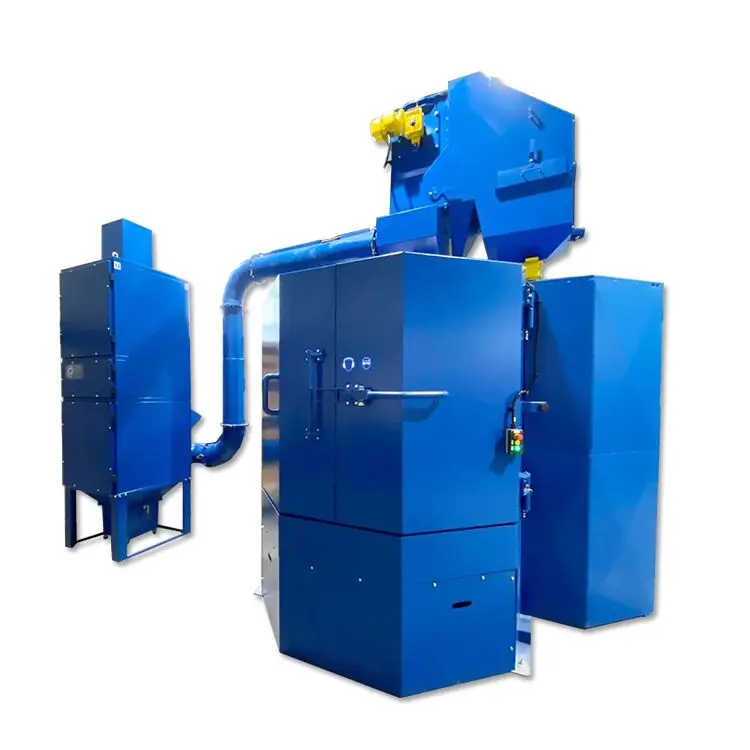

Rotary Table Shot Blast Machine
Rotary shot blasting machine or table type shot blasting machine is suitable for various shapes and dimensions, casts, forged parts, pressed parts, steel, and non-ferrous metal parts and parts made from fragile materials, cleaning surface, removing casting sand and filings, roughing the surface before colouring, etc.
Shot blasting is still the most economical and reliable method in the world to achieve the purpose of rust removal and strengthening.
Rotary table shot blasting machine fetures
1. Improve the fatigue resistance of mechanical products and metal components
2. Extend its service life
3. Optimize the surface process state of the workpiece
4. Greatly improve cleaning efficiency
5. Reduce the labor intensity of cleaning work
6. Reduce environmental pollution
2. Extend its service life
3. Optimize the surface process state of the workpiece
4. Greatly improve cleaning efficiency
5. Reduce the labor intensity of cleaning work
6. Reduce environmental pollution
Detailed Images
Shot blasting chamber

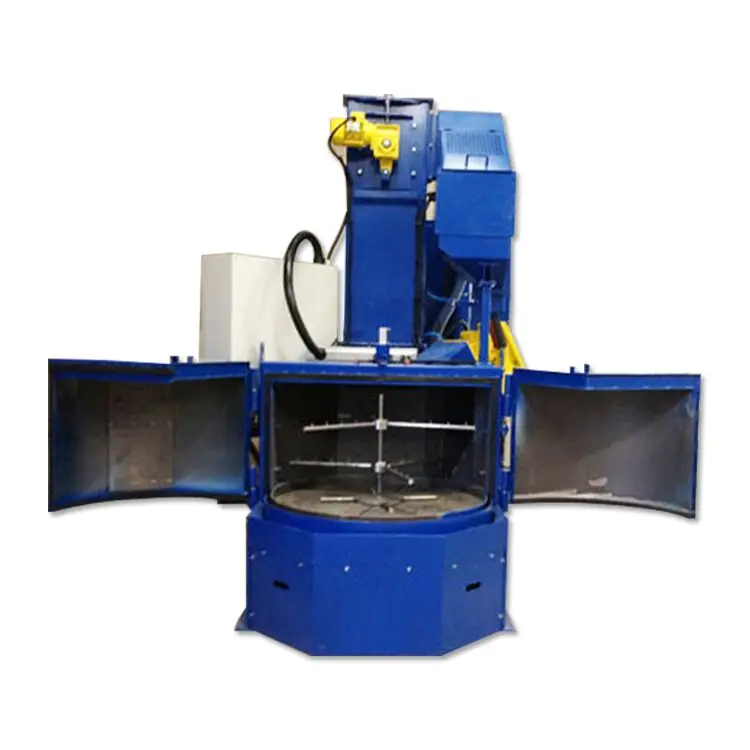

The shot blasting chamber welding structure is composed of chamber shell, chamber roof and indoor protection, the bottom surface of the chamber shell is connected with bullets, welded on four sides of the chamber shell, and connected with the turret mechanism support, The chamber wall and top are connected with bolts, the interior is protected by rubber protection plate, and the top is fixed with shot blasting device.
The shot blasting chamber welding structure is composed of chamber shell, chamber roof and indoor protection, the bottom surface of the chamber shell is connected with bullets, welded on four sides of the chamber shell, and connected with the turret mechanism support, The chamber wall and top are connected with bolts, the interior is protected by rubber protection plate, and the top is fixed with shot blasting device.
Abrasive circulation and purification system

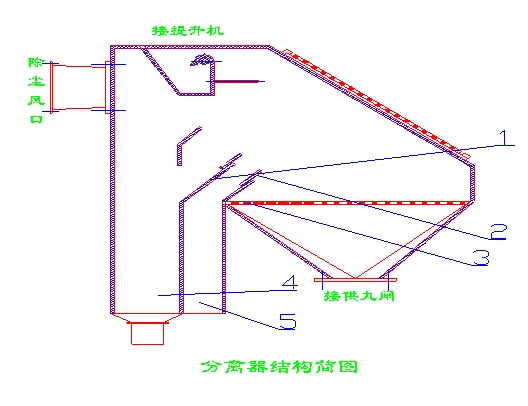

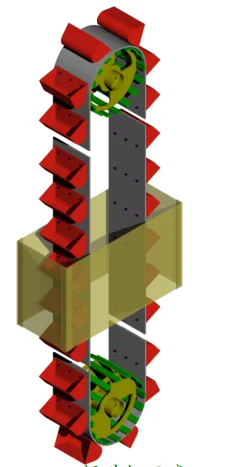

The abrasive circulation purification system can be divided into circulation system and shot separation purification system, it is composed of bucket elevator, shot separator, shot supply gate valve, shot sliding pipe, etc.
Abrasive collect and transport to elevator via screw conveyor, and the elevator lifts the abrasive to the separator, it can obtain good separation effect, making the separation efficiency as high as 99%.
Rotary tables system
The rotary table is installed inside the chamber shell, and its rotation is driven by a sprocket, it is made of flat steel welded into a mesh disc, and a rubber plate with holes is laid on the surface to withstand the wear and tear of projectiles and prevent large pieces of material from falling into the chassis.

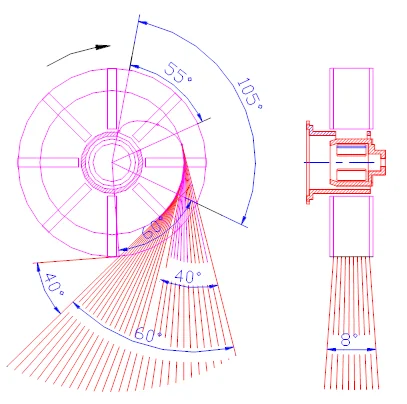

When the impeller of the shot blasting machine rotates at a high speed, it is driven by the shot splitter wheel to rotate, and is thrown out of the directional sleeve window. After being accelerated by the blade, it is thrown to the workpiece to achieve the purpose of cleaning.
Dust removal system
The dusty airflow generated during the operation of the shot blasting machine enters the dust remover through the connecting pipe. After the dusty airflow passes through the dust remover housing, the wind speed decreases, large particles of dust settle in the ash hopper, and the airflow with small particles of dust enters the dust remover through the dust-removing bag, it conforms to national environmental protection standards.
Specifications
Type | Q3516 |
Cleaning workpiece size | 800*300*300mm |
Turntable loading weight | 500kg |
Turntable diameter | 1600mm |
Lifting capacity of elevator | 22t/h |
Separation quantity of separator | 22t/h |
First loading capacity | 600kg |
Ventilation volume | 2800m3/h |
External dimension | 3450*3400*4200mm |
Total Power | 21.37kw |
Application
Rotary table shot blast machine is ideal for parts of different sizes, shapes and geometries. It is ideal for cleaning surface, cleaning, deburring, desand castings, micro handling, roughing surface, etc.
