UL773 Standard led street light photocell / outdoor night light sensor for high end LED light LC 10D
UL773 Standard led street light photocell / outdoor night light sensor for high-end LED light LC-10D

UL773 Standard led street light photocell / outdoor night light sensor for high end LED light LC 10D

Share on (1600699055963):


Price:

Quantity:


Product Overview

Description

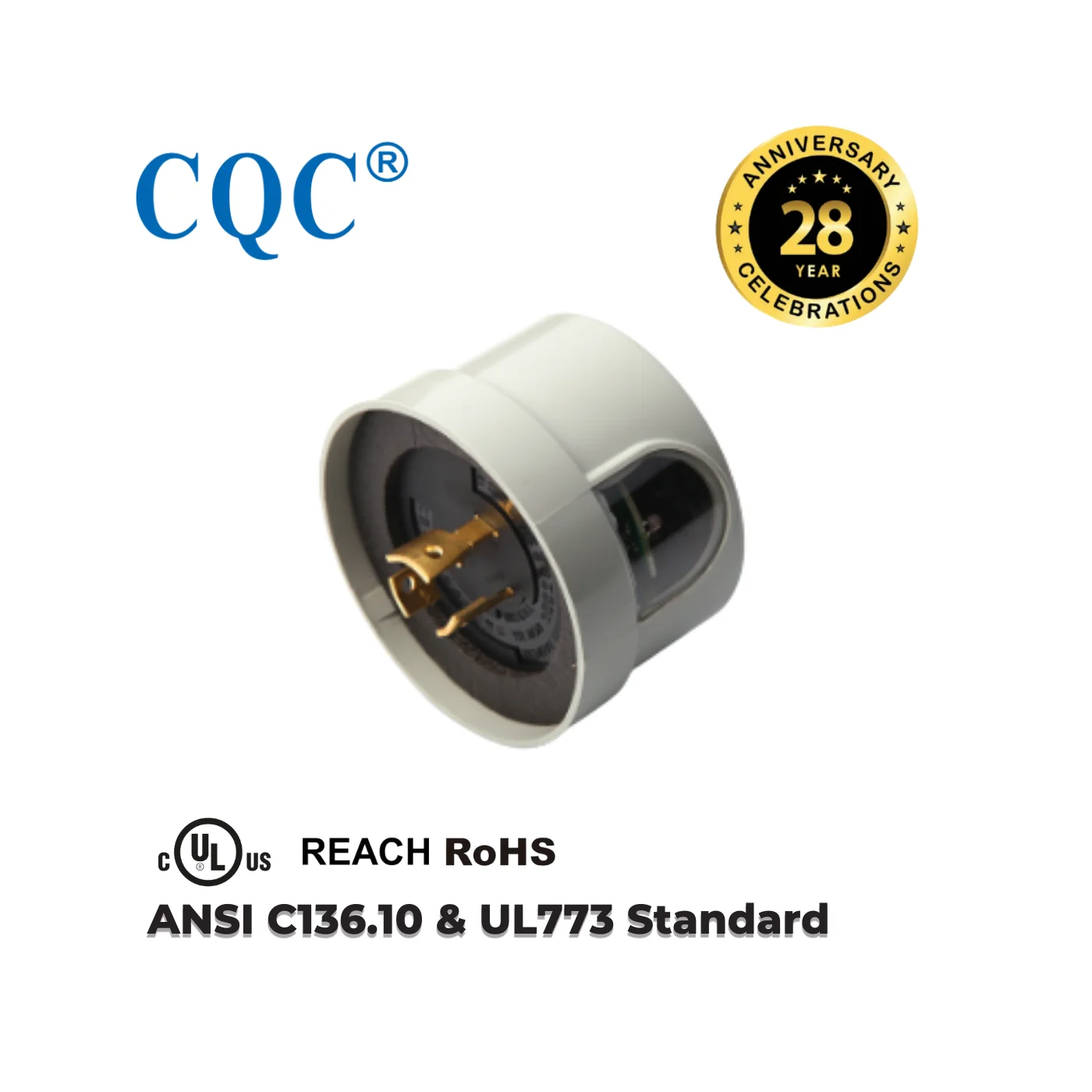

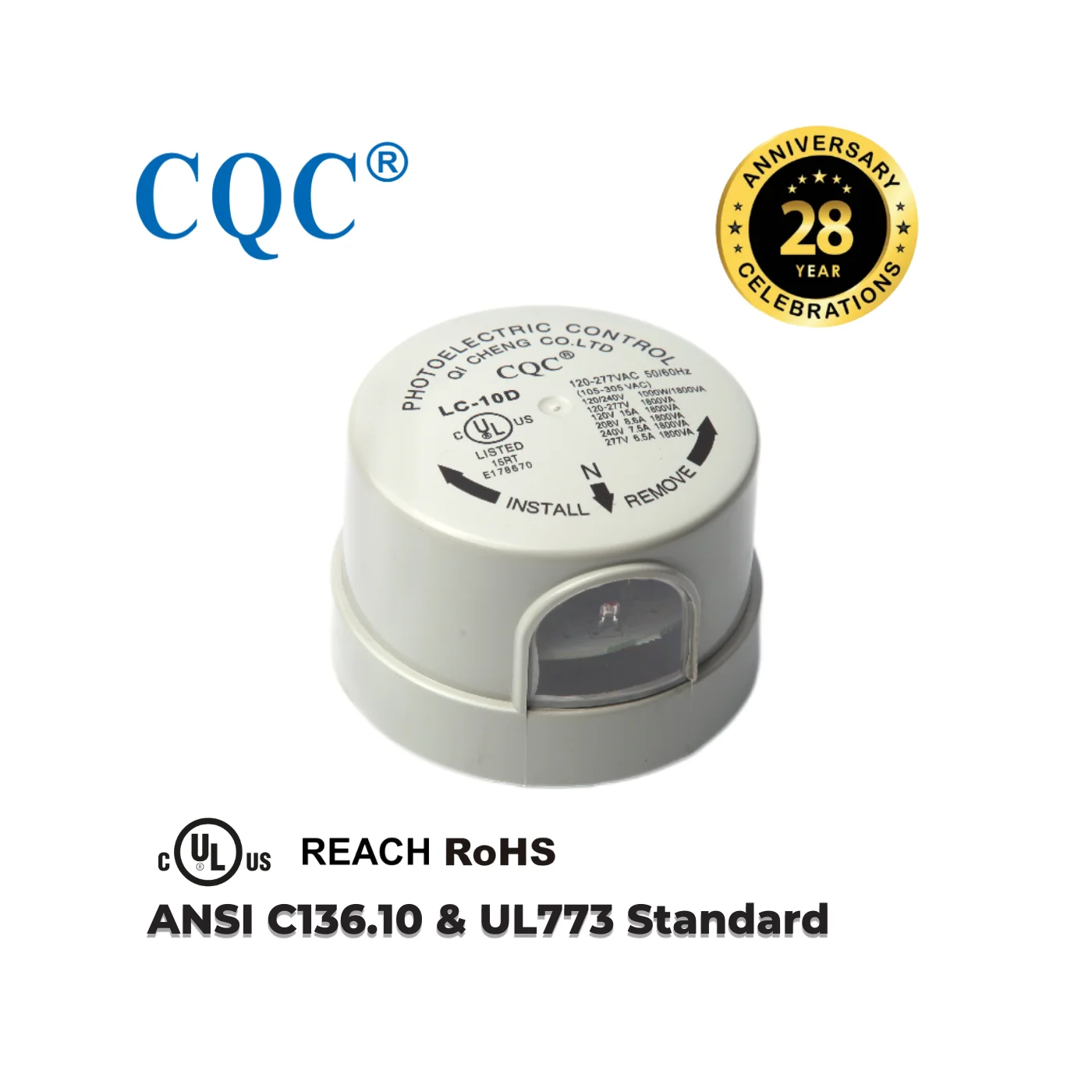

High-precision outdoor light locking-type sensor/photocontrol/photocell used for high-end led street lighting fixture


PRODUCT PRESENTATION




● Volts & Cover Color – 50/60Hz
- Gray standard for 120VAC
- Maroon standard for 240VAC
- Blue standard for 120/240VAC (105-305VAC)
● Turn-ON Light Level: 10-16 Lux
● Turn ON/OFF Ratio: 1:1.5 to 4
● Time Delay: 3-15 sec
● Operating Temperature: -40℃ to +70℃
● Relay: 30A
● MOV Surge Protection: 90/190J/380J(10/1000us)
● Energy Consumption: Less than 1Watt（120V<0.5W）
● Electrical Life: >5000 cycles
● Sensor Type: Silicon Photocell
● Housing: UV stabilized PC
● Failure Mode: Fail ON
● Size: 80mm,74mm (suitable for North America market)

● UL Listed. Reference No.: E178670
● ANSI C136.10 & UL773 Standard

● Rated Load:


Code
Voltage (V)
Tungsten (w)
Ballast (VA)
10D127
120-240
1000
1800 (HID)
10D128
120-240
1000
1800 (HID)
10D3
120-277
1000
1800 (HID)
                   * 10D127/Ф74 , 10D128/Ф 80


CERTIFICATIONS


Our company has obtained the ISO9001 international quality system certification (including design and manufacture) issued by TUV Germany, and other international product safety certifications, such as CB,VDE,BVQI,UL,CUL.etc.










RELATED PRODUCTS


RECOMMENDED BY SELLER




LC-10R/2 LC-10/R
LC-10RS LC-10R/3


COMPANY INTRODUCTION


CQC/Qicheng Electrical Equipment Co.Ltd. was founded in 1994. In the year of 1998, we established our Sino-foreign joint venture Wenzhou Qicheng Distribution Electrical Equipment Co., Ltd. We are specialized in manufacturing and designing miniature circuit breaker, photo control, terminal block and the associated products. The products are exported to the middle and high end market throughout the world.
Our company has obtained the ISO9001 international quality system certification (including design and manufacture) issued by TUV Germany and has been identified as Zhejiang Small and Medium-sized Technology Enterprises, Patent Demonstration Enterprises and National Torch Major Project Implement Unit.
We are the pioneer in China obtained the internationally authoritative product safety certification of Germany VDE certificate for EU standard MCB and USA UL certificate for UL489 standard MCB.
We are also the leading company in China regarding R&D, manufacture and export of photo control. The photo control products have been UL certified as per UL773/773A and ANSI C136.10, ANSI C136.24 . ANSI C136.41 standards. Nowadays we are the photo control manufacturer who owns a long product line with multiple selections and almost all the items are UL certified.










PACKING & SHIPPING



Package

The factory carton package pic on tray.
Also support customized package.






Shipping

Our company delivers to many countries worldwide.
By air or by surface, you can choose the way you prefer.





FAQ



Q1: The history of your company?
A: CQC is founded in 1994. With 28 years' products development and ODM/OEM, we gained our own design patent and certifications of CB, CE, UL, TUV, RoHs, REACH, etc.

Q2: How to get a quotation?
A: Please send us: Product Model, Project Technical Requirement (For Reference) and Quantity. We will quote you asap.

Q3: What is our product warranty?
A: It is about 1 year to 12 years in general depending on different product.

Q4: Hong long is the lead time?
A: In general, it takes 3 to 5 weeks. If you’re expecting a specific lead time, please contact us for customizing your lead time.

Q5: How to find and test a suitable product before purchasing?
A: Our dedicated and professional team of engineers and customer support specialist are at hand to help you choose the best solution for your project. As well as we offer a sampling service for a range of CQC products. If you’d like to know more about how to order other product samples, please contact us.
