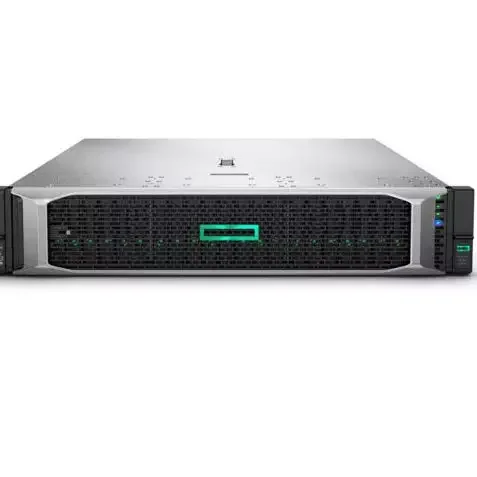

MODEL | HPE ProLiant DL380 Gen10 | |||
Processor | Intel® Xeon® Scalable 8100/8200 series Intel® Xeon® Scalable 6100/6200 series Intel® Xeon® Scalable 5100/5200 series Intel® Xeon® Scalable 4100/4200 series Intel® Xeon® Scalable 3100/3200 series | |||
Maximum Memory | 3.0 TB with 128 GB DDR4, depending on processor model; 6.0 TB with HPE 512GB 2666 Persistent Memory Kit, depending on processor model | |||
Memory Slots | 24 DIMM slots | |||
Drive Supported | 8 or 12 LFF SAS/SATA/SSD 8, 10, 16, 18 or 24 SFF SAS/SATA/SSD; 2 M.2 SATA SSD standard on primary riser, depending on configuration; 6 SFF rear drive optional or 3 LFF rear drive optional and 2 SFF or 2 Dual UFF rear drive optional; 20 SFF NVMe optional; NVMe support via Express Bay will limit maximum drive capacity | |||
Network Controller | HPE 1 Gb 331i Ethernet adapter 4-ports per controller and/or optional HPE FlexibleLOM, depending on model | |||
Storage controllers | HPE Smart Array S100i SR Gen10 SW 6Gb SATA array controller, Optional HPE Smart Array P408i-a / HPE Smart Array E208i-a / HPE Smart Array P816i-a /408i-P | |||
I/O & Ports | Standard embedded 4-port Gigabit Ethernet card ,10 Gigabit Ethernet adapters / 1 Gigabit Ethernet adapters / FlexibleLOM Adapters / Fibre Channel HBAs / 25 Gigabit Ethernet adapters | |||
Expansion slot | Standard 3XPCIe 3.0 available slot, maximum 8XPCIe available slot | |||
Power supplies | Choose 500W / 800W / 1600W | |||
Form Factor | Rack (2U) |
