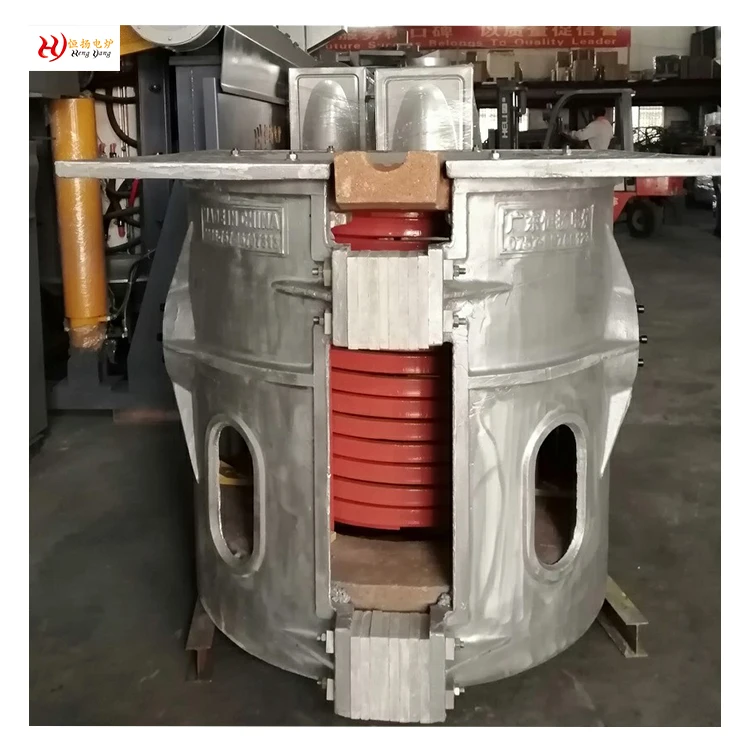

Modern Design Aluminium Scrap Melting Furnace Induction Furnace Metal Casting
- Category: >>>
- Supplier: Foshan Nanhai Hengyang Electric Furnace Co. Ltd.
Share on (1600699078720):
Product Overview
Description
PRODUCT DESCRIPTION
How the furnace working ?
The intermediate frequency melting furnace is mainly composed of a power supply, an furnace body with a induction coil and a crucible. Aluminium material will be put in the crucible built with refractory cement. After turned on power, an alternating magnetic field is generated in the induction coil, and then a induced eddy current is created to heat and melt aluminium material.
------ALUMINIUM MELTING FURNACE------

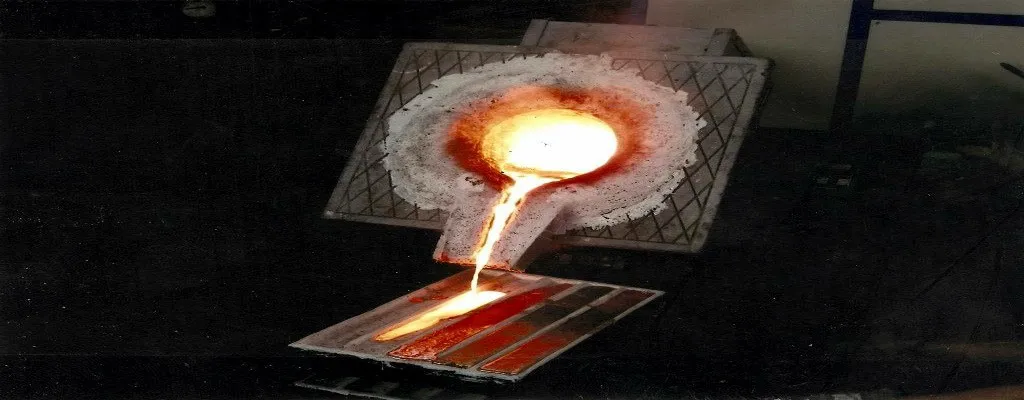

It can melting aluminium scrap into aluminum liquid for casting aluminum ingot, aluminum rod, aluminum wire, etc.
Tell us your raw materials
Furnace feature
1. Electricity fuel, various capacity 0.05T -10T, fast melting speed, 40-60 minutes /pot.
2. Low energy consumption. Induction melting is the most energy-saving melting method among electric melting furnaces.
3. Save raw material. Our furnace cause less burning loss. It can save at least 20-50 kilograms of steel raw materials per ton, compared with the gas, oil or coal-fired furnaces.
4. Reduce unqualified products by 1.5%. The application of a temperature control system can achieve precise temperature control to ensure the quality and capacity.
5. Environmental friendly. During working, there is no harmful gases and bright light created by furnaces, and workers will no longer be roasted and smoked by the coal stove under the scorching sun. It can meet the environmental requirements of govermment.
6. Easy to maintain,safe and stability.
6. Easy to maintain,safe and stability.
TECHNICAL PARAMETERS
Tell us what capacity you need
Parameters | Unite | Datas | Specification | |
Furnace body | Rated capacity | t | 1.5 | iron copper steel liquid |
aluminium output | t | 0.5 | aluminium liquid | |
working temperature | ºC | 0-700 | It is enought for aluminum | |
highest temperature | ºC | 1800 | ||
transformer capacity | KVA | 630 | ||
Transformer primary voltage | V | 540 | three-phase | |
Transformer | Transformer secondary voltage | V | 10 | three-phase |
IF power supply | Rated power | KW | 400 | |
Rated input current | A | 640 | ||
Rated input voltage | V | 380 | ||
IF voltage | V | 750 | ||
Startup success rate | % | 100 | ||
Rated working frequency | KHZ | 0.5-1 | ||
Working noise | db | ≤75 | ||
Comprehensive parameters | Melting rate | T/h | 0.5 | The melting rate is influence by charging |
Power consumption | KW.h/T | 480 | ||
Water cooling system | Water circulation flow | T/h | 35 |

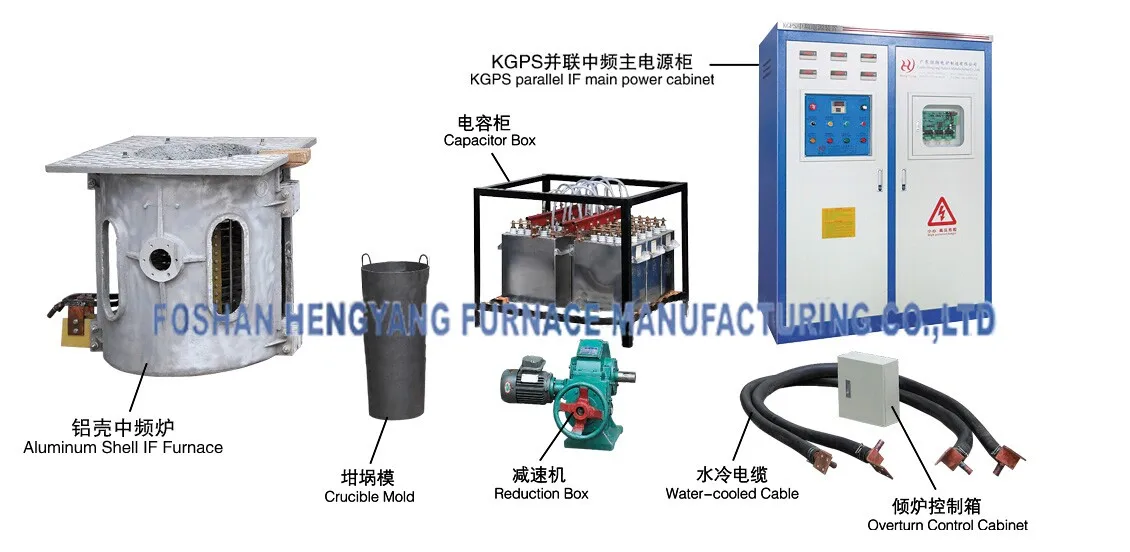

WHOLE SET DISPLAY
Basic parts: 7 items as the following pictures, including power supply cabinet, melting furnace body, capacitor, reducer, water-cooling cables, tilting control device, crucible.
Customized parts: furnace-leak alarm, hydraulic device, dust collector, etc.
Optional parts: water cooling tower, refractory cement, ladles, generator, metal analyzer， etc.
Ask us for detailed quotation!
SIMILAR PRODUCT

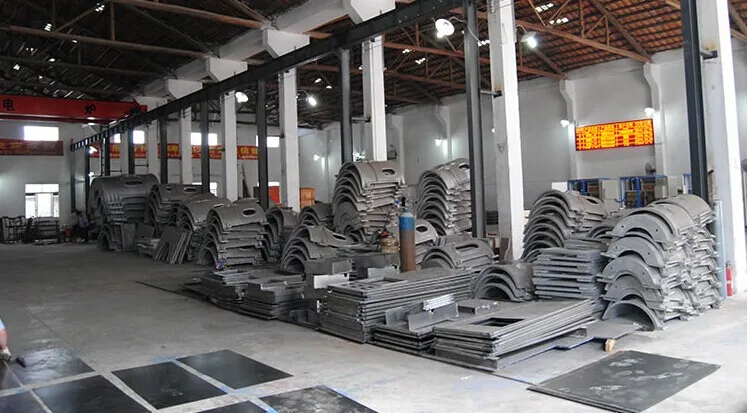

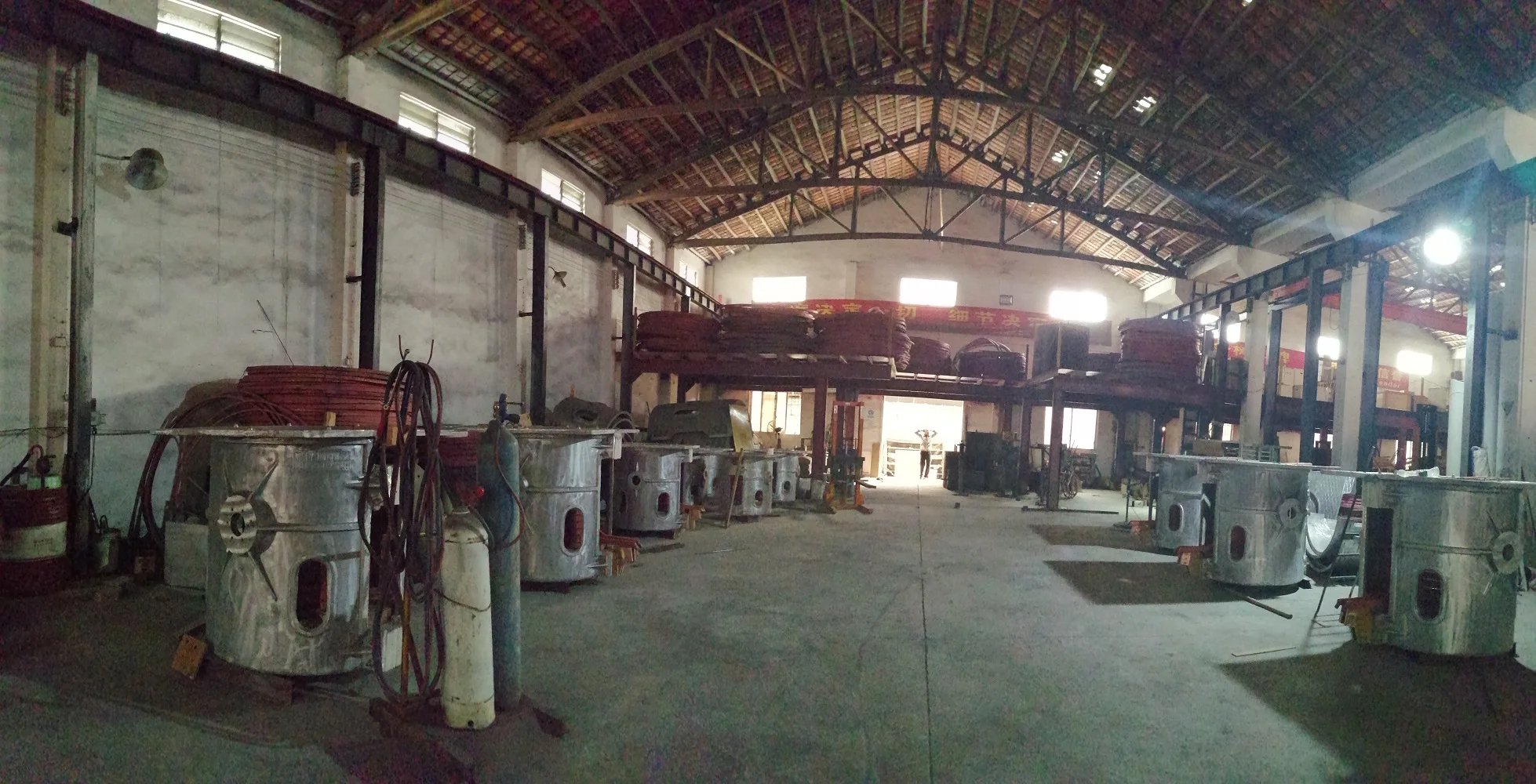

FACTORY VISITING
Our headquarter is located in Foshan city, Guangdong Province, China, and our brand office is in Cairo of Egypt, and we have one after-sale office in Zimbabwe.
Contact us to visit our factory to test machine

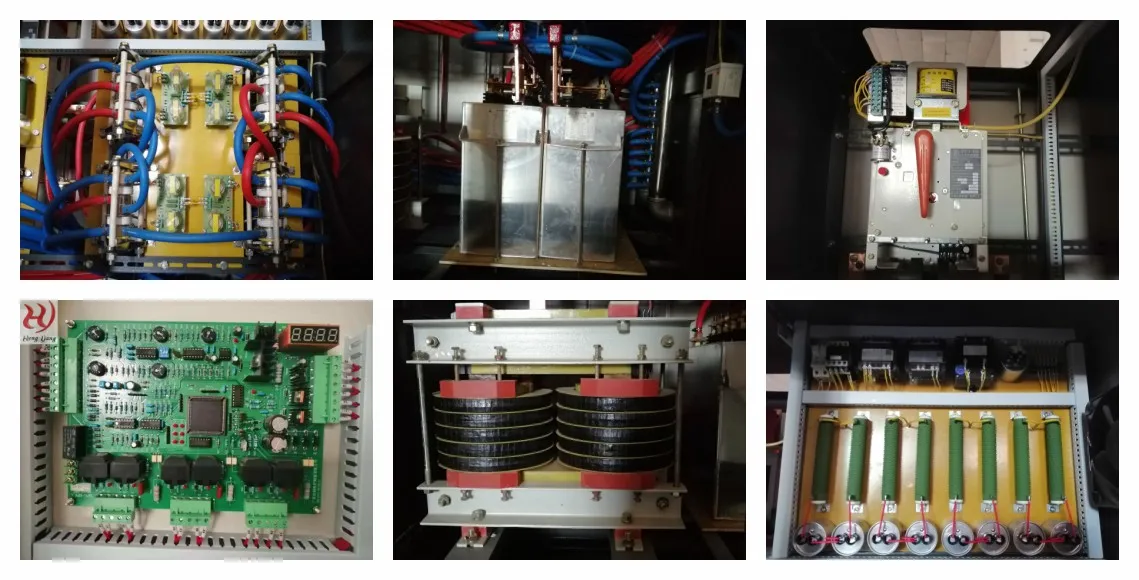

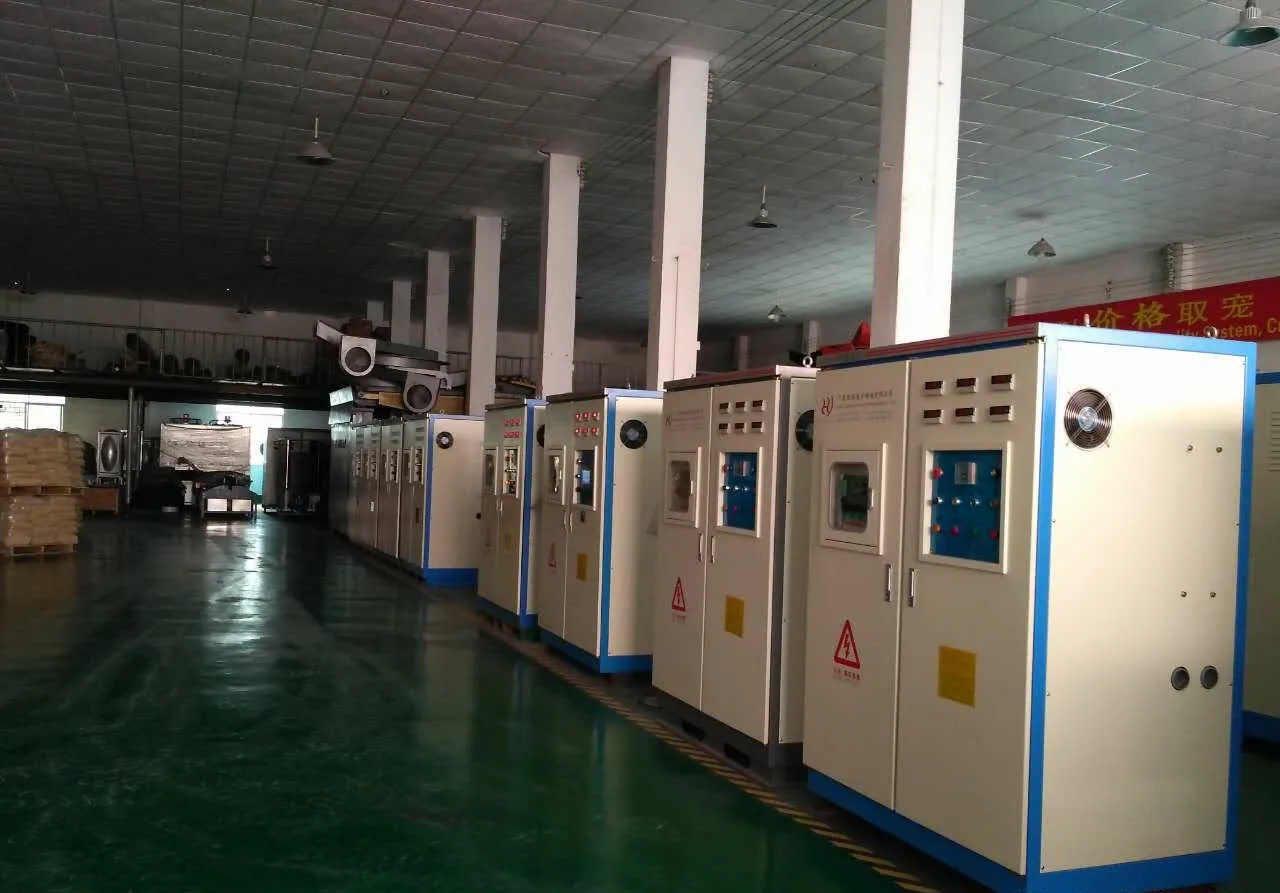

Detail 1 -power supply cabinet

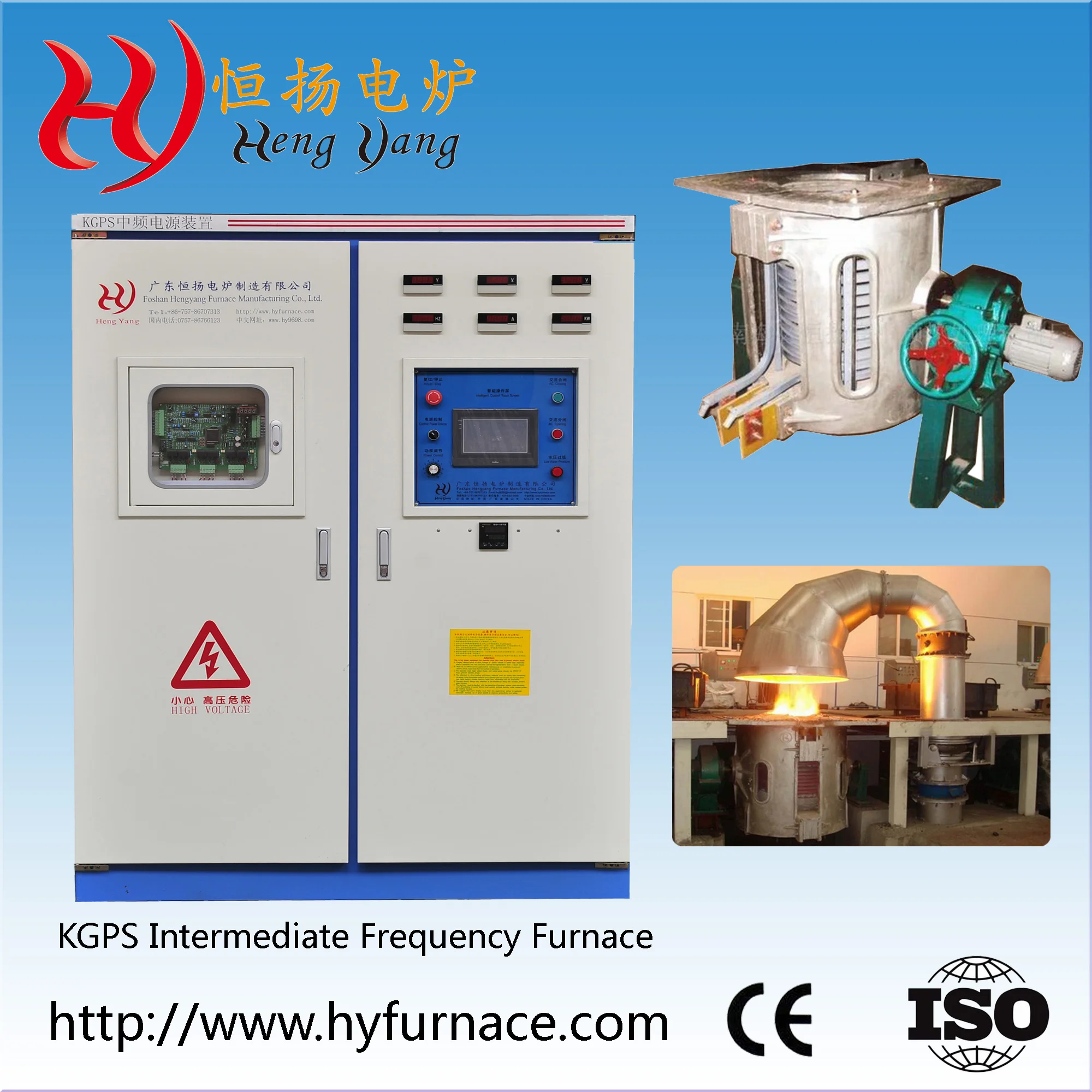

Power supply cabinet is the most important part of melting furnace. The following pictures are about the power supply for
50kg-2000kg metal melting furnace. You will be benifit by our high quality products and good after-sale service.
50kg-2000kg metal melting furnace. You will be benifit by our high quality products and good after-sale service.
1. All the thyristors and diodes are purchased from brand-name Chinese company-TECHSEM Group.
2. The copper bar is sandblased, passivated, being in line with standard.
3. The frame of the power supply cabinet is made of high strength cold rooled steel plate, being safe and strongth.
3. The frame of the power supply cabinet is made of high strength cold rooled steel plate, being safe and strongth.

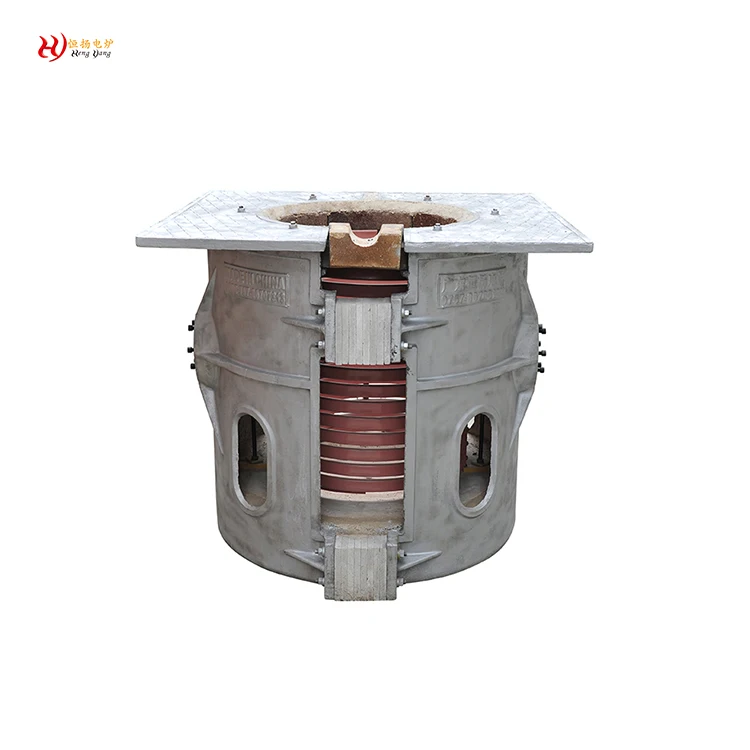

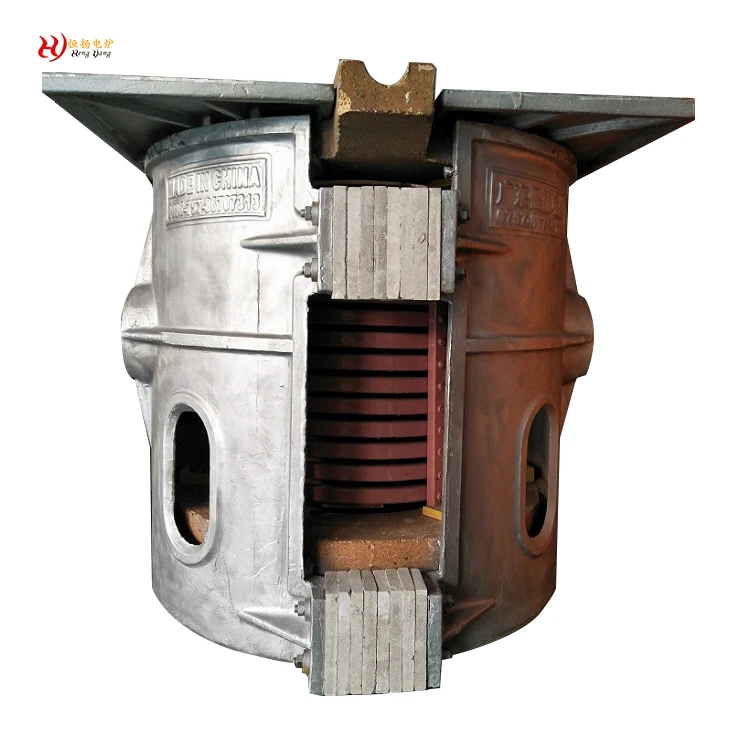

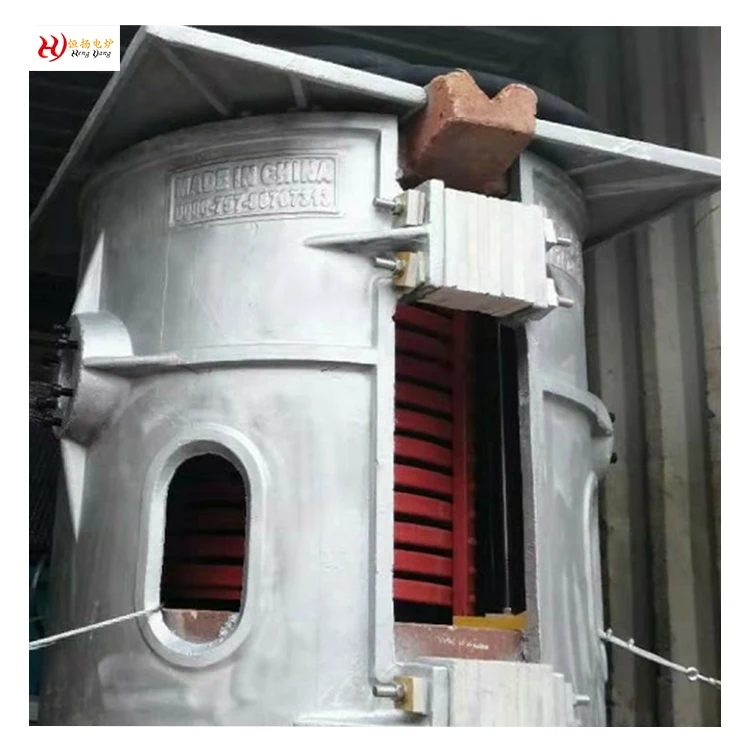

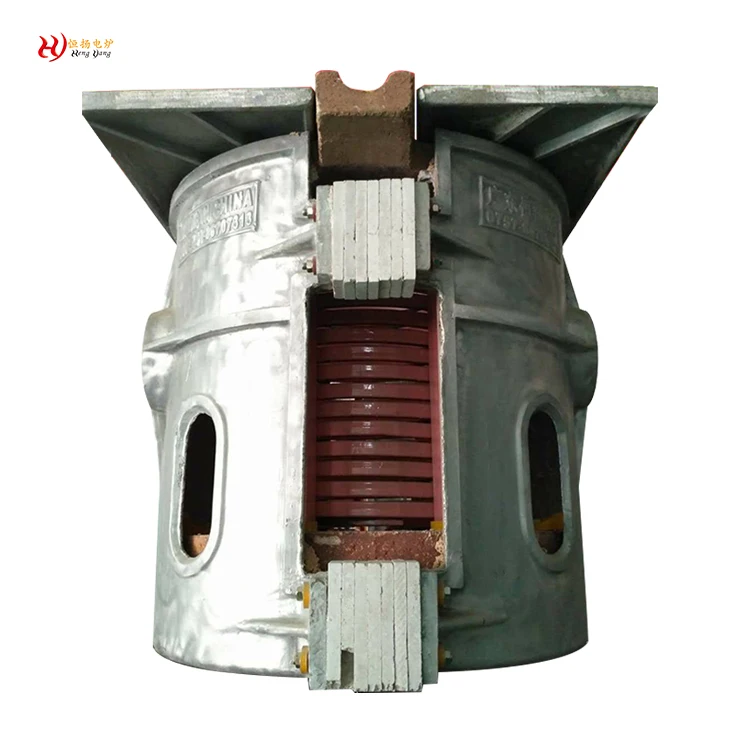

Detail 2 -aluminum shell furnace
Aluminum shell furnaces are suitable for 50-2000kg hourly capacity. Aluminum shell furnace need amall space. They are easy to operate, they can be manual operation.

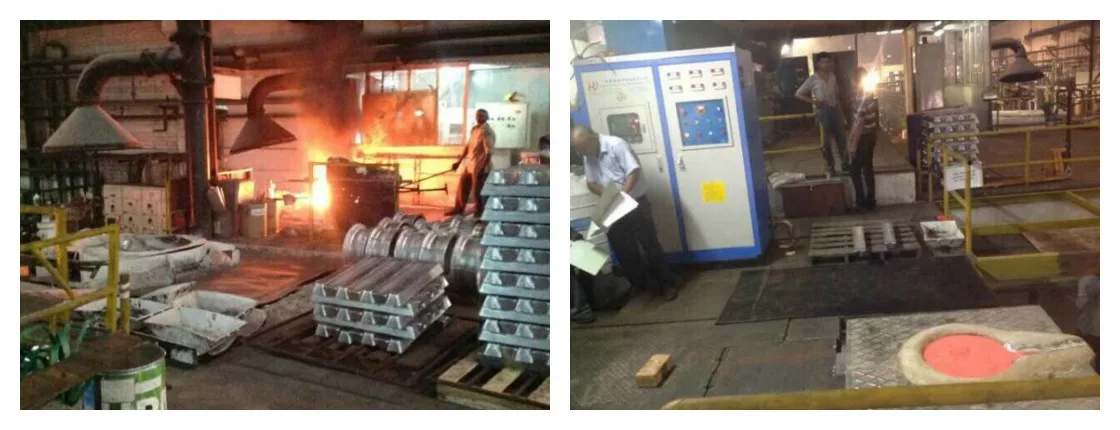

OPERATIONAL CASES
We have exported to more than 40 countries. Our main market are most countries from Africa and Asia ,and some countries from Europe and South America.
Contact us to see parts of our transaction record
*Countries from Africa, such as Egypt, Algeria, Ethiopia, Tanzania,Nigeria, Zambia, Zimbabwe, South Africa, etc,
*Countries from Asia, such as China, Philippines, Vietnam, Mongolia, Malaysia, Thailand, Indonesia, Bangladesh, Kazakhstan,Uzbekistan, Georgia, Armenia, Saudi Arabia, Jordan, Turkey, Iraq,
*Countries from Europe, such as Belarus, Ukraine, Russia.
*Countries from South America, such as Ecuador, Colombia, Venezuela, Peru, Brazil,Chile, Argentina.
*Countries from Asia, such as China, Philippines, Vietnam, Mongolia, Malaysia, Thailand, Indonesia, Bangladesh, Kazakhstan,Uzbekistan, Georgia, Armenia, Saudi Arabia, Jordan, Turkey, Iraq,
*Countries from Europe, such as Belarus, Ukraine, Russia.
*Countries from South America, such as Ecuador, Colombia, Venezuela, Peru, Brazil,Chile, Argentina.
COMPANY PROFILE
Foshan Hengyang Furnace Manufacturing Co., Ltd
Established in 1999, Foshan Hengyang Furnace Manufacturing Co., Ltd has been one of China leading manufacturer in medium frequecy induction furnace for melting and heating metal. Our headquarter is located in Foshan city, Guangdong Province, China, and our brand office is in Cairo of Egypt, and we have one after-sale office in Zimbabwe. Africa and Asia are our main market, as well as Europe and South America.
