Handi DIY 3018 Pro CNC router engraving machine Aluminum Frame with 775 spindle motor 12 24V
- Category: >>>
- Supplier: Changzhou Handi Motor Science And Technology Co. Ltd.
Share on (1600699096199):
Product Overview
Description

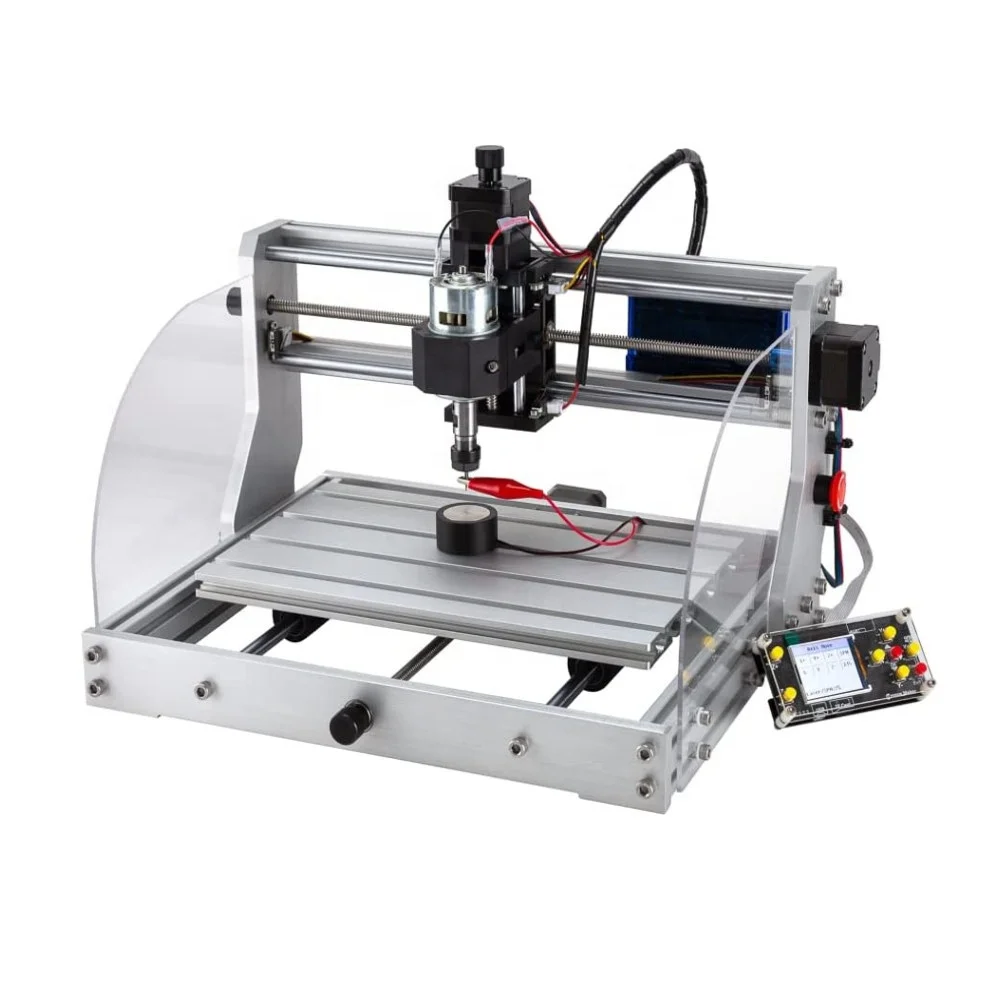

Handi DIY 3018 Pro CNC router engraving machine Aluminum Frame with 775 spindle motor 12-24V
Model Specification
Max. stroke | 270*155*45mm |
| Machinable material thickness | 45mm |

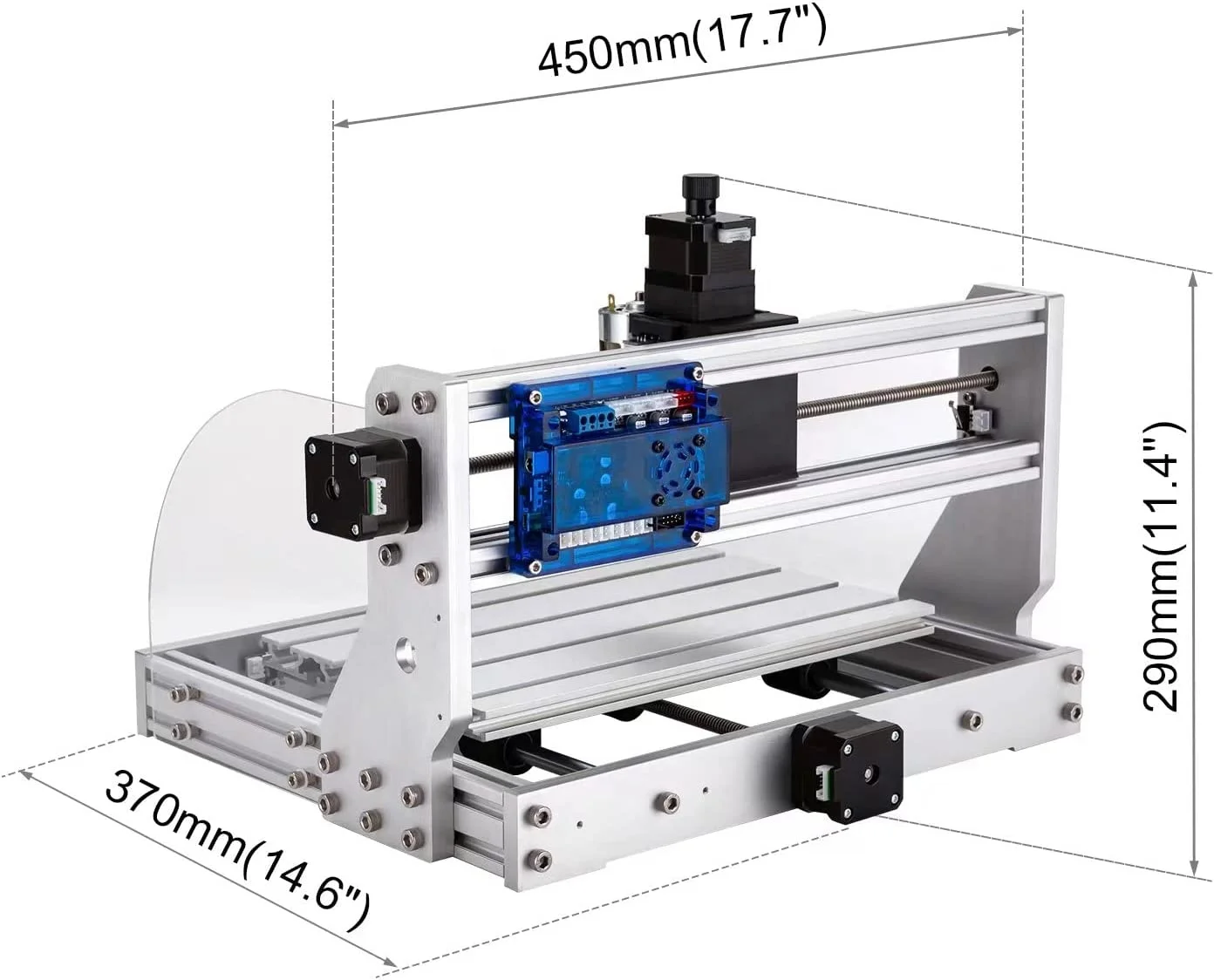

| Outline dimension | 450*370*290mm |
Frame Material | Aluminium alloy |
Rail type | Chrome plated shaft+linear bearing |
Screw type | T type srew,diameter 8mm,Thread pitch 2mm |
Mechnical resolution | XYZ-shaft:0.005mm/step |
| Positioning accuracy | 0.05mm |
Spindle motor | 775 spindle motor 12-24V |
RPM | 10000rpm/min |
Chuck type | ER11 |
XYZ motor | Stepper motor 2.0A 4.5N |
Stepper drive | High performance,integrated drive |
Feed rate | 2000mm/min |
Communicate interface | USB2.0 |
System requirement | WIN-XP/WIN-7/WIN-10 |
Order code | G code/.nc,.ncc,.tap,.cnc. |
Voltage | Input 110V-220V |
Operation environment | Temp.:5°C-40°C;Humdity:35%-80% |
Package weight&dimension | 520*450*280mm |
Weight | 10KG |
