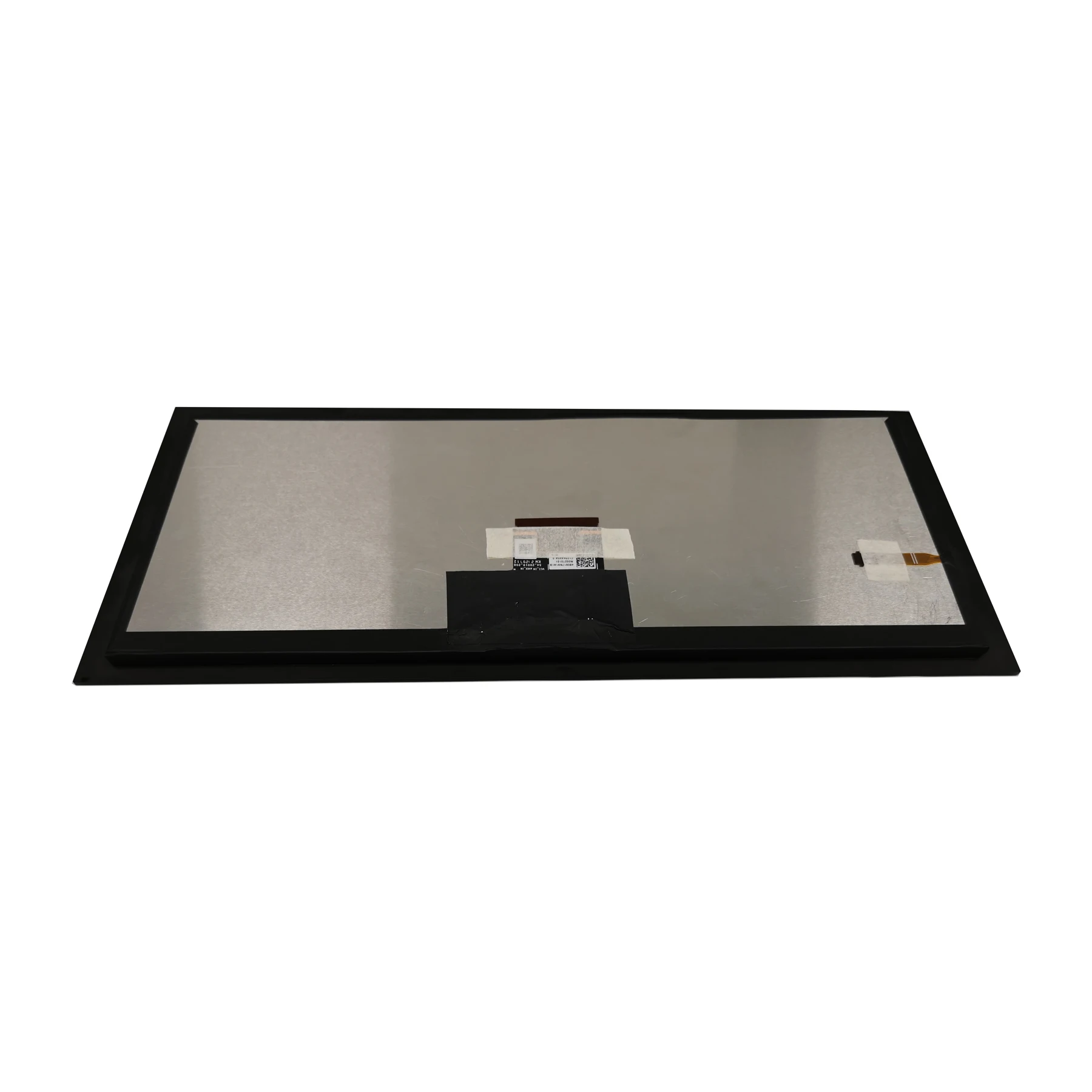

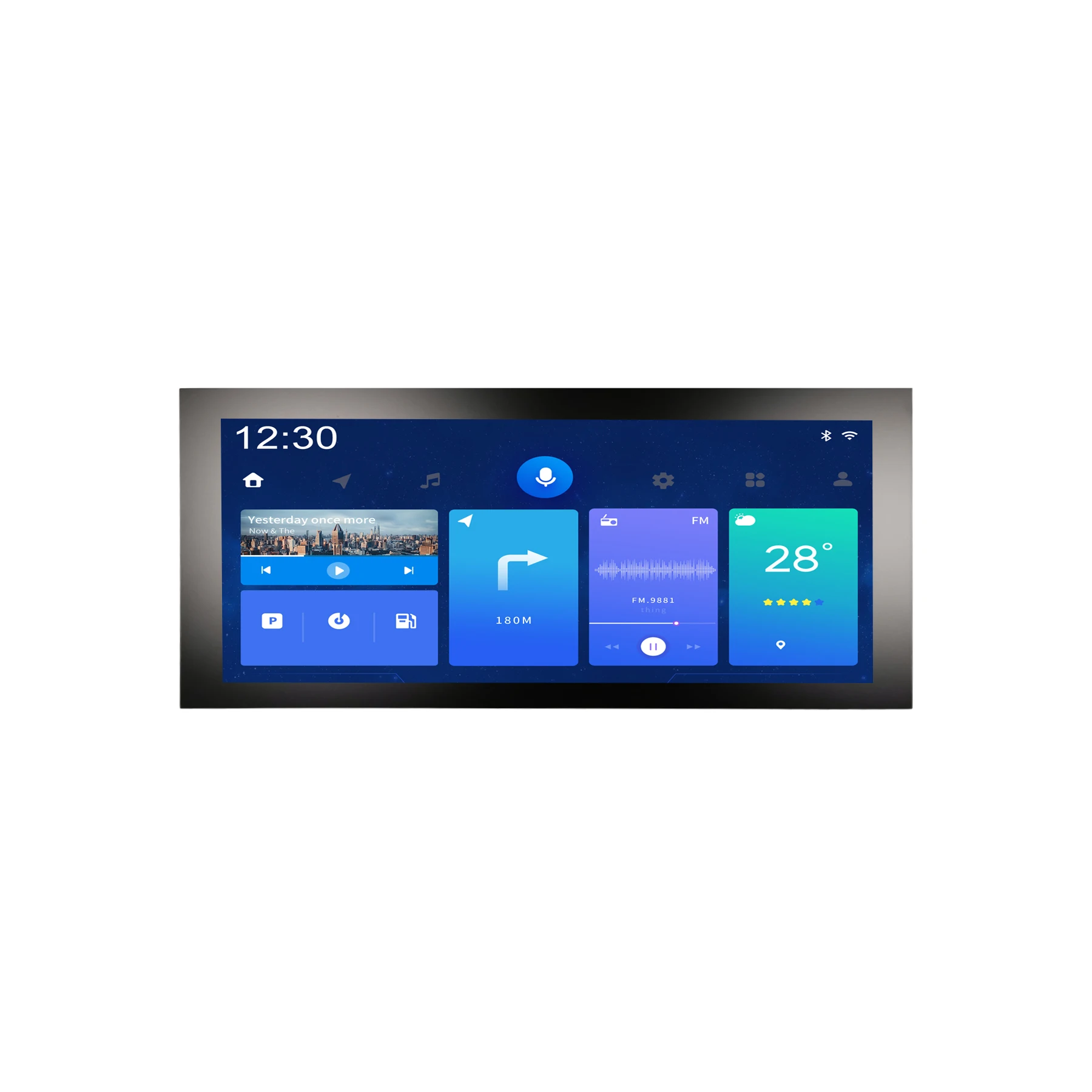

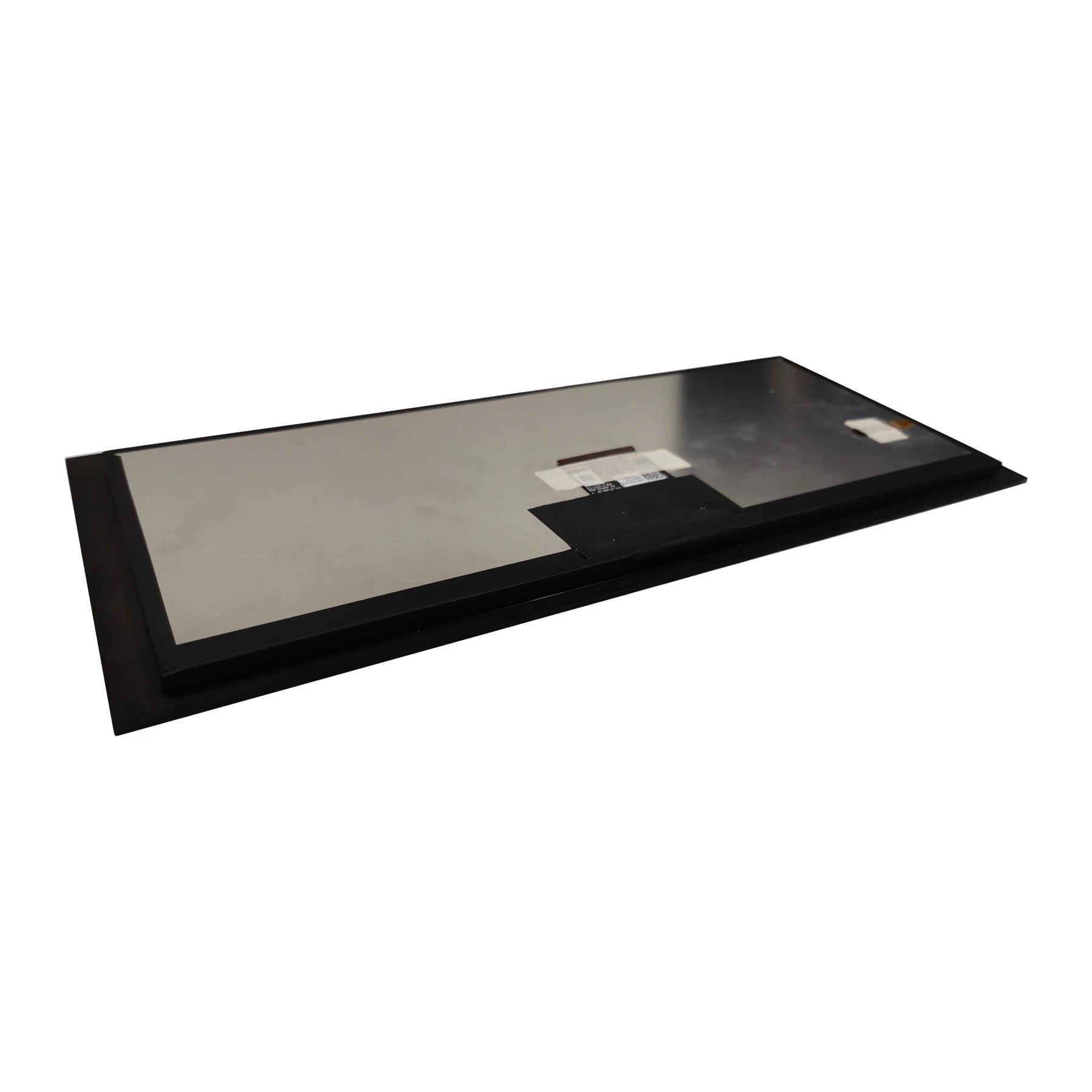

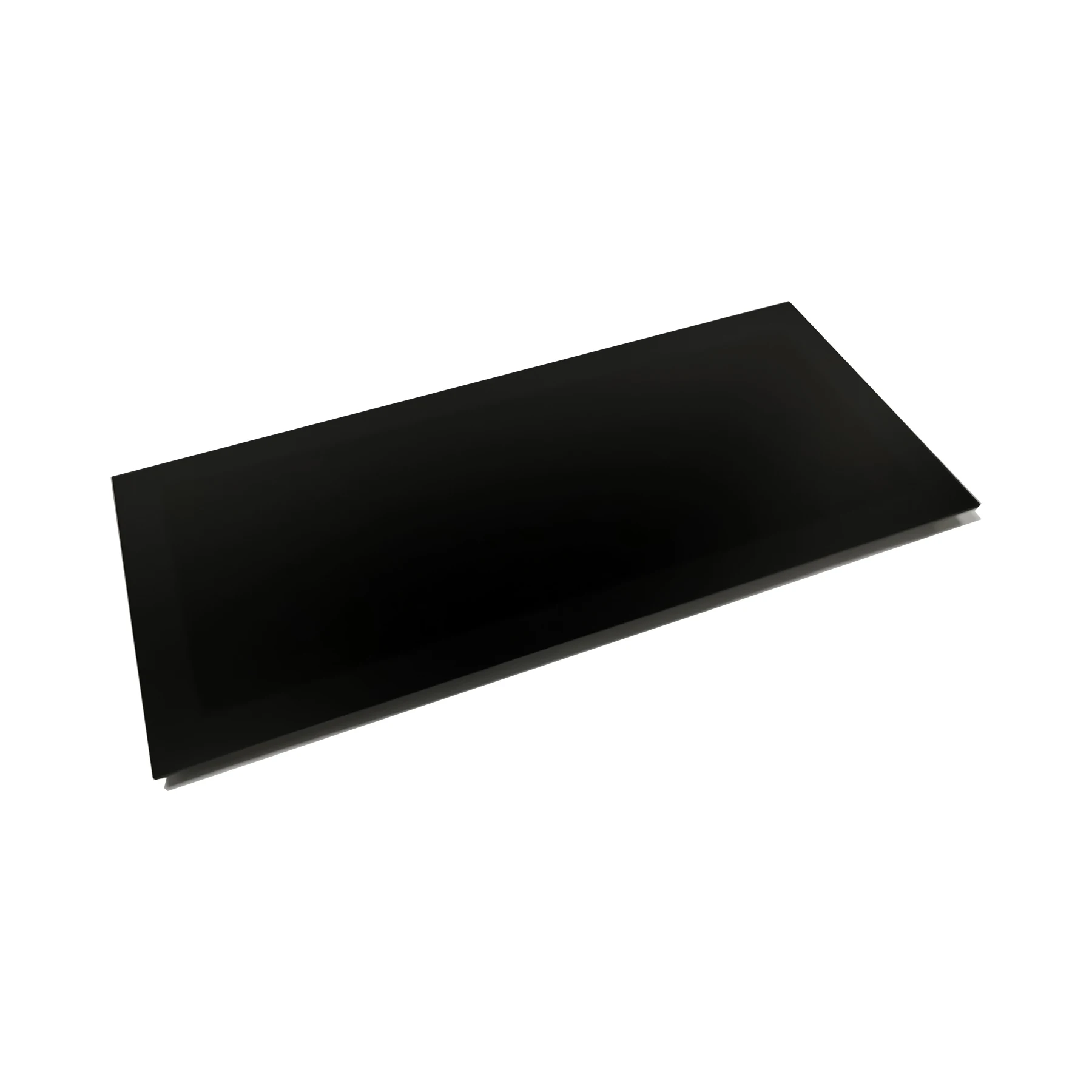

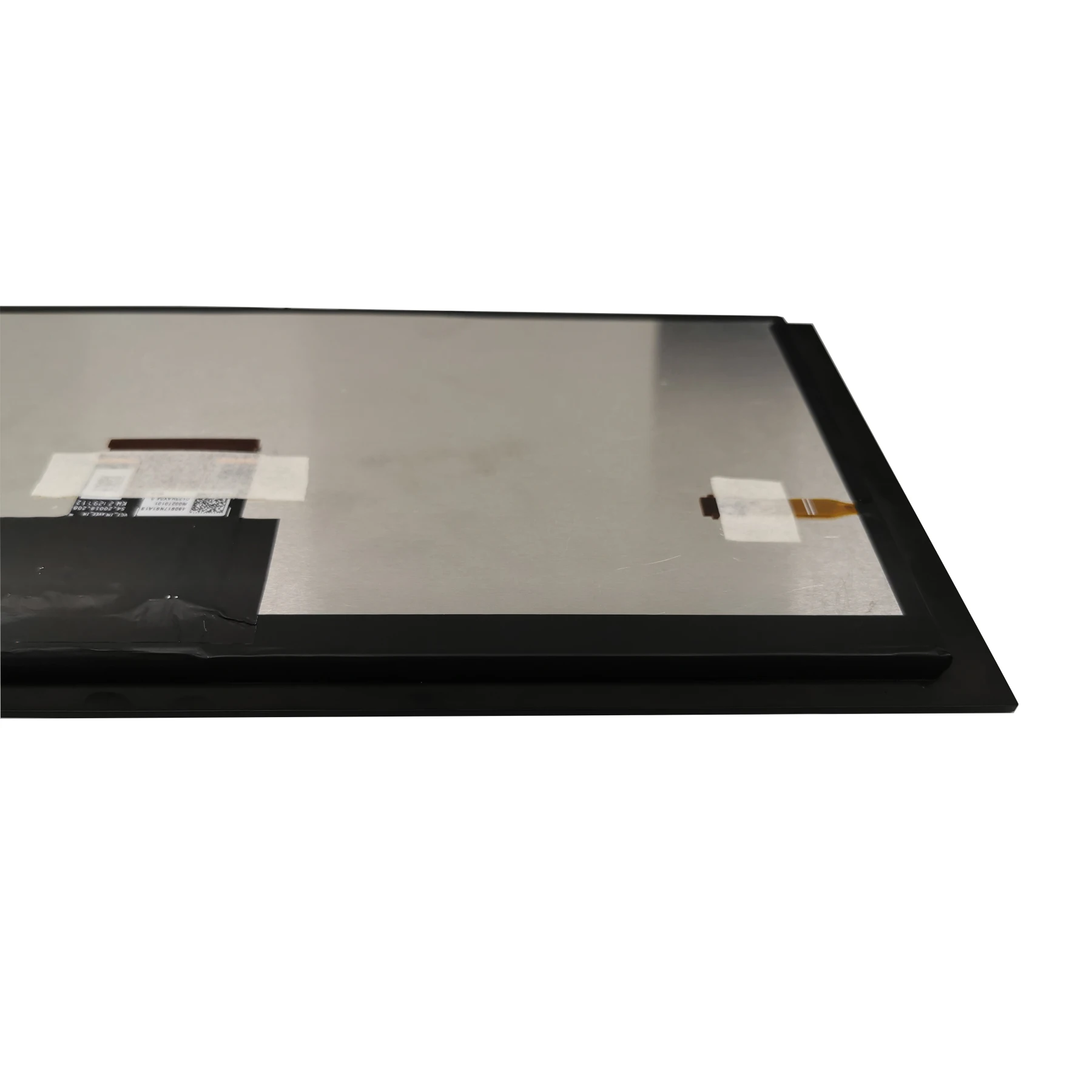

Open Cell Original AUO 12.3 Inch 1920*720 LVDS LCD Module Screen for Before Market Car central control
- Category: >>>
- Supplier: Shenzhen Aptus Technology Co. Ltd
Share on (1600699114253):
Product Overview
Description
Products Description
NO. | Item | Unit | Specification |
1 | Display Resolution | dot | 1920 RGB(H) x 720 (V) |
2 | Active Area | mm | 292.032 (H) x 109.512 (V) |
3 | Screen Size | inch | 12.3” (Diagonal) |
4 | Dot Pitch | μm | 152.1x152.1 |
5 | Color Configuration | -- | R. G. B. Stripe |
6 | Color Depth | -- | 16.7M Colors |
7 | Overall Dimension | mm | 296.032 (H) x 118.844 (V) x 1.03 (T) |
8 | Display Mode | -- | Normally Black |
9 | Surface Treatment | H | Hard Coating |
10 | Viewing Angle | deg. | 85/85/85/85 |
11 | Interface | 60Pin LVDS | |
12 | operation temperature | ℃ | -30~85 |
Related Products
Click the product "Model number" in the list to enter the corresponding product interface for details!If you feel that there are too many words and it is inconvenient to find the product you want, you can contact our sales staff.
Size | Model number | Resolution | Interface | Viewing angle (Typ.) | Brightness |
1.33" | 240xRGBx240 | 8BIT MCU | 80/80/80/80 | 200cd/m2 | |
1.44" | 128xRGBx128 | 4-Line Serial MCU | 70/70/65/60 | 200 cd/m2 | |
1.77" | 128xRGBx160 | 4 wire spi | 45/45/45/20 | 180 cd/m2 | |
2" | 240×RGB×320 | MPU 8 Bits | 80/80/80/80 | 180 cd/m2 | |
2.31" | 320xRGBx240 | 6-RGB | 70/70/70/60 | 180 cd/m2 | |
2.31" | 320xRGBx240 | SPI | 70/70/70/60 | 180 cd/m2 | |
2.4" | 240xRGBx320 | MPU 8 Bits | 70/70/70/60 | 200cd/m2 | |
2.4" | 240xRGBx320 | 4-LINE SPI | 80/80/80/80 | 200cd/m2 | |
2.4" | 240×RGB×320 | SPI | 80/80/80/80 | 220cd/m2 | |
2.8" | 240×RGB×320 | MPU 8 Bits | 70/60/70/70 | 180cd/m2 | |
3" | 360xRGBx640 | MIPI | Free | 230cd/m2 | |
3.4" | 800xRGBx800 | MIPI (3 data lanes) , FPC , 39 pins | 80/80/80/80 | 350cd/m2 | |
3.5" | 320×RGB×480 | MCU 16 Bits | 70/70/60/60 | 250cd/m2 | |
3.6" | 1024xRGBx768 | MIPI, 35 pins | 85/85/85/85 | 900 cd/m2 | |
4" | 480×RGB×800 | MIPI | 80/80/80/80 | 250Cd/m2 | |
4.3" | 800xRGBx480 | 40 pins LVDs | 80/80/80/80 | 800 cd/m2 | |
5" | 1080xRGBx1080 | MIPI (3 data lanes) , FPC | 80/80/80/80 | 400cd/m2 | |
5.1" | 480xRGBx480 | parallel RGB 24-bit | 80/80/80/80 | 500cd/m2 | |
7" | 720xRGBX720 | 40 pin LVDs | 80/80/80/80 | 500 cd/m2 | |
7" | 800xRGBx480 | 40 Pins TTL | 80/80/80/80 | 350 cd/m2 | |
7" | 800xRGBx480 | 40 Pins TTL | 80/80/80/80 | 350 cd/m2 | |
7" | 800xRGBx480 | 50pins TTL | 70/70/50/70 | 1000 cd/m2 | |
7" | 800xRGBx480 | 8bits LVDS | 80/80/80/80 | 800cd/m2 | |
7" | 800xRGBx480 | 60PIN FPC,24bit RGB,TN | 60/70/75/75 | 2500cd/m2 | |
7" | 800xRGBx480 | 50PIN FPC,24bit RGB | 50/70/70/70 | 500cd/m2 | |
7" | 1024xRGBx600 | 50 pin TTL | 70/70/60/70 | 1500cd/m2 | |
7" | 1200xRGBx1920 | MIPI | 80/80/80/80 | 400cd/m2 | |
7" | 1200xRGBx1920 | MIPI | 80/80/80/80 | 600cd/m2 | |
7" | 1280xRGBx800 | 40 pins LVDs FPC | 88/88/88/88 | 400cd/m2 | |
8.8" | 768xRGBx768 | LVDS | 85/85/85/85 | 400~1200 cd/m2 | |
9" | 800xRGBx480 | 50pins TTL | 70/70/50/70 | 1000 cd/m2 | |
10.1" | 1280xRGBx800 | 40 pins LVDS | 85/85/85/85 | 1000~1200 cd/m2 | |
10.1" | 1920xRGBx1080 | I2C (Up to 400kbits/sec) | 85/85/85/85 | 1100cd/m2 | |
10.1" | 1920xMONOx1080 | 40 Pins EDP | 80/80/80/80 | 500~4000 Cd/m2 | |
10.1" | 1920xRGBx1200 | 45Pins LVDS | 85/85/85/85 | 1500cd/m2 | |
10.4" | 1024xRGBx768 | 30Pins LVDS | 88/88/88/88 | 400~1200 cd/m2 | |
11.6" | 1920xRGBx1080 | 30Pins EDP | 85/85/85/85 | 400~1200 cd/m2 | |
15.6" | 1920xRGBx1080 | eDP (2 Lanes),30 pins | 85/85/85/85 | 300 cd/m² |
