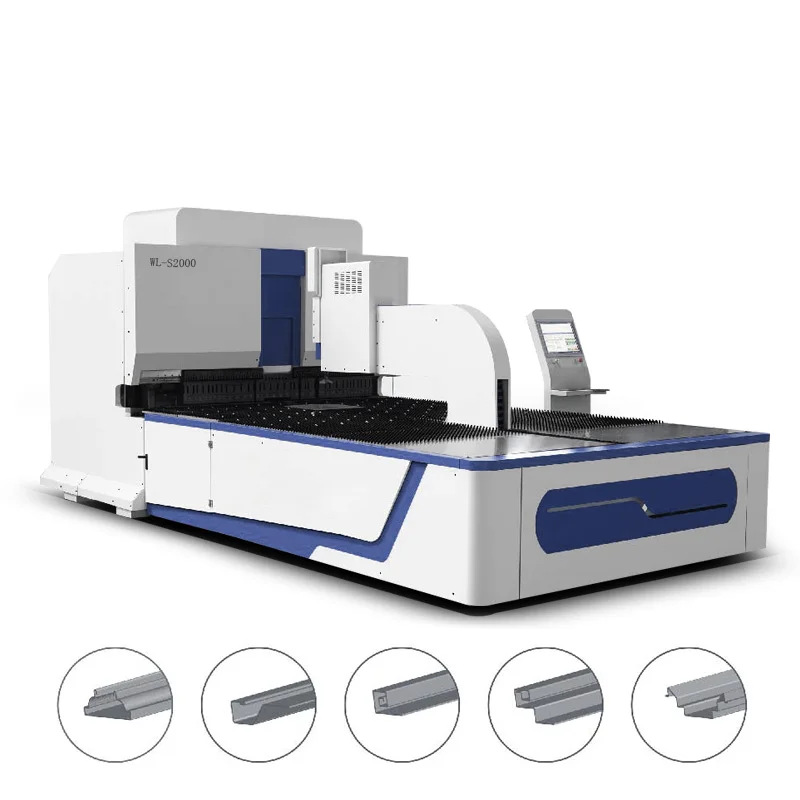

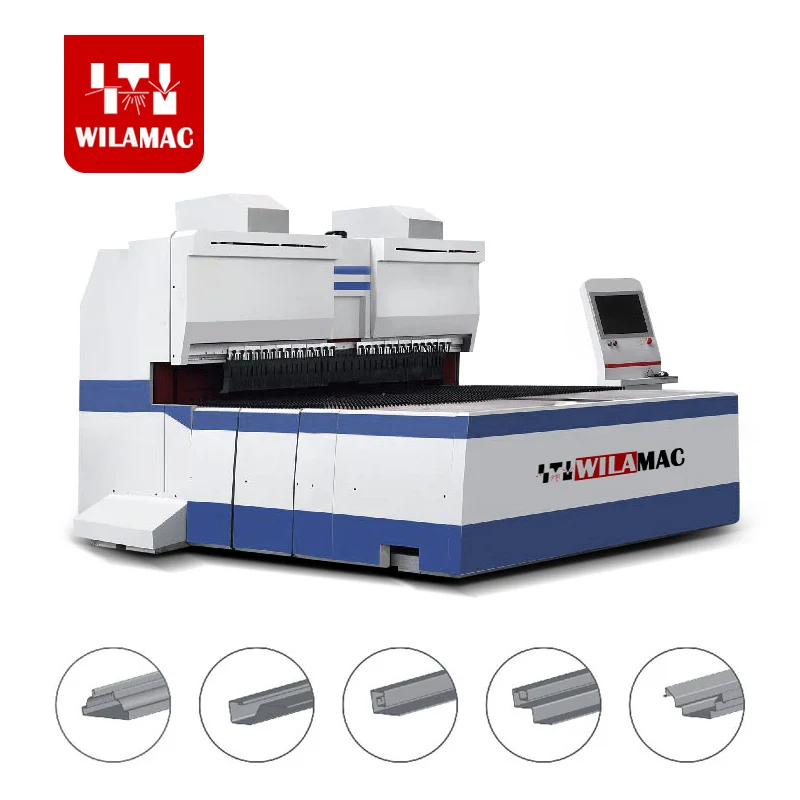

Intelligent Flexible Bending Center for bending plate
- Category: >>>
- Supplier: Maanshan Wila CNC Machine Tools Co. Ltd.
Share on (1600699136041):
Product Overview
Description
Product Description

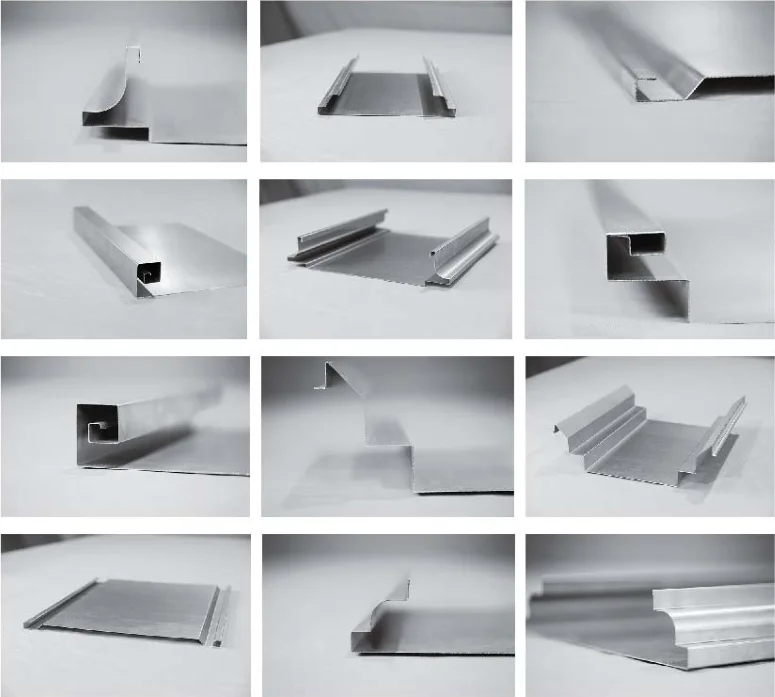

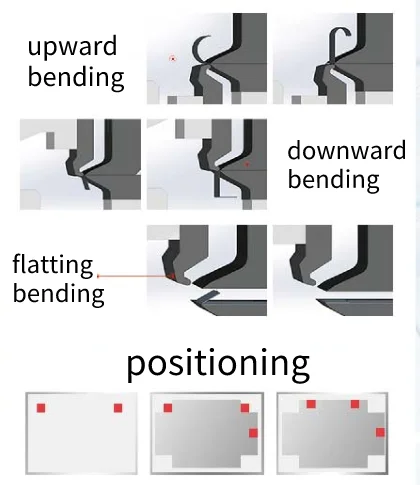

The intelligent flexible bending center is an automation product developed for the sheet metal industry to improve production efficiency, reduce labor intensity and enhance corporate image. The equipment has 4.0 industrial architecture intelligent flexibility, fast working speed, rapid workpiece forming, high consistency, low power consumption, simple daily maintenance, high degree of automation, and simple operation, it is suitable for processing stainless steel cold plate and aluminum Plate and other industries, can bend right angle, arc, up fold, down fold, dead edge and other complex shape combinations, and can be compatible with manual loading and unloading or robot loading and unloading or manipulator loading and unloading
Pressure Arm Type
sucked type
Using a pure electric servo full closed-loop system, the bending action is smooth, the mechanical operation coordination is high the combination of various complex actions can be realized smoothly, and the working efficiency of the whole machine is very high. The suction cup feeding mode can realize 360 * random rotation, and the loading and unloading operation is simple, which greatly improves the safety of operators, easy to operate and safe.
Technical parameter | Flexible bending center model | ||||
model | WL-1400 | WL-2000 | WL-2500 | ||
Feeding mode | sucked type | Pressure Arm Type | Pressure Arm Type | ||
Bending Length | 1400mm | 2000mm | 2500mm | ||
Max bending height | 170mm | 170mm | 170mm | ||
Min bending height | 4mm | 4mm | 4mm | ||
Min forming size of one side | 160mm | 180mm | 180mm | ||
Bending angle | 0-180° | 0-180° | 0-180° | ||
Number of control axes | 9 | 10 | 10 | ||

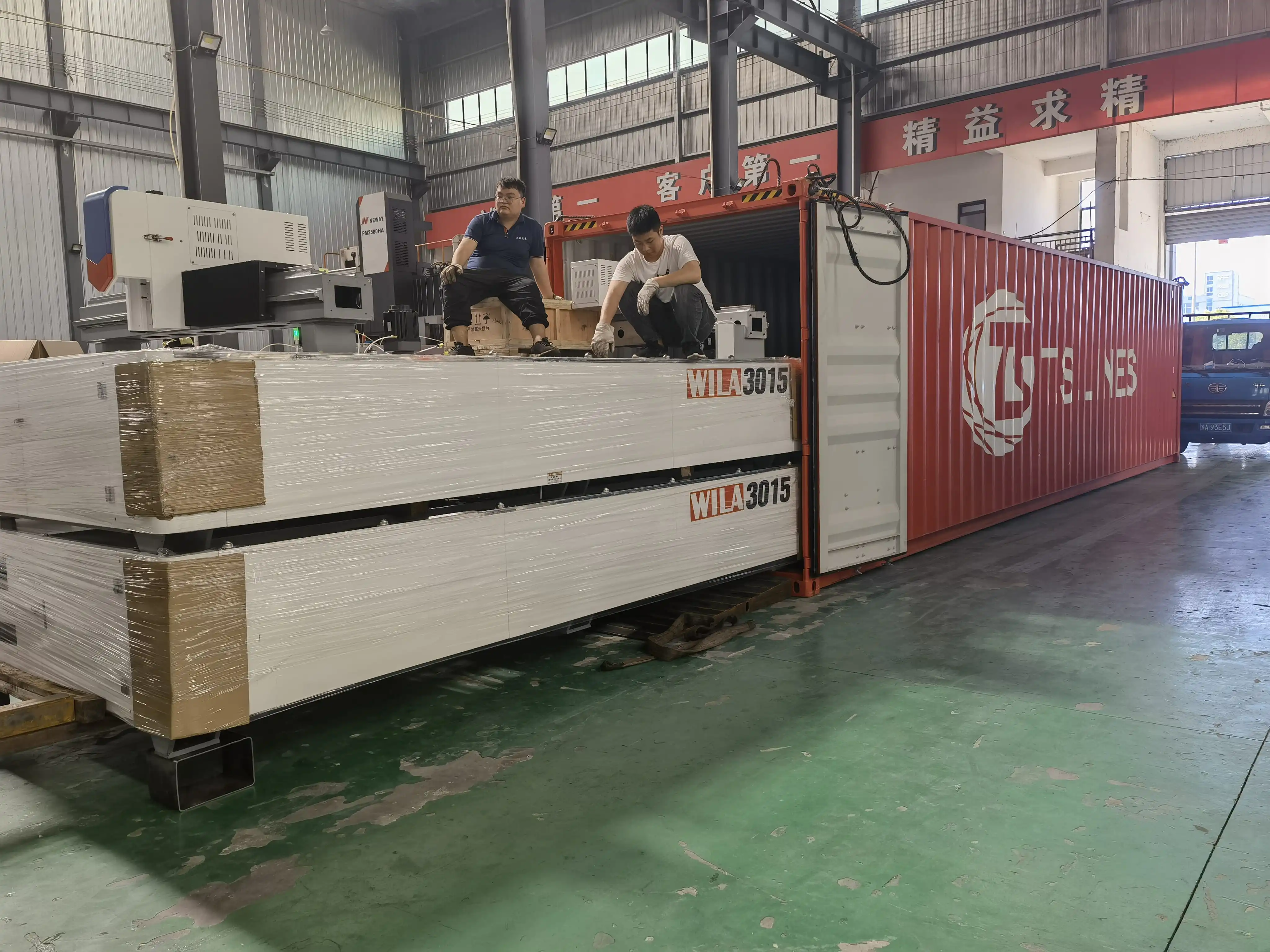

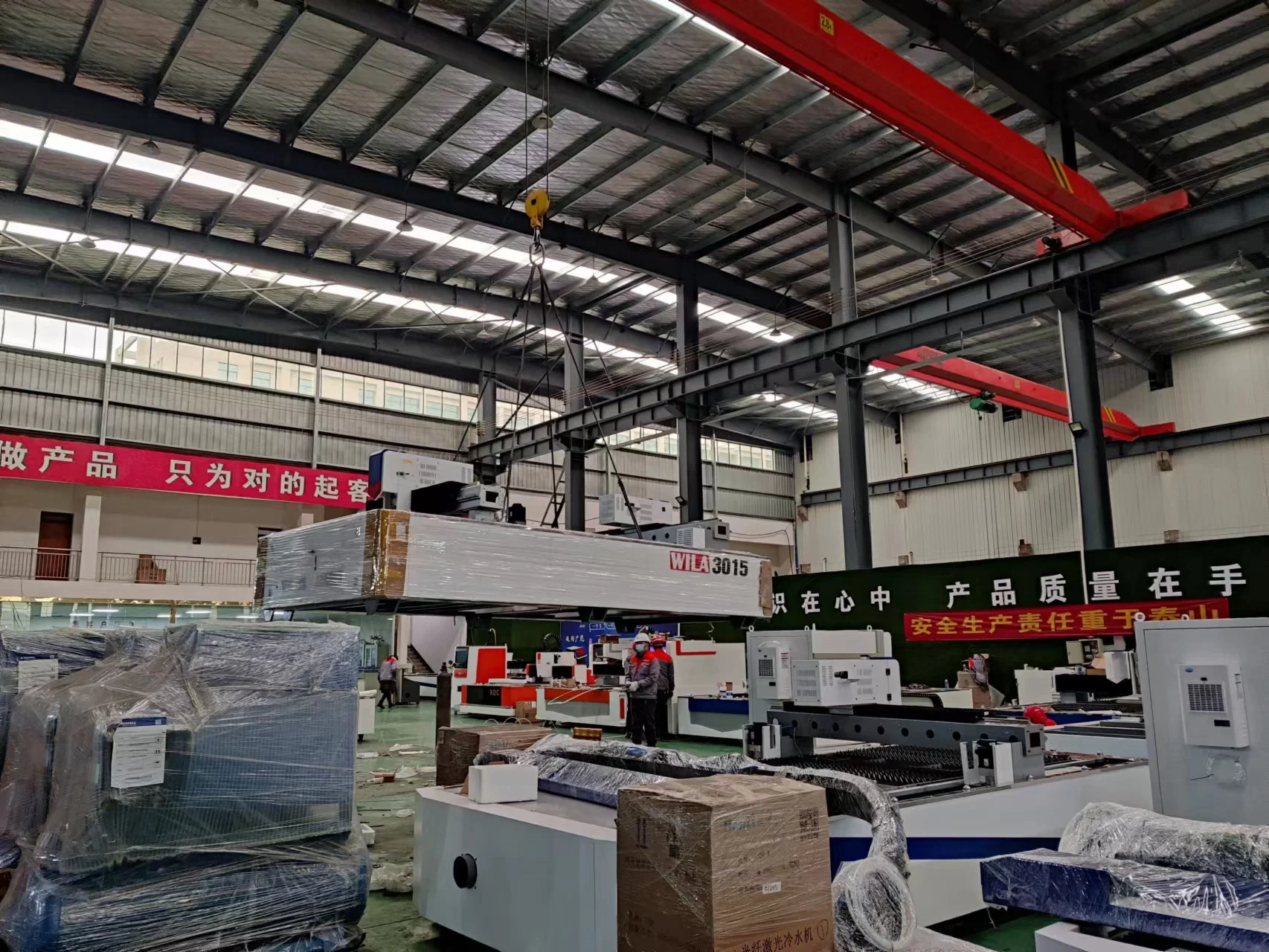

Packing & Delivery
Company Profile
Maanshan WILA CNC Machine Tools Co.,Ltd is located in Ma'anshan City, Anhui Province. The Nanjing Lukou International Airport can be reached within 30 kilometers, and the transportation is so convenient.
WILAMAC,over 15 years’ experience,mainly focuses on machine tools for sheet metal processing. In addition to machines for bending, shearing, punching, we offer machines for laser cutting. We provide customers with customized machines and solutions. Our goals: To offer cost-effective, reliable, and high-quality products. And we also can provide the CE certificate. And the products are exported to India, Malaysia, the United States, Germany, Italy and so many other countries.
Give WILAMAC the opportunity to show what our advanced machines & services can do for you and your company's success.Choose WILAMAC,embrace success.
WILAMAC,over 15 years’ experience,mainly focuses on machine tools for sheet metal processing. In addition to machines for bending, shearing, punching, we offer machines for laser cutting. We provide customers with customized machines and solutions. Our goals: To offer cost-effective, reliable, and high-quality products. And we also can provide the CE certificate. And the products are exported to India, Malaysia, the United States, Germany, Italy and so many other countries.
Give WILAMAC the opportunity to show what our advanced machines & services can do for you and your company's success.Choose WILAMAC,embrace success.
FAQ
How to buy the machine？
1. Consultation: After receiving your request, we will recommend the most suitable machine for you.
2. Quotation: We will provide you with a detailed quotation according to the consultation. You will get the most suitable specifications, best accessories and affordable prices.
3. Process evaluation: Both parties carefully evaluate all order details (specifications, technical parameters and business terms) to eliminate any misunderstandings.
4. Place an order: If you have no questions, we will send you a PI (proforma invoice). Then, we will sign a contract with you.
5. Production: We will arrange the brake production immediately after receiving your sales contract and deposit. The latest news about production will be updated during the production process and the buyer will be notified.
6. Quality control: The entire production process of the machine will be subject to regular inspections and strict quality control. The complete press brakes will be tested to ensure they work properly before leaving the factory.
7. Delivery: After the buyer confirms, we will arrange the delivery according to the terms in the contract.
8. Customs clearance: We will provide the necessary transportation documents for the buyers who press the sheet metal press brake and ensure smooth customs clearance.
9. Support and service: We will provide professional technical support and service by the brakes via telephone, email, Skype, WhatsApp, online real-time chat, and remote service. We also provide door-to-door service in some areas.
1. Consultation: After receiving your request, we will recommend the most suitable machine for you.
2. Quotation: We will provide you with a detailed quotation according to the consultation. You will get the most suitable specifications, best accessories and affordable prices.
3. Process evaluation: Both parties carefully evaluate all order details (specifications, technical parameters and business terms) to eliminate any misunderstandings.
4. Place an order: If you have no questions, we will send you a PI (proforma invoice). Then, we will sign a contract with you.
5. Production: We will arrange the brake production immediately after receiving your sales contract and deposit. The latest news about production will be updated during the production process and the buyer will be notified.
6. Quality control: The entire production process of the machine will be subject to regular inspections and strict quality control. The complete press brakes will be tested to ensure they work properly before leaving the factory.
7. Delivery: After the buyer confirms, we will arrange the delivery according to the terms in the contract.
8. Customs clearance: We will provide the necessary transportation documents for the buyers who press the sheet metal press brake and ensure smooth customs clearance.
9. Support and service: We will provide professional technical support and service by the brakes via telephone, email, Skype, WhatsApp, online real-time chat, and remote service. We also provide door-to-door service in some areas.
Request a free quotation! Contact now! Click the photo above!
