Huazhongcnc HCK4638 Horizontal CNC Lathe turning machine tools Linear Guideway Slant Bed Lathe for metal
- Category: >>>
- Supplier: Wuhan Huazhong Numerical Control Co. Ltd.
Share on (1600699138545):
Product Overview
Description
Product Overview

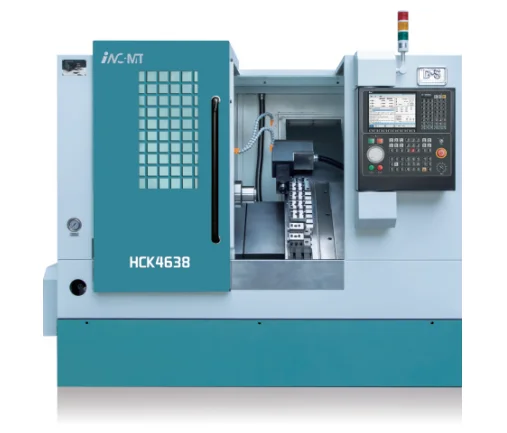

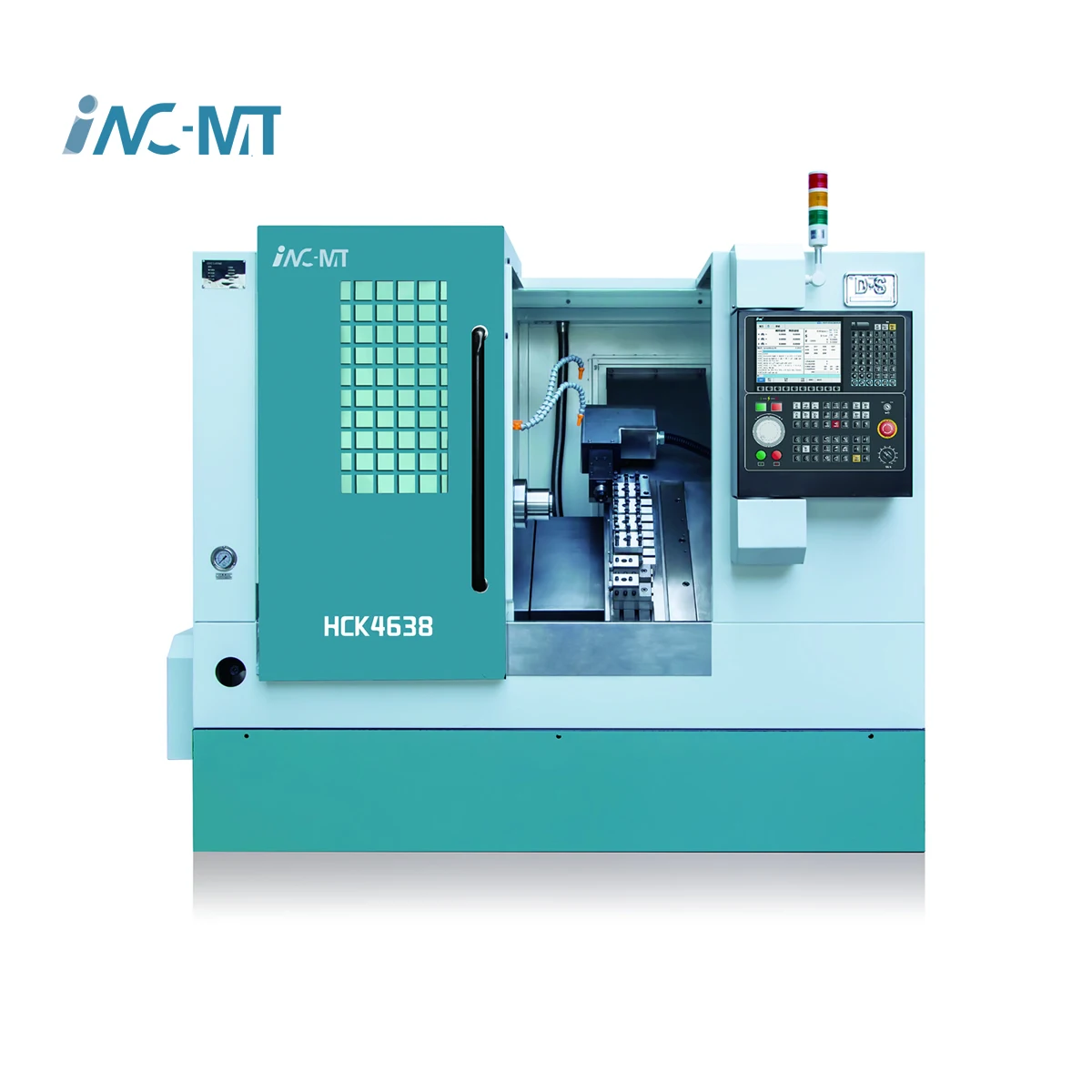

HCK4638
1-Integral fully enclosed protection, durable, stable operation,low noise, superior tosimilar products in waterproofing, oilproofing, dustproofing and safety performance
2-X and Z axis servo motors are directly connected by flexible couplings to highprecision ball screw. High precision and fixed ends of screw improve the supportrigidity of bearing seats, minimizing the deformation of screw caused by frequencyhigh-speed positioning and heavy-duty cutting.60-degree angular contact pairedhigh-precision bearings specific to high-quality screw are adopted.
3-The machine with electrical cabinet has good sealing performance,and use theheat exchanger to ensure the normal operation under the high temperature and highhumidity environment.
4-Chip conveyor has the advantages of smooth chip removal, small dimension, highefficiency, stable delivery, small contrast, and overload protection, etc.
4-Chip conveyor has the advantages of smooth chip removal, small dimension, highefficiency, stable delivery, small contrast, and overload protection, etc.
Features at a Glance
Servo Spindle
Hydraulic Collet
Gang Tool
Linear Guideway
Hydraulic Cylinder
Product Specification
Configuration | Configuration | HCK4638 | |||
Machining Capacity | Maximum Swing Over Bed | 460 | |||
2 | Maximum Swing Over Slide | 140 | |||
3 | Maximum Machining Length | 380 | |||
4 | Maximum Diameter of Bore | 50 | |||
Spindle | Spindle Head Type | A2-6 | A2-8 | ||
6 | Spindle Taper Hole | 62 | 86 | ||
7 | Spindle Speed Range | 60-3500 | |||
8 | Spindle Shift Mode | Servo Stepless | |||
Spindle Rated Torque | 35 | ||||
Main Motor Power | 5.5 | ||||
Main Motor Instantaneous Maximum | 7.5 | ||||
ChuckType (Stands rd/Option) | Hydraulic Chuck(Hollow/Solid) | ||||
ChuckSize | 8" | ||||
Feed Rate | Rapid Traverse Speed On X-axis | 25 | |||
Rapid Traverse Speed On Z-axis | 25 | ||||
Servo Motor Torque On X-axis | 7.5 | ||||
Servo MotorTorque On Z-axis | 7.5 | ||||
X-axis Travel | 460 | ||||
Z-axis Travel | 400 | ||||
Guideway Type | Linear Guideway | ||||
Turret | Turret Type | Gang Type | |||
Tool Size | 250*730 | ||||
Tailstock | Tailstock Type | 20*20 | |||
Tailstock Sleeve Diameter | / | ||||
Tailstock Sleeve Travel | / | ||||
Internal Taper of Tailstock Sleeve | / | ||||
Power Source | The Power Consumption | 13 | |||
Electric Current | 38 | ||||
Specification | Machine Weight | 3100 | |||
Machine Dimension | 2520*1780*1820 | ||||
Optional | Chip Conveyor | Option | |||
Applicable Products | Efficaent machining of disc products | ||||
Product Cofiguration

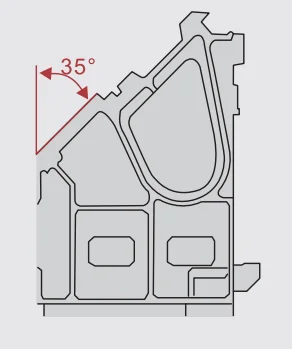

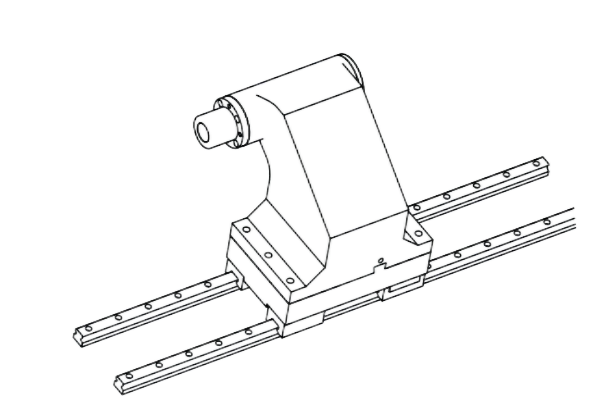

35°Integral
Slant Bed Structure

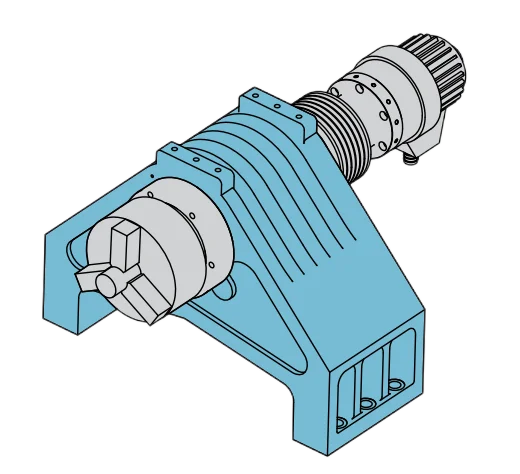

Spindle
rigidity
Spindle Speed:50-3000rpm
Spindle Power:
(continuous/maximum):5.5/7.5kW
Spindle taper:o62mm
The good strength of new design reduces the asssembly precision error,ensures the machine precison.
X/Z Axis Travel:
X/Z Axis Travel:
X/Z Axis Travel:200/1100mm
Rapid traverse of X/Z Axis: 20/25m/min

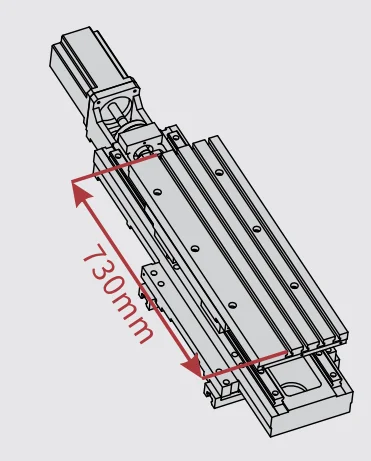

Carriage
The horizontal carriage length is 730mm;
can be installed with multiple rows of tool
holders,hasfast tool change speed and
high precision;can be equipped with high-
speed live tool and turretaccording to
userrequirements)forthe complex
products.
X/Z Axis Travel: 460/400mm
Rapid traverse ofX/Z Axis: 25/25m/min

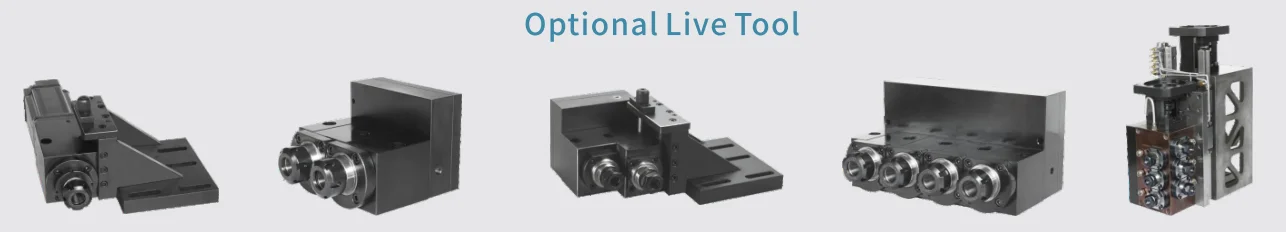

Optional Live Tool
CNC Controller
HNC8 CNC Controller
• 2-32 axis control • Support NCUC, M3, EtherCAT
• Support full-loop control
• High-speed, high-precision control
• Touch screen supported
HSV Servo Drive & Servo Motor
• 220V, HSV-160U Series motor drive • 380V, HSV-180UD motor drive
• 380V, HSV-180US spindle drive
• Support incremental, absolute encoder
• 200W-8.6KW feeding axis motor
• 380V, HSV-180US spindle drive
• Support incremental, absolute encoder
• 200W-8.6KW feeding axis motor
