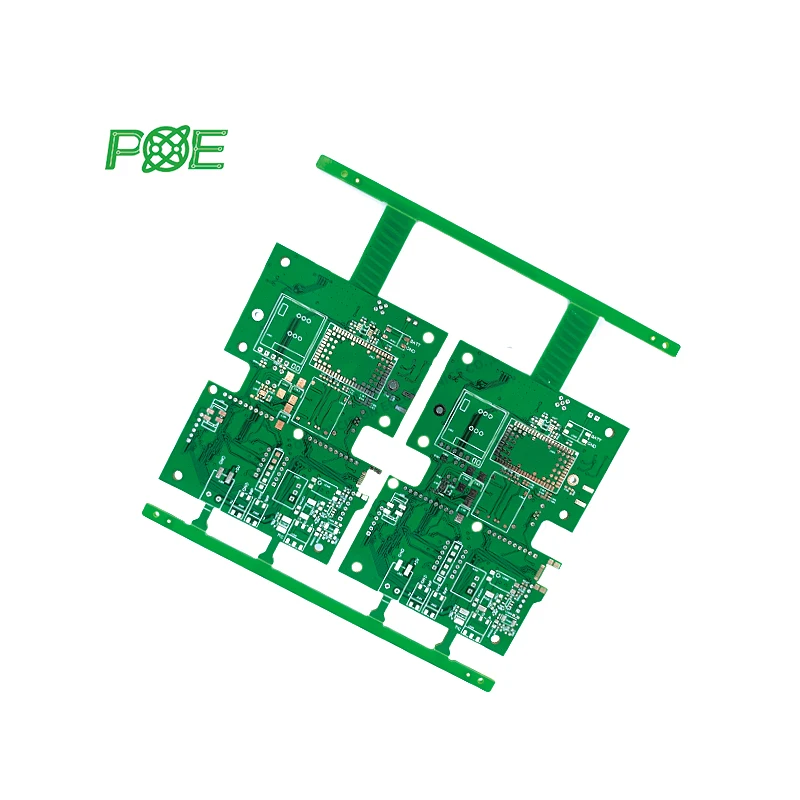

Ultra thin PCB assembly Multilayer PCBs Controller Board

Share on:

Price:$0.15 - $1.80
Price in USD:Details


Product Overview


Product Description

Capability (pcb)
Base Material
FR-4 / High TG FR-4 / Halogen Free material/Rogers/Arlon/Taconic/Teflon
Finised inner/outer copper thickness
Finished board thickness
Min hole size
Mechanical hole: 0.15mm
Laser hole: 0.1mm
Controlled Impedance
Plugging vias capability
Outline profile
Rout/ V-cut/ Bridge/ Stamp hole
Surface treatment
HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP…

Why Choose Us

1)Professional engineer team --help you to check design and do engineering before production
2)Rich experiences in PCB production industry--provide high quality and competitive price PCB.
3) After-sales service--every problem you have will get our professional advice and solution.
4) Constant follow up-- make us have the fast reaction of your requirement.
5) Inspected by the Inspection Institution

Company Profile


POE has the capability to manufacture PCB ranging from basic single sided PCB boards up to 40 layer Multi-layer PCB, and provide one stop turnkey PCB services, including PCB manufacturing, PCB assembling, PCBA components sourcing and PCBA function testing.

Product packaging

Our company is not only trying to give customers a good product but also pay attention to offering a complete and safe package. And here we prepare some personalized services for all the orders.

Common packaging:
PCB: Vacuum packaging with carton box
PCBA: ESD packaging with carton box

1.Confirming your shipping address is correct before delivery
2.Orders processed timely after the payment verification
3.Professional package. No worry about goods breakage.
4.Service transit time is upon different carrier, may vary particularly during holiday.


Q: What is needed for PCB/PCBA quotation?
A: For Bare PCB project, please provide Quantity, Gerber file and specification like material, surface finish treatment, copper thickness, board thickness, soldermask color and silkscreen color and other special specs.
For PCBA project, please provide above information as well, and BOM list, pick and place file.
If you need turnkey service include programming and functional testing etc, kindly contact us for more details.
Q: Are my files safe?
A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties. We are willing to sign NDA effect by customer side local law and promising to keep customers data in high confidential level.
Q: What’s your minimum of quantity(MOQ) ?
A: There is no MOQ in POE(PCBA shenzhen).We are able to handle small as well as large volume production with flexibility.
Q: How to calculate the shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
Q: What other service do you have?
A: We mainly focus on PCB+Assembly+Components sourcing service. Additionally, we can also provide programming, testing, cables, enclosure assembly service.
Q: Can we inspect quality during production?
A: Yes, we are open and transparent on each production process. We Welcome you visit our factory to inspect our production process.
Q: What is your testing policy and how you control the quality?
A: Regarding to PCB samples, usually tested by flying probe; for PCB Volume over 3 square meters, usually tested by Electrical fixture which is faster. As to PCBA production, there are automated optical inspection (AOI) for each batch, X-ray inspection for BGA parts, first article inspection(FAI) before mass production.

>>>>>>Kindly click here send your inquiry, we will reply you within 12 hours even faster:)
