New YuDa decentralized sewage treatment system support underground installation sewage tank intelligent septic tank
- Category: >>>
- Supplier: New Yuda Environmental Protection Technology Co. Ltd.
Share on (1600699153407):
Product Overview
Description
Product Description
New YuDa small domestic sewage treatment plant SMC water purification station
Usage scenarios
1.Sewage treatment of closed and semi-closed sensitive water bodies
2. Domestic sewage treatment in scenic spots;
3.Suburban point source sewage treatment; 4.Sewage treatment in drinking water source protection areas and ecological protection areas.
5. Contiguous improvement of rural environment;
Water reuse in hotels, guesthouses, etc.;
Water reuse in hotels, guesthouses, etc.;
Purification tank(sewage treatment plant), originated in Japan, is the Chinese translation of JOHKASOU, is a small domestic sewage treatment unit. Used for the treatment of dispersed domestic sewage or similar domestic sewage.

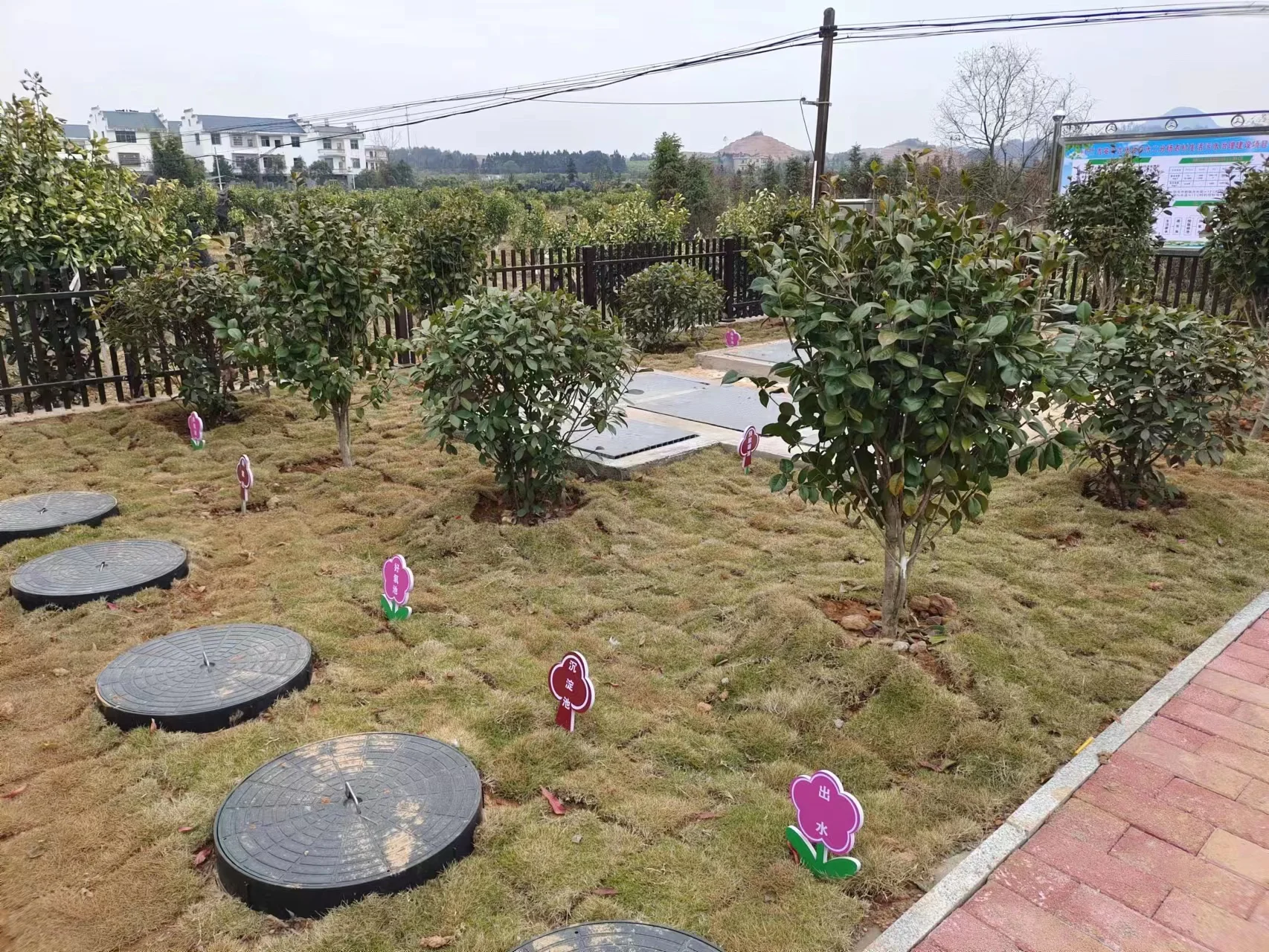

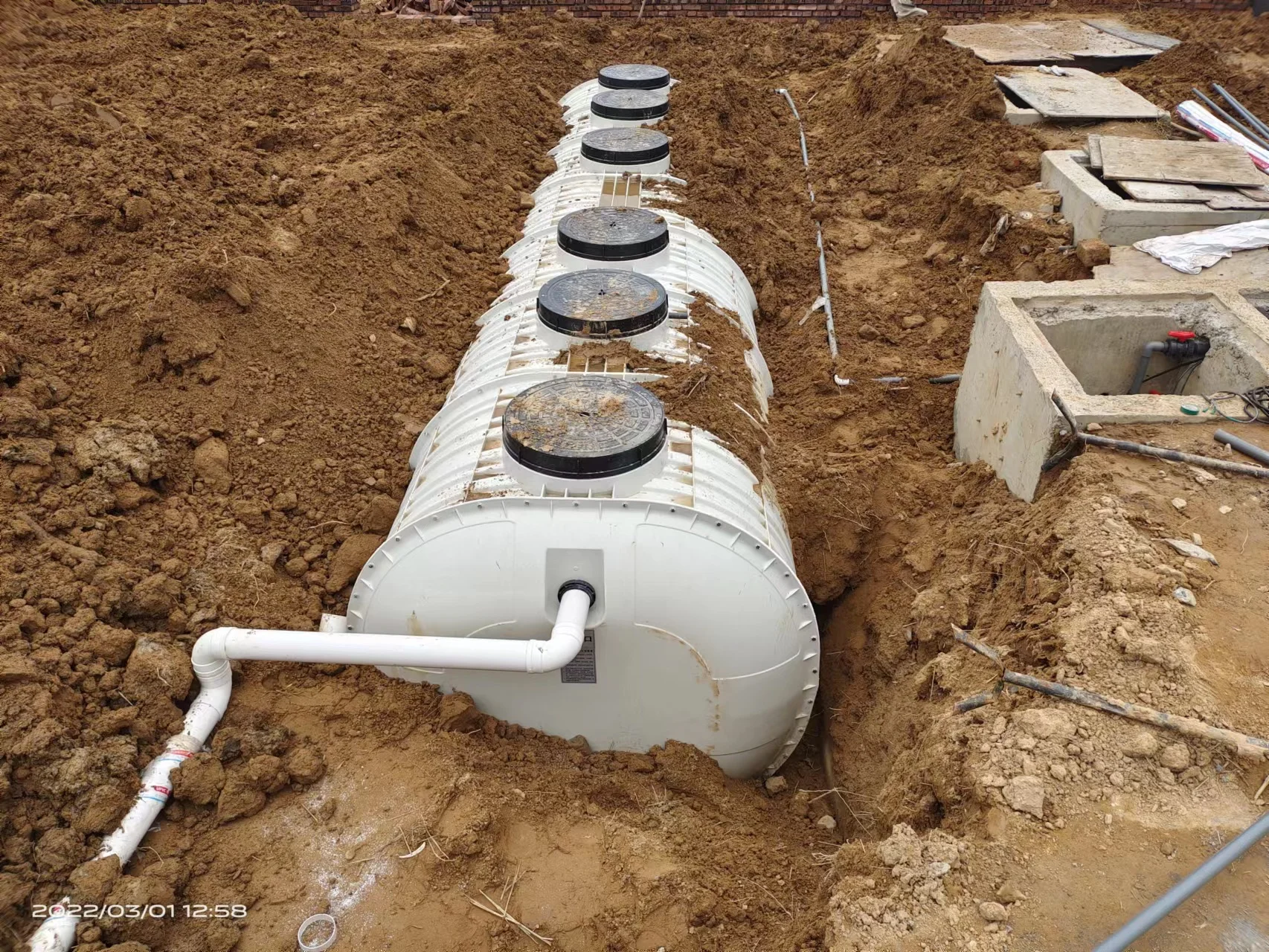

The intelligent purification tank(sewage treatment plant) is mainly designed to treat domestic sewage discharged from a household or a building. It is a decentralized sewage treatment facility. Purification tanks can be divided into "small purification tanks" that are mainly used to treat domestic sewage as small as a household, and "medium and large purification tanks" that are used to treat domestic sewage in buildings and residential quarters. Small-scale purification tanks are basically mass-produced in factories and are suitable for installation in various terrains, and the treated water can be directly discharged to water bodies on site.

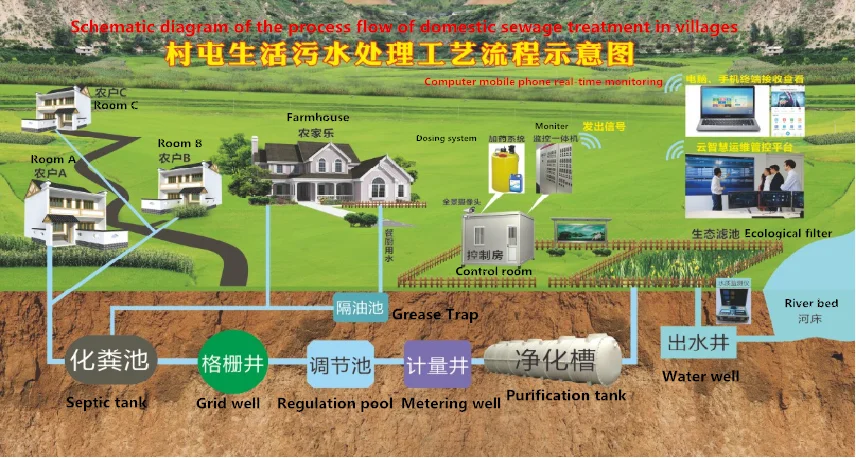

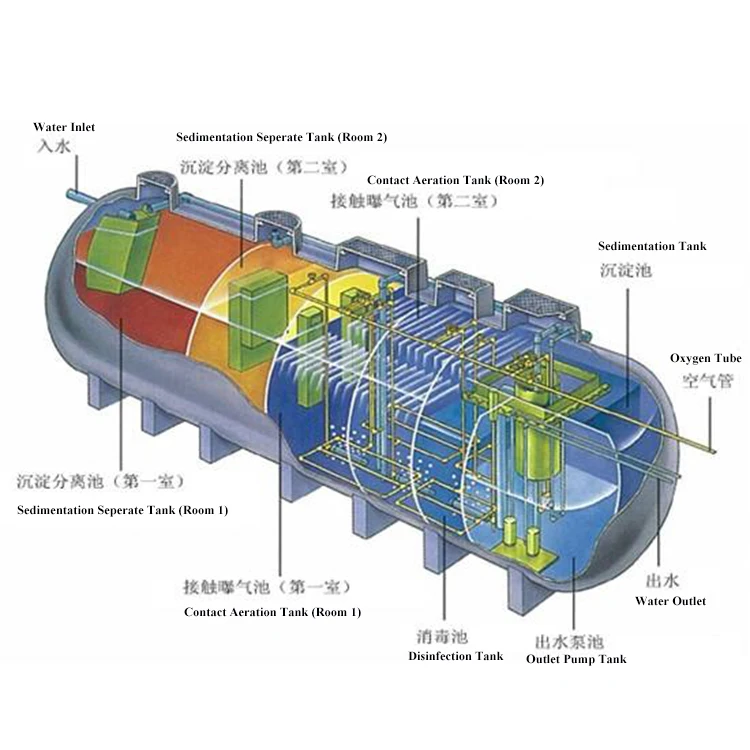

Farmers' domestic sewage (usually including kitchen waste, toilet flushing sewage and laundry water, of which the toilet flushing sewage must be deposited in a septic tank) is collected through the pipe network and then enters the purification tank. Most of the pollutants in the water are discharged out. Use a fecal suction truck to pump out part of the sludge and sediment at the bottom of the sedimentation tank every 3-6 months.

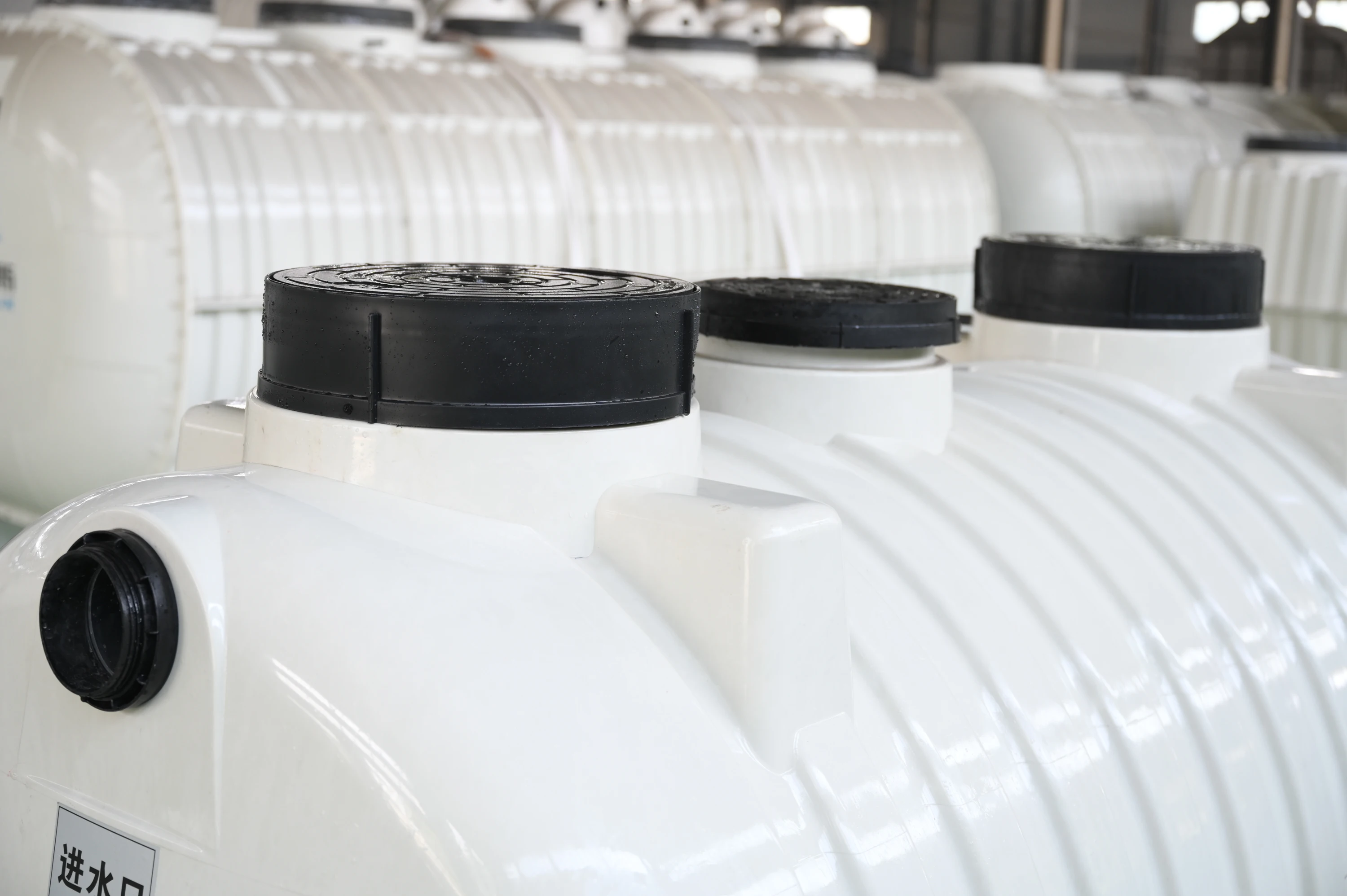

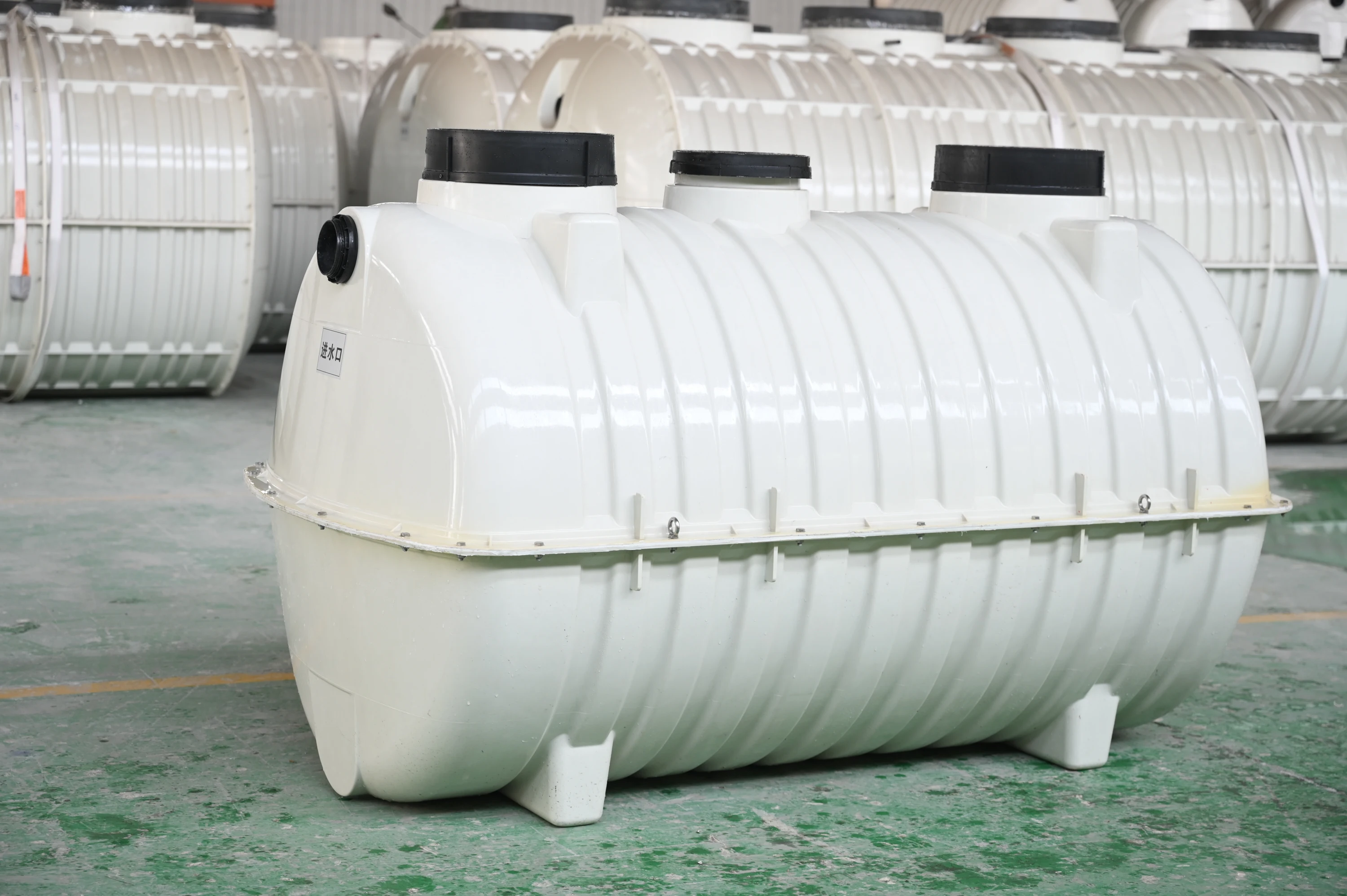

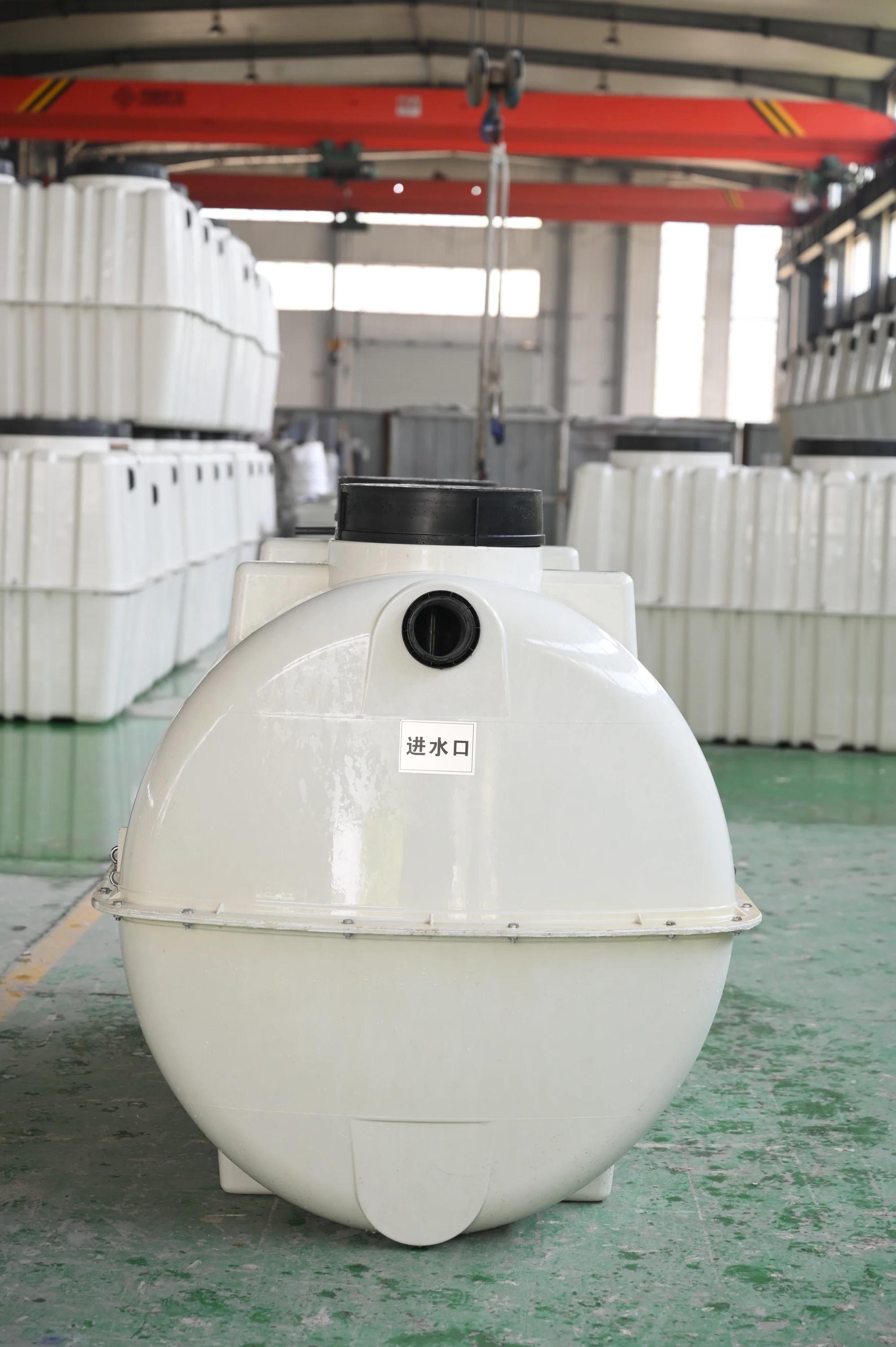

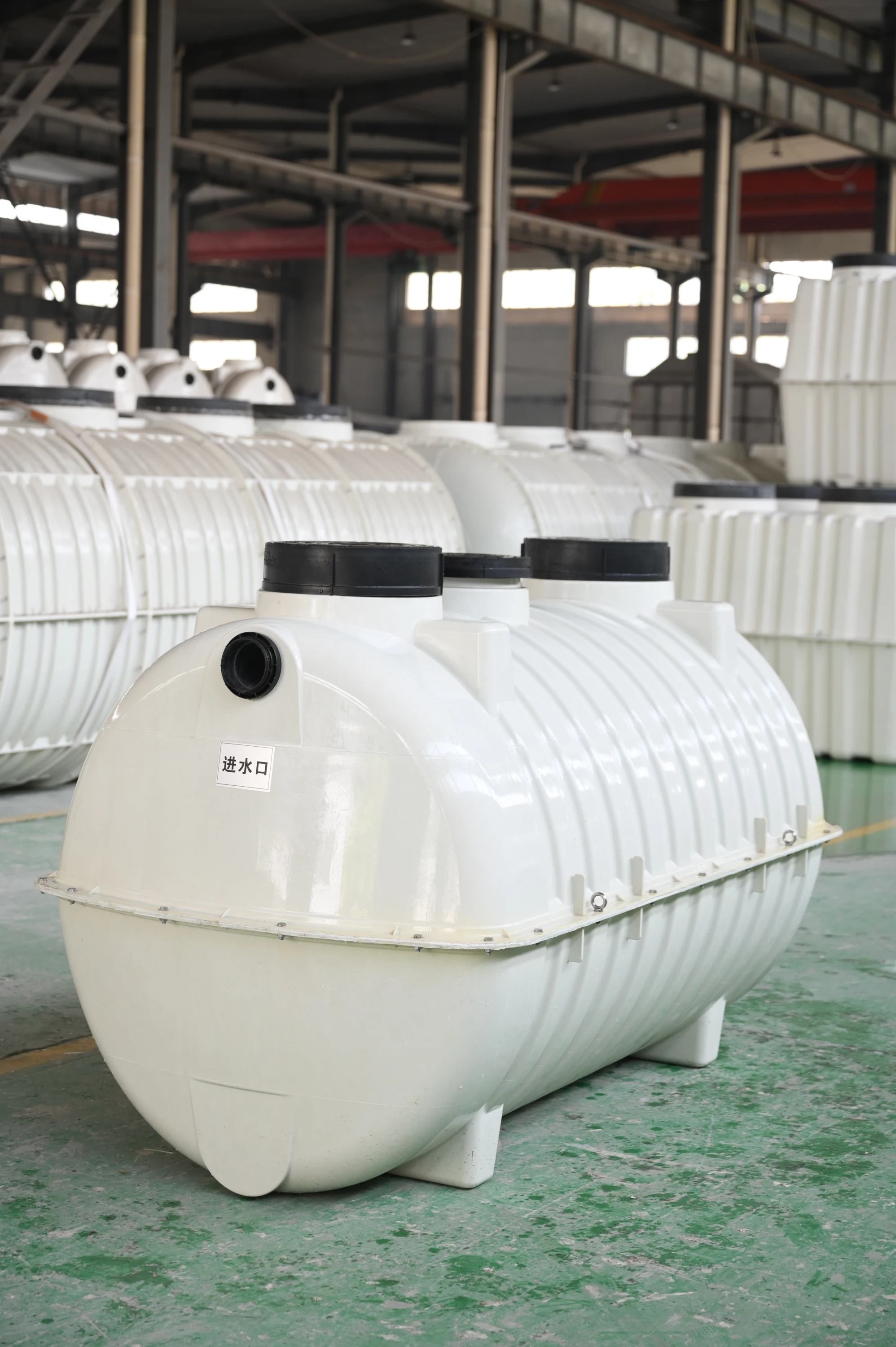

New YuDa decentralized sewage treatment system support underground installation sewage tank intelligent septic tank

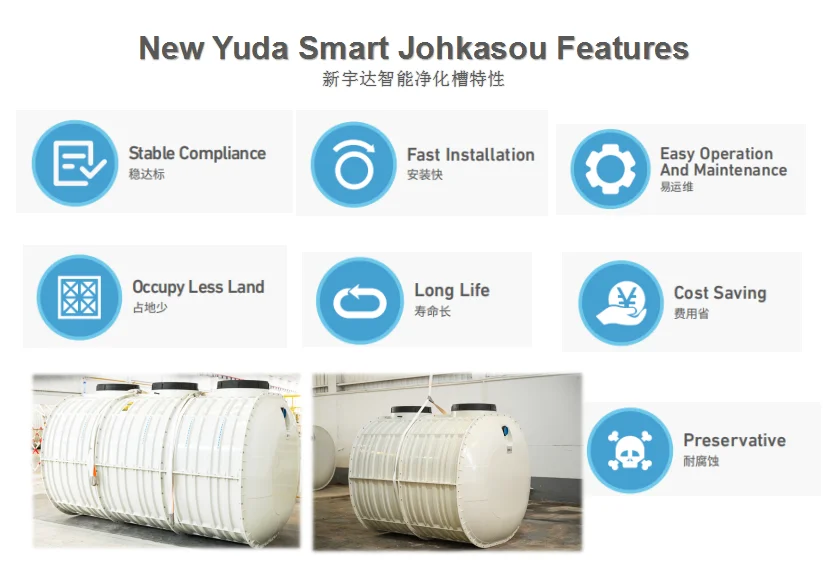

Features of intelligent purification tank(sewage treatment plant)
（1）The GCE intelligent purification tank is an assembly line, standardized, mass-produced, and the product quality is stable and guaranteed.
（2）The raw material used imported resin, which has high structural strength and corrosion resistance, and can be used stably for 30 years underground.
（3）The unique patented water distribution system is adopted to ensure that there is no dead angle and short flow in the
purification tank system, and the effective volume is large.
（4）Adopt patented filler compound combination technology to provide a reliable growth environment for microbial growth
（5）Supporting GCE bio-enhanced denitrification and phosphorus removal bacteria, the system starts quickly, has strong shock load resistance and less sludge.
（6）Simple installation, convenient operation, small maintenance workload, remote operation and control system
（7）Adopt patented surface corrugated reinforcement design technology, high structural strength, can be used in the northern thick frozen soil environment
（2）The raw material used imported resin, which has high structural strength and corrosion resistance, and can be used stably for 30 years underground.
（3）The unique patented water distribution system is adopted to ensure that there is no dead angle and short flow in the
purification tank system, and the effective volume is large.
（4）Adopt patented filler compound combination technology to provide a reliable growth environment for microbial growth
（5）Supporting GCE bio-enhanced denitrification and phosphorus removal bacteria, the system starts quickly, has strong shock load resistance and less sludge.
（6）Simple installation, convenient operation, small maintenance workload, remote operation and control system
（7）Adopt patented surface corrugated reinforcement design technology, high structural strength, can be used in the northern thick frozen soil environment
Specification
Purification Tank | Details Specification | ||||
Capacity | 1m³/d | 2m³/d | 5m³/d | ||
Size | 2400×1300×1400mm | 2130x1150x1650mm | 2420x2010x2000mm | ||
Weight | 180kg | 200kg | 520kg | ||
Thickness | 6-7mm | 6-7mm | 7mm | ||
Raw Material | SMC molded FRP Equipment | ||||
Included System | Including equipment body, packing, aeration system, reflow system, etc | ||||
What differences between septic tank and sewage treatment plant
Septic Tanks & Sewage Plants – What’s The Difference?
Septic tanks and sewage treatment systems serve the same purpose to the extent that they both provide buildings, that don’t have access to mains sewers, with a way to process their wastewater. Despite their similarities, they do have some distinct differences.
What Is A Septic Tank?
As you can see in the diagram above, septic tanks are normally buried underground and are split into
multiple chambers. Wastewater enters one end of the septic tank, before being separated into solids (sludge) and oils (scum). The separated wastewater (effluent) then leaves the septic tank via an outlet and goes into a drainage field.
multiple chambers. Wastewater enters one end of the septic tank, before being separated into solids (sludge) and oils (scum). The separated wastewater (effluent) then leaves the septic tank via an outlet and goes into a drainage field.
Once the water leaves the outlet pipe and has gone into the drainage field, the effluent is percolated
through the ground to remove bacteria, before being dispersed and rejoining watercourses.
through the ground to remove bacteria, before being dispersed and rejoining watercourses.
How Does A Sewage Treatment Plant Work?
Although sewage treatment plants perform the same function as a septic tank, it does it in a different
way. Rather than just separating the sludge and scum from the wastewater, a sewage treatment plant uses a pump to aerate the chamber. This process encourages the growth of ‘good’ bacteria that will help to break down the harmful bacteria that’s in the wastewater. Once this process has been completed, the liquid water can be released from the plant directly into watercourses, such as streams.
way. Rather than just separating the sludge and scum from the wastewater, a sewage treatment plant uses a pump to aerate the chamber. This process encourages the growth of ‘good’ bacteria that will help to break down the harmful bacteria that’s in the wastewater. Once this process has been completed, the liquid water can be released from the plant directly into watercourses, such as streams.
Key Differences
In terms of the process, the key difference between a septic tank and a sewage treatment plant is that a sewage treatment plant purifies the effluent before it is released, meaning that it can be released into streams without the need for further filtering.
Aside from the cleanliness of the effluent, there are also a number of other differences.
* Sewage treatment plants require electricity to run the air pump, however septic tanks can run power-free
* Septic tanks don’t require servicing (although they do require emptying), whereas sewage treatment plants require servicing and emptying
* Septic tanks generally require emptying more frequently than sewage treatment plants
Aside from the cleanliness of the effluent, there are also a number of other differences.
* Sewage treatment plants require electricity to run the air pump, however septic tanks can run power-free
* Septic tanks don’t require servicing (although they do require emptying), whereas sewage treatment plants require servicing and emptying
* Septic tanks generally require emptying more frequently than sewage treatment plants
Company Profile
NEW YUDA Environmental Protection Technology Co., Ltd. is a comprehensive environmental protection enterprise integrating consulting and design, equipment manufacturing, construction, investment and financing, and operation and maintenance management. Its business areas focus on urban and rural environmental governance, industrial and service wastewater treatment, and water supply purification, solid waste treatment and environmental services. The company is committed to providing overall environmental solutions for local governments' rural revitalization strategic projects and enterprises.
1) National Hi-tech Enterprise, Guangxi Famous Brand, Class A Credit Enterprise
2) More than 60 intellectual property rights, including trademarks, software copyrights, utility and invention patents.
3) Strong technical ability, cooperate with Tsinghua University, Tianjin University, Tokyo University,etc.
4) More then 15 years experiences in the industry
5) General contracting qualification of municipal public works construction. Professional contracting qualification of environmental protection engineering
2) More than 60 intellectual property rights, including trademarks, software copyrights, utility and invention patents.
3) Strong technical ability, cooperate with Tsinghua University, Tianjin University, Tokyo University,etc.
4) More then 15 years experiences in the industry
5) General contracting qualification of municipal public works construction. Professional contracting qualification of environmental protection engineering
Certifications

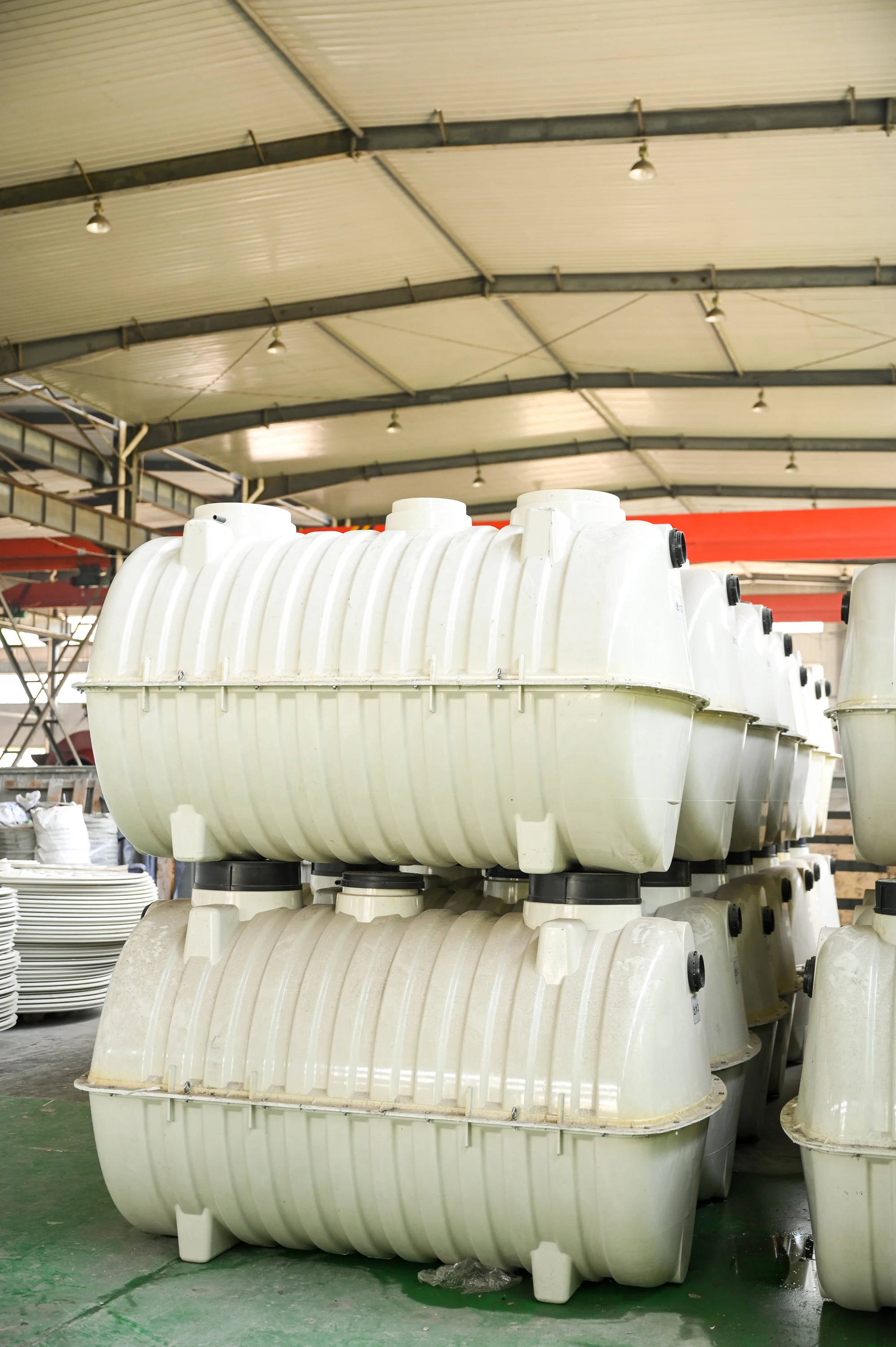

Packaging Logistics
FAQ
1. What can you buy from us?
Sewage Treatment Equipment / Water Purifier / Water Purification and so on
2. What service can we provide?
Payment Terms:EXW; FOB; CIF and so on
Payment Way:T/T; L/C
3. What’s your delivery time?
Based on different equipment, there is different delivery time.
Usually 7-18 days for reference.
Sewage Treatment Equipment / Water Purifier / Water Purification and so on
2. What service can we provide?
Payment Terms:EXW; FOB; CIF and so on
Payment Way:T/T; L/C
3. What’s your delivery time?
Based on different equipment, there is different delivery time.
Usually 7-18 days for reference.
More information feel free to contact :
Tel/Whatsapp: 0086 181 786 77651
Before providing details quotation, please kindly help to confirm below details:
1. What's your daily water treatment volume (T)?
2. Is the equipment used to treat domestic sewage or industrial sewage?
3. How many people use? / and where is the use scene?
4. Is there a water ingress test report?
5. What are the requirements for effluent and local discharge standards?
2. Is the equipment used to treat domestic sewage or industrial sewage?
3. How many people use? / and where is the use scene?
4. Is there a water ingress test report?
5. What are the requirements for effluent and local discharge standards?
