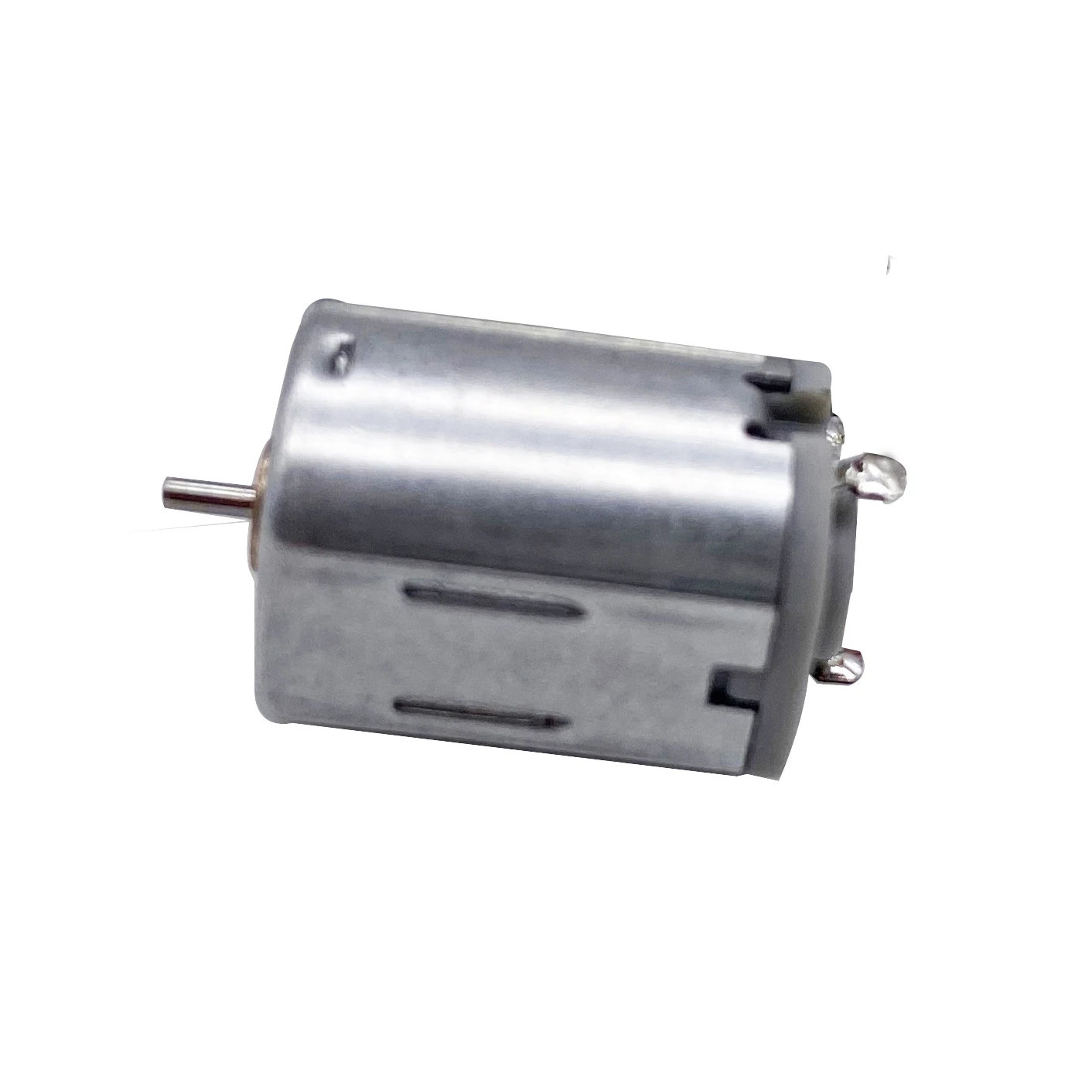

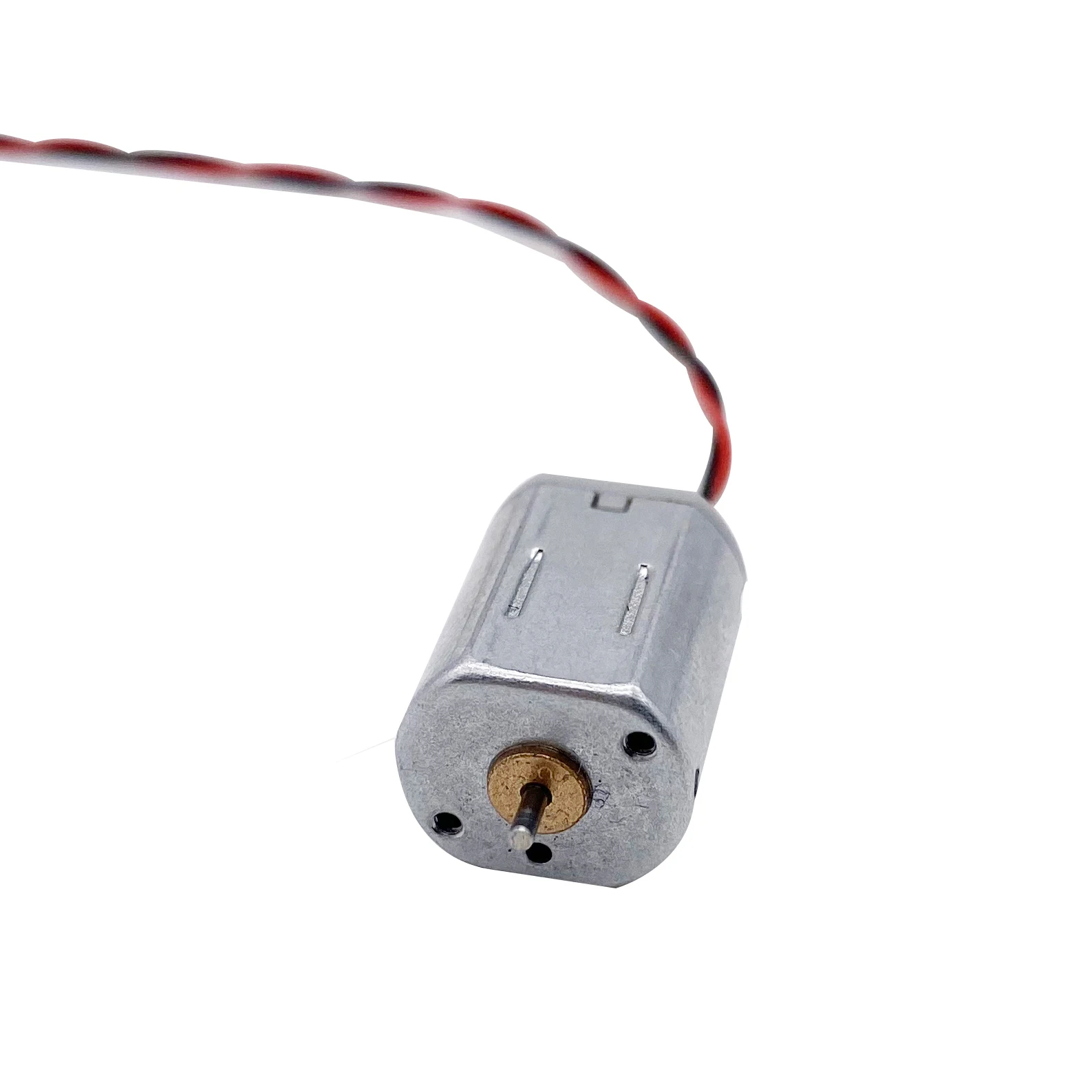

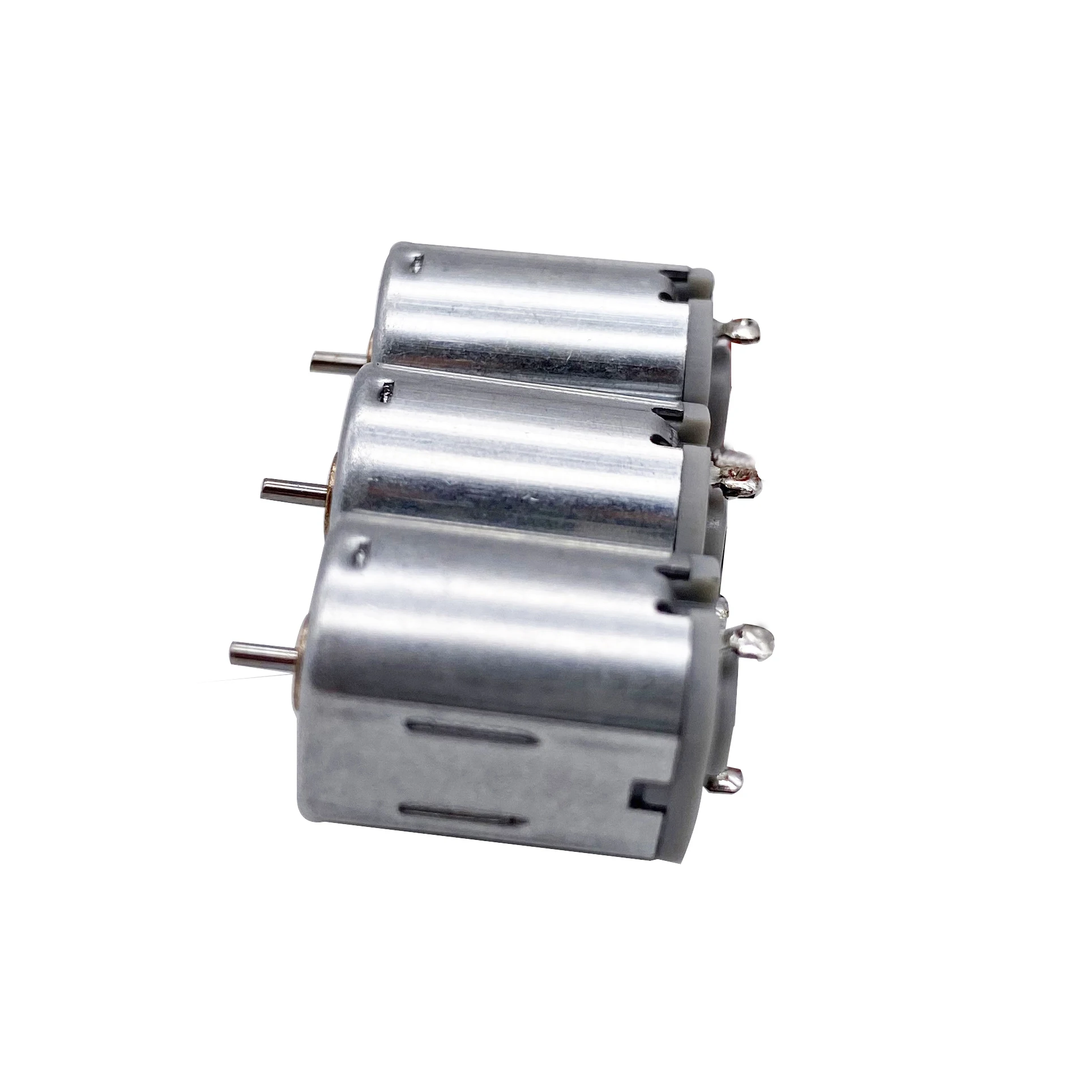

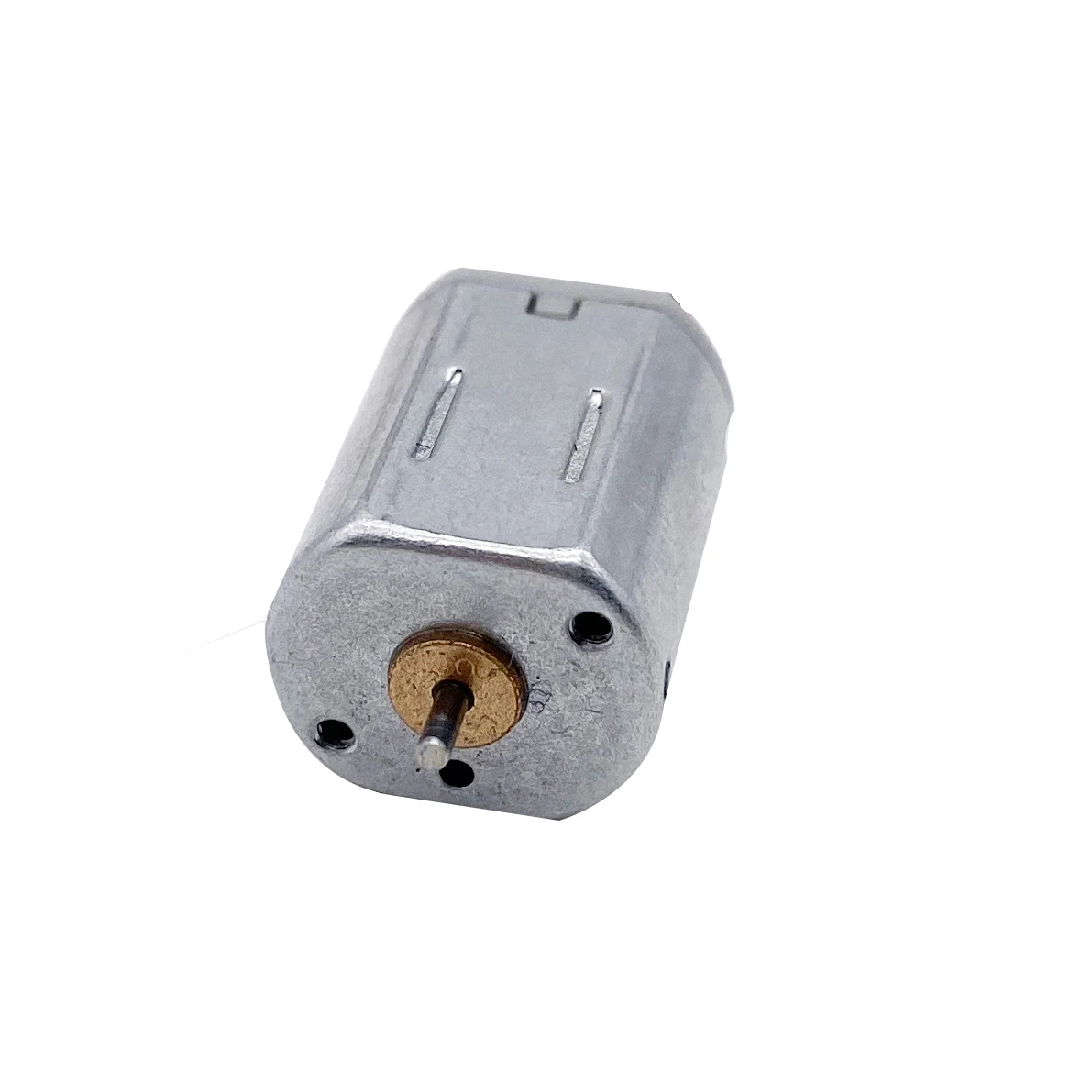

Mini Motor 12V DC high speed F180 smart robot Motor
- Category: >>>
- Supplier: Shenzhen Okerda Technology Co. Ltd.
Share on (1600699167366):
Product Overview
Description
Product Description
Home Appliance Usage Mini Motor 12V DC Motor
OKERDA supply a complete range of DC Motors.
Diameter: 8mm to 80mm;
Voltage: 1.5V to 24V;
Speed: up to 20million rpm;
Torque: 15g~30kg. cm.
Good electric and mechanical performance
Low noise
Long life
Diameter: 8mm to 80mm;
Voltage: 1.5V to 24V;
Speed: up to 20million rpm;
Torque: 15g~30kg. cm.
Good electric and mechanical performance
Low noise
Long life

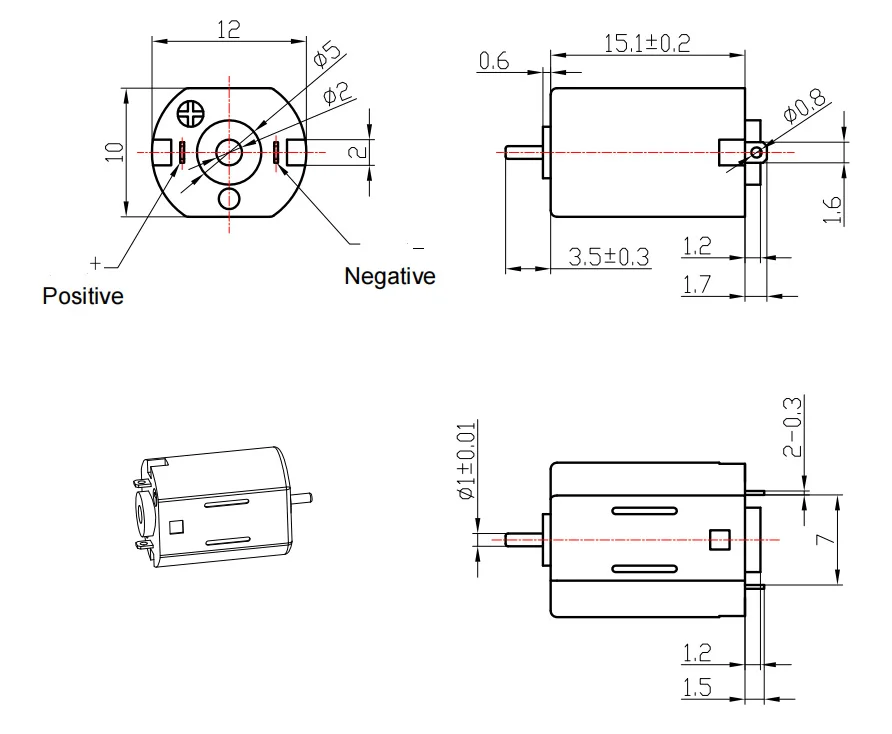

Specification
Mini Motor | Specification |
Rated Voltage | 12V 24V |
Rated Load | Fan：36.9*10.7*T1.0 |
Environmental Temperature and Humidity | Temperature:15℃ ~ 30℃ Humidity:between 60% and 70%. |
Operating Conditions | -20℃to+60℃ ，Normal humidity |
Operating Voltage Range | 6.0～24V DC |
No Load Speed | 18500±10% rpm |
No Load Current | ≤40 mA |
Rated Load Speed | 16700±10% rpm |
Rated Load Current | ≤110 mA |
Stall Torque | ≥15.0 g.cm |
Blocking up blocks the electric current | |
Insulation Resistance | 1M Ω (min.)(DC 100V) |
Direction of Rotation | CCW when viewed from output shaft side |
Related Products

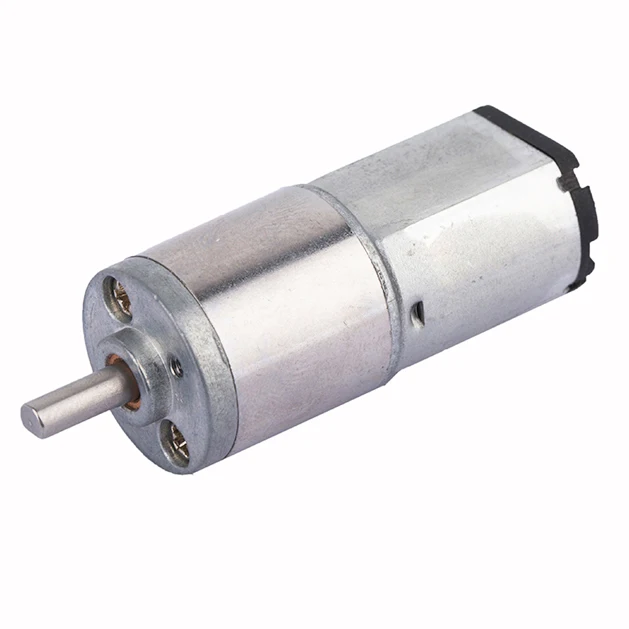

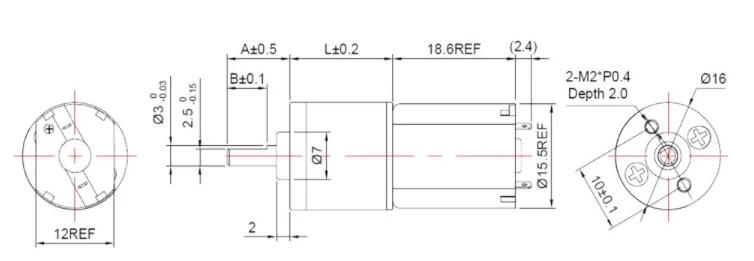

DC GEAR MOTOR

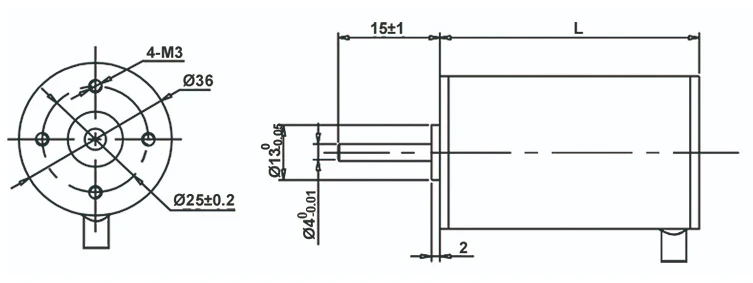

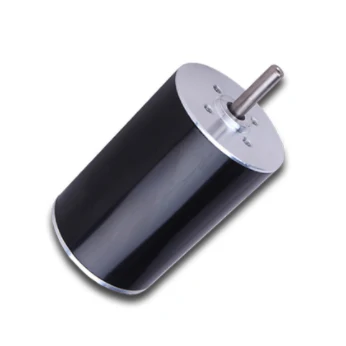

BLDC MOTOR
Application
The motors widely used for Home appliance, Personal care, Automotive, Power tools, Industry, and Intelligent products
which provide healthy and convenient way in life.
1. Camera, Camcorder, Automobile CD/ MD player, Electric Bicycle;
2. Medical equipment, Precision instrument, Meter motor;
3. Automatic door operators, Automatic energy saving bath;
4. Oxygen machine, Optical equipment, Automat cordless
5. Electrical controlled valve, Power tool, Lighting, etc.
2. Medical equipment, Precision instrument, Meter motor;
3. Automatic door operators, Automatic energy saving bath;
4. Oxygen machine, Optical equipment, Automat cordless
5. Electrical controlled valve, Power tool, Lighting, etc.
Packing & Delivery
Packing:
Shipping Time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
Port: Shenzhen/Guangzhou/Hongkong.
500 pieces per box/ standard packing/ OEM packing.
Shipping Time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
Port: Shenzhen/Guangzhou/Hongkong.

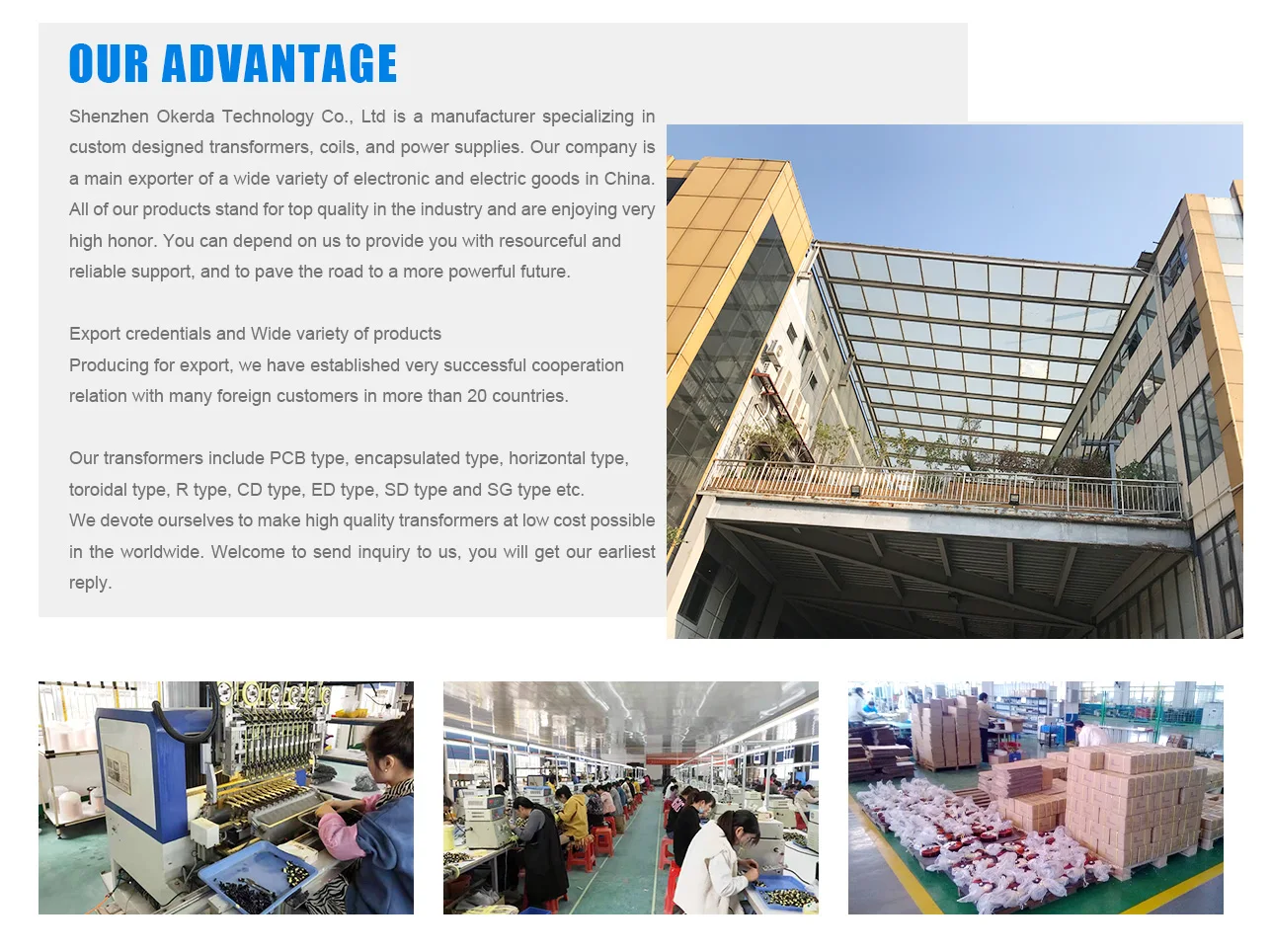

Company Profile
FAQ
Q1. Are you professional supplier in China?
Yes, we have over 20 years experience in electronic area.
Q2. What is your MOQ?
Our usual MOQ is 1000pcs.
Q3. Can I place a sample order?
Yes, please kindly contact us for more details.
Q4. What's the delivery time for samples?
Usually 5 - 10 working days.
Q5. What's the lead time for mass production?
Normally 15-30 working days, based on your order quantity.
Q6. What's the payment term?
We accept T/T, L/C, Western Union and Paypal etc.
Q7. Can you make customized products?
Yes, of course. We will do as per customer’s design.
Q8. Is OEM accepted?
Yes, welcome OEM project.
Q9. Is it ok to print my logo on the label?
No problem, we can make it as per your requirements.
Q10. Can your factory print our brand on the product?
Yes, we can add customer's logo/brand on the product with the authorization from customers.
Yes, we have over 20 years experience in electronic area.
Q2. What is your MOQ?
Our usual MOQ is 1000pcs.
Q3. Can I place a sample order?
Yes, please kindly contact us for more details.
Q4. What's the delivery time for samples?
Usually 5 - 10 working days.
Q5. What's the lead time for mass production?
Normally 15-30 working days, based on your order quantity.
Q6. What's the payment term?
We accept T/T, L/C, Western Union and Paypal etc.
Q7. Can you make customized products?
Yes, of course. We will do as per customer’s design.
Q8. Is OEM accepted?
Yes, welcome OEM project.
Q9. Is it ok to print my logo on the label?
No problem, we can make it as per your requirements.
Q10. Can your factory print our brand on the product?
Yes, we can add customer's logo/brand on the product with the authorization from customers.
