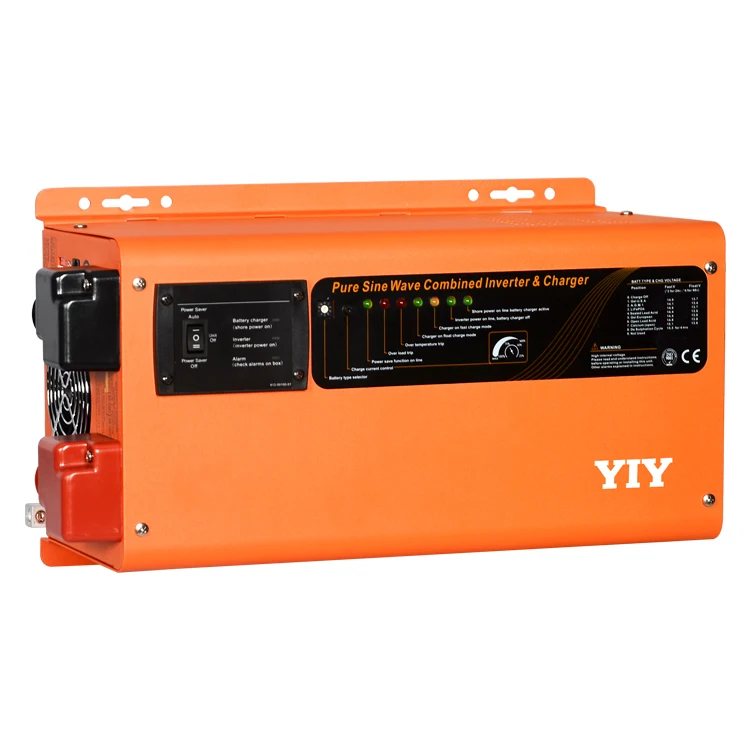

12 В 24 в 48 В до 110 В 220 в 230 В инвертор немодулированного синусоидального сигнала 3000 Вт 5000 Вт 6000 Вт домашний инвертор с зарядным устройством

Share on (1600699174622):


Price:185,00 $ - 195,00 $

Quantity:


Product Overview

Description



Product Description

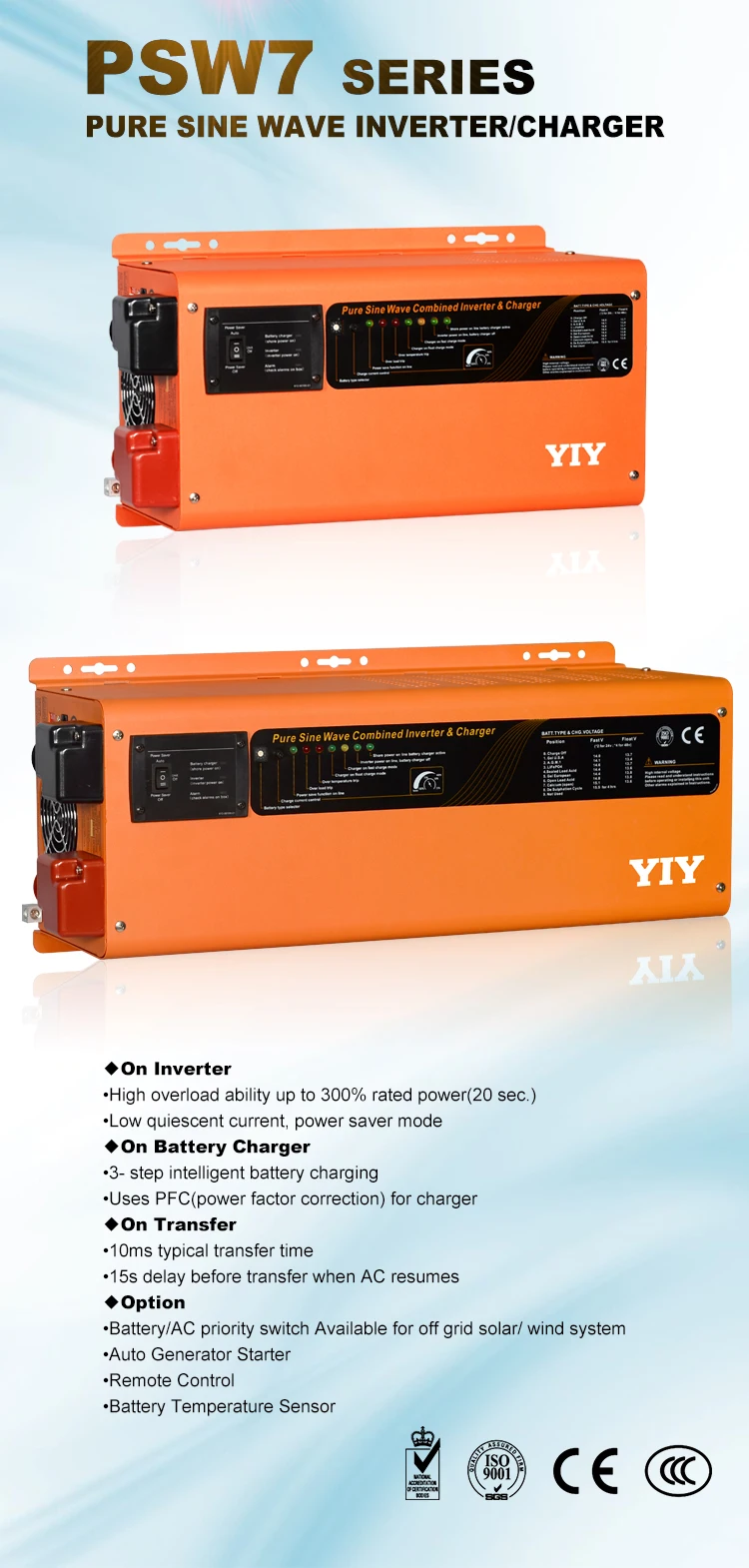

12v 24v 48v to 110v 220v 230v pure sine wave power inverter 3000w 5000w 6000w home power inverter with charger

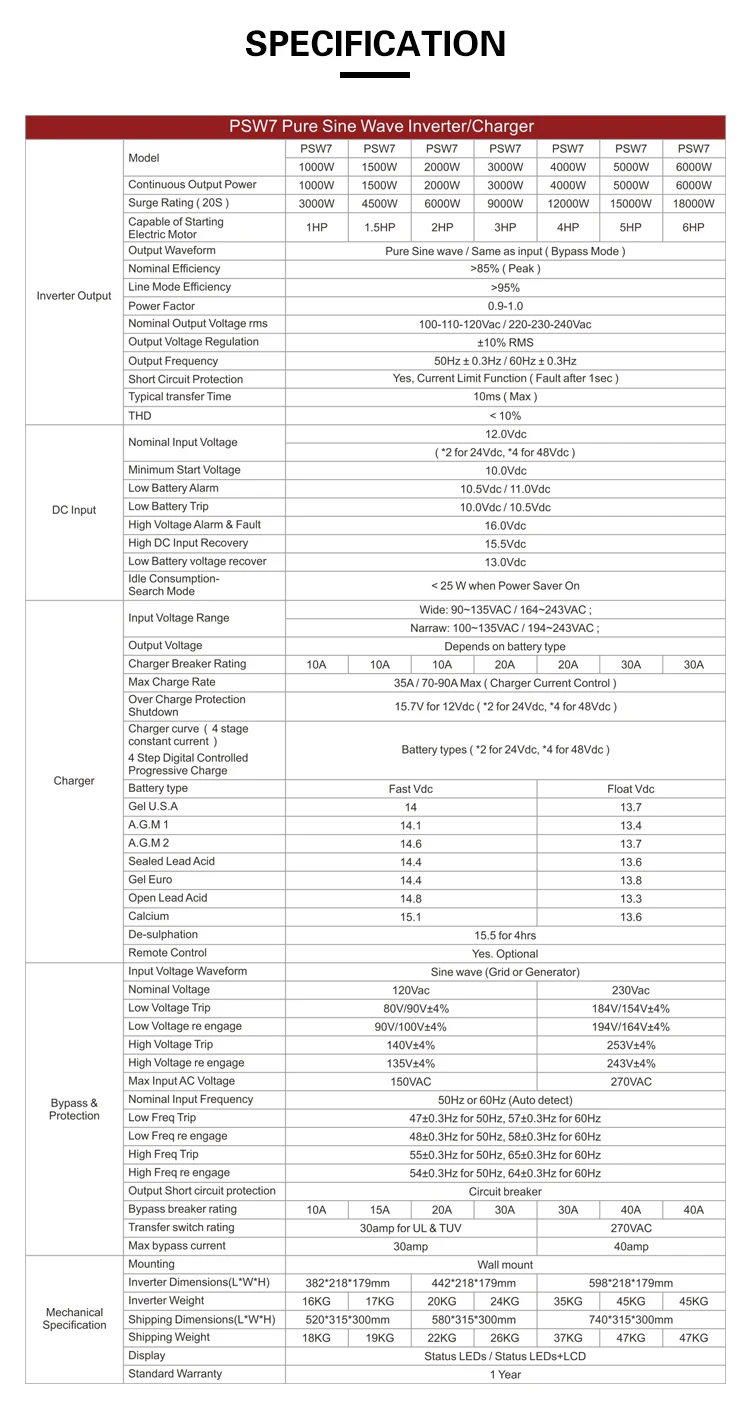

Specification


Model
1000W
1500W
2000W
3000W
4000W
5000W
6000W
surge rating (20s)
3000W
4500W
6000W
9000W
12000W
15000W
18000W
capable of starting electric motor
1HP
1.5HP
2HP
3HP
4HP
5HP
6HP
output waveform
pure sine wave/same as input (bypass mode)
nominal efficiency
>85%(peak)
line mode efficiency
>95%
nominal output voltage rms
100-110-120vac/ 220-230-240vac
output votage regulation
±10% RMS
short circuit protection
50HZ±0.3HZ/60HZ±0.3HZ
typical transfer time
yes, current limit function (fault after 1sec)
THD
10ms (Max)
Nominal input voltage
12.0vdc
*2 for 24vdc,*4 for 48vdc
minimum start voltage
10.0vdc
low battery alarm
10.5vdc/11vdc
low battery trip
10.0vdc/10.5vdc
high voltage alarm & fault
16.0vdc
high dc input recovery
15.5vdc
low battery voltage recover
13.0vdc
input voltage
wide: 90-135vac/ 164-243vac
narrow: 100-135vac/194-243vac
output voltage
depends on battery type
charger breaker rating
10a
10a
10a
20a
20a
30a
30a
max charge rate
35A/70-90A max(charger current control)
over charge protection shutdown
15.7v for 12vdc (*2 for 24vdc, *4 for 48vdc)
charger curve (4 stage constant current) 4 step digital controlled progressive charge
battery types (*2 for 24vdc, *4 for 48vdc)
de-sulphation
15.5 for 4hrs
remote control
yes,optional
input voltage
sine wave (grid or generator)
nominal voltage
120vac
230vac
low voltage trip
80v/90v±4%
184v/154v±4%
low voltage re engage
90v/100v±4%
194v/164v±4%
nominal input frequency
50hzor 60hz (auto detect)
low freq trip
47±0.3hz for 50hz, 57±0.3hz for 60hz
low freq re engage
48±0.3hz for 50hz, 58±0.3hz for 60hz
output short circuit protection
circuit breaker
bypass breaker rating
10a
15a
20a
30a
30a
40a
40a
mounting
wall mount
inverter dimension(L*W*H)
382*219*179mm
442*218*179mm
598*218*179mm
Inverter weight
16kg
17kg
20kg
24kg
35kg
45kg
45kg
shipping dimension(L*W*H)
520*315*300mm
580*315*300mm
740*35*300mm
Shipping weight
18kg
19kg
22kg
26kg
37kg
47kg
47kg
display
status LEDs/ status LEDs+LED
standard warranty
1 year


Company Profile




Shenzhen Yiyuan Technology Co., Ltd was founded in 2011, it is the branch company of Yiyuan Electric Co.,Ltd which founded in 2008. It is a high and new tech enterprise specialized in manufacturing electrical power products for power supply systems and renewable energy system.Our main products are Inverters, MPPT Solar Controllers, UPS and Automatic voltage regulators ( AVR).
Our inverter is widely used in Commercial, Residential, Industrial applications including UPS market, utility market, RV market, renewable energy systems.
As a result of our attention on quality and reliability, our products have been approved by CE, UL and ETL certificates. In addition to our economical prices and customer service, it has helped our products to gain popularity and good reputation globally.

Our mission is to build up a mature, efficient and skilled R&D team by recruiting top technicians and investing 10% of annual turnover. So that the advancement and innovation of product can bring us good and competitive force to meet customers' requirements.

Operation principle: Strive for efficiency on basis of quality ; science & technology to seek development. We will keep promoting management level; improving production technology; perfecting product quality and variety.

Five years of specializing production has made our products best-selling in the world market, like North America, South America, Europe,Southeast Asia, Africa, Mid-east regions etc, and have enjoyed good reputation from the customers all over the world.

We'll dedicate ourselves to serve all customers, societies and partners to maximize the mutual benefits. We are ready to establish long-term business with your esteemed company.










Packing & Delivery




FAQ


1. who are we?
We are based in Guangdong, China, start from 2012,sell to North America(80.00%),Mid East(7.00%),Western Europe(7.00%),Africa(3.00%),Domestic Market(3.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Inverter and UPS Products,Inverter with Charger,LiFePo4 Battery,Solar Charger Controller,All In One Energy Storage System

4. why should you buy from us not from other suppliers?
We have the advanced R&D technology and experience, it makes us meet different customers' ODM&OEM requirement. Also with high quality and performance, it keep our products at the first rate in the market.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese,Spanish,Russian
