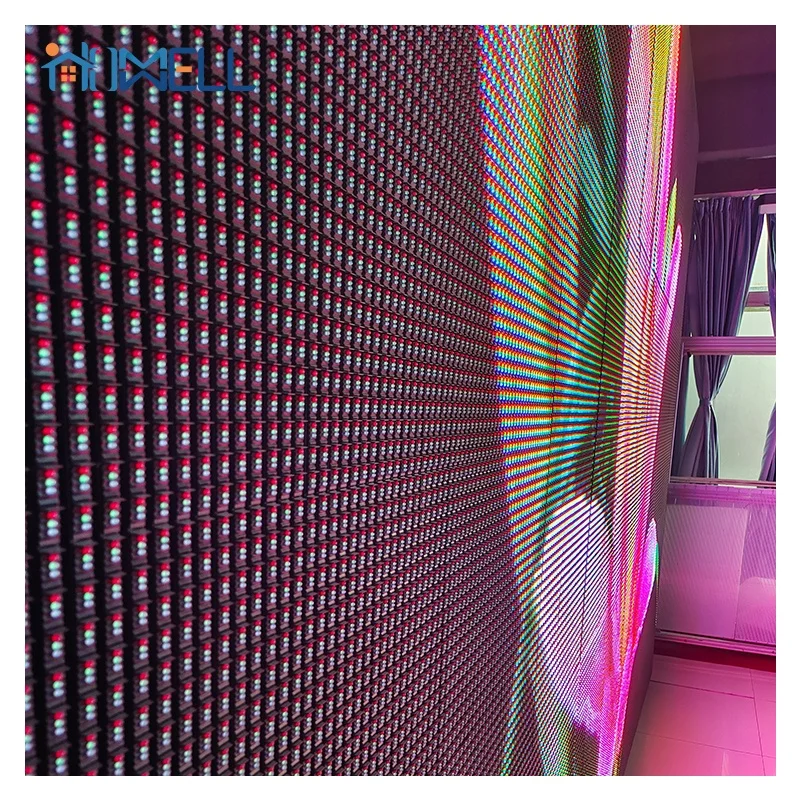

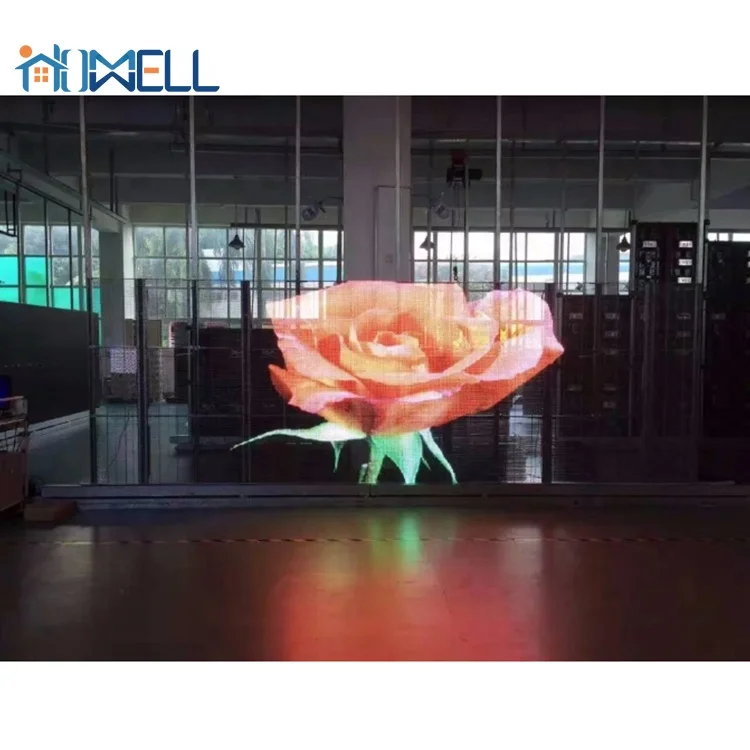

Screen LED Outdoor Project P6 Display Video Wall Panel Curtain

Product Overview

Description

Screen LED Outdoor Project P6 Display Video Wall Panel Curtain

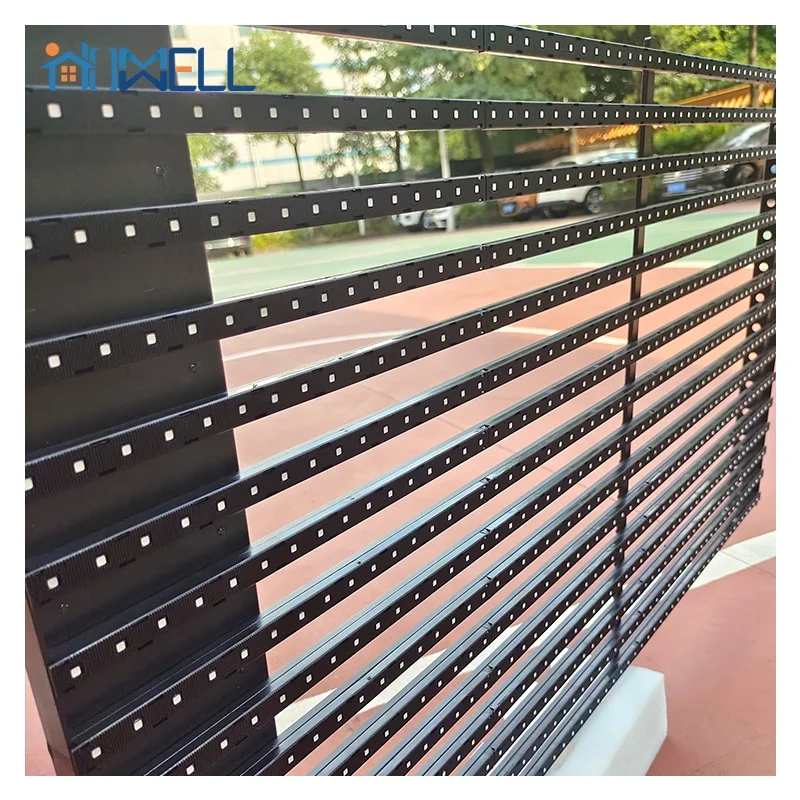

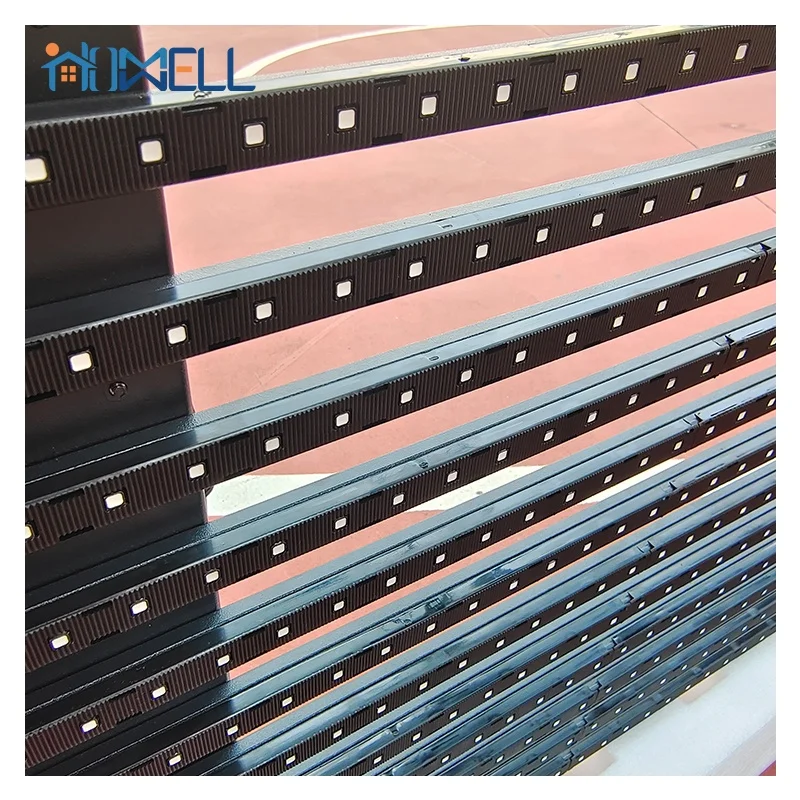

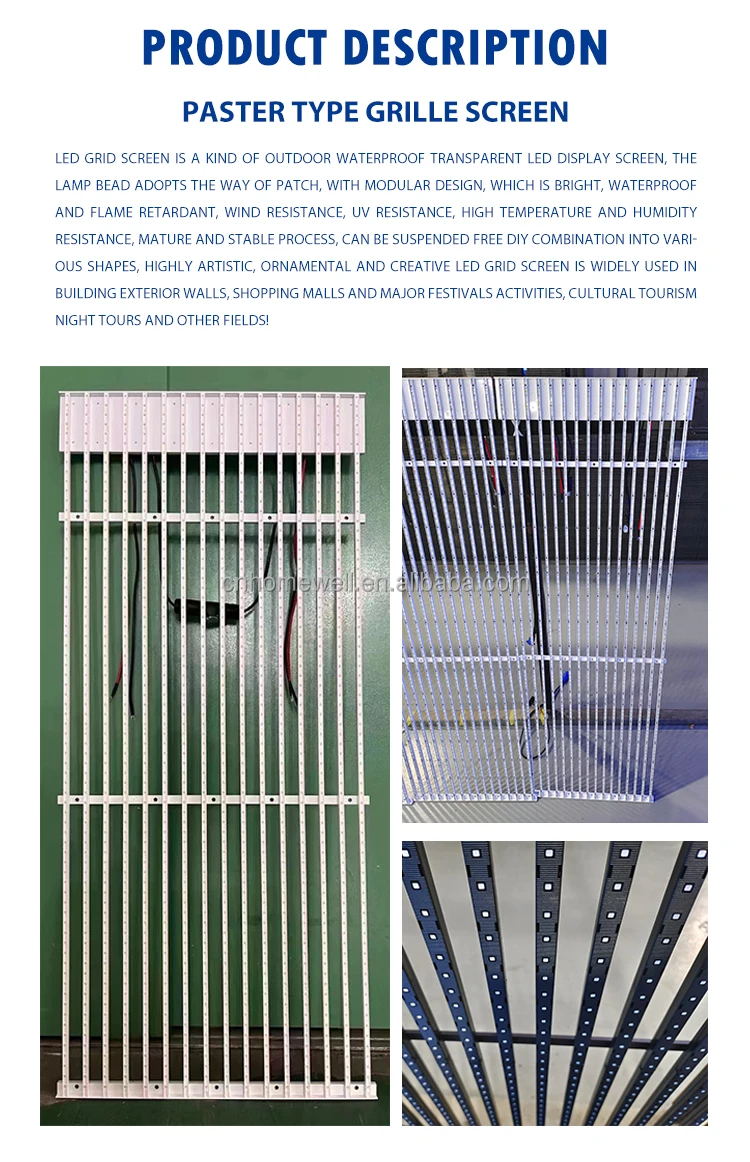

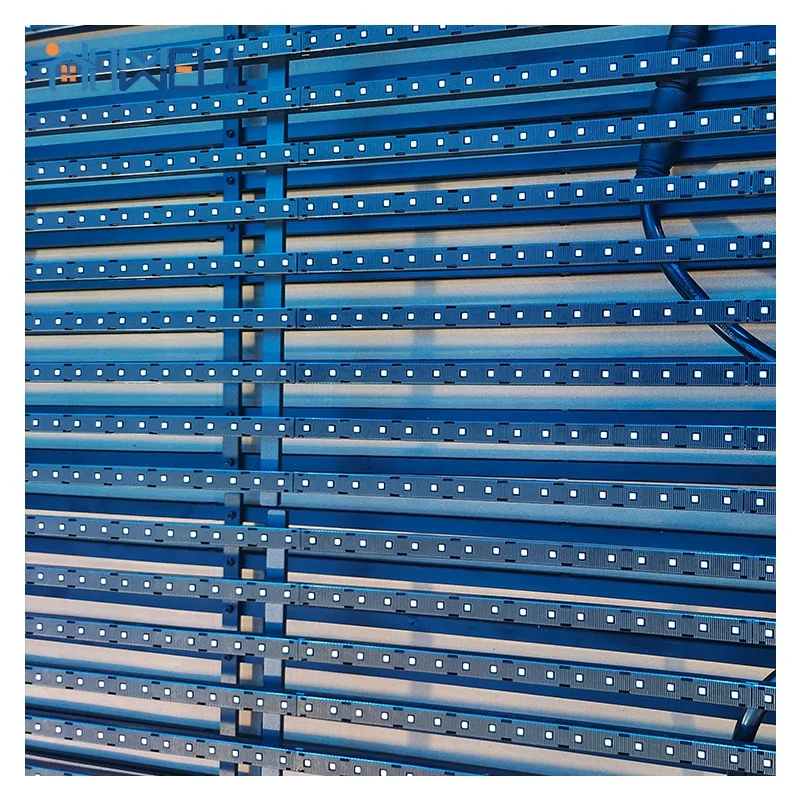

Model (Paster Type Grille Screen)	KS7.81~15.6	KS 15.6~15.6	KS 15.6~31.25	KS 31.25~31.25
Structure of Pixel	2727RGB	2727RGB	2727RGB	2727RGB
Pixel Spacing(mm)	7.8*15.6	15.6*15.6	15.6*31.25	31.25*31.25
Module Resolution(w*h)	128*16	64*16	96*8	48*8
Module Size(mm)	1500*250*62	1500*250*62	1500*250*62	1500*250*62
Module Weight(kg)	2.5	2.2	1.9	1.6
Unit Area(m²)	0.25	0.25	0.25	0.25
Pixel Density(Dot/m²)	8192	4096	2048	1024
Best Visual Distance(m)	8~500	16~500	16~500	31~500
Permeability(%)	≤50%	≤50%	≤75%	≤75%
Viewable Angle(")	120	120	120	120
Display Brightness(CD/m²)	≥6000	6500cd~10000	≥6000	≥6000
Contrast	5000:1	5000:1	5000:1	5000:1
Grayscale level(Bit)	16	16	16	16
Driver Mode	Static	Static	Static	Static
Screen Refresh Rate(Hz)	1920Hz	1920Hz	1920Hz	1920Hz
Peak Power Consumption w/m²	800W	800W	800W	800W
Playback Power Consumption w/m²	300W	300W	300W	300W
Power Supply requirements	DC42~70V	DC42~70V	DC42~70V	DC42~70V
Operating Temperature(℃)	-15℃~45℃	-15℃~45℃	-15℃~45℃	-15℃~45℃
Working Humidity(RH)	5~95	5~95	5~95	5~95
Screen Body Material	Organic Silicone Packaging+Aluminum Alloy Electrostatic Spraying(Color can be Specified)+Raw Material PC Cold Resistance and UV Resistance)

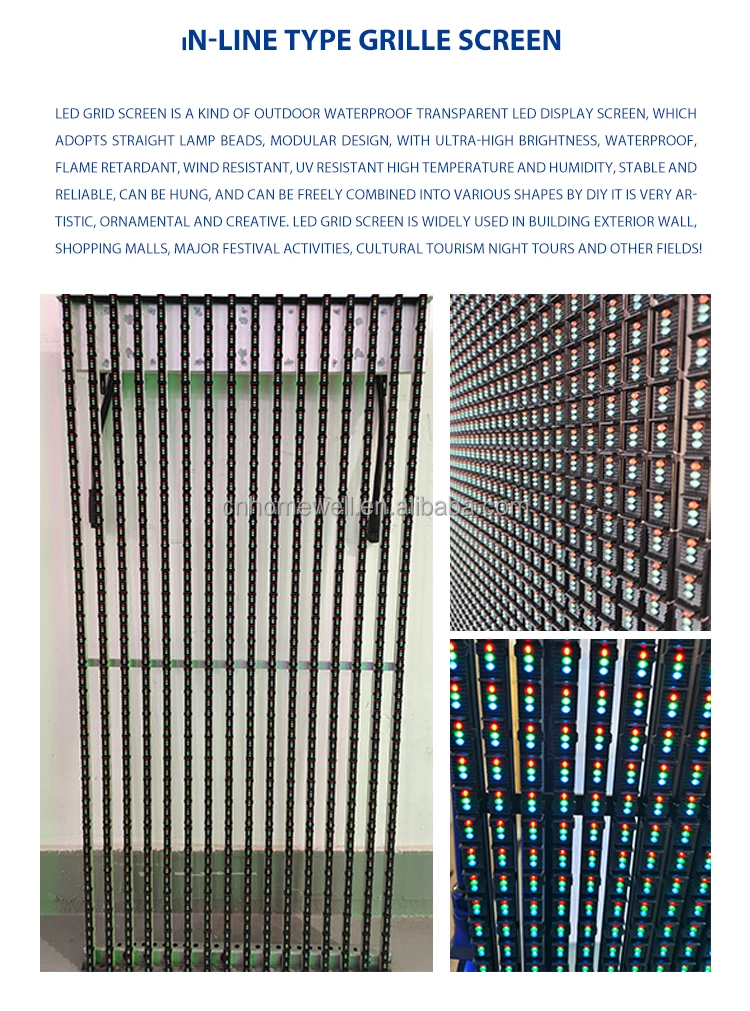

Model (In-lineType Grille Screen)	KD 15.6	KD 15.6~31.2	KD 31.2
Structure of Pixel	346(1R1G18)	346(1R1G18)	3346(1R1G18)
Pixel Spacing(mm)	15.625*15.625	15.625*31.25	15.6*31.25
Module Resolution(w*h)	64*32	64*16	32*16
Module Size(mm)	1000x70.5x500/500*500*70.5	1000x70.5x500/500*500*70.5	1000x70.5x500/500*500*70.5
Module Weight(kg)	11.5	11	10.5
Unit Area(m²)	0.5	0.5	0.5
Pixel Density(Dot/m²)	4096	2048	1024
Best Visual Distance(m)	15~500	15~500	31~500
Permeability(%)	36%	70%	70%
Viewable Angle(")	120	120	120
Display Brightness(CD/m²)	≥9000	≥6000	≥6000
Contrast	5000:1	5000:1	5000:1
Grayscale level(Bit)	16	16	16
Driver Mode	Static	Static	Static
Screen Refresh Rate(Hz)	3840Hz	3840Hz	3840Hz
Peak Power Consumption w/m²	450W	450W	450W
Playback Power Consumption w/m²	135W	135W	135W
Power Supply requirements	AC110~240V 61Hz	AC110~240V 61Hz	AC110~240V 61Hz
Operating Temperature(℃)	-15℃~45℃	-15℃~45℃	-15℃~45℃
Working Humidity(RH)	5~95	5~95	5~95
Screen Body Material	Organic Silicone Packaging+Aluminum Alloy Electrostatic Spraying(Color can be Specified)+Raw Material PC Cold Resistance and UV Resistance)

FAQ

1. May I know the Minimum order for your products?

    MOQ for transparent led display is 1sqm.



2. May I know the advantages of transparent LED Display?

Obvious advantages comapre to tranditional led facade and mesh led display:

1) 50%-94% transparency, no influence for window light and wind ventilating;

2) Only 16-18kg/m2, slim and light than die casting aluminumled panels;

3) Simplified led panel no need steel structure for fixation, save labour cost and a lot space;

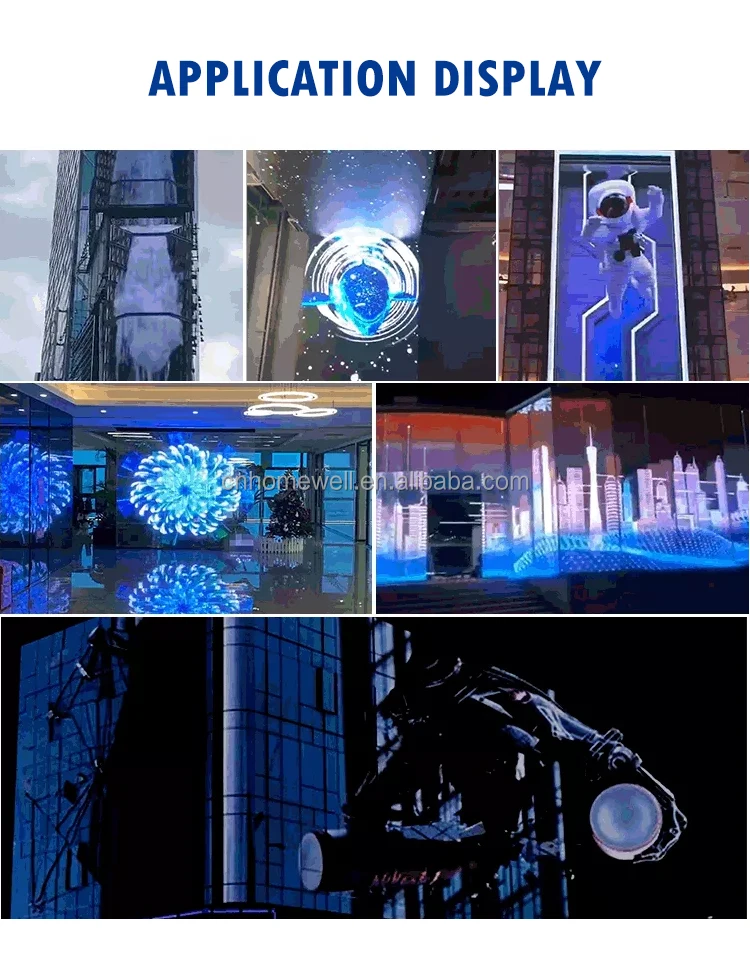

4) Widely application for building glass wall, chain shop showcase, airport, expo center, stage, etc.



3. How to install the transparent led display?

Installation for transparent led display is so easy and simple, only tight cabinets quick lock, and install several steel tube to fix the whole led display from top side and bottom side.
