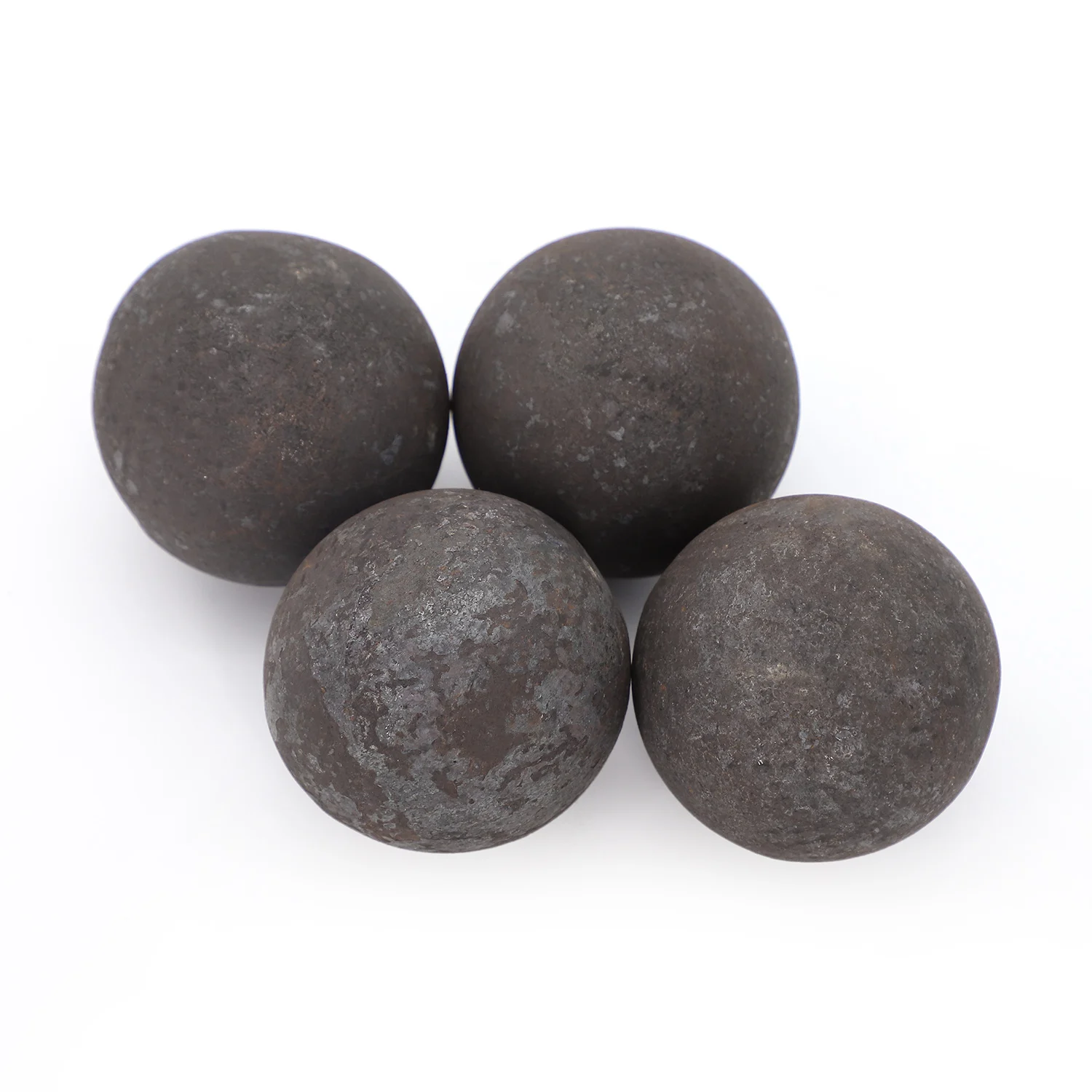

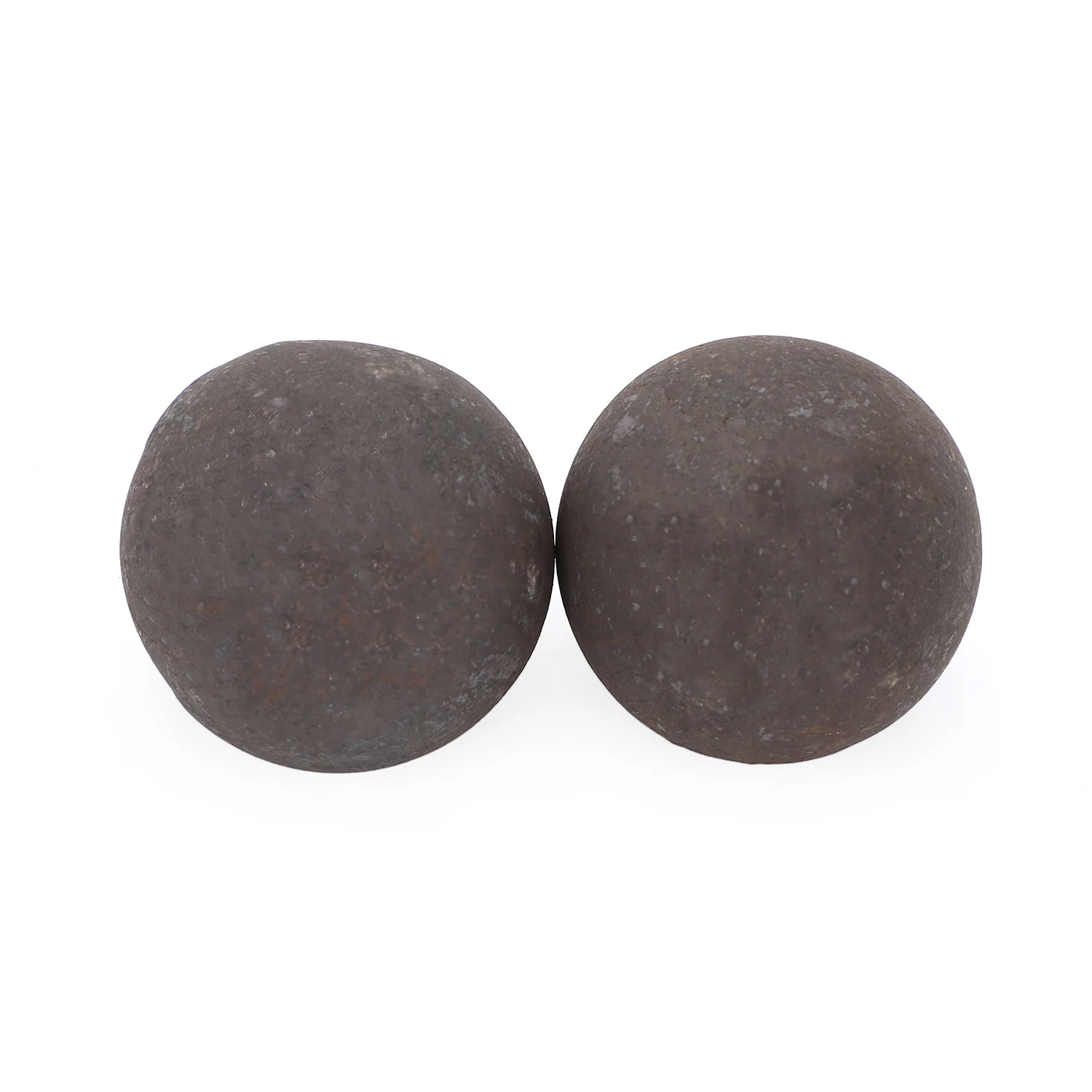

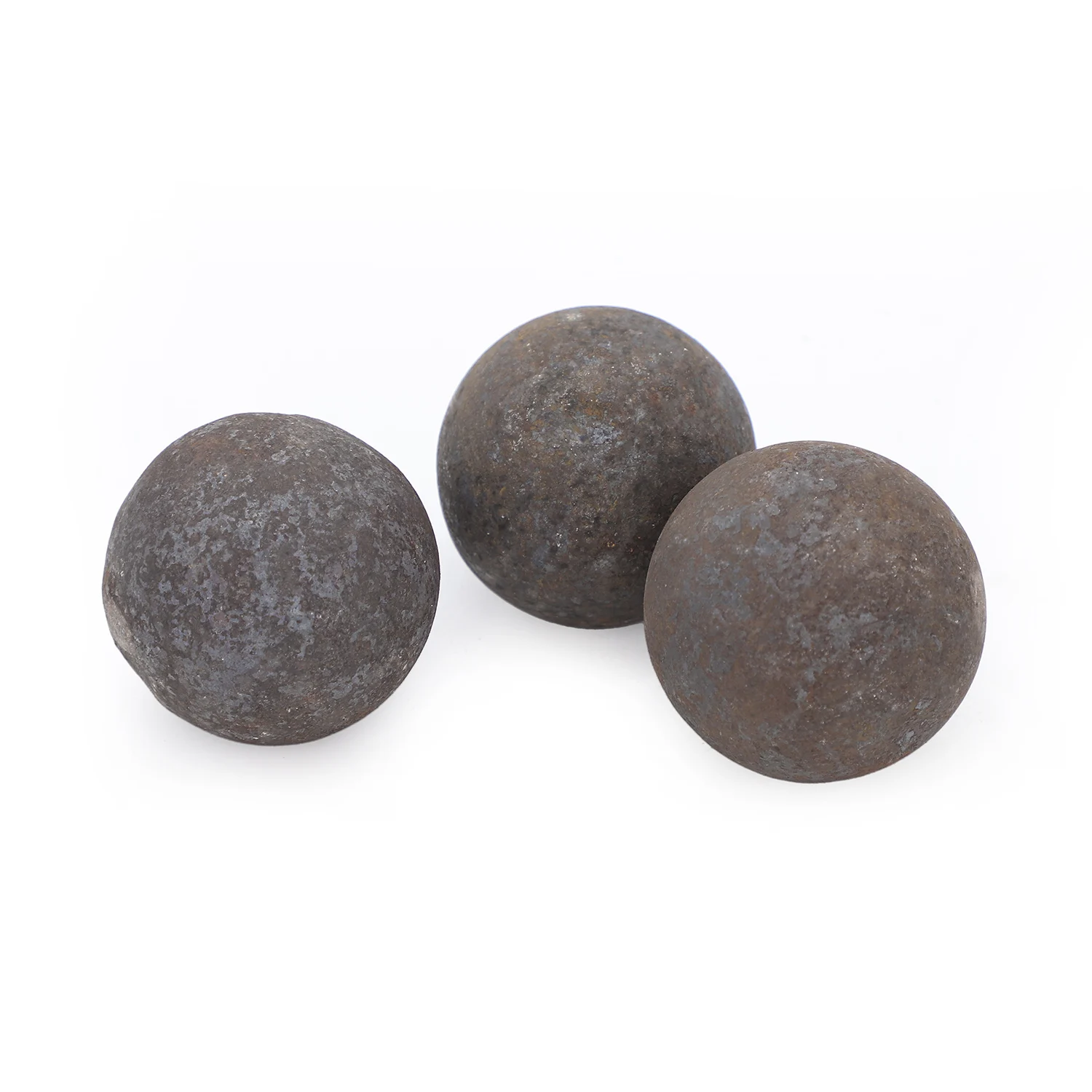

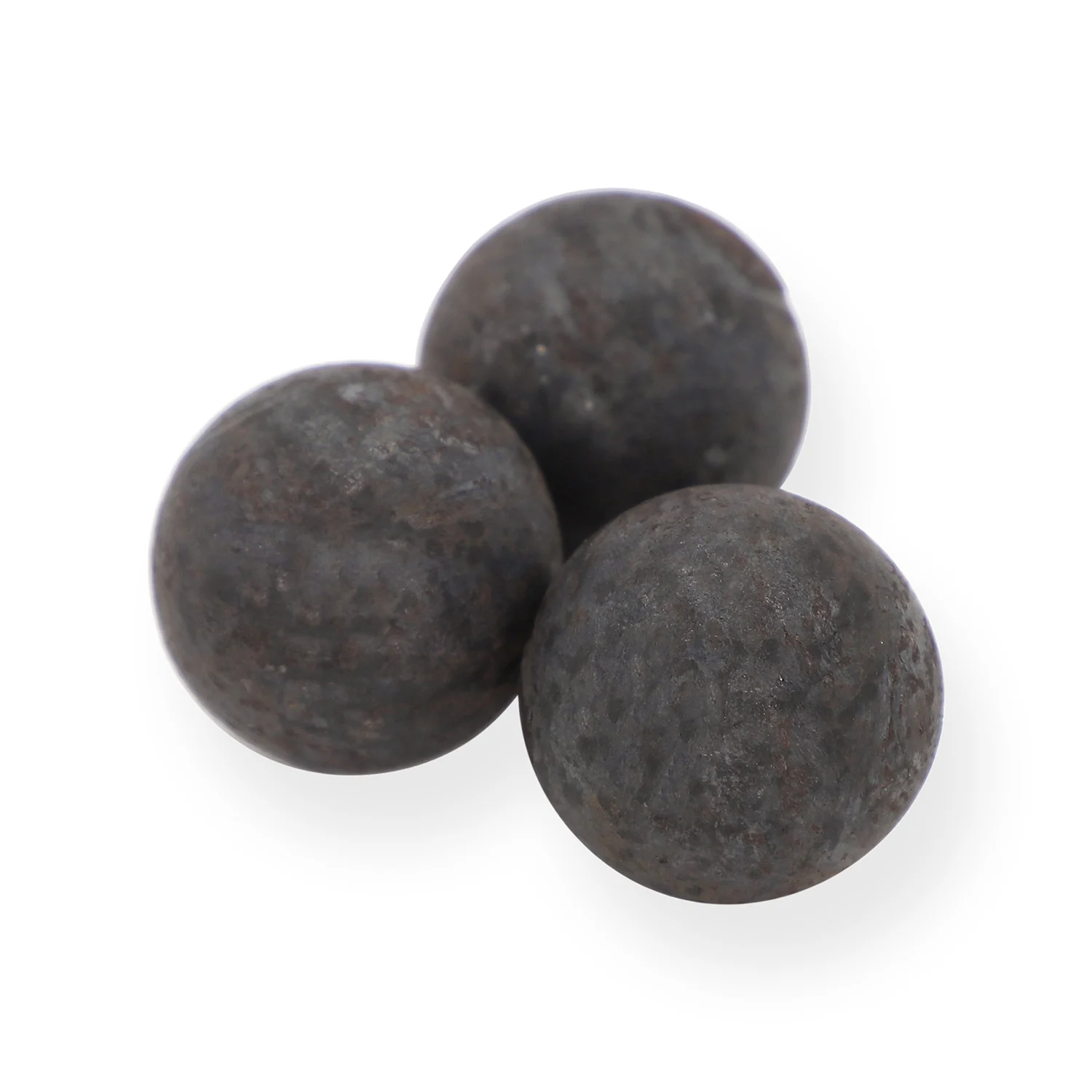

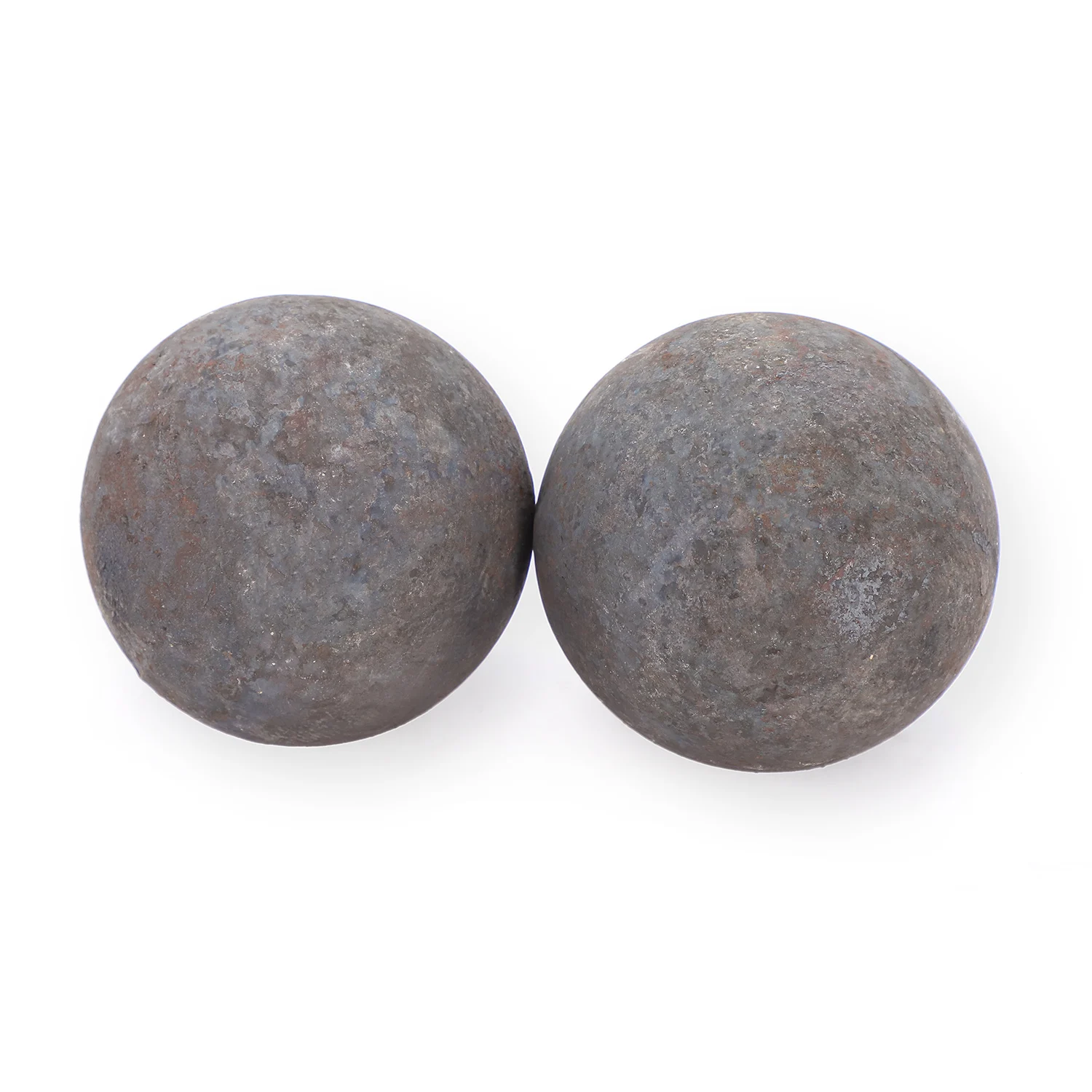

50mm forged steel grinding ball for ball mill
- Category: >>>
- Supplier: Qingzhou Taihong Special Casting Steel Co. Ltd.
Share on (1600699261128):
Product Overview
Description
Main product
40 YEARS OF PRODUCTION EXPERIENCE IN GRINDING MEDIA
Main product-1
Our Products-2022-2
Casting Balls Chemical Components
Material | C | Mn | Si | Cr | S | P |
Superhigh chrome (Cr 23-30) | 2.0-3.3 | 0.50-0.80 | ≤1.2 | 23.0-30.0 | ≤0.06 | ≤0.10 |
Superhigh chrome (Cr 18-23) | 2.0-3.3 | 0.70-1.0 | ≤1.2 | 18.0-23.0 | ≤0.06 | ≤0.10 |
High chrome (Cr 14-18) | 2.0-3.3 | 0.70-1.0 | ≤1.2 | 14.0-18.0 | ≤0.06 | ≤0.10 |
High chrome (Cr 10-14) | 2.0-3.3 | 0.90-1.20 | ≤1.2 | 10.0-14.0 | ≤0.06 | ≤0.10 |
Medium chrome (Cr 6-10) | 2.1-3.3 | 0.70-0.90 | ≤1.2 | 6.0-10.0 | ≤0.06 | ≤0.10 |
Medium chrome (Cr 3-6) | 2.1-3.3 | 0.75-0.90 | ≤1.2 | 3.0-6.0 | ≤0.10 | ≤0.10 |
Low chrome (Cr 0-3) | 2.1-3.3 | 0.65-0.80 | ≤1.5 | 1.0-3.0 | ≤0.10 | ≤0.10 |
Forged Balls Chemical Components
Material | C | Mn | Si | Cr | S | P |
45# | 0.42-0.48 | 0.50-0.80 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 |
50Mn | 0.48-0.56 | 0.70-1.0 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 |
60Mn | 0.57-0.65 | 0.70-1.0 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 |
65Mn | 0.62-0.70 | 0.90-1.20 | 0.17-0.37 | ≤0.25 | ≤0.030 | ≤0.035 |
B2 | 0.75-0.85 | 0.70-0.90 | 0.17-0.37 | 0.40-0.60 | ≤0.030 | ≤0.030 |
B3 | 0.55-0.65 | 0.75-0.90 | 0.20-0.37 | 0.85-1.20 | ≤0.030 | ≤0.030 |
B4 | 0.58-0.66 | 0.65-0.80 | 1.60-1.90 | 0.70-0.90 | ≤0.030 | ≤0.030 |
B6 | 0.97-1.03 | 1.00-1.10 | 0.20-0.30 | 0.50-0.60 | ≤0.025 | ≤0.025 |
Grinding Cylpebs Chemical Components
Material | C | Mn | Si | Cr | S | P |
Superhigh chrome (Cr 23-30) | 2.0-3.3 | 0.50-0.80 | ≤1.2 | 23.0-30.0 | ≤0.06 | ≤0.10 |
Superhigh chrome (Cr 18-23) | 2.0-3.3 | 0.70-1.0 | ≤1.2 | 18.0-23.0 | ≤0.06 | ≤0.10 |
High chrome (Cr 14-18) | 2.0-3.3 | 0.70-1.0 | ≤1.2 | 14.0-18.0 | ≤0.06 | ≤0.10 |
High chrome (Cr 10-14) | 2.0-3.3 | 0.90-1.20 | ≤1.2 | 10.0-14.0 | ≤0.06 | ≤0.10 |
Medium chrome (Cr 6-10) | 2.1-3.3 | 0.70-0.90 | ≤1.2 | 6.0-10.0 | ≤0.06 | ≤0.10 |
Medium chrome (Cr 3-6) | 2.1-3.3 | 0.75-0.90 | ≤1.2 | 3.0-6.0 | ≤0.10 | ≤0.10 |
Low chrome (Cr 0-3) | 2.1-3.3 | 0.65-0.80 | ≤1.5 | 1.0-3.0 | ≤0.10 | ≤0.10 |
Main product-2

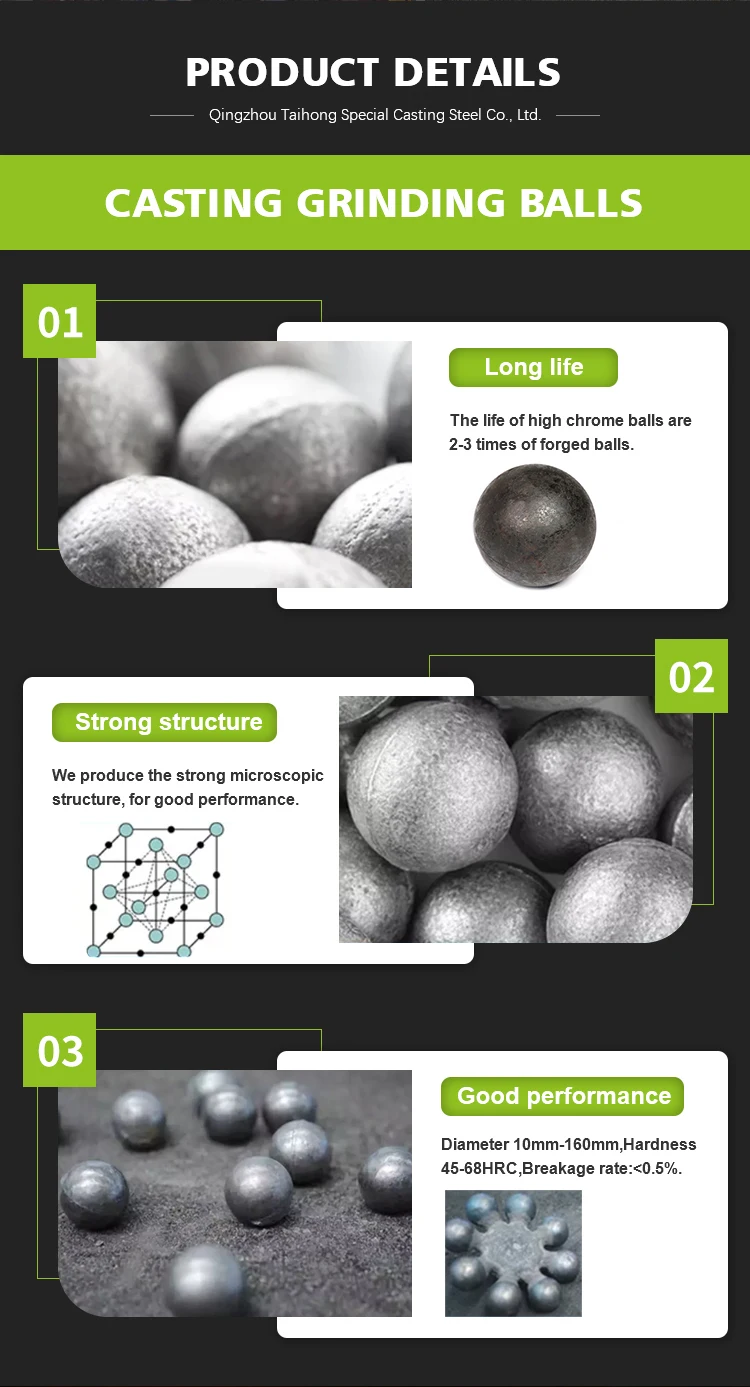

CASTING GRINDING BALLS:
Diameter 10mm-160mm, Hardness 46-68HRC, Breakage rate: <0.5%.
The life of high chrome balls are 2-3 times of forged balls.
We produce the strong microscopic structure, for good performance.

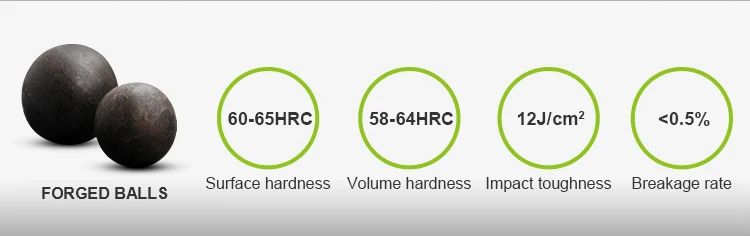

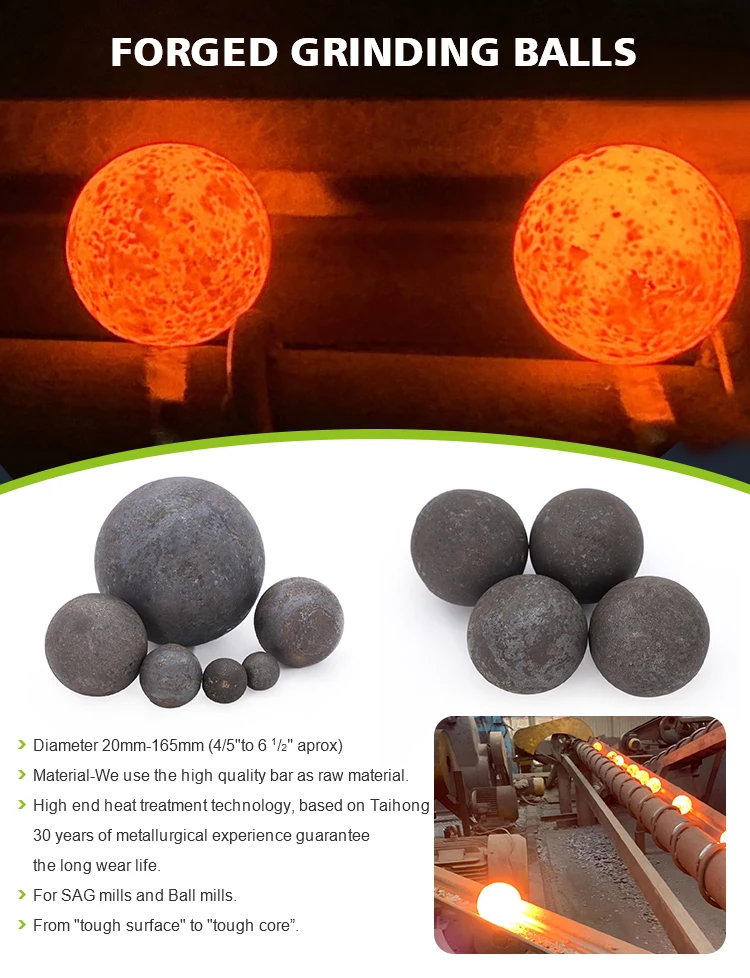

FORGED GRINDING BALLS:
Diameter 20mm-160mm(4/5’’ to 6 ½’’ approx.)
Material-We use the high quality bar as raw material.

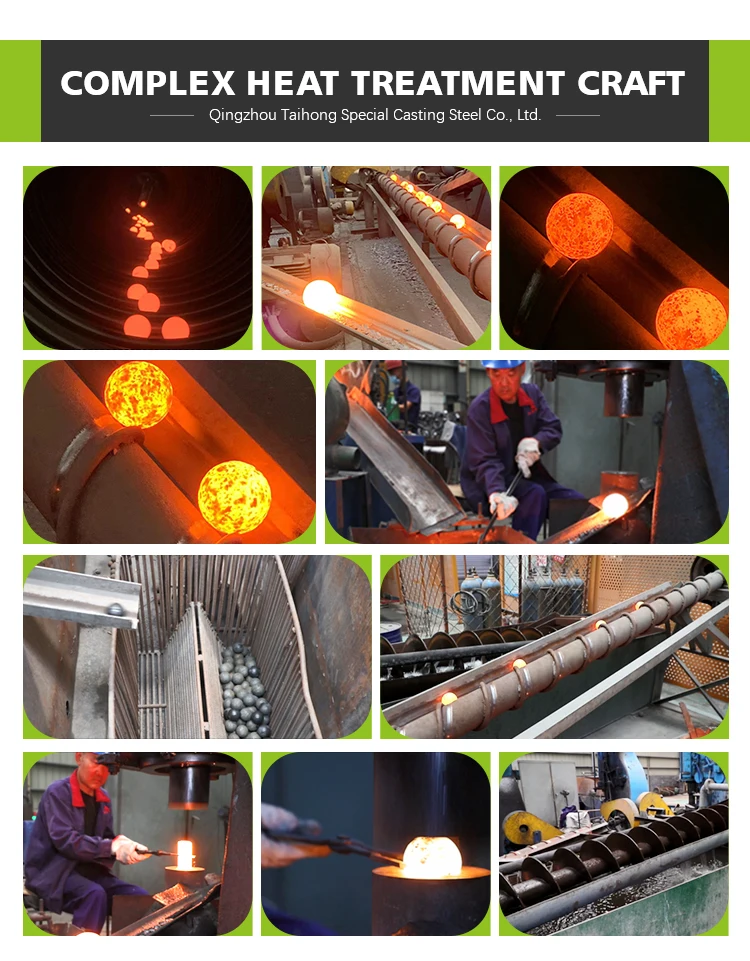

High end heat treatment technology, based on Taihong 30 years of metallurgical experience guarantee the long wear life.
For SAG mills and Ball mills,
From “tough surface” to “tough core”.

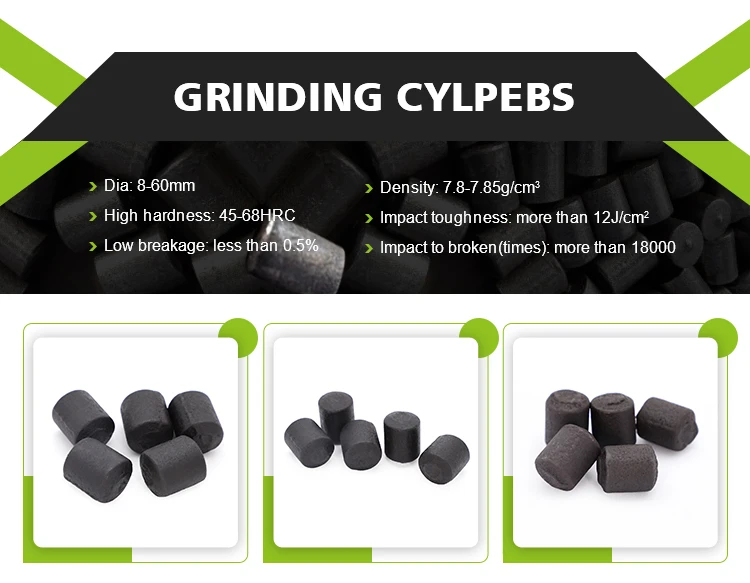

GRINDING CYLPEBS:
Diameter 8mm-60mm.
High Hardness: 45-68HRC.
Low breakage: less than 0.5%.
Impact toughness: more than 12J/square centimeter.
Density: 7.8-7.85g/square centimeter.
Impact to broken(times): more than 18000.
Main product-3

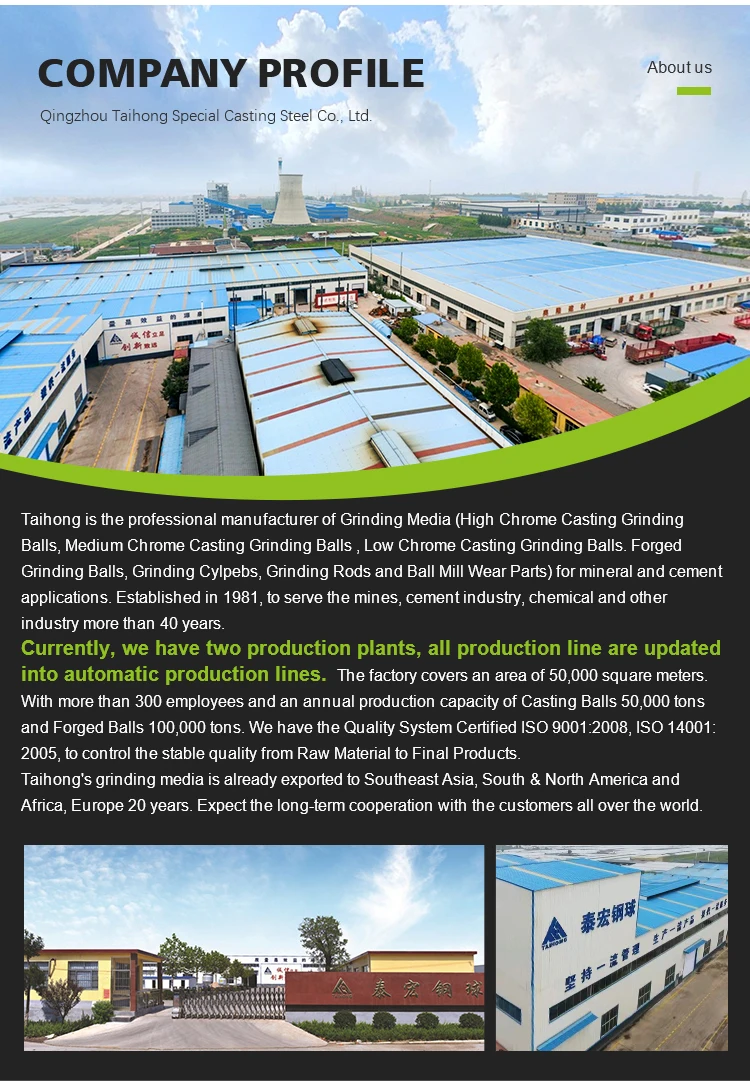

Taihong is the professional manufacturer of Grinding Media (High Chrome Casting Grinding Balls, Medium Chrome Casting Grinding Balls , Low Chrome Casting Grinding Balls. Forged Grinding Balls, Grinding Cylpebs, Grinding Rods and Ball Mill Wear Parts) for mineral and cement applications. Established in 1981, to serve the mines, cement industry, chemical and other industry more than 40 years.Taihong is the professional manufacturer of Grinding Media (High Chrome Casting Grinding Balls, Medium Chrome Casting Grinding Balls , Low Chrome Casting Grinding Balls. Forged Grinding Balls, Grinding Cylpebs, Grinding Rods and Ball Mill Wear Parts) for mineral and cement applications. Established in 1981, to serve the mines, cement industry, chemical and other industry more than 40 years.

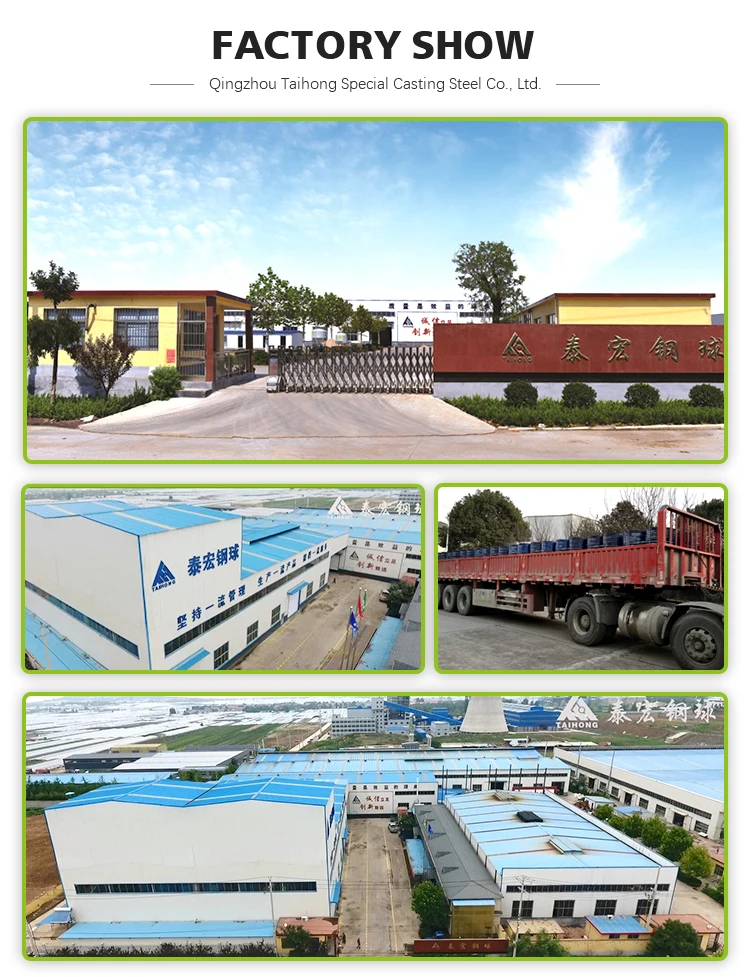

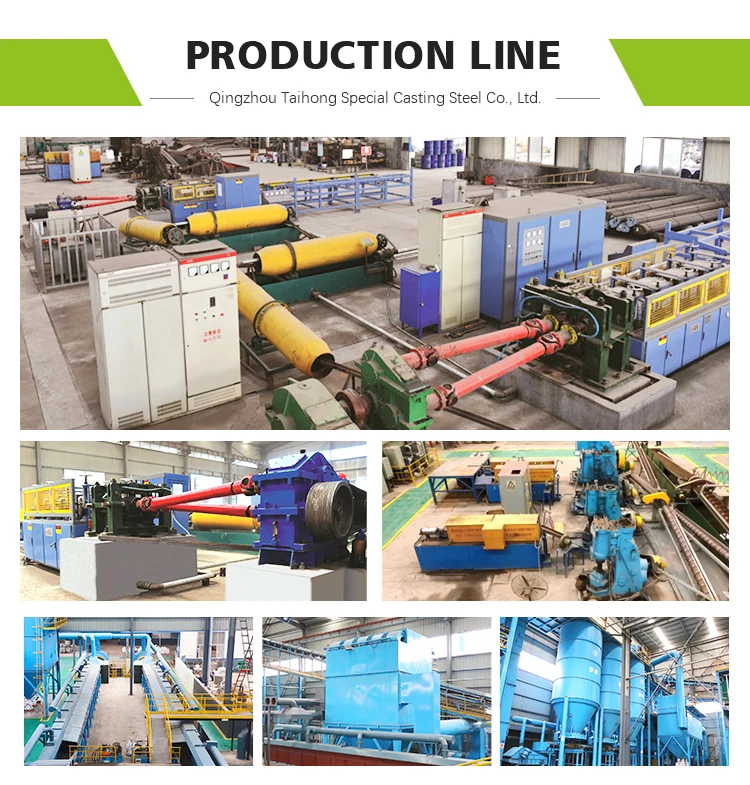

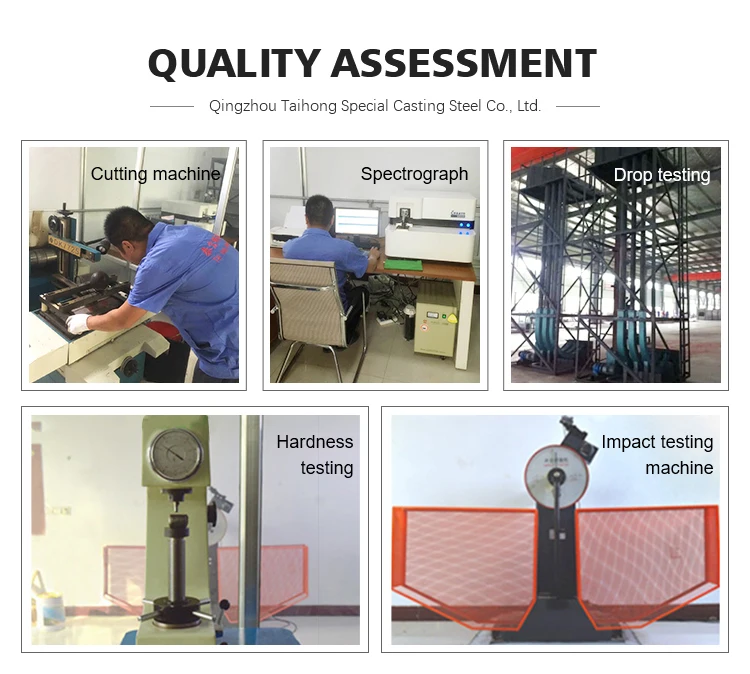

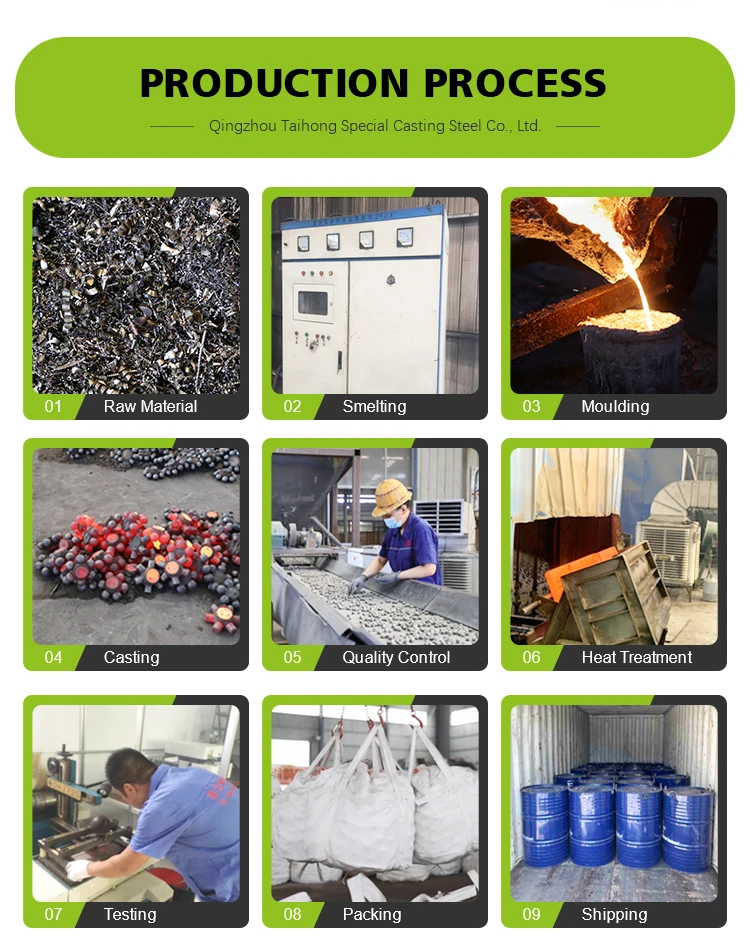

Currently, we have two production plants, all production line are updated into automatic production lines. The factory covers an area of 50,000 square meters. With more than 300 employees and an annual production capacity of Casting Balls 50,000 tons and Forged Balls 100,000 tons. We have the Quality System Certified ISO 9001:2008, ISO 14001: 2005, to control the stable quality from Raw Material to Final Products.
Taihong's grinding media is already exported to Southeast Asia, South & North America and Africa, Europe 20 years. Expect the long-term cooperation with the customers all over the world.
All details-2022
It mainly used in mines, power plants, cement plants, steel plants, silica sand plants, gravel field, coal chemical industry and other fields,
