Fanless Industrial Mini PC Quad Core J4125 N4000 2 LAN 4 COM RS485 Win10 Pro Linux WIFI Desktop Computer
- Category: >>>
- Supplier: Shenzhen Helor Cloud Computer Co. Ltd.
Share on (1600699285145):
Product Overview
Description
Product Description
Industrial Mini PC Fanless Celeron J4125 Quad-Core N4000 2 LAN 4 COM RS485 Desktop Computer Windows 10 Pro Linux WIFI minipc
(1) Intel Celeron J4125 and N4000 processors optional
(2) 1x SODIMM-DDR4 max support 8GB
(3) Support 1x M.2 SATA SSD and 1x SATA 2.5inch
(4) Support mini PCIE to expand WiFi/Buletooth/4G LTE module
(5) Support triple display, 2x HDMI, 1x LVDS expansion
(6) 2x Gigabit Ethernet, support Wake on LAN, PXE booting

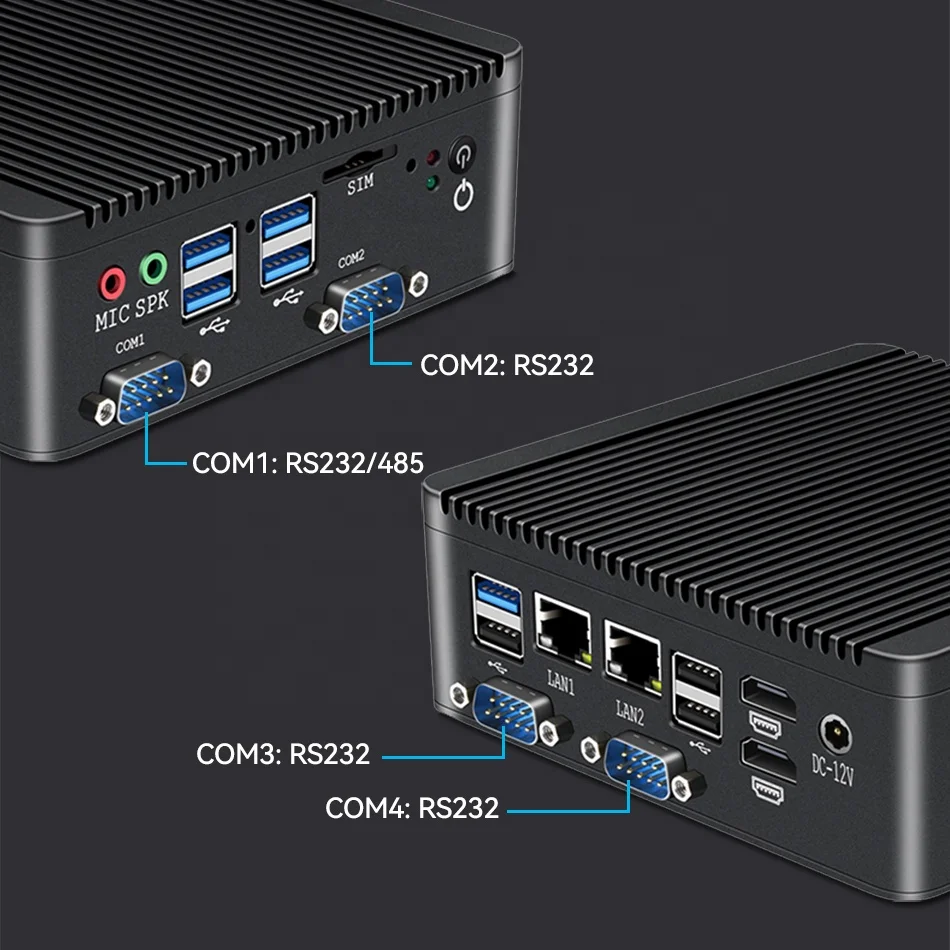

(7) GPIO, 4x COM RS232 ( COM1 support RS232/RS485 adjustable)
(8) Supprot wide voltage input 12V-19V
(9) Support windows 10, Windows 11, Linux
(2) 1x SODIMM-DDR4 max support 8GB
(3) Support 1x M.2 SATA SSD and 1x SATA 2.5inch
(4) Support mini PCIE to expand WiFi/Buletooth/4G LTE module
(5) Support triple display, 2x HDMI, 1x LVDS expansion
(6) 2x Gigabit Ethernet, support Wake on LAN, PXE booting
(7) GPIO, 4x COM RS232 ( COM1 support RS232/RS485 adjustable)
(8) Supprot wide voltage input 12V-19V
(9) Support windows 10, Windows 11, Linux

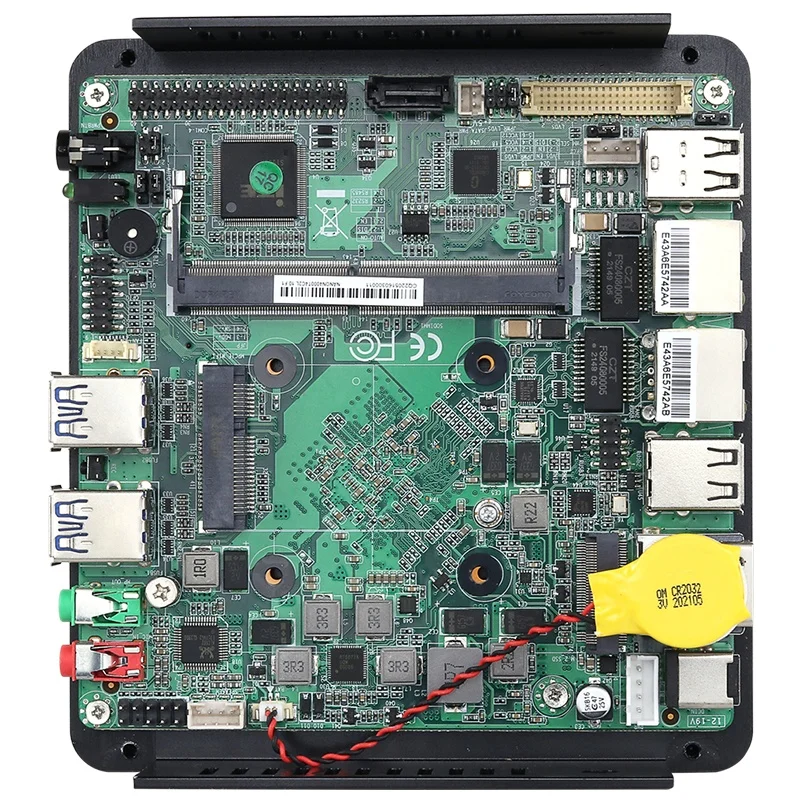

Motherboard Size | 120mmX120mm |
Processors | Intel® Celeron J4125 Processor 4 cores 4 threads, 2.0GHz, up to 2.70GHz Intel® Celeron N4000 Processor 2 cores 2 threads,1.10GHz, up to 2.60GHz |
Memory Types | 1x SO-DIMM DDR4 2133/2400MHz slot Max support to 8GB |
Expansion | 1 x M.2 Key M（2280mm，SATA SSD） 1 x MiniPCIe slot for Wifi/Bluetooth /4G module |
External Connectors | 1 x DC-IN 2 x HDMI 3 x USB2.0 2 x LAN 1 x MIC-IN 1 x HP-OUT 5 x USB3.2 GEN1(5Gbps) 1 x REC (Ghost button (one-key system restore) 1 x RST (Reset button & CLR_CMOS button) 2 x LED,1 x HDD LED（red） ； 1 x WIFI&4G module states（green） 1 x PWR_BT |

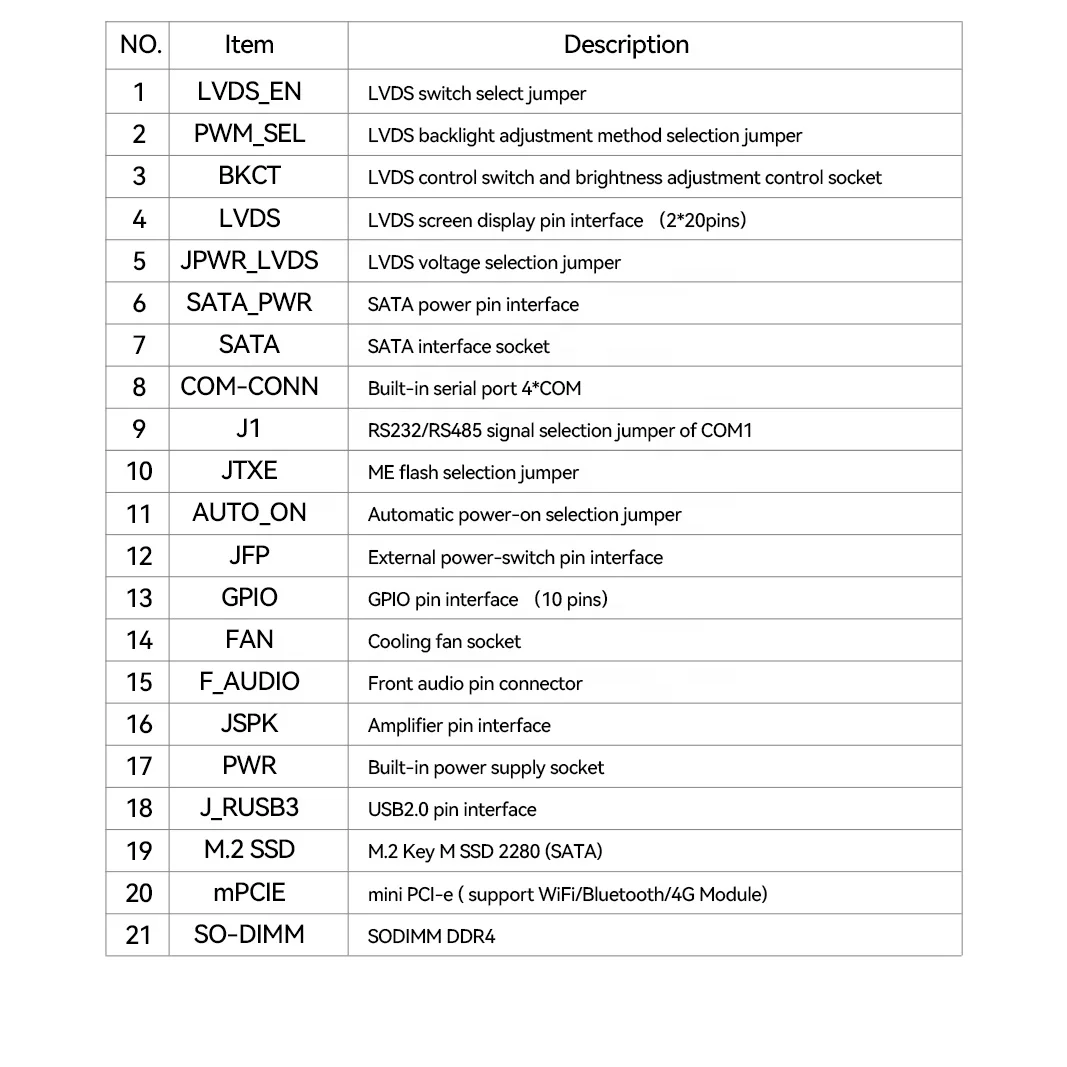

Internal Connectors | 1 x Debug 1 x LVDS 1 x SATA_PWR 1 x SATA 1 x COM_CONN（4*COM232,COM1 support RS232/485 adjust on J1 jumper） 1 x JFP (automatic power on set up jumper) 1 x GPIO 1 x AUDIO 1 x Speaker 1 x F_USB2.0 |
BIOS | AMI BIOS |
Supports Advanced Power Management ACPI Support hardware real-time monitoring Support automatic power-on | |
Display | Support synchronous/asynchronous triple display (HDMI1, HDMI2, LVDS3) |
Backlight Adjustment | LVDS can support system/hardware adjustment, select adjustment method through jump cap (default system adjustment) |
LAN | 2 x Realtek Gigabit Ethernet（RTL8111H/8111G） |
Audio | Realtek ALC662/ALC887 ；Integrated power amplifier NS4251 3W@4Ω max |
Power Input | DC 12-19V |
Working Environment | Working temperature: -15℃~60℃ Ambient humidity: 0%~95% |
Display | Support synchronous/asynchronous triple display (HDMI1, HDMI2, LVDS3) |
I/O Chipset | ITE8786E-I |
Operating System | Windows 10 / Windows 11/ Linux |
Dimension | 136 x 126x 46mm |
Related Products
Company Profile
Shenzhen Helor Cloud Computer Co,. ltd(HLY) ,located in Shenzhen, Guangdong and specialized in mini computer since 2013, has our own professional motherboard manufacturer.Developed more than 50 kinds of own products, applied in different fields for AI, office working, education, entertainment, advertising, transport, military, industrial, etc....Our mini pc had sold in more than 60 countries and regions, annual sales exceed one million units.
HLY carries the line of over 20 manufacturers of computer components, communications products and specialized electronics for automation control, thereby HLY can offer the leading edge device, the latest technological developments as well as best prices to our clients.
HLY carries the line of over 20 manufacturers of computer components, communications products and specialized electronics for automation control, thereby HLY can offer the leading edge device, the latest technological developments as well as best prices to our clients.
We have more than 100 employees. Experienced technical group , reliable and dedicated sales department and responsible production team constitute the backbone of our enterprise.Our well-selected components and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Our engineers are outstanding in their ability to analyze requirements and tailor a solution meeting all specifications, which allow us to research and development various sorts and varieties computer to fit the specific technical requirements of the customer.So ODM\\OEM is highly welcome.From design, production and installation to excellent after-sales, HLY clients are assured of the highest level of quality and service.
Packaging&Shipping
① Power adapter:
We have multiple specifications of power supplies, which are selected by default based on your shipping address.If you have special demands, please contact us in time.
EU,UK,US,AU,Brazil,etc.
EU,UK,US,AU,Brazil,etc.
② Payment:
We are supporting L/C; DA; DP; T/T; Western Union; Alibaba and negotiation.
③ Shipping Methods:
Shipping by DHL, FedEx, UPS, Aramex, post and Alibaba, and negotiation. ( choose as you prefer)
FAQ
1,How about the waranty?
A:The first year we provide free repair service, the second year and the third year, free repair but we will charge for the parts that need to change.
2,Can i print my logo on your mini pc?
A:Yes,please provide your logo file, and we will confirm the design effect to you before production.we also doing OEM\\ODM.
3,What is the MOQ?
A:We can sell one sample for your test.
4,How long the package will ready after I buy the mini pc?
A: It takes about three days for inspection and assembly. Generally, 10 units can be shipped in about 3 days, and 50 units can be shipped in about 8 days. More information please kindly check with us.
5,Are your mini pc in stock?
A:Yes, most of our models are in stock. You can confirm the inventory with us before placing your order.
A:The first year we provide free repair service, the second year and the third year, free repair but we will charge for the parts that need to change.
2,Can i print my logo on your mini pc?
A:Yes,please provide your logo file, and we will confirm the design effect to you before production.we also doing OEM\\ODM.
3,What is the MOQ?
A:We can sell one sample for your test.
4,How long the package will ready after I buy the mini pc?
A: It takes about three days for inspection and assembly. Generally, 10 units can be shipped in about 3 days, and 50 units can be shipped in about 8 days. More information please kindly check with us.
5,Are your mini pc in stock?
A:Yes, most of our models are in stock. You can confirm the inventory with us before placing your order.
