item | value |
Place of Origin | Japan |
Brand Name | ALPS |
Model Number | SPVQC10201 |
Type | Switch Limit |
Supplier Type | Agency |
Media Available | datasheet, Photo |
Brand | Micro Switch |
Size / Dimension | 15.4*12.2 |
Color | Black |
Material | Rubber |
Operating Temperature | -40°C to+85°C |
Mounting Type | Surface Mount |
Poles | 2 |
Positions | 2 |
Changeover timing | Non shorting |
Operation part shape | push |
Operating force | 1±0.5N |
Terminal type | For PC board Reflow |

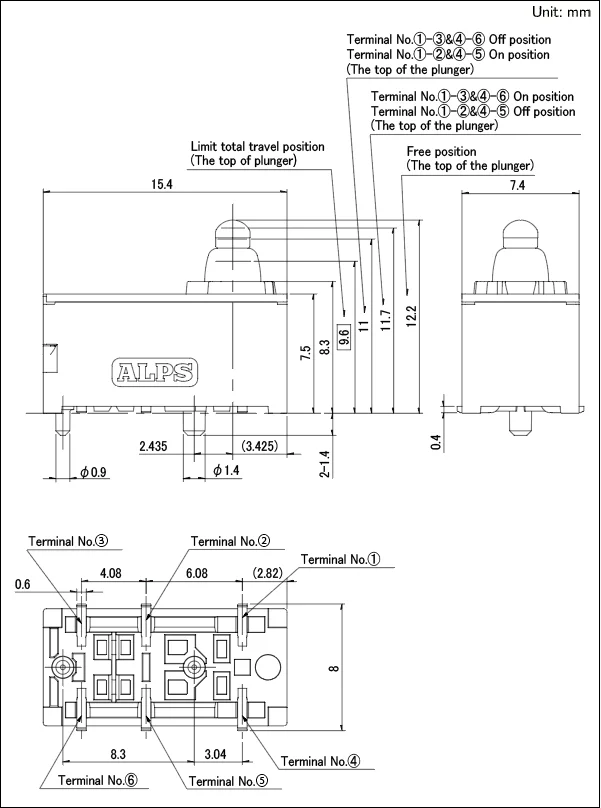

Dimensions | 7.4*15.4*7.5mm |
Voltage proof | 250V AC for 1 minute |
Operating life | 300,000 cycles |
Rating max | 50mA 18V DC |
