Buy Pharmaceutical Vial Bottle Cartoning Machine 3 Years Warranty
- Category: >>>
- Supplier: Shanghai Boom Packaging Machinery Co. Ltd.
Share on (1600699327817):
Product Overview
Description
PRODUCT DESCRIPTION
Buy Pharmaceutical Vial Bottle Cartoning Machine - 3 Years Warranty

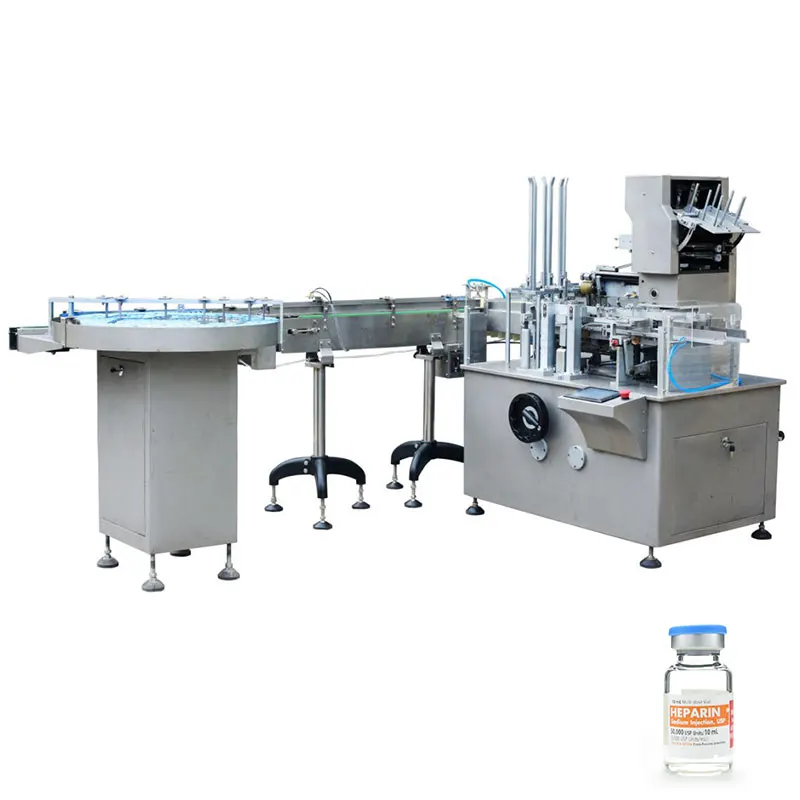

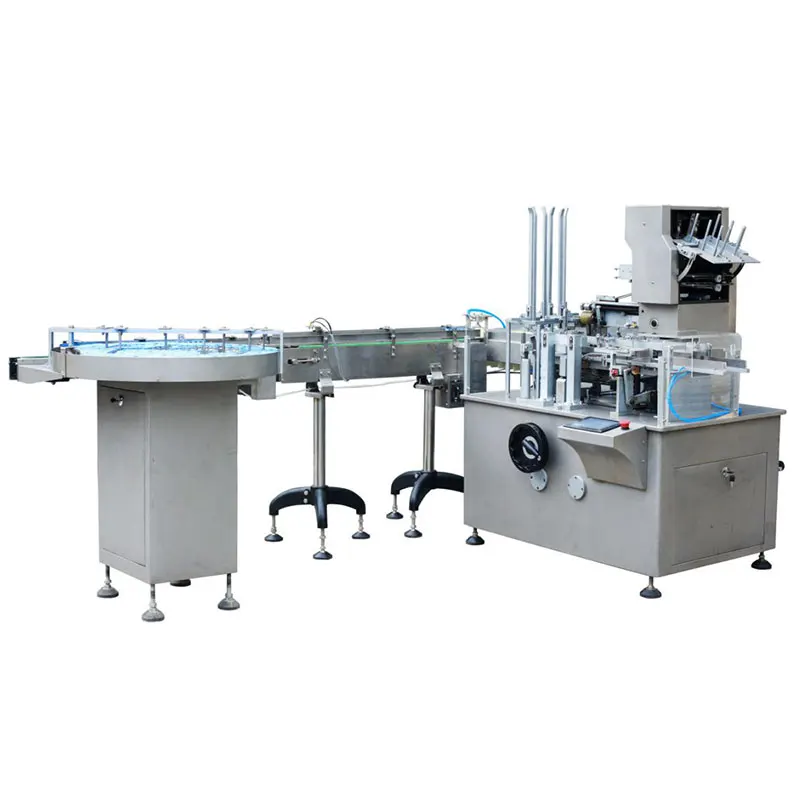

HTZH-80 Small Box Packing Machine is widely used for different packing including drugs, food, commodity, and cosmetics. For the drug industry such as a cover box for solid torch and capsule, softbox for liquid paste, grease, and colloid, tray box for the vial, ampule bottle, and injector, as well as bottle box for solid and liquid drug and bag box for powder and grain products.
SPECIFICATIONS
Model | HTZH-80 |
Productivity | 40-80pcs/min |
Box Size Range | L(49-120)mm*W (30-80) mm*H(14-50)mm |
Box Paper Requirements | 250-450g/m3 |
Instructions Size Range | L(100-260)mm×W(100-190)mm |
Instructions Paper-Based Requirements | 55-70g/m3 |
Motor Power | 1.5KW |
Power Supply | 220V/380V/50Hz/60Hz |
Machine Noise | ≤80dB |
Gas Source | 0.5-0.8Mpa |
Air Consumption | 120-160L/min |
Dimension(L*W*H) | 1300*1200*1500mm |
Weight | About 950KG |
FEATURES AT A GLANCE
HTZH-80 Box Packing Machine Features
1. Using PLC automatic control system, frequency control; speed can be adjustable.
2. Cam drive system, stable operation, reliable performance.
3. Different sizes can be adjustable. In a certain range can be done more than one size of the product specifications box in one machine.
4. Automatically print the production batch number (Optional).
5. Manual and automatic conversion function.
2. Cam drive system, stable operation, reliable performance.
3. Different sizes can be adjustable. In a certain range can be done more than one size of the product specifications box in one machine.
4. Automatically print the production batch number (Optional).
5. Manual and automatic conversion function.
6. With no carton box stop function and alarm.
