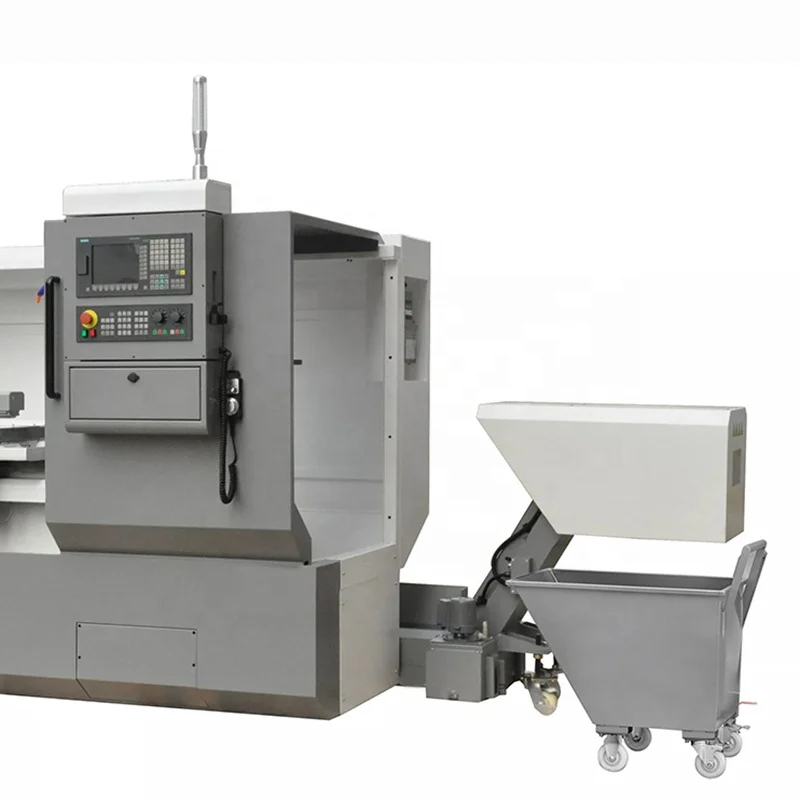

CNC Metal Turning Lathe Machine CT660 Low Cost CNC Lathe
- Category: >>>
- Supplier: Hangzhou Techmax Precision Machinery Co. Ltd.
Share on (1600699368527):
Product Overview
Description
▪ Electronic handwheel for manual travel of X- and Y-axis come standard
▪ Wide cross slide allows mounting of various tool post holders

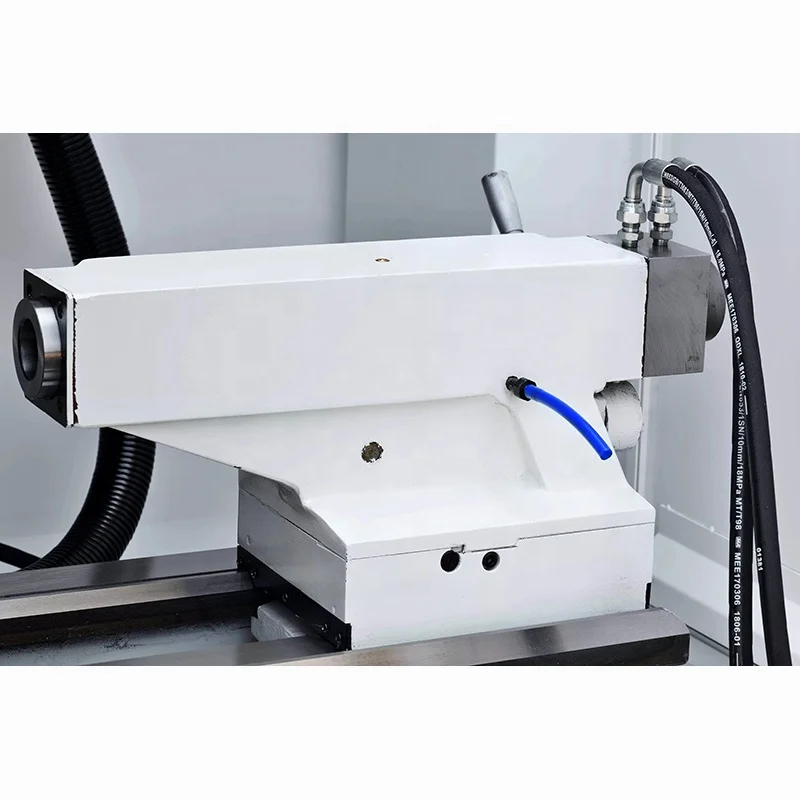

▪ Stable tailstock with hydraulically adjustable tailstock spindle
▪ High rapid feed allows significant reduction of downtime.
▪ Main spindle features pre-tightened high-quality angular bearings, guarantees best
possible accuracy
▪ User-friendly, easy-to-understand Fanuc control 0i TF (5)

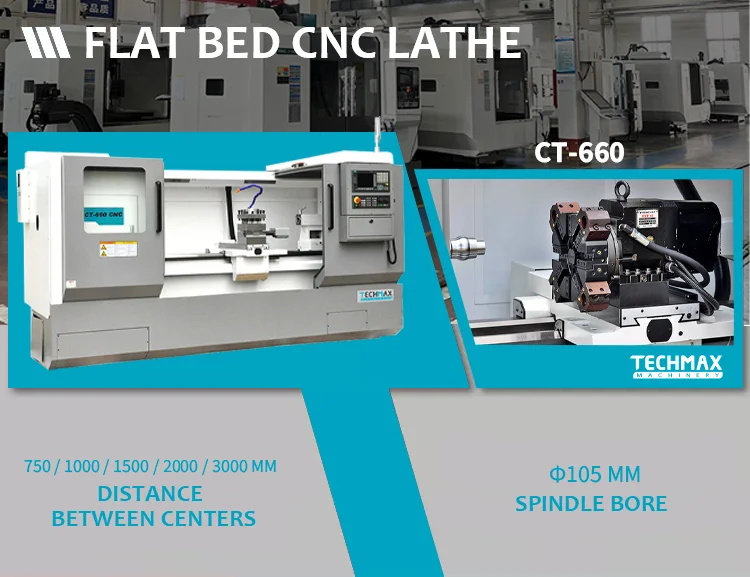

▪ Solid headstock features precisely bedded main spindle (spindle bore Φ105 mm)
▪ Wide cross slide allows mounting of various tool post holders
▪ Stable tailstock with hydraulically adjustable tailstock spindle
▪ High rapid feed allows significant reduction of downtime.
▪ Main spindle features pre-tightened high-quality angular bearings, guarantees best
possible accuracy
▪ User-friendly, easy-to-understand Fanuc control 0i TF (5)
▪ Solid headstock features precisely bedded main spindle (spindle bore Φ105 mm)
Siemens or Fanuc CNC System

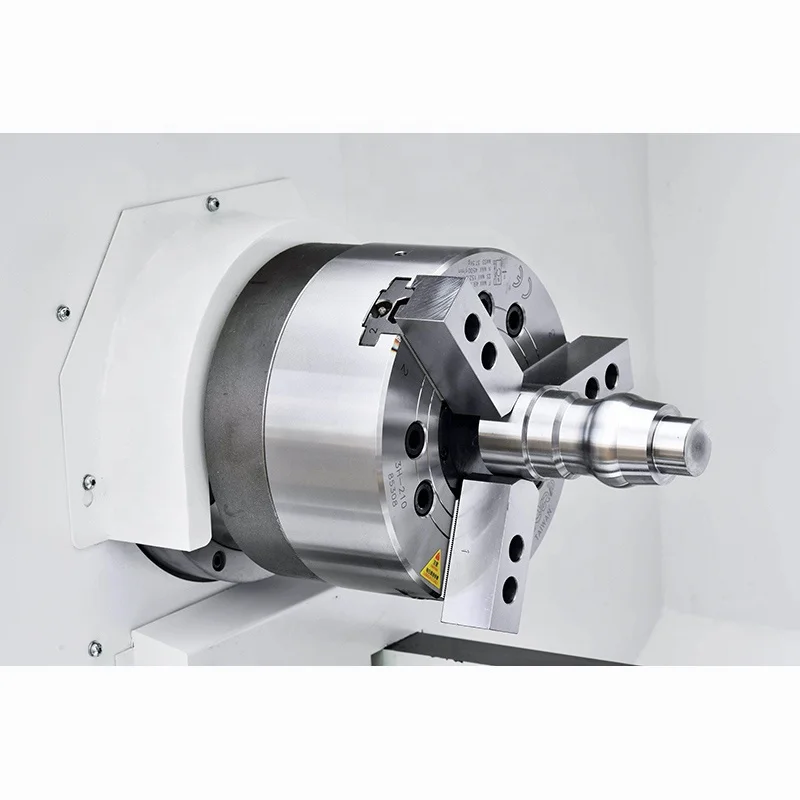

3-Jaw Hydraulic Chuck

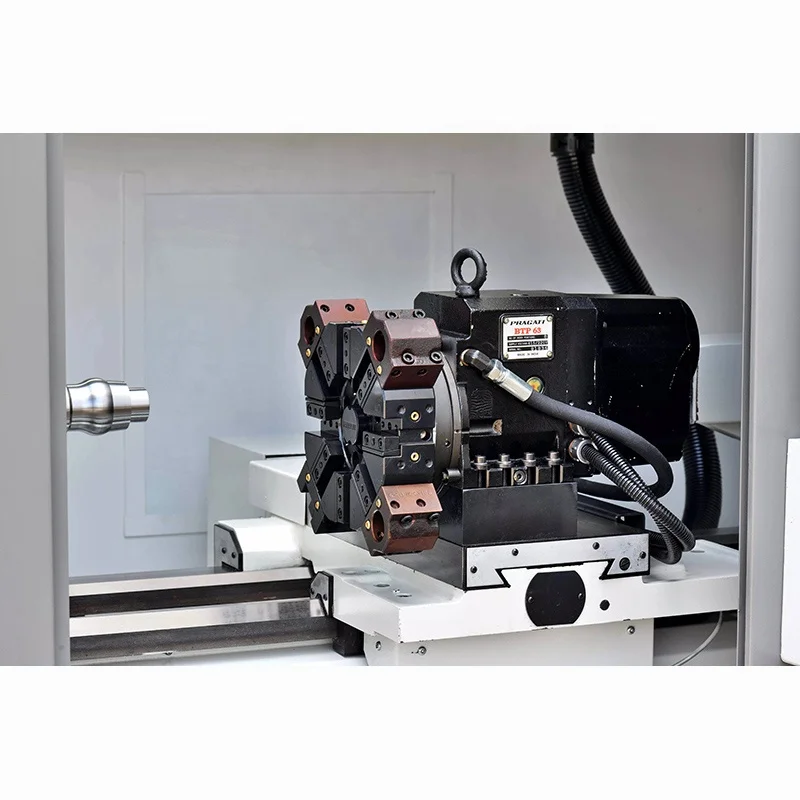

6-station electrical tool changer
Technical Parameters
Model | CT-560 | CT-660 |
CAPACITY: | ||
Swing over bed | Φ560 mm | Φ660 mm |
Swing over cross slide | Φ330 mm | Φ430 mm |
Distance between centers | 750/1000/1500/2000/3000 mm | 750/1000/1500/2000/3000 mm |
Max. turning length | 650/900/1400/1900/2900 mm | 650/900/1400/1900/2900 mm |
6-station turret max. turning length | 585/735/1235/1735/2735 mm | 585/735/1235/1735/2735 mm |
6-station turret max. turning diameter | Φ420 mm | Φ520 mm |
Manual chuck dia. | 10" (250); 12" (305) /(mm) | 10" (250); 12" (305) inch (mm) |
Hydraulic chuck dia. | 10" (250); 12" (305) inch (mm) | 10" (250); 12" (305) inch (mm) |
TRAVEL: | ||
Cross slide travel (X-axis) | 320 mm | 365 mm |
Longitudinal travel (Z-axis) | 720/970/1470/1970/2970 mm | 720/970/1470/1970/2970 mm |
X/Z-axis guide rails | sliding type | sliding type |
Bed width | 405 mm | 405 mm |
SPINDLE: | ||
Spindle speed | 27-135; 55-270; 160-805; 325-1630 rpm | 27-135; 55-270; 160-805; 325-1630 rpm |
Spindle step | 4 steps | 4 steps |
Spindle taper | А2-8 / MK-7 | D8/113 1:20 |
Spindle bore | Φ80 mm | Φ105 mm |
TOOL: | ||
Tool station number | 4; 6 pcs | 4; 6 pcs |
Tool section size | 20×20 (VDI30); 32×32 (4 station) mm | 32×32 mm |
TAIL STOCK: | ||
Tailstock quill taper | MK-5 | MK-5 |
Tailstock quill diameter | Φ75 mm | Φ75 mm |
Tailstock quill travel | 150 mm | 150 mm |
SPEED: | ||
X/Z-axis rapid traverse | 8 / 10 m/min | 8/10 m/min |
COOLANT: | ||
Coolant pump power | 0.09 kw | 0.09 kw |
POWER: | ||
Main motor power | 7.5; 11 kw | 11 kw |
Main motor torque | 76; 111 N.m | 111 N.m |
Spindle torque | 1407; 2055 N.m | 2055 N.m |
DIMENSIONS: | ||
Overall dimensions (L×W×H) | 2250/2500/3000/3500/ 4500×1200×1520 mm | 2250/2500/3000/3500/ 4500×1200×1520 mm |
Weight approx. | 2700/3000/3600/4100/4700 kg | 2700/3000/3600/4100/4700 kg |
Detailed Description
FAQ
1. How can I choose the most suitable machines ?
Re: Please tell us your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
You can also send us the products drawing ,we will choose the most suitable machines for you.
2. What's your main products of your company?
Re: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
3. What kinds of inspection you will do for each machine?
Re: For each assembly procedure, there is geometric accuracy test. After assembly, spindle accuracy will be tested by dynamical balance testing instrument; 3 axes accuracy will be tested by Ball bar. And laser interferometer to inspect positioning and repositioning accuracy. Then the inspection team will make full test before delivery and test piece will be done on each machine. Each workpiece will be inspected by CMM, so each machine performance can be checked and kept in record.
4. Can you supply turn-key solution?
Re: Of course, we have professional team of technical service & after sale service department, who can give you the perfect solution and meet your processing requirement. Besides, we also cooperated with professional fixture company and support with us.
5. What is the warranty time of machine?
Re: We have 14 months warranty after delivery. Within the warranty period, if there is any problem not caused by wrong operation, we will supply you the replacing parts from free. Even beyond the period, we will still supply the replacing parts with cost price.
6. What’s the delivery time, and what’s the package?
Re: Normally the delivery time is about 45-60 days. All our CNC machines are packed with the seaworthy wooden case/pallet, also applied with anti rust measures in advance. View drawing together if any parts disassembled.
