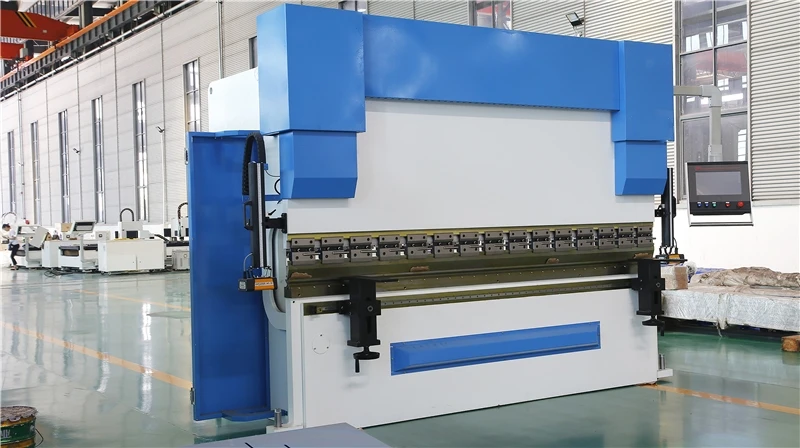

High quality electro hydraulic cnc aluminium profile bending machine low price
- Category: >>>
- Supplier: Henan Austing Machinery Co. Ltd.
Share on (1600699372189):
Product Overview
Description
Products Description
Production Descriprion

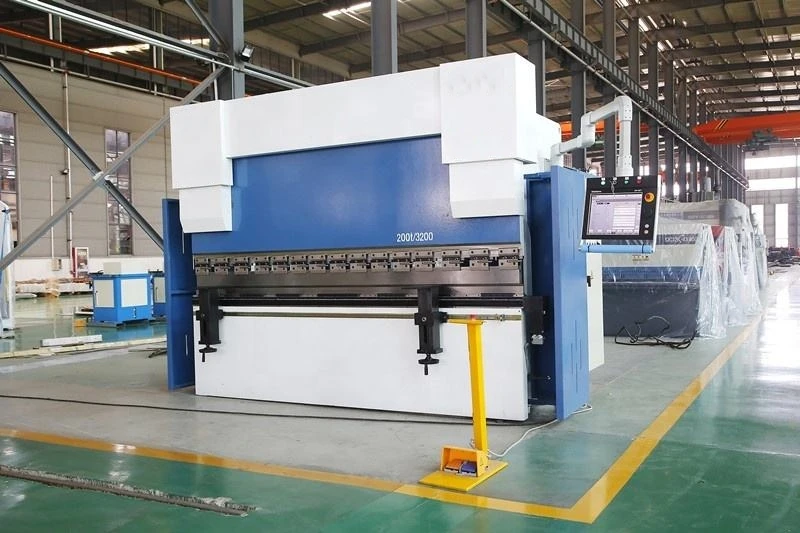

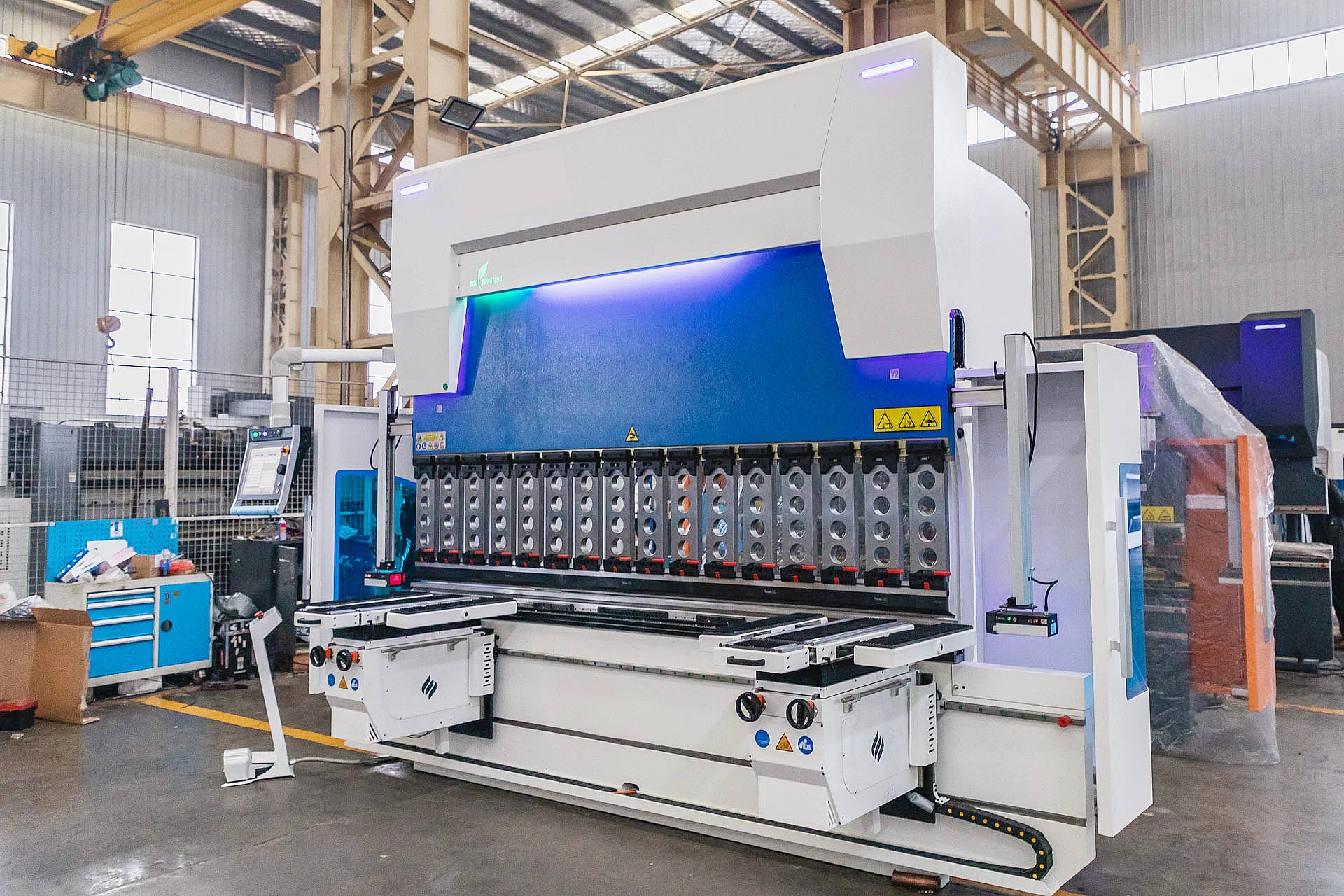

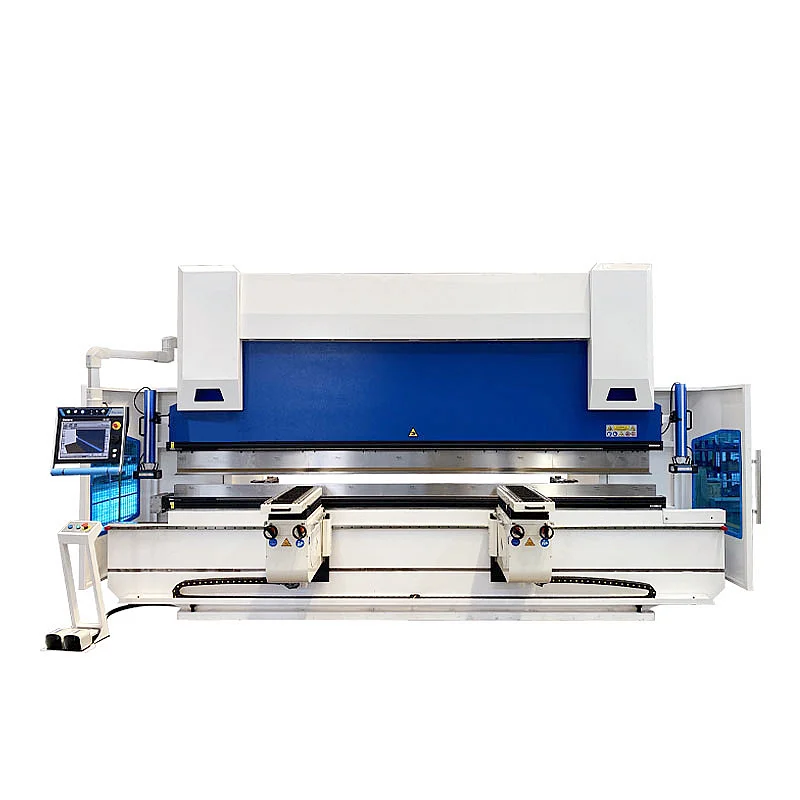

Hydraulic NC Press Brake Machine is our most popular model by volume and a true workhorse. The studies made on the framework flections have allowed us to design a product that reacts in the most appropriate and responsive way to the mechanical solicitations, therefore guaranteeing a stable structure, thus a higher precision in bending. This feature is even enhanced by a system of manual crowning. Worth mentioning is also the possibility to add options and upgrades on the configuration, at later stage.Constructed of high quality parts and offering serious reliability , Y-axis Torsion bar syncro technology with high approach, bending and return speeds.
Details Images

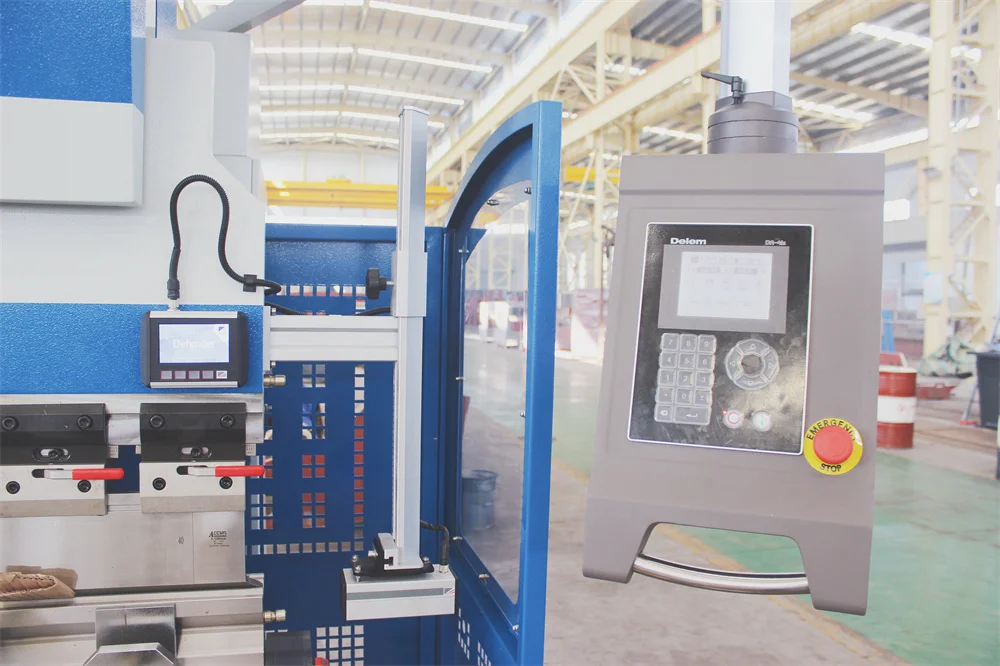

DELEM DA41s CNC CONTROL UNIT
DELEM DA41s offers an higher level of efficiency in programming and control of press brakes. The winning MADE in Netherlands design and the high quality of all the construction details, guarantee prestigious performances and long product life.
DELEM DA41s NC System Features:
•Bright LCD display 320 x 240
•Angle & Tool programming
•CNC Back gauge control
•Developed length calculation
•Up to 25 bends per program
•Servo, frequency inverter and AC control
•The basic machine control functions are Y ,X-axis.
•Angle & Tool programming
•CNC Back gauge control
•Developed length calculation
•Up to 25 bends per program
•Servo, frequency inverter and AC control
•The basic machine control functions are Y ,X-axis.

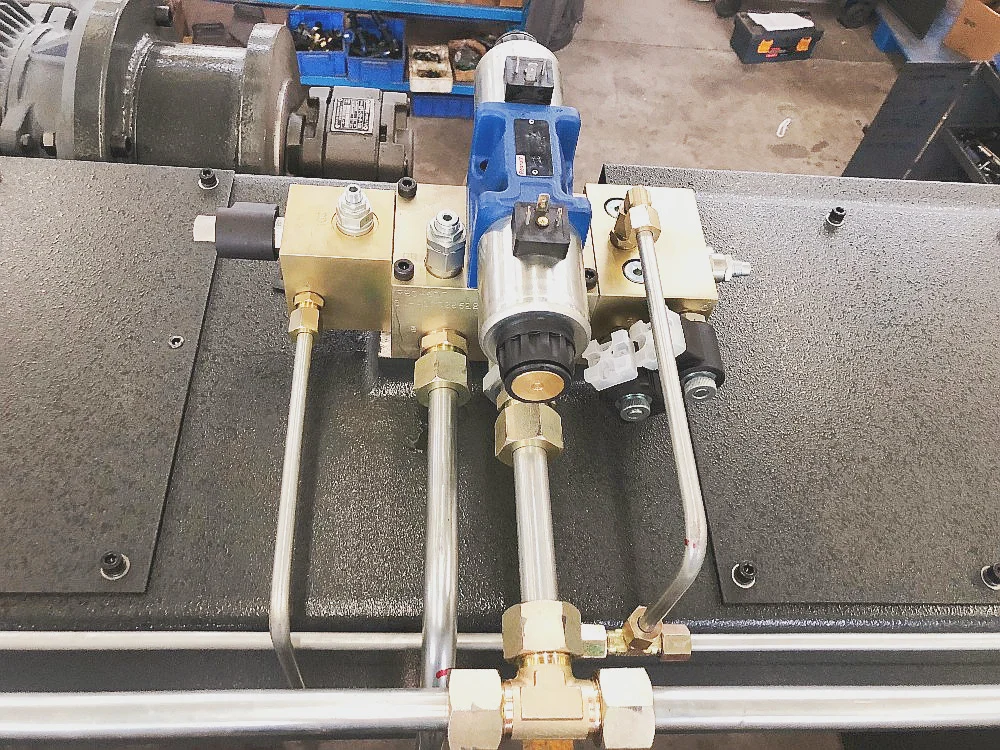

HYDRAULIC SYSTEM
Germany Bosch-Rexroth integrated hydreulic system block, hydraulic transmission with high reliablity, integrated hydreulic system
can effectively alleviate problems caused by leakag of hydraulic fluid.
can effectively alleviate problems caused by leakag of hydraulic fluid.

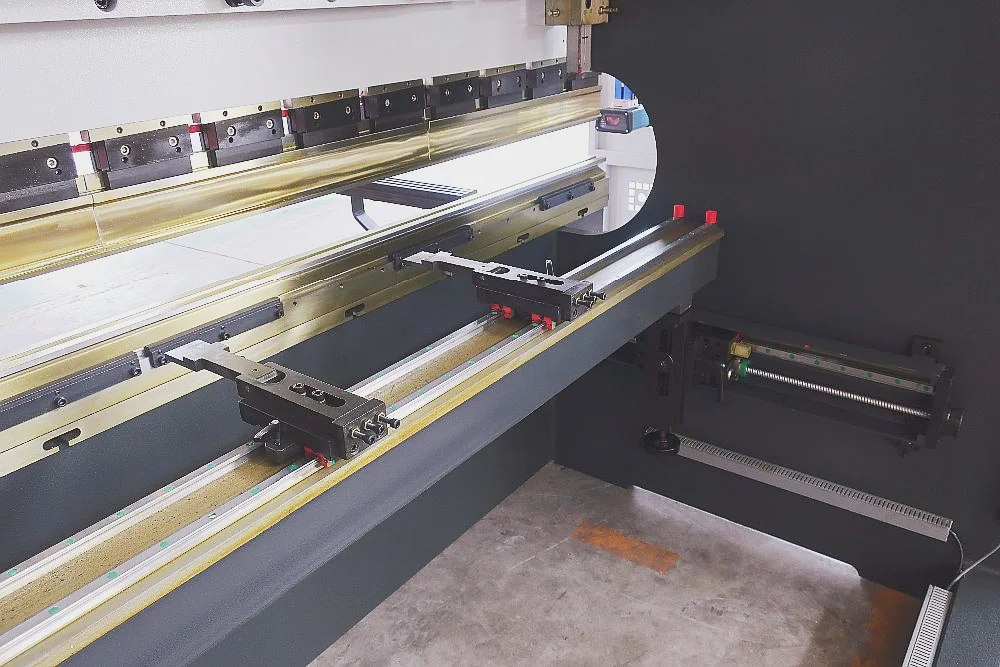

BGA-1 CNC BACKGAUGE
press brake are provided are equipped with BGA-1 CNC backgauge constituted by a solid structure in order to assure the best
repetitiveness and high precision in axes positioning.•X-Axis with HIWIN linear guide and Ball Screw.
•Manual Z1,Z2-axis with linear guide .
•Driven by DELTA Servo Motors and drives
•Less noise, greater durability and greater precision.
repetitiveness and high precision in axes positioning.•X-Axis with HIWIN linear guide and Ball Screw.
•Manual Z1,Z2-axis with linear guide .
•Driven by DELTA Servo Motors and drives
•Less noise, greater durability and greater precision.

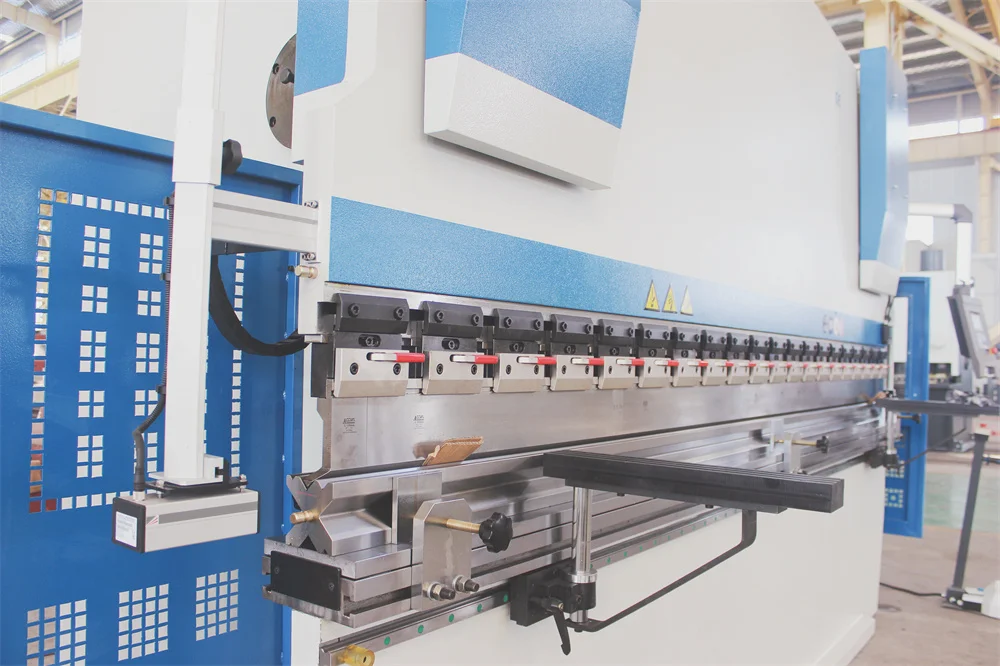

QUICK CLAMP SYSTEM
• safe and fast tool change • substantial improvement in time consumption and related costs • Secure against tool falling down •
Available in manual, pneumatic and hydraulic models. • Mounting: Simply from the bottom into the housing, tighten-DONE! • Easy to
mount on your press brake.Modify cation of the press brake is not necessary.
Available in manual, pneumatic and hydraulic models. • Mounting: Simply from the bottom into the housing, tighten-DONE! • Easy to
mount on your press brake.Modify cation of the press brake is not necessary.
DSP LASER SAFETY SYSTEM
Press Brake Standard with DSP visible laser protection compliant to EN12622 regulation. The beam protects the press brake
operator from the danger of being crushed between upper & lower tool.•The most advanced laser systems
•Box-shaped part bending feature
•Innovative tooling grid guarding pattern
•Completely foot peddle controlled operation
•Auto-blanking for automatic box and side wall detection
•Type 4 patented process control
•"Safe Release" supports are unhooked without damages in case of collision
operator from the danger of being crushed between upper & lower tool.•The most advanced laser systems
•Box-shaped part bending feature
•Innovative tooling grid guarding pattern
•Completely foot peddle controlled operation
•Auto-blanking for automatic box and side wall detection
•Type 4 patented process control
•"Safe Release" supports are unhooked without damages in case of collision
Specification
Name | Unit | PRESS BRAKE 80Tx4000 | ||
Bending force | ton | 80 | ||
Bending length | mm | 4000 | ||
Distance between columns | mm | 2550 | ||
Stroke((Y-axis) NC‐controlled stroke axes) | mm | 120 | ||
Daylight | mm | 380 | ||
Throat Depth | mm | 320 | ||
Bed Height | mm | 800 | ||
Bed Cap Width | mm | 80 | ||
Y-axis advance speed | mm / sec | 120 | ||
Y-axis working speed | mm / sec | 10 | ||
Y-axis return speed | mm / sec | 100 | ||
X-axis BackGauge Speed | mm / sec | 150 | ||
X-axis BackGauge Travel | mm | 600 | ||
X-axis BackGauge Precision | mm | 0.01 | ||
Gaugeable with 3rd Position | mm | 850 | ||
Workpiece straightness | mm | 0.6 /m | ||
Bending angle accuracy | (′) | <±50 | ||
Sliding Front Arms | pcs | 2 | ||
Backgauge Finger Block | pcs | 3 | ||
Motor Power | kw | 7.5 | ||
Oil Tank Capacity | lt | 260 | ||
Crowning System | ‐ | / | ||
Length | mm | 4000 | ||
Width | mm | 1500 | ||
Height | mm | 2400 | ||
Weight | kg | 7500 | ||
More types press brake, please contact us, will give you best solution | ||||
Related Product

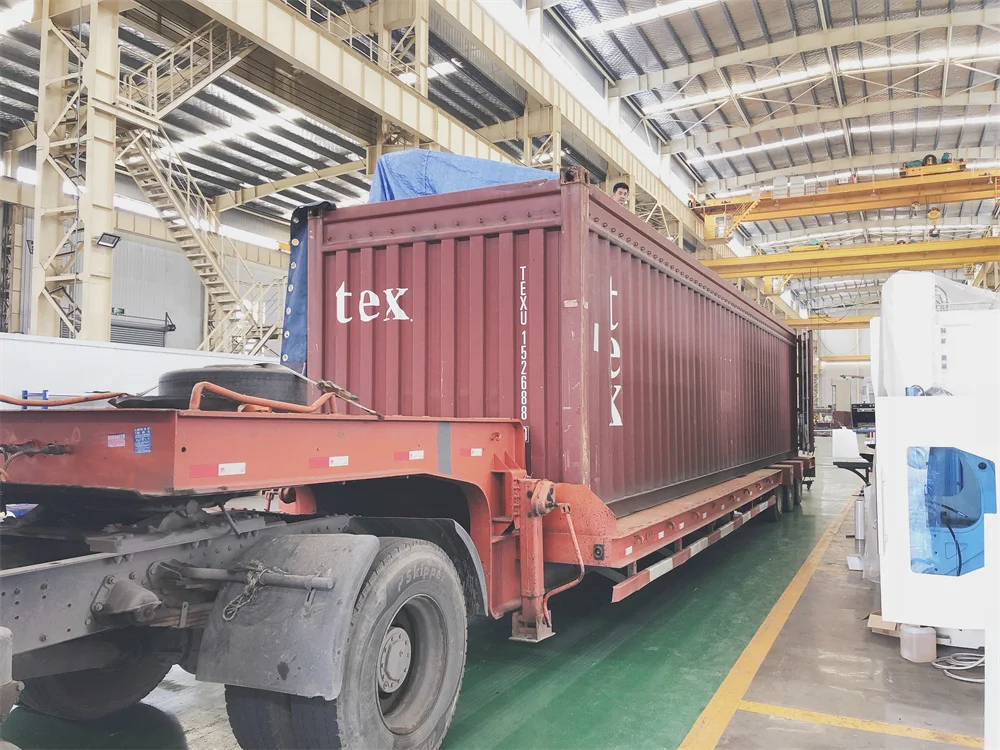

Packaging & Shipping
Why Choose Us

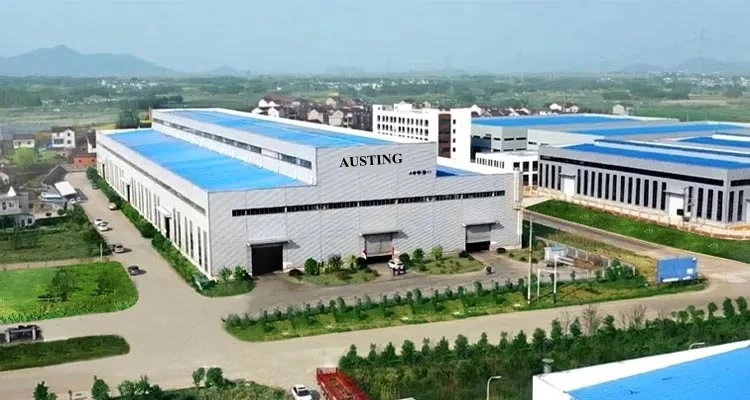

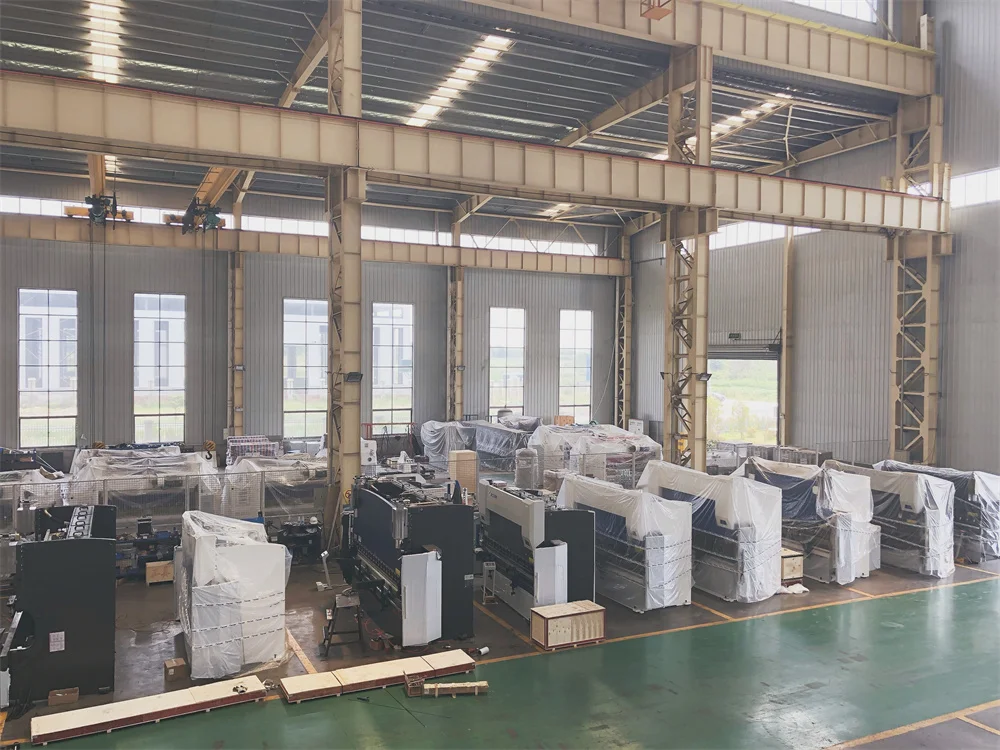

Company Profile
