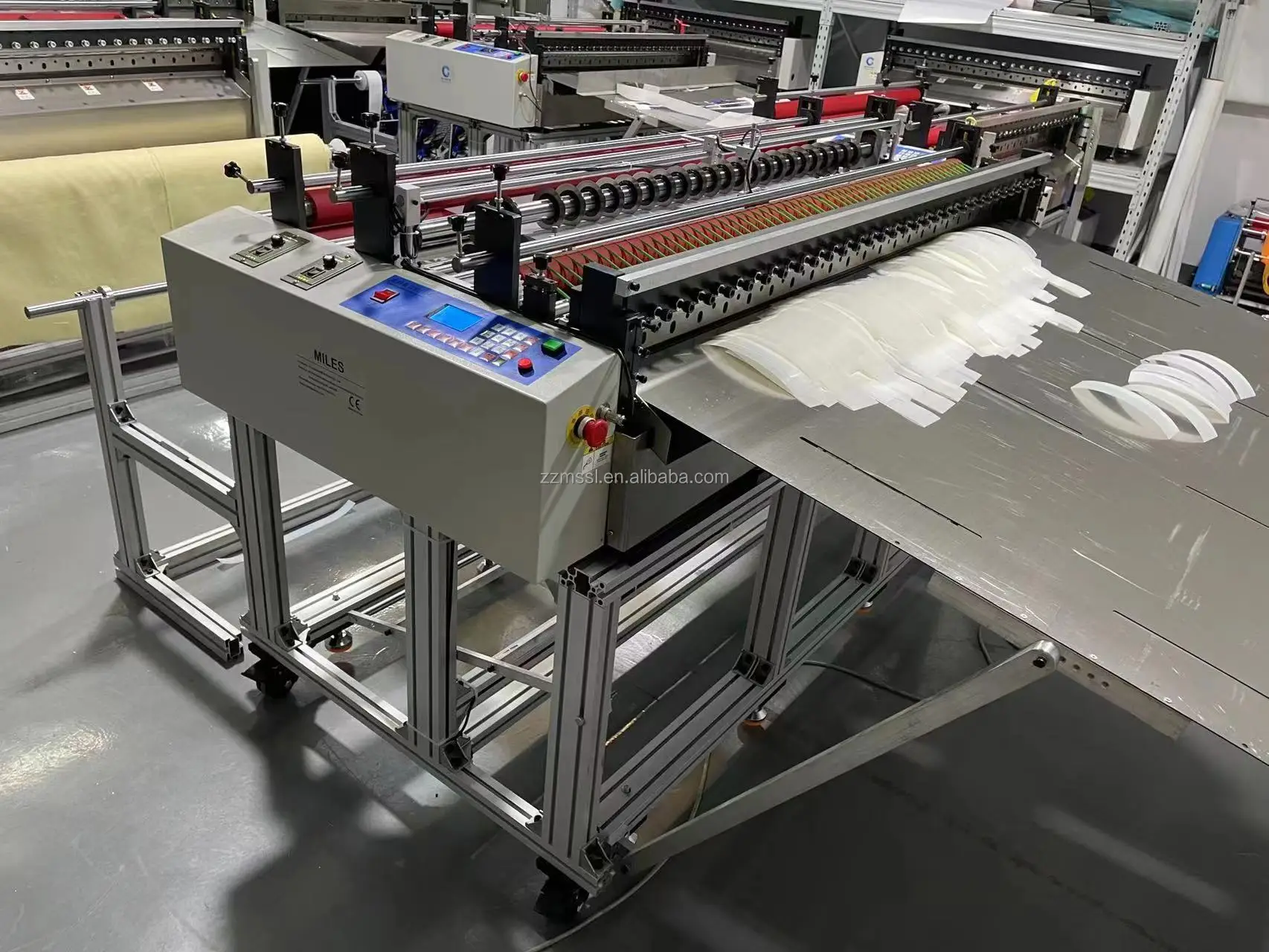

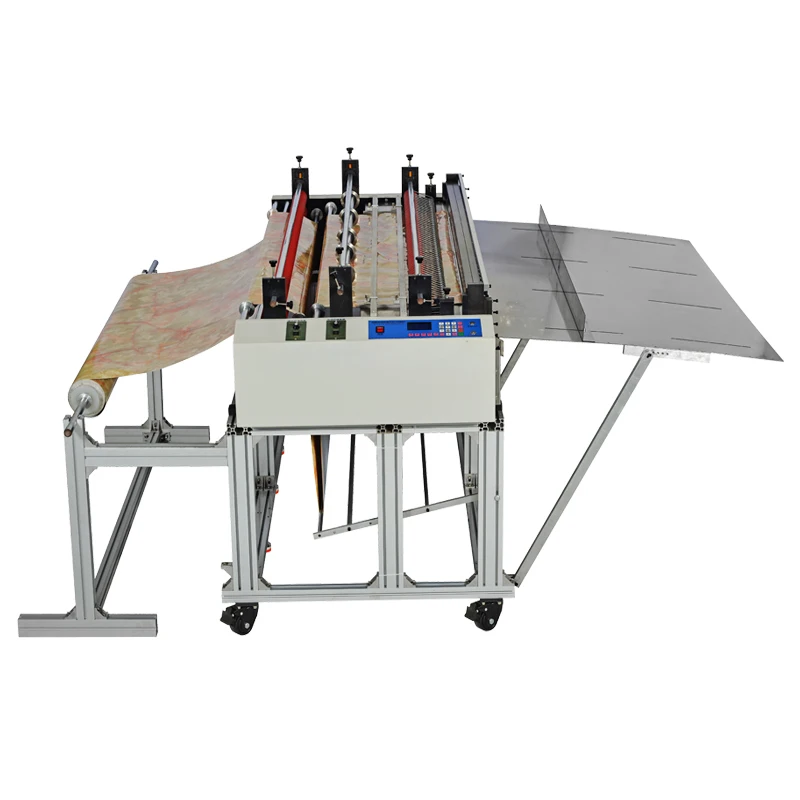

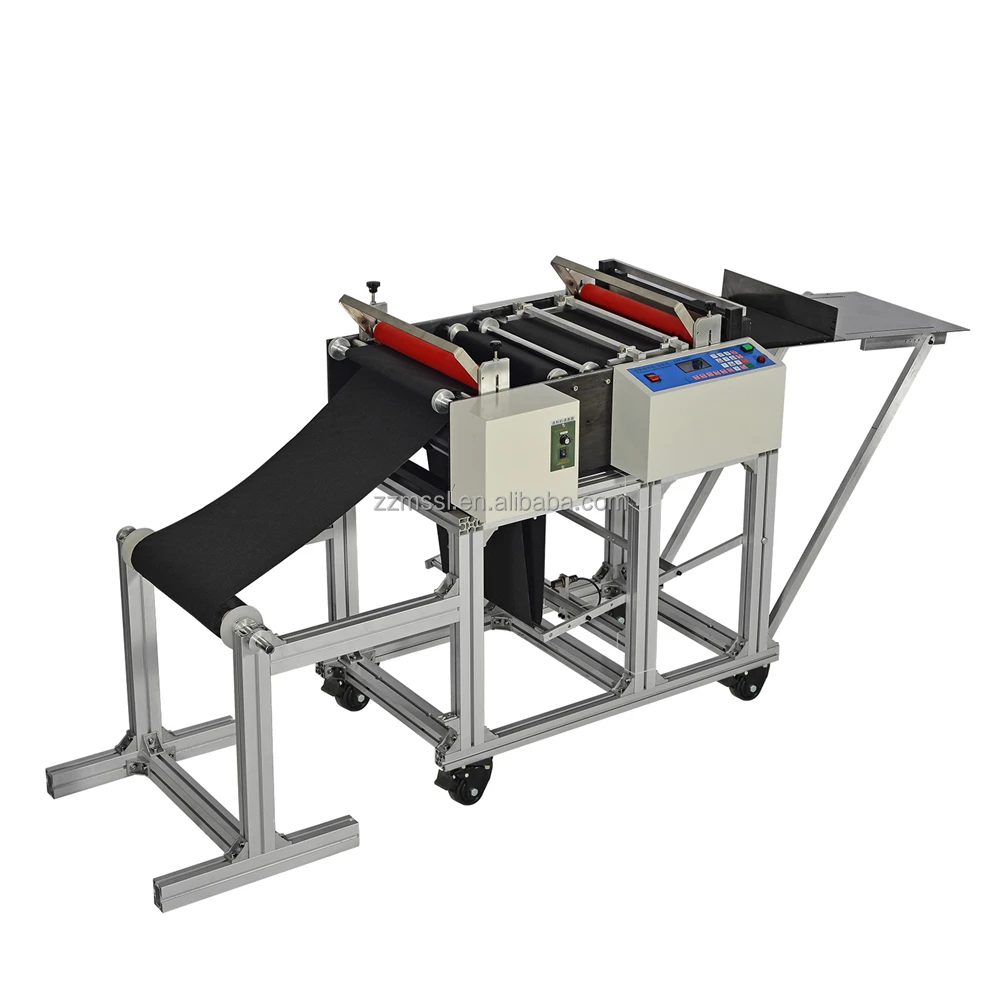

Automatic Pet Film Cutter Cutting Machine/ Pvc Film Cutting Machine
- Category: >>>
- Supplier: Zhengzhou,Miles,Tech,Company,Ltd.
Share on:
Product Overview
Description
Product Description
Applicable to the scope
Canvas, insulating paper,release paper,kraft paper,barley paper, printing paper, adhesive label ,wallpaper, double-sided adhesive
tape, PVC film, PET film, heat shrinkable film, OPP film,insulating film, Bubble film,reflective film, pearl cotton,EVA foam,Thread Knitted Hat Fabric, non-woven fabric, felt, PU artificial leather, cowhide, copper foil,aluminum foil, wire mesh, tarpaulin, etc.
tape, PVC film, PET film, heat shrinkable film, OPP film,insulating film, Bubble film,reflective film, pearl cotton,EVA foam,Thread Knitted Hat Fabric, non-woven fabric, felt, PU artificial leather, cowhide, copper foil,aluminum foil, wire mesh, tarpaulin, etc.
Specification
Model | MT-300T/400T/500T/600T/800T/1000T/1200T/1300T/1500T/1600T/1800T/2100T |
Max cutting width | 300/400/500/600/800/1000/1200/1300/1500/1600/1800/2100mm |
Cutting length | 1-9999mm adjustable |
Cutting precision | 0.1mm |
Cutting speed | 30-120 pcs/min |
Voltage | 220V/110V,50/60hz, Ac |
Language | Chinese and English (Spanish is Optional) |
Package | Wooden case/Carton |
Optional | Electronic eye, Knife slitting group, Round blades slitting group, Spring.Static Eliminator |
Batch pause and time can be set.
The cut section is flat and the length is accurate.
Automatic accumulation and total setting, accumulation count.
The minimum precision of microcomputer program control is 0.1 mm.
Total number setting, section and batch setting, section pause time adjustable.
Full Chinese/English one-key switch, LCD display.Simple and convenient operation.
High-power feeding motor, automatic and manual free switching, convenient and simple operation.
Can be cut in double rows or multiple at the same time, the length and speed are continuously adjustable.
The high-power stepping motor precisely controls the cutting length, the belt length and speed are adjustable.
The high-power stepping motor precisely controls the cutting length, the belt length and speed are adjustable.
Using of special mechanical structure and thickened knife, coupled with special software control, solves the problem of uneven.
Details Images
Control Panel
Chinese and English one-key switch.
LCD screen, intuitive English/Chinese display
Simple and convenient operation.
Feeding rubber roller
It is made of special superior rubber, which is wear-resistant, pressure-resistant and high temperature resistant.
Pressure adjusting screws are provided at both ends to prevent material from slipping.
Pressure adjusting screws are provided at both ends to prevent material from slipping.
Equips With The Stacking Table
The stacking table can collect the pieces/sheet of paper/non woven fabric/canvas, PU artificial leather, wallpaper, aluminum foil, etc. Loading is up to 50 kg.
The position of the baffle can be adjusted.
Automatic Feeding System
Tension System, Sensor High-sensitivity
photoelectric sensor cooperates with motor
to automatically sense pre-feeding material.
Speed controller. Adjust the speed at any time.
Detachable vertical bearing rack
Strong load-bearing capacity
Stainless steel aluminum alloy rack
The rack of the machine is made of stainless steel and aluminum alloy, so there is no need to worry about rust and corrosion, and it has the advantage of durability.
Optional: Electric Eye, Slitting Blade Group, Spring Device, etc
Matsushita Electronic Eye
Fully automatic location tracking.
Positioning and cutting, higher accuracy.
Matsushita Electronic Eye
Printed eva soft film, Adhesive sticker, Tablecloth
Insulation paper wallpaper, Heat transfer film, etc.

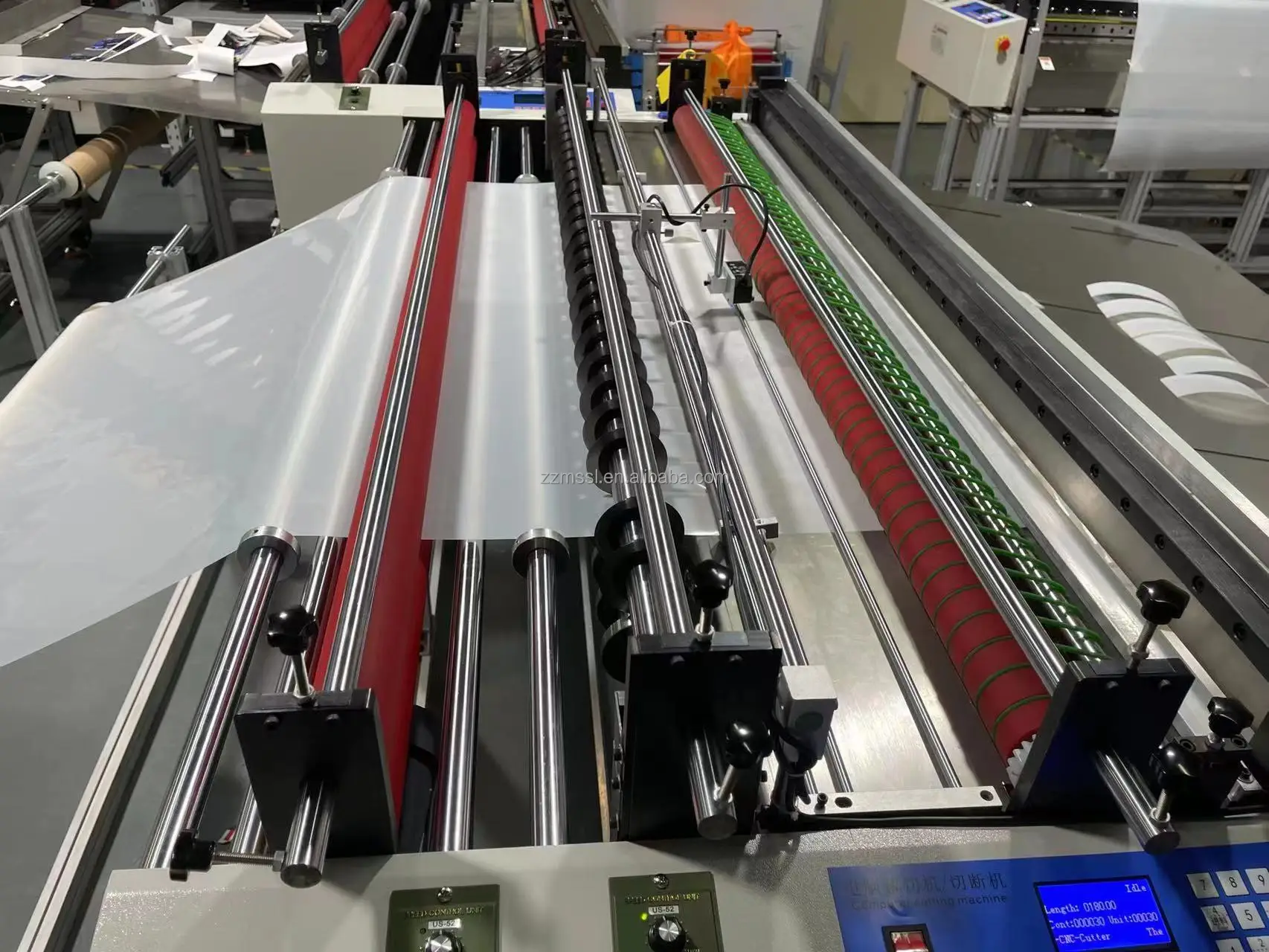

Round Slitting Blades Group
It is for some paper,PVC film, PU leather, wallpaper, felt,aluminum foil, kraft paper, canvas and so on.
Round Slitting Blades Group
3 pieces/Group or more.It is optional.
Powerful, durable, easy to adjust and operate.
Knife Blade Slitting Group
Knife slitting group for thin materials, such as plastic film, cloth, pearl cotton, EVA foam,bubble film and so on.
Knife Blade Slitting Group
5 pieces/Group or more.It is optional.
The slitting knives can work alone.
Spring Device
Plastic and Metal Spring is optional.
Flatten and straighten the material.
Prevent wrinkles and cutting precision.
Spring Device
Plastic and Metal Spring is optional.
Flatten and straighten the material.
Prevent wrinkles and cutting precision.
