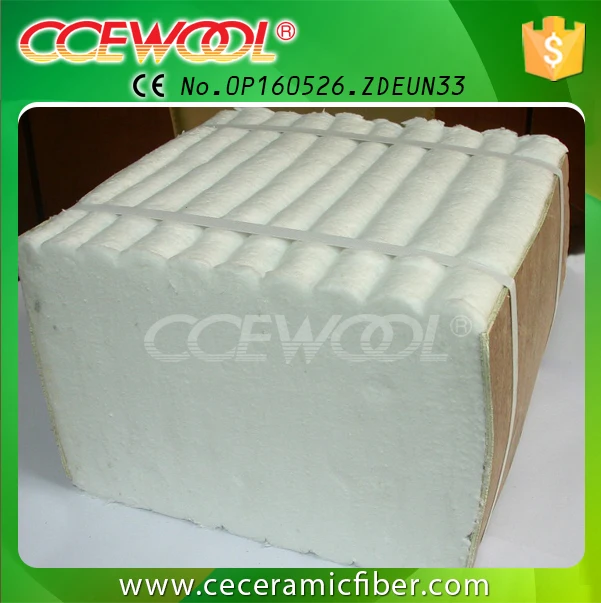

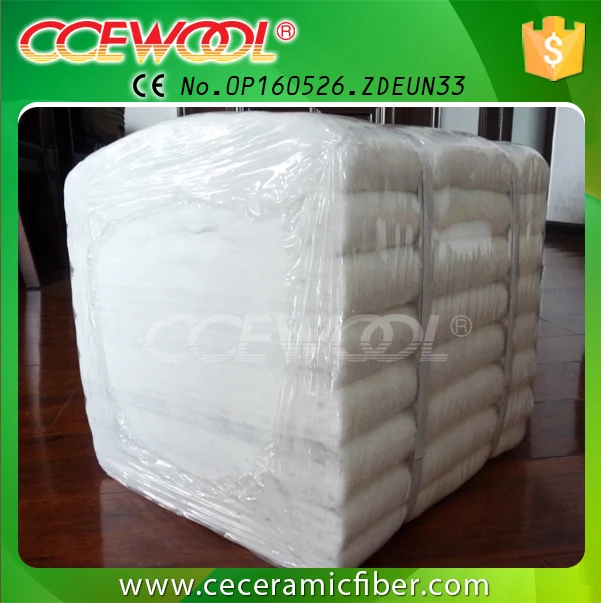

CCEWOOL ®   CCEWOOL high temperature fire resistant ceramic fiber module for heat treatment furnace are made from the corresponding ceramic fiber material acupuncture blanket processed in dedicated machines according to fiber component structure and size. In the process, a certain proportion of compression is maintained, in order to ensure modules expand to the different directions after completion of ceramic fiber folded module wall lining, to create mutual extrusion amongst modules and form a seamless whole unit. Ceramic fiber folded modules is directly fixed in industrial furnaces shell plate by various anchorage.
Raw Material 1.The raw material is Coal Gangue.We have our own base of raw material. We can control the quality of raw material.
 2. We use the thrown silk ceramic fiber wool to produce ceramic fiber blanket,so the color is much pure white.

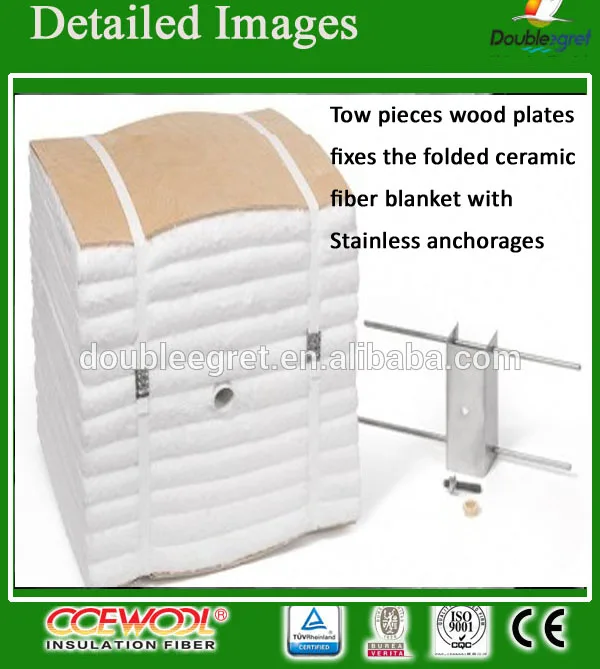

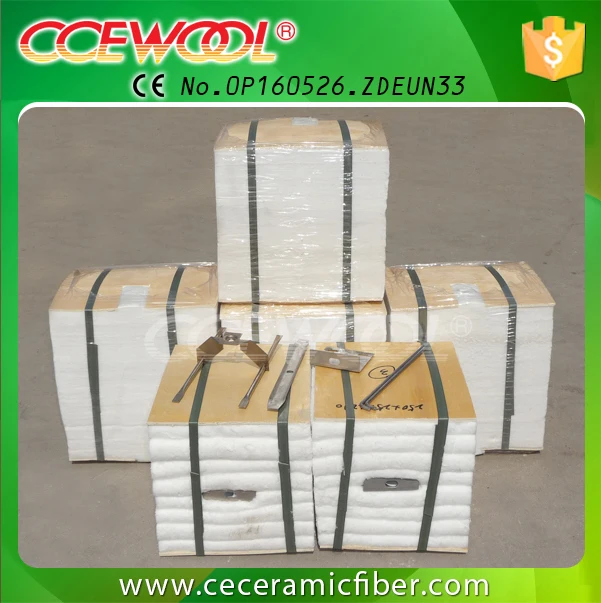

Composition 1. Ceramic fiber blanket
 2. Stainless anchorages

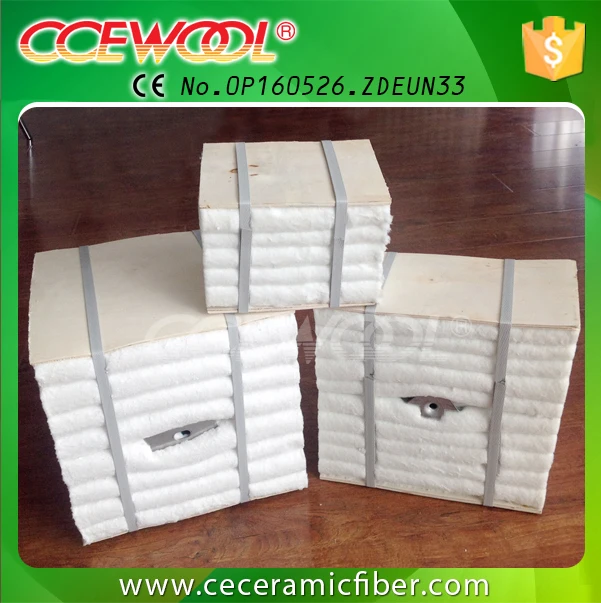

 3. Tow pieces wood plates fixes the folded ceramic fiber blanket at each side,at final bale it.
Density      190--220kg/m3
Common dimensions   Please find the below sheet
Type   1050 common ceramic fiber module
   1260 standard ceramic fiber module
   1260 high purity ceramic fiber module
   1400 high alumina ceramic fiber module
   1450 high zirconium ceramic fiber module.
Typed as producing proceed   At each temperature,ceramic fiber module is divide into 1.Cutting module
                                                                                   2.Module
                                                                                   3.Folded module
Product Advantage1. Our ceramic fiber module is more pure white because of our own raw material.
2. The strength power is much stronger.
3. CCEWOOL ceramic wool are all in accordance with European CE standards with MSDS
Working temperature   1050 common--950C(1742F)
   1260 standard----1050C(1922F)
   1260 high purity----1100C (2012F)
   1400 high alumina----1200C(2192F)
   1450 high zirconium----1350C(2462F)
Certificate   ISO9001,CE,REACH.     Standard: TUV,BV
MOQ   Full containers
Sample   We can supply small cutting sample for free.
Package   Carton or Pallet





Technical Data











































































































Types of Product by


Classified by Temperature



1050 Common


Ceramic


Fiber Module



1260


Standard Ceramic


Fiber Module



1260


High-purity Ceramic


Fiber Module



1350


High-alumina Ceramic


Fiber Module



1450


Zirconia


Ceramic


Fiber Module



Operation Temp



950°C


(1742°F)



1050°C


(1922°F)



1100°C


(2012°F)



1200°C


(2192°F)



1350°C


(2462°F)






Density (kg/m3)



190-220



Permanent Linear Change in Heating


(%)



950°C


x24h≤-3



1050°C


x24h≤-3



1100°C


x24h≤-3



1200°C


x24h≤-3



1350°C


x24h≤-3



Chemical


Composition



Al2O3(%)



44



46



47-49



52-55



39-40



Al2O3+SiO2(%)



≥96



≥97



≥99



≥99



82-84



ZrO2(%)



-



-



-



-



15-17



Al2O3+SiO2+ZrO2(%)



-



-



-



-



≥99



Fe2O3(%)



≤1.0



≤0.8



≤0.2



≤0.2



≤0.2



Na2O+K2O(%)



≤0.4



≤0.3



≤0.2



≤0.2



≤0.2



Anchorage



SS304, SS310(2520)



Length x Width(mm)



300x300;450x300;600x300


Height(mm)100;150;200;250;300

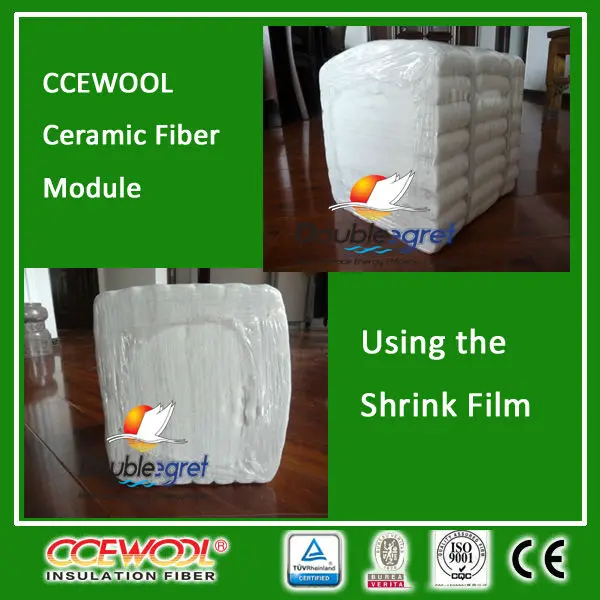

Detailed Images














module5.jpg .jpg

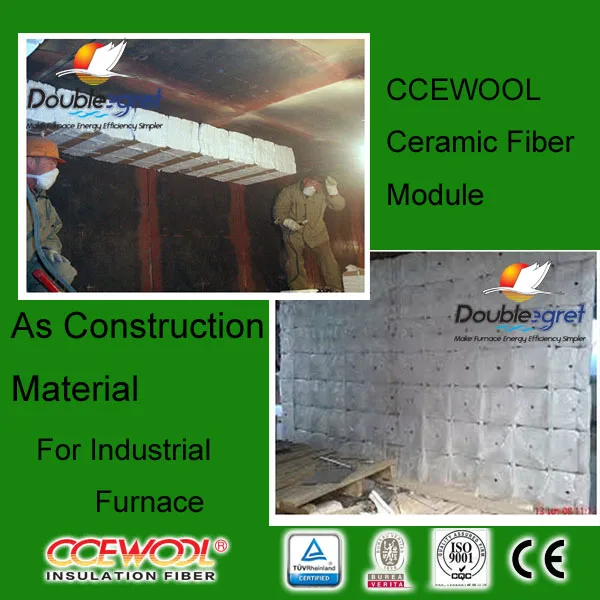

Application of Ceramic Fiber Module


module18 .jpg

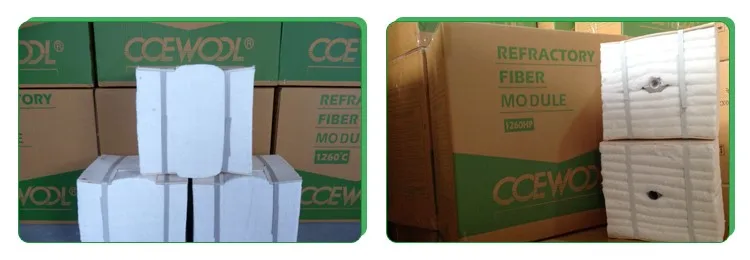

Packaging & Shipping
