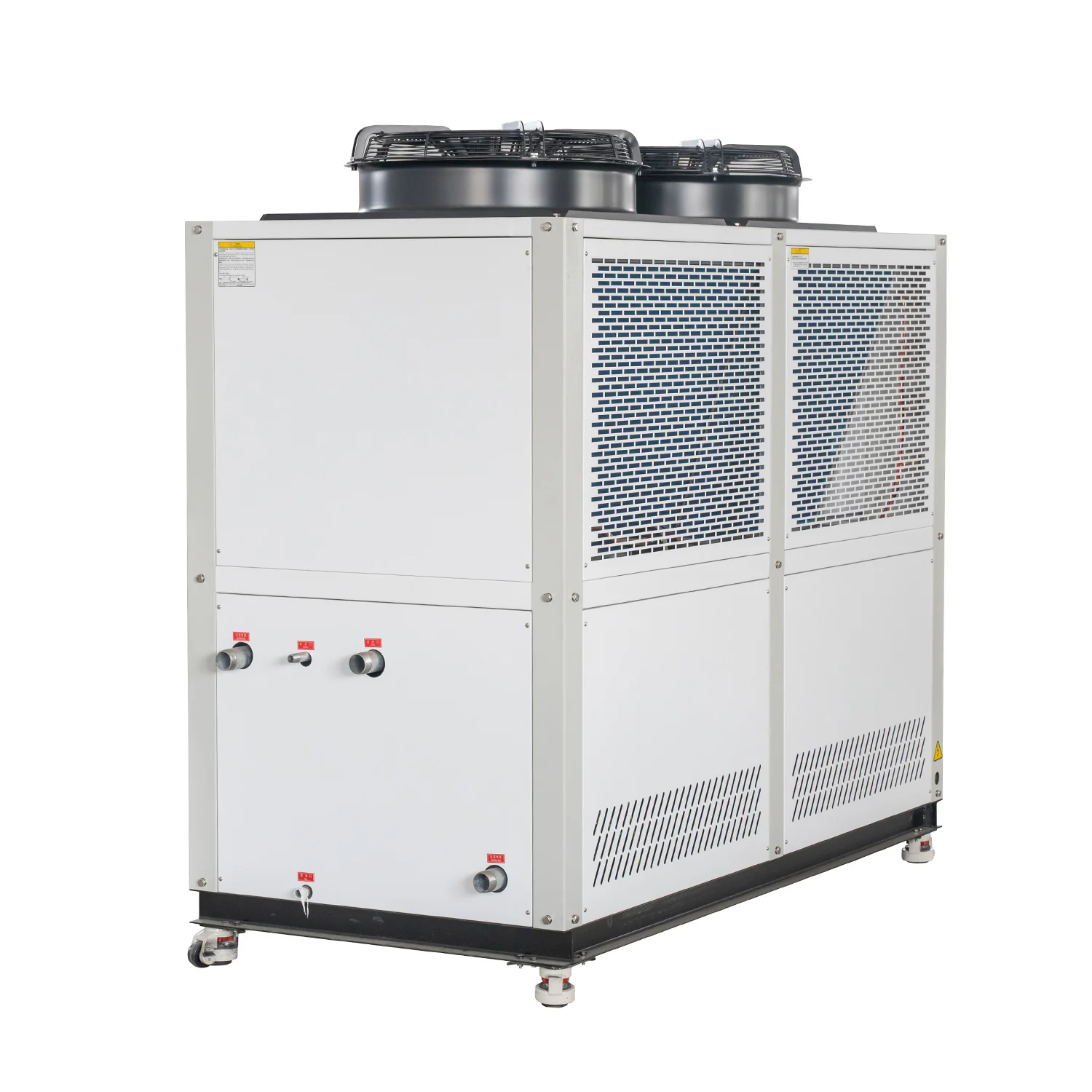

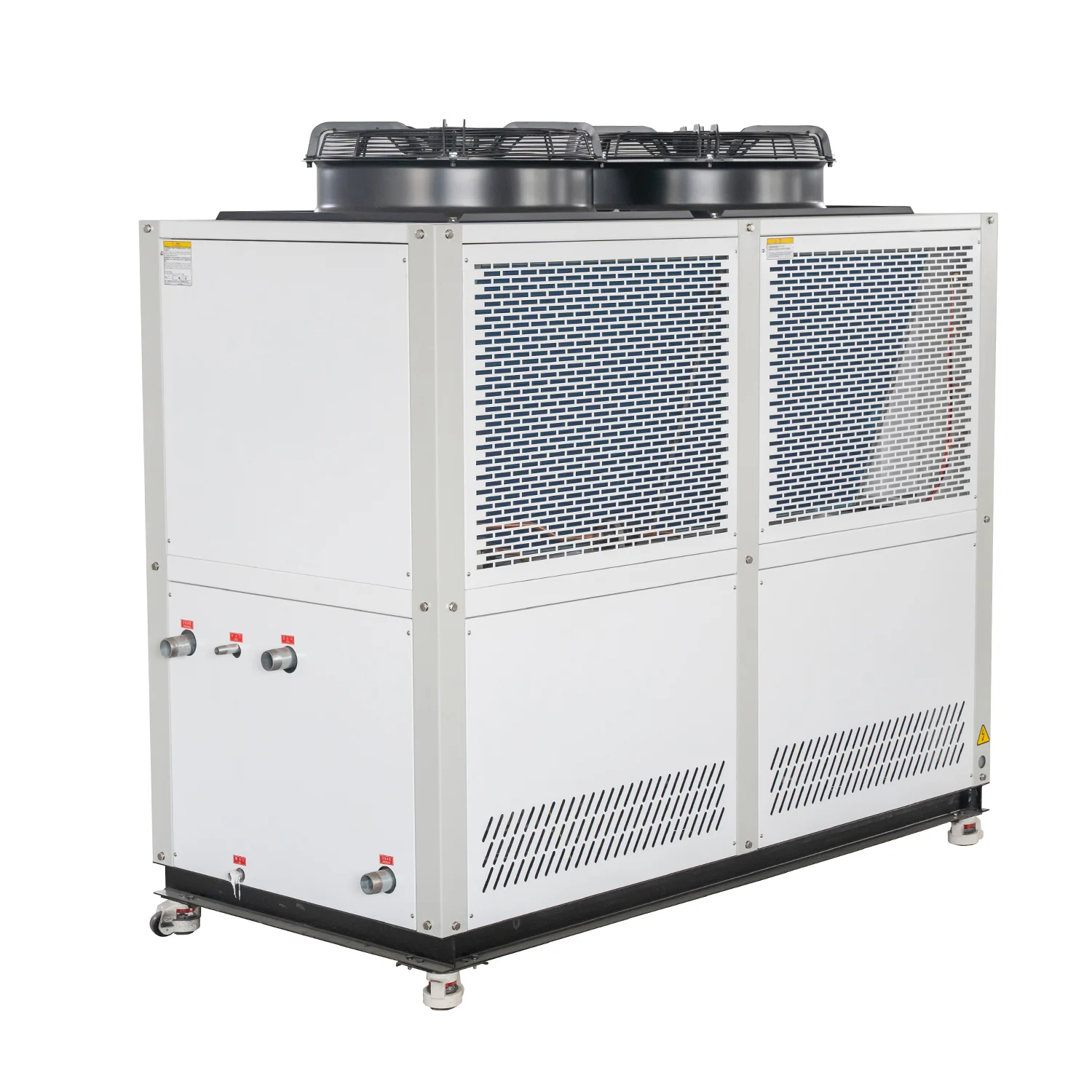

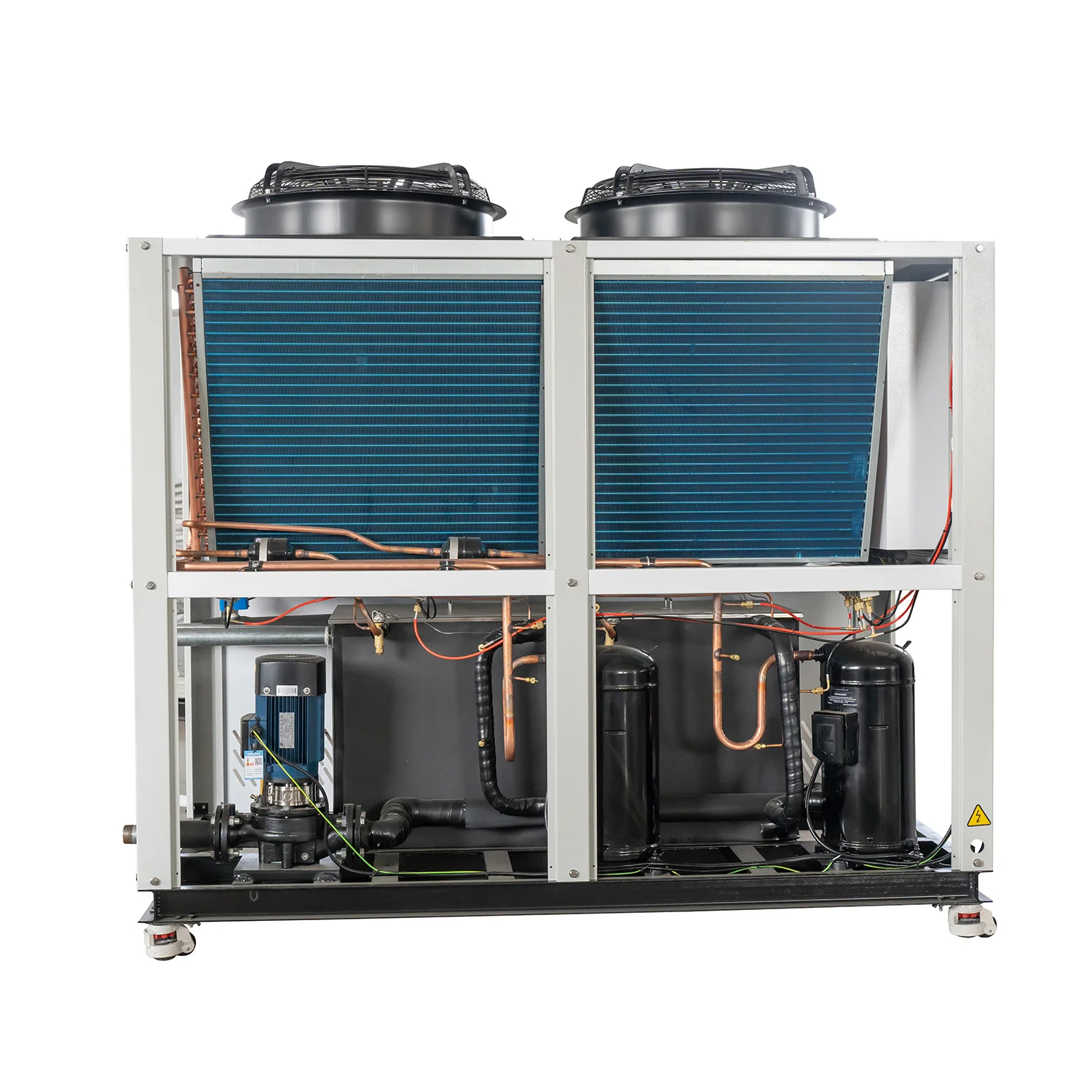

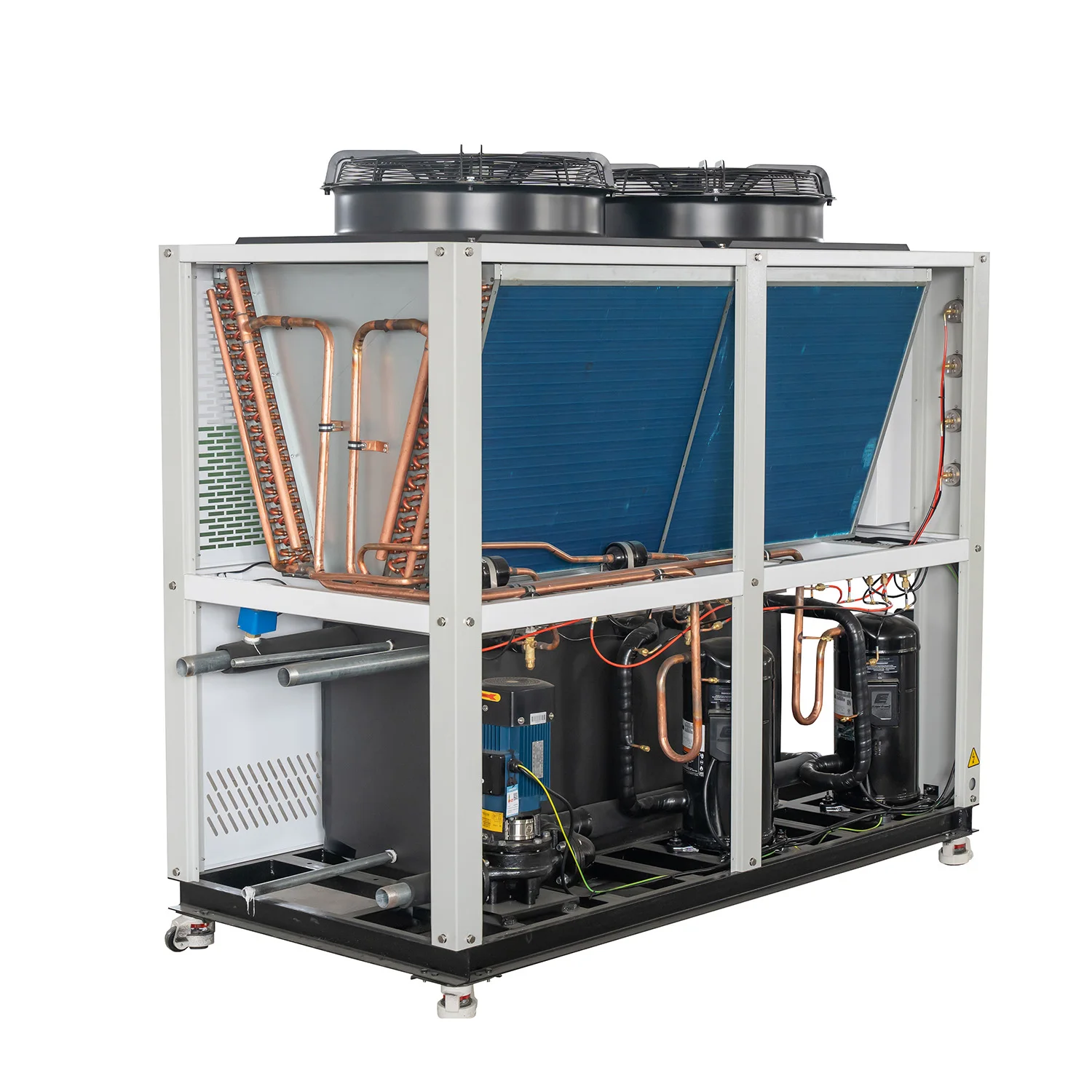

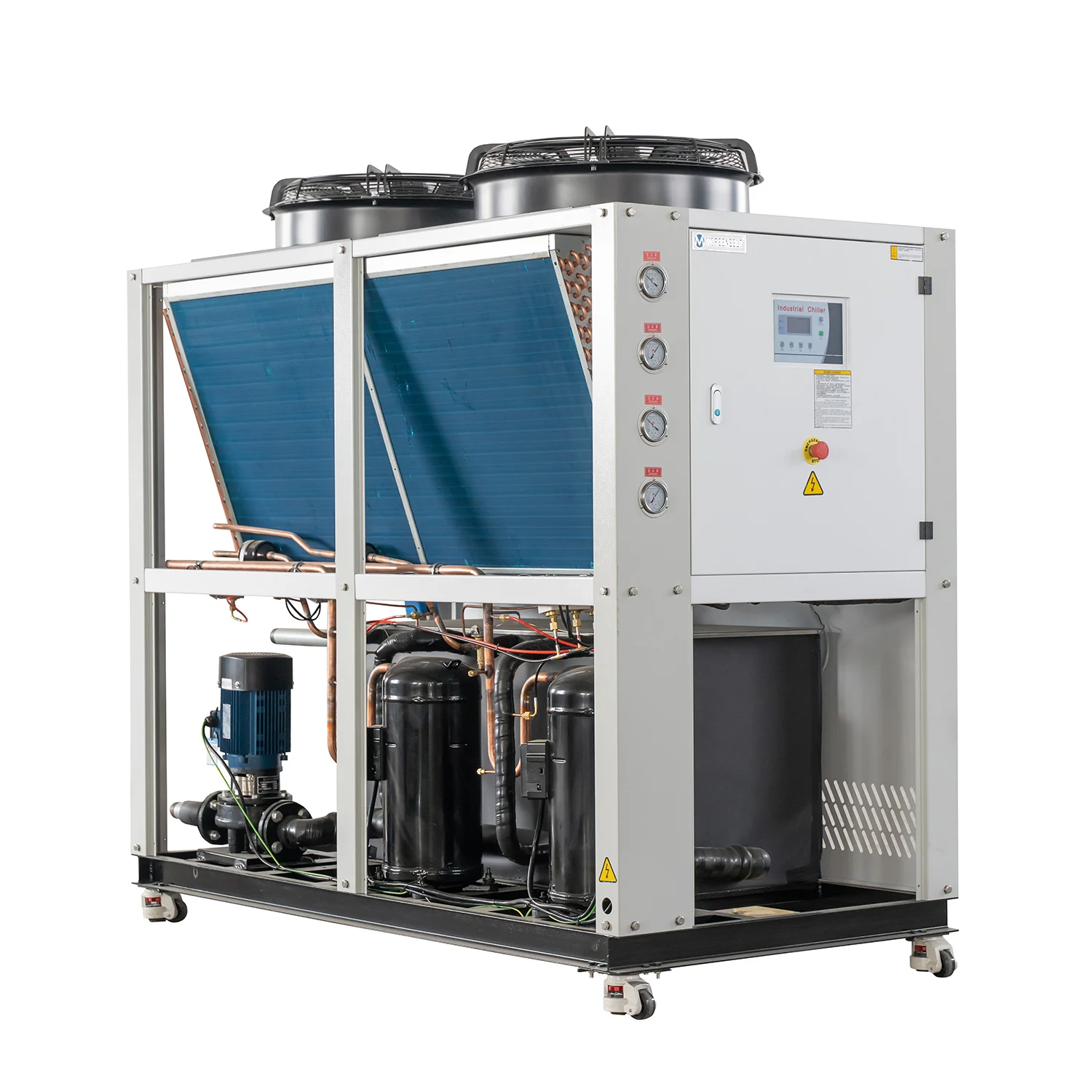

Mgreenbelt Brand hot sale 5C outlet PHE evaporator Glycol Chiller brewery
- Category: >>>
- Supplier: Jinan Mgreenbelt Machinery Co. Ltd.
Share on (1600699602744):
Product Overview
Description

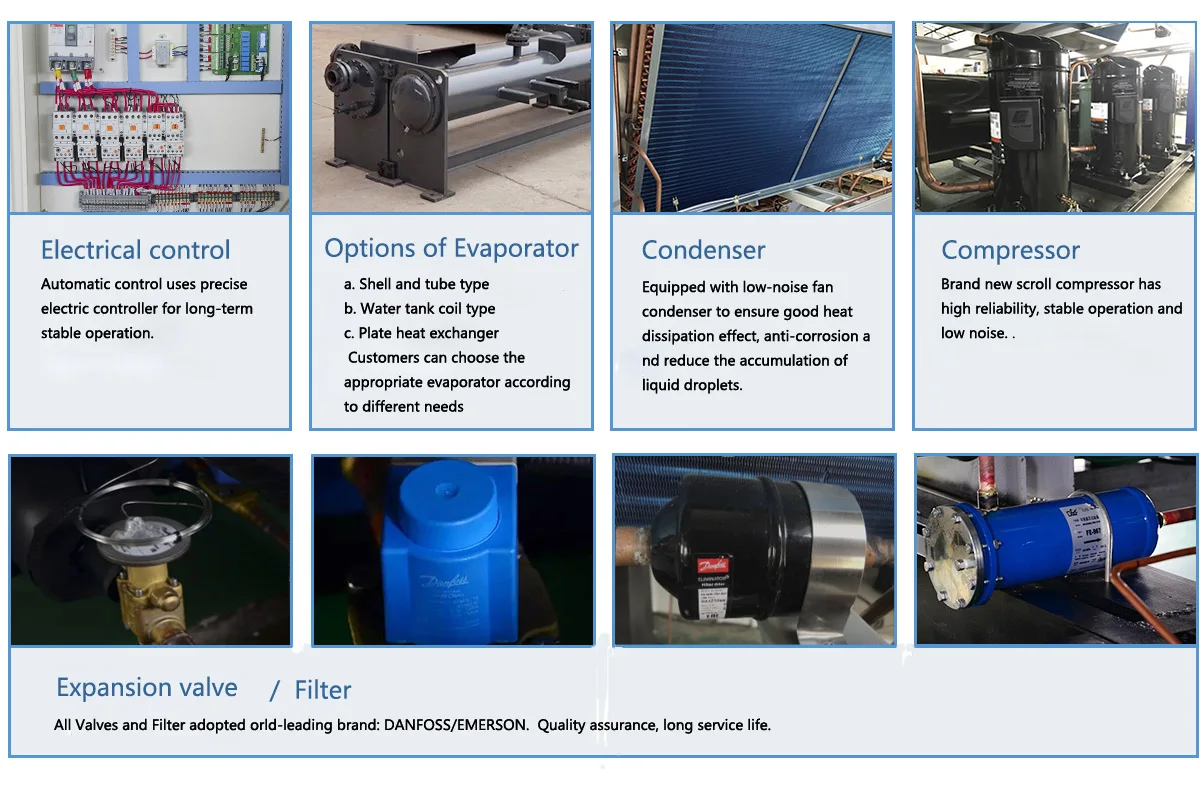

MGREENBELT Air Cooled Chiller Description
1). Brand and durable Scroll type compressor: Copeland, Danfoss, or Panasonic.
2).Three type evaporator support different working circuit.
A.Tank with coil, easy clearance
B. Shell and tube, high efficient
C. Brazed plate heat exchanger type( BPHE)
3). High efficient V type condenser: Screw copper tube covered aluminum fins
4). Expansion valve: Emerson
5) .Iron and stainless steel pump for different option
6). Buffer tank installed inside chiller optional
7). Inbuilt iron or stainless steel circulation water pump
8). Muti- protection devices: -Compressor inner protection,Over current protection,High/low pressure protection,Over temperature protection ,Flow switch,Phase sequence/phase missing protection,Low coolant level protection,Anti freezing protection ,Exhaust overheat protection
2).Three type evaporator support different working circuit.
A.Tank with coil, easy clearance
B. Shell and tube, high efficient
C. Brazed plate heat exchanger type( BPHE)
3). High efficient V type condenser: Screw copper tube covered aluminum fins
4). Expansion valve: Emerson
5) .Iron and stainless steel pump for different option
6). Buffer tank installed inside chiller optional
7). Inbuilt iron or stainless steel circulation water pump
8). Muti- protection devices: -Compressor inner protection,Over current protection,High/low pressure protection,Over temperature protection ,Flow switch,Phase sequence/phase missing protection,Low coolant level protection,Anti freezing protection ,Exhaust overheat protection
Product Detail
Air cooled scroll chiller | ||||||||||||||||
Model | MG-5C | MG-10C | MG-15CD | MG-20CD | MG-25CD | MG-30CT | MG-40CF | |||||||||
Cooling capacity | Kcal/h | 11266 | 24510 | 35948 | 47558 | 54352 | 71896 | 100104 | ||||||||
kw | 13.1 | 28.5 | 41.8 | 55.3 | 63.2 | 83.6 | 116.4 | |||||||||
power | kw | 5.61 | 10.83 | 16.31 | 21.27 | 24.35 | 32.33 | 41.66 | ||||||||
Power input | 3PH-380V-50HZ | |||||||||||||||
Type | R22/R407C | |||||||||||||||
Control | Thermostatic expansion valve | |||||||||||||||
Compressor | Type | Hermetic scroll type | ||||||||||||||
Power（kw） | 4.2 | 9.05 | 6*2 | 9.05*2 | 10.6*2 | 9.05*3 | 9.05*4 | |||||||||
Type | SS Tank with coil or Shell and tube | |||||||||||||||
Water flow m³/h | 2.25 | 4.89 | 7.17 | 9.48 | 10.83 | 14.33 | 19.95 | |||||||||
Capacity L | 70 | 200 | 270 | 350 | 350 | 450 | 580 | |||||||||
Inlet/Outlet | DN25 | DN32 | DN40 | DN40 | DN40 | DN65 | DN65 | |||||||||
Type | High efficiency hydrophilic aluminum foll finned type | |||||||||||||||
Power | 0.52 | 0.46*2 | 0.55*2 | 0.78*2 | 0.78*2 | 1.32*2 | 0.78*4 | |||||||||
Type | Centrigual water pump | |||||||||||||||
Power kw | 0.55 | 0.55 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | |||||||||
Lift m | 25 | 20 | 20 | 20 | 20 | 21 | 20 | |||||||||
Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | ||||||||||||||||
Dimension | L mm | 1220 | 1610 | 1870 | 2120 | 2120 | 2700 | 2300 | ||||||||
W mm | 690 | 820 | 900 | 1000 | 1000 | 1120 | 1860 | |||||||||
H mm | 1200 | 1500 | 1600 | 1720 | 1720 | 1800 | 1800 | |||||||||
Wight | kg | 200 | 450 | 750 | 850 | 900 | 1150 | 1350 | ||||||||
Packing&Shipping
We consider all different potential situation in the delivery, so we use every prevention measures to avoid any
potential inconvenience or trouble.
1.Bulk cargo: Standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the surface of our products.
2. Container cargo: the equipment will be bound firmly and won't easily swing to the side, or up, or down.
Shipping: Deliver from Qingdao port within 15-35 days after the payment
potential inconvenience or trouble.
1.Bulk cargo: Standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the surface of our products.
2. Container cargo: the equipment will be bound firmly and won't easily swing to the side, or up, or down.
Shipping: Deliver from Qingdao port within 15-35 days after the payment

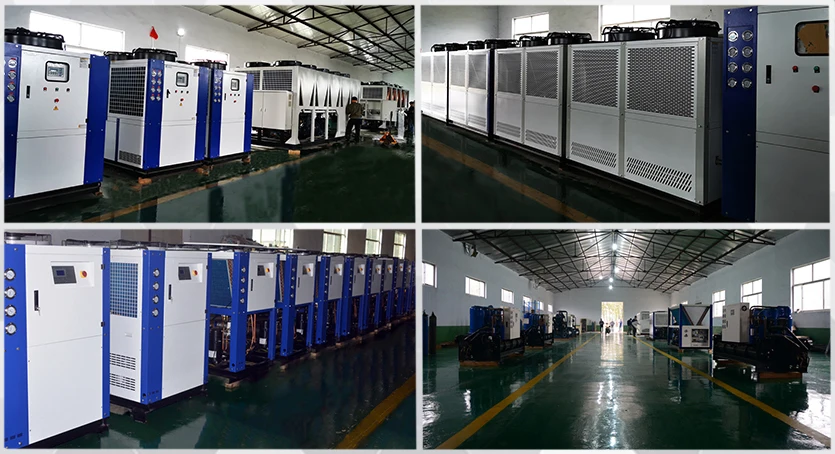

company profile
Shandong Mgreenbelt Machinery which founded in 2003, with 34,000 squre meter workshop, formed by group of cooling specialists, their passions in product development and their dedications to quality, Mgreenbelt has earned the trust of customers from all over the world.
We are a professional refrigeration equipment manufacturer, producing air cooled chiller, water cooled chiller, glycol chiller for various industrial applications; all of our product with CE certificate, can supply the SASO, SGS, COC and etc documents.
We have a wide range of business areas, such as Plastic injection , Printing , Concreting, Food and beverage（Soda making machine, Milk manufacturing , Pasteurized machine, soft drink，brewery），Aquariums，Hatchery，Poultry farms, Agrochemical production, Medical，Consumer Electronics，Machinery processing，Engineering so on.
We are a professional refrigeration equipment manufacturer, producing air cooled chiller, water cooled chiller, glycol chiller for various industrial applications; all of our product with CE certificate, can supply the SASO, SGS, COC and etc documents.
We have a wide range of business areas, such as Plastic injection , Printing , Concreting, Food and beverage（Soda making machine, Milk manufacturing , Pasteurized machine, soft drink，brewery），Aquariums，Hatchery，Poultry farms, Agrochemical production, Medical，Consumer Electronics，Machinery processing，Engineering so on.
Hot sales
RFQ
Q:How to choose a right chiller model?
A:Please make sure the details as follow:
1.What's the flow rate need?
2.Inlet and outlet temperature need ?
Then we will calculate what's hte cooling capacity you need.
Q: How to quote a accurate solution for you?
A: After make sure the cooling capacity,please inform us:1.What's the power supply need? Phase/Voltage/Frequency.
2.What's the refrigerant need? R22/R407C/R410A/R134A and etc.

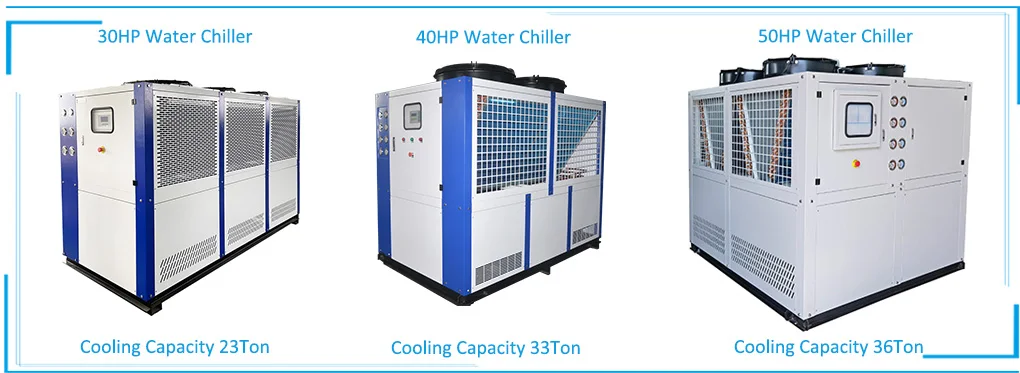

If this water chiller not suitable for your working need, we have different chiller series, please choose it as follows.

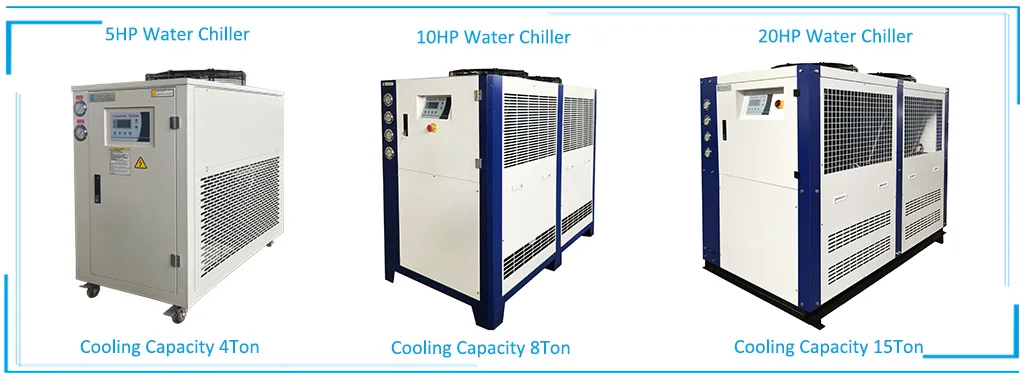

1. Air Cooled Scroll Chiller : cooling capacity range from 1 ton to 35 tons;
2. Water Cooled Scroll Chiller : cooling capacity range from 1 ton to 40 tons;
3. Air Cooled Screw Chiller : cooling capacity range from 20 tons to 150 tons;

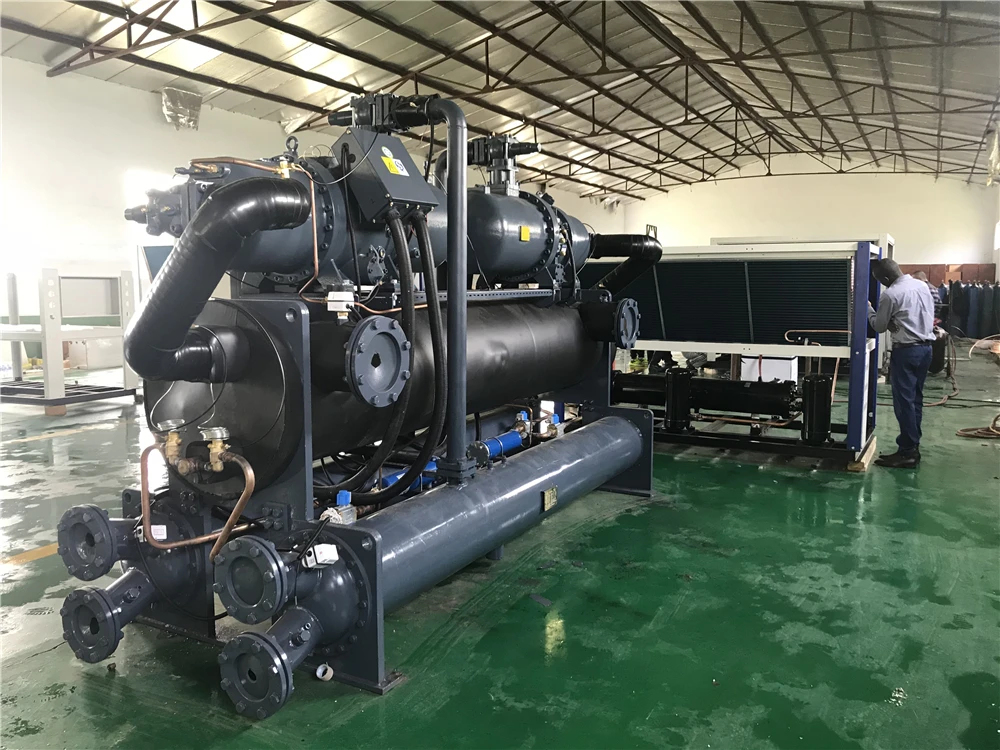

4. Water Cooled Screw Chiller :cooling capacity range from 25 ton to 400 tons;
Temperature range: -25 deg C~+35 deg C based on different industry working need.
A:Please make sure the details as follow:
1.What's the flow rate need?
2.Inlet and outlet temperature need ?
Then we will calculate what's hte cooling capacity you need.
Q: How to quote a accurate solution for you?
A: After make sure the cooling capacity,please inform us:1.What's the power supply need? Phase/Voltage/Frequency.
2.What's the refrigerant need? R22/R407C/R410A/R134A and etc.
If this water chiller not suitable for your working need, we have different chiller series, please choose it as follows.
1. Air Cooled Scroll Chiller : cooling capacity range from 1 ton to 35 tons;
2. Water Cooled Scroll Chiller : cooling capacity range from 1 ton to 40 tons;
3. Air Cooled Screw Chiller : cooling capacity range from 20 tons to 150 tons;
4. Water Cooled Screw Chiller :cooling capacity range from 25 ton to 400 tons;
Temperature range: -25 deg C~+35 deg C based on different industry working need.
