Product Overview
Description

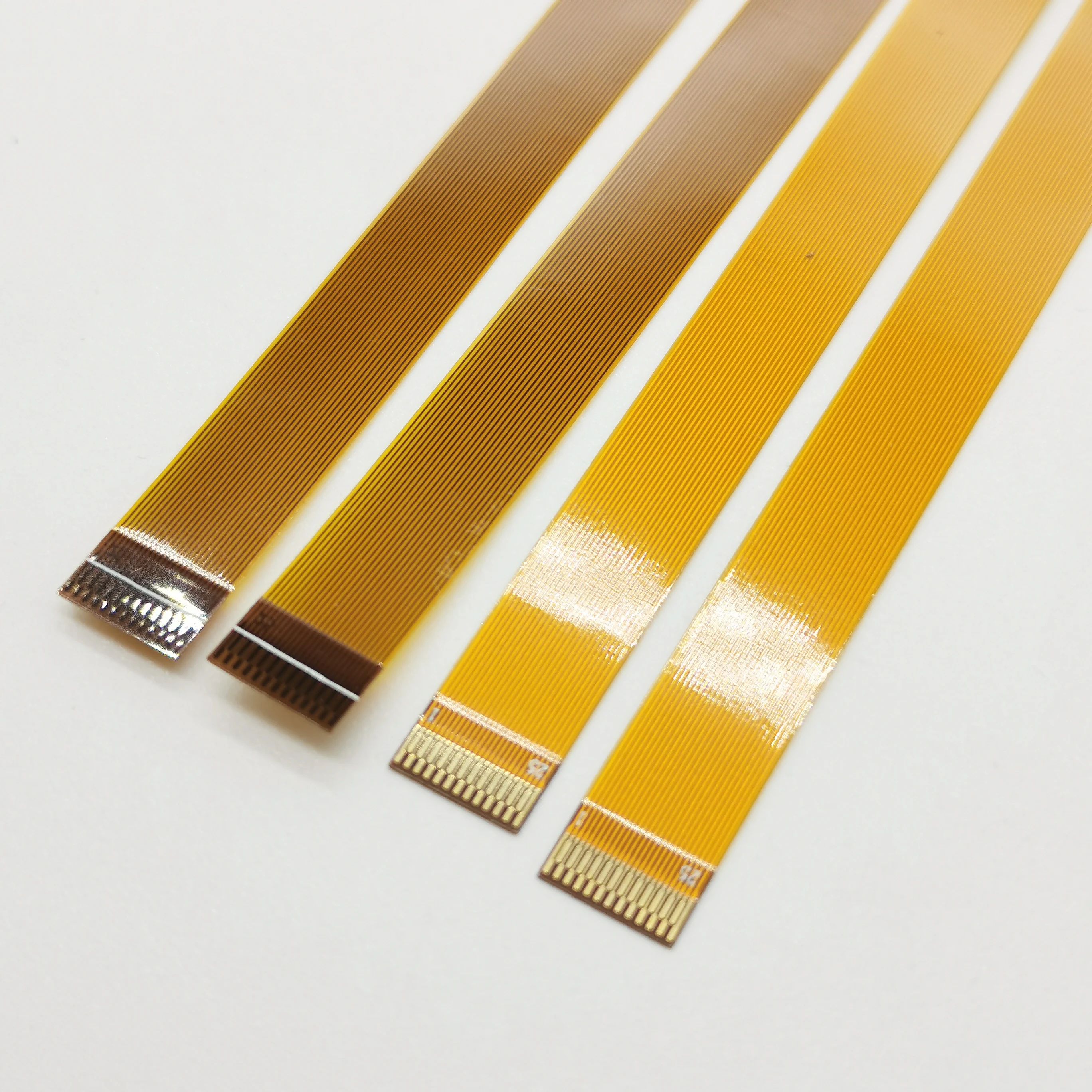

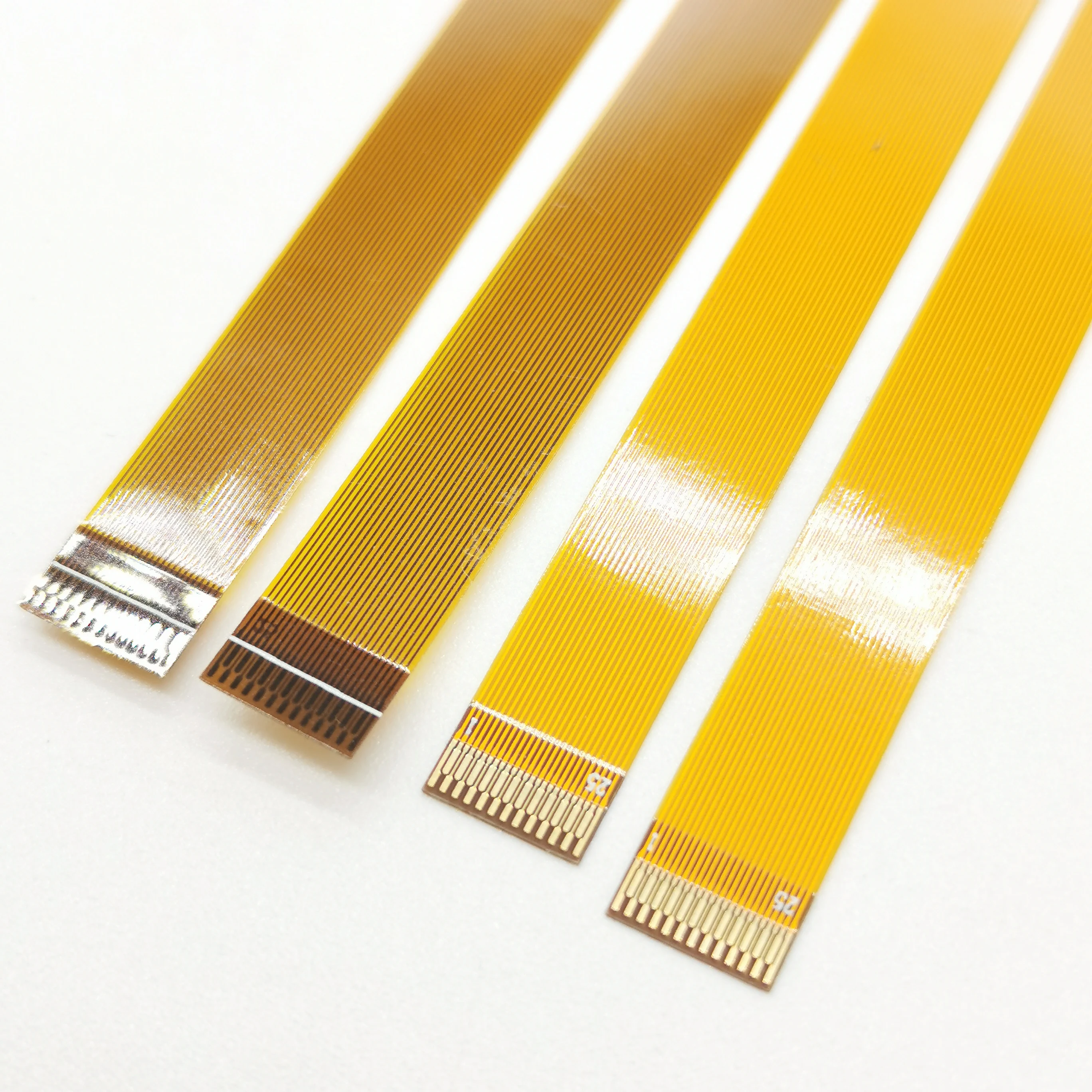

FPC Flat Flex Avh-x7780tv Avh X 7780 Tv cable for DVD
electrical FPC FFC wire cable assembly Flat wire harness
| Product Name | single sided fpc cable for PCB |
| Layers | FPC:1 to 6 Layers, Rigid Flex: 2 to 10 Layers |
| Regular Base Materials | Kapton,Polyimide(PI), Polyester(PET), FR4 |
| Base Copper Thickness | 1/3 oz to 8oz |
| Regular Base Material Thickness | 12.5um to 50um(FPC) |
| Regular Coverlay Thickness | 27um to 50um |
| Outline Fabrication | Die cut, laser cut, CNC routing, V-scoring |
| Min.Line Width/Spacing | 0.03mm/0.03mm |
| Hole to edge(Hard tool/Die Cut) | ±0.1/±0.2mm |
| Edge to edge(Hard tool/Die Cut) | ±0.05/±0.2mm |
| Circuit to edge(Hard tool/Die Cut) | ±0.07/±0.2mm |
FPC cable is widely used in all kinds of electronics product which is indicated as below :
1. Displayer 2. PC and Computer 3. Flat screen TV
4. Printer, Scanner, FAX machine, Copier. 5. Sound Box 6. MP3, MP4
7. CD/ DVD 8. Digital camera 9. Fax machine and copier
10.Scanner 11. Acoustics 12. Tablet PC 13.toy for children
We provide different typs of FPC cable , flex-rigid PCB, stiffener FPC and custom for you based on your Gerber file .
Relate lvds cable/lcd cable/ffc/fpc/flat cable images:
Company Information
Our Service
1) Your inquiry will be replied within 12 hours.
2) We provide OEM, ODM service, the details of the product can be made as your requirement.
3) Excellent before service and after service.
We can produce series of wire harness
1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly |
2.Electrical cable and wire harness |
3.Audio,Video,Radio cable and iso wire harness |
4.Industrial wire cable harness |
5.Home appliance wire harness |
6.Fuse wire ,game machine wire harness |
7.Power,LVDs,Flat RCA,USB cable harness |
8.Control and panel wiring cable assemblies |
9.Medical equipment cable and harness |
10.Airplane models wire harness |
| Payment Terms | T/T, Western Union, or PayPal | ||
| Shipping Terms | DHL, UPS, FEDEX, TNT, or designated forwarder. | ||
| Freight cost | Prepay with goods payment or pay by collected. | ||
| Packaging | Packed in bulk carton or as request | ||
FAQ:
Are you the factory?
Yes, we are the fpc factory.
Could you can provide free sample?
Yes, we can provide fpc free sample.
