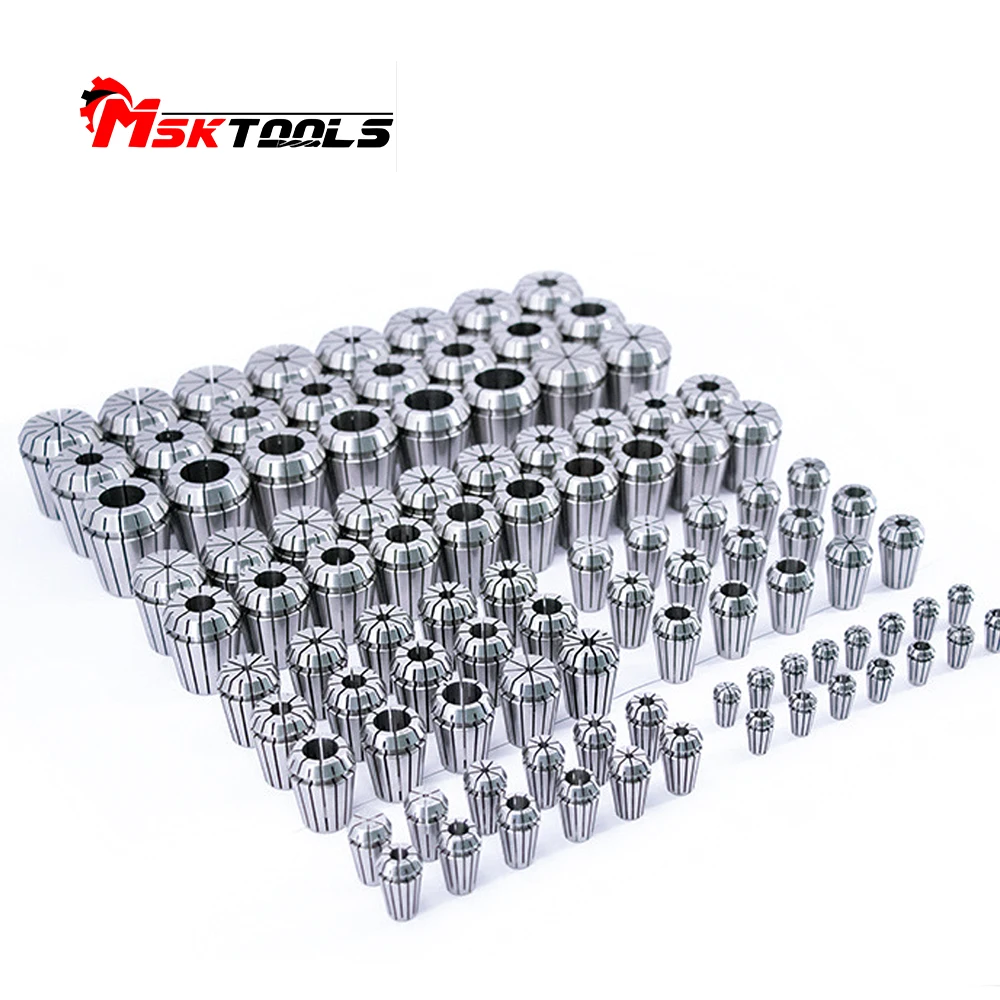

Strong Clamping Force HRC48 Er20 Clamp Collet
- Category: >>>
- Supplier: MSK (Tianjin) International Trading Co. Ltd.MSK Ltd.
Share on (1600699707136):
Product Overview
Description
Product Description
- After thermal processing and high temperature treatment, the strength is relatively high, and it has certain flexibility and plasticity.
- High-quality spring steel elastic design, high elasticity, strong clamping force, not easy to deform after repeated use.

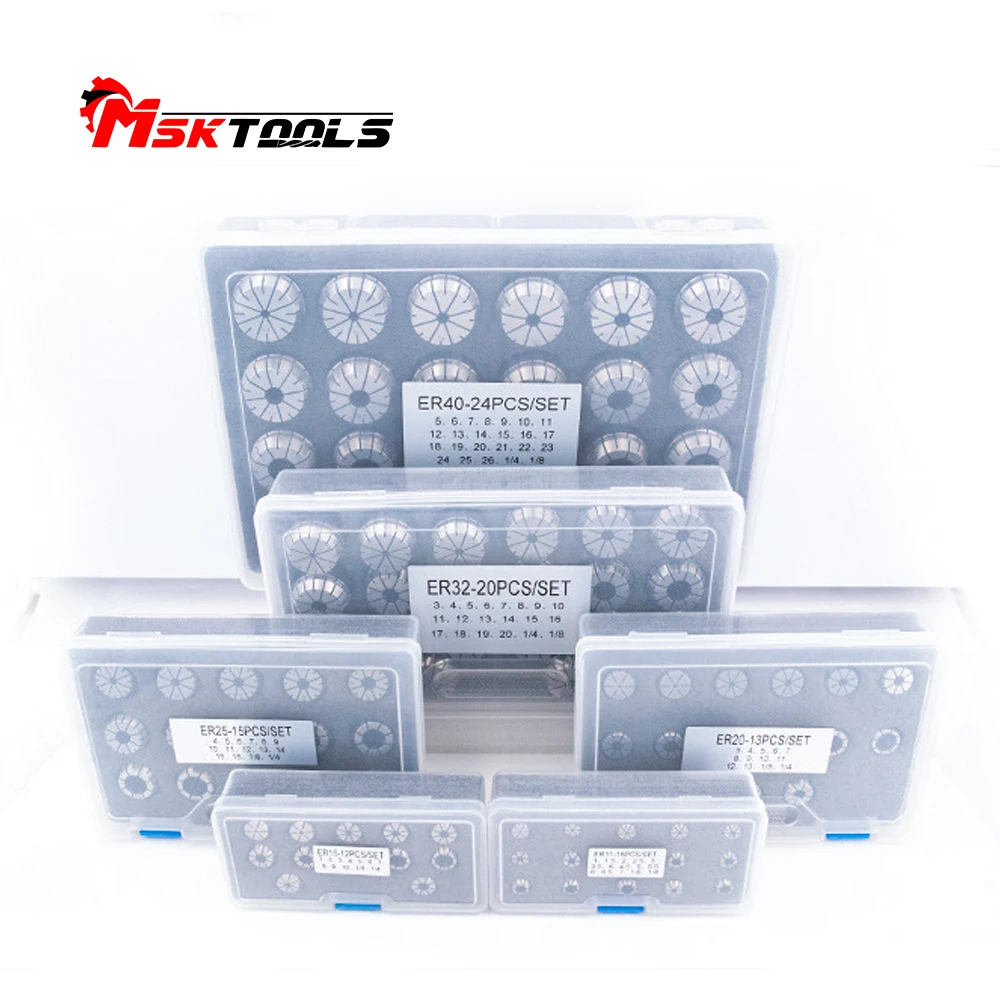

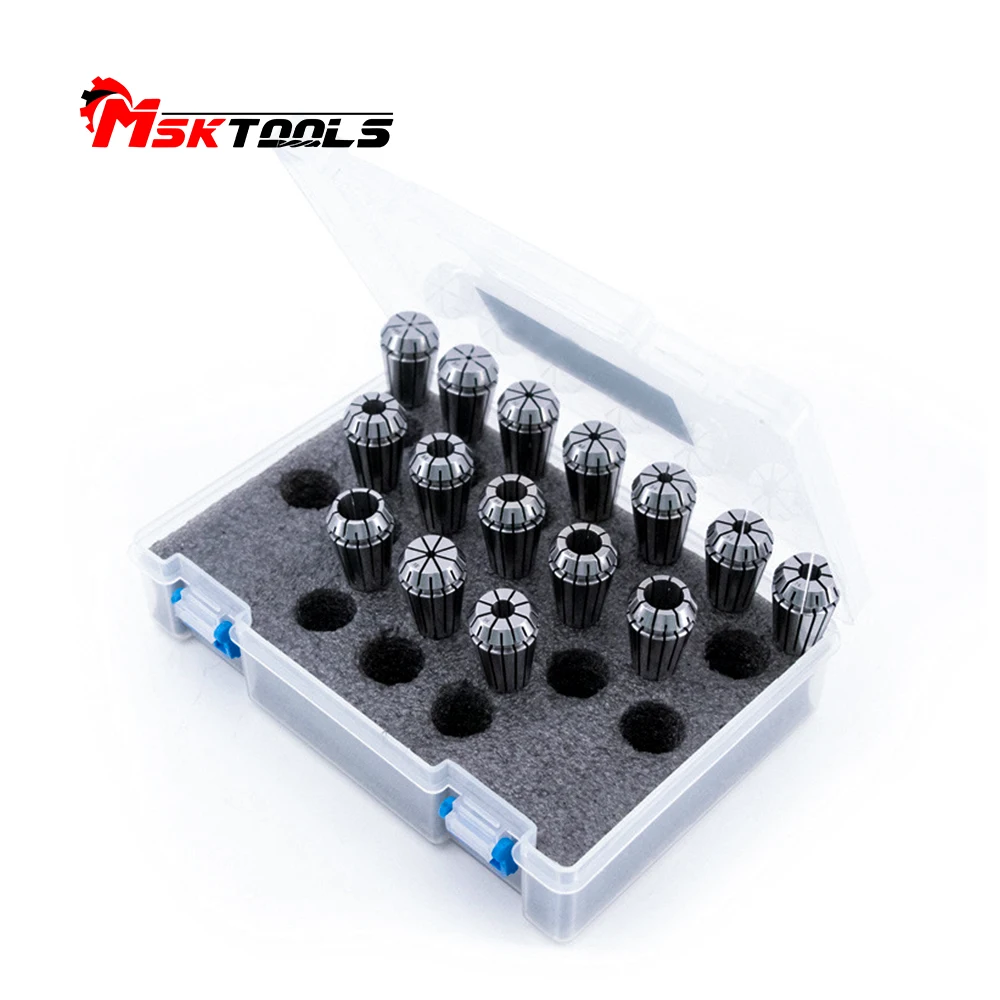

- ER collet (metric/imperial) series set, there are 6 sets of specifications, you can choose any one or multiple sets of sets according to actual needs, and at the same time meet the clamps of drills, milling cutters, dumpling cutters and other tools of various specifications Support, more convenient to use, more cost-effective.
Specification
| Material | 65Mn | OEM | yes |
| Hardness | 44-48 | Precision | 0.008 |
| Clamping range | 3-13 | Applicable machine tools | Milling machine Boring machine Lathe |

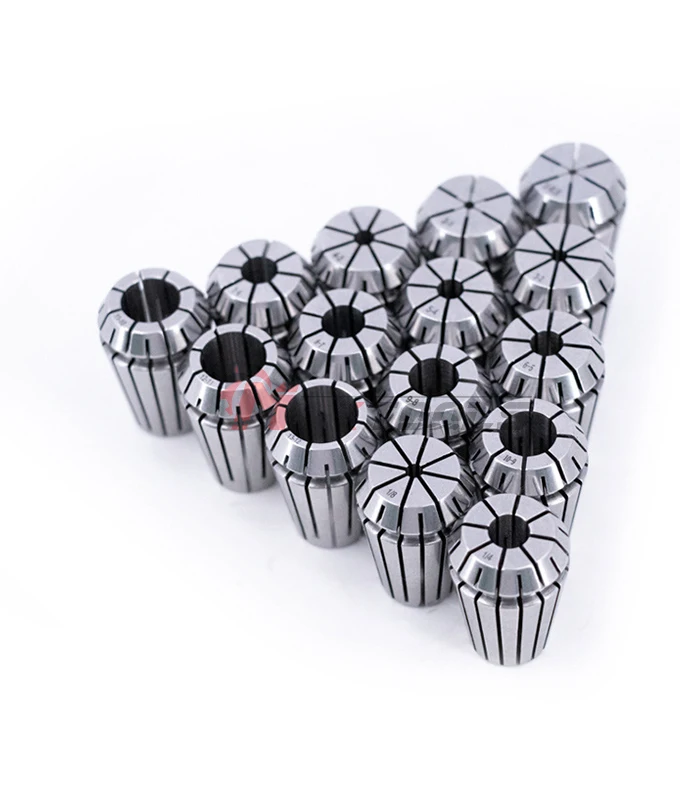

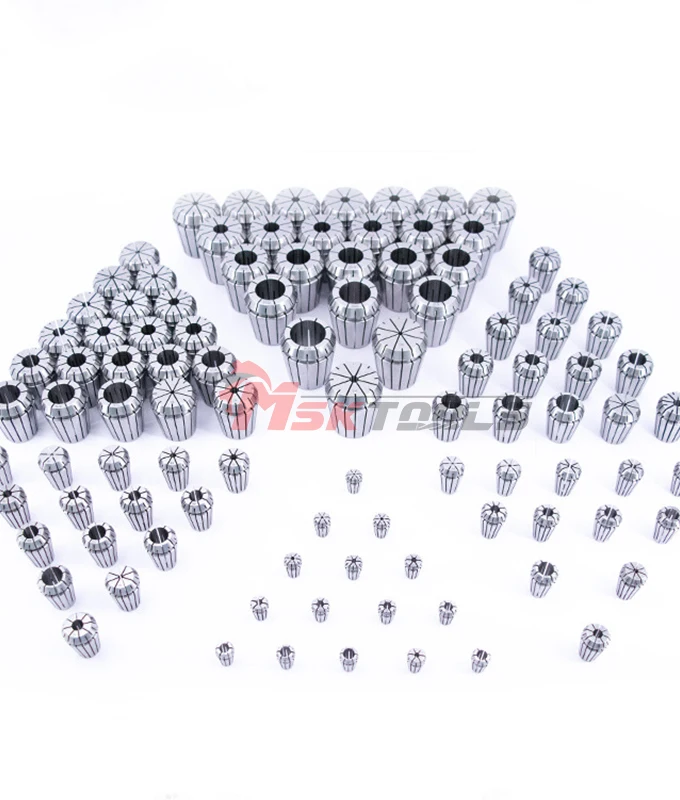

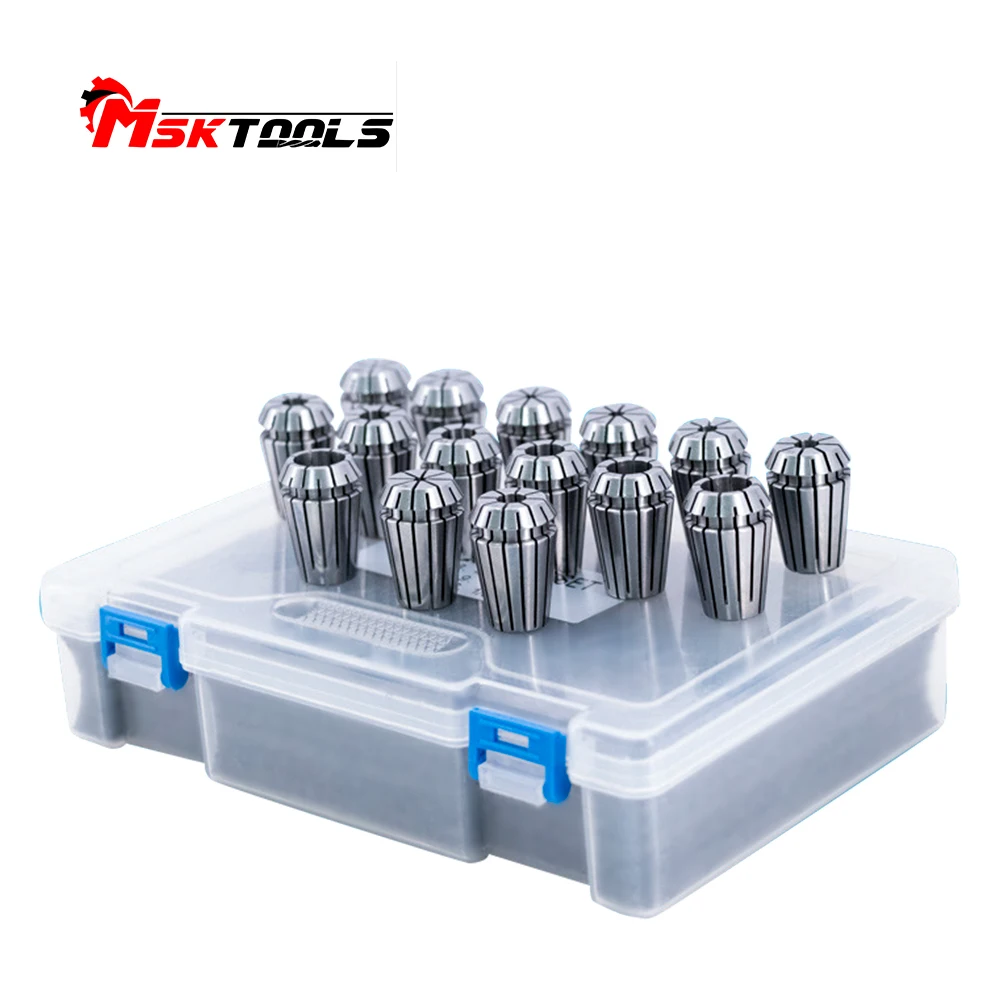

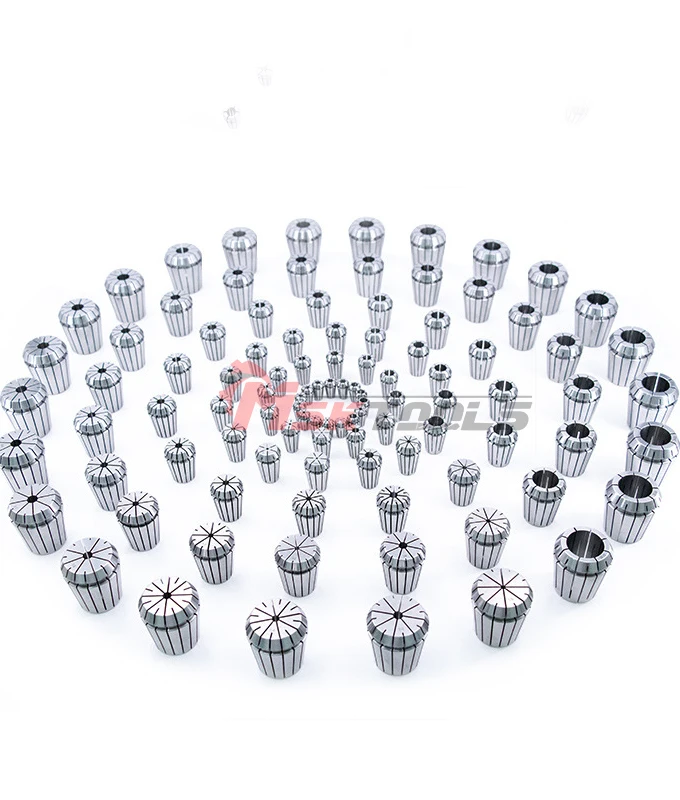

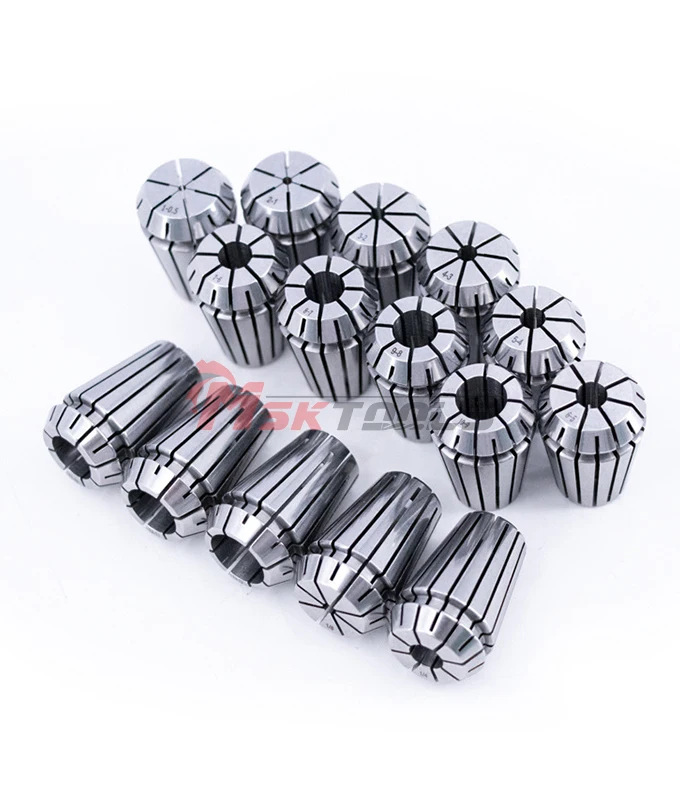

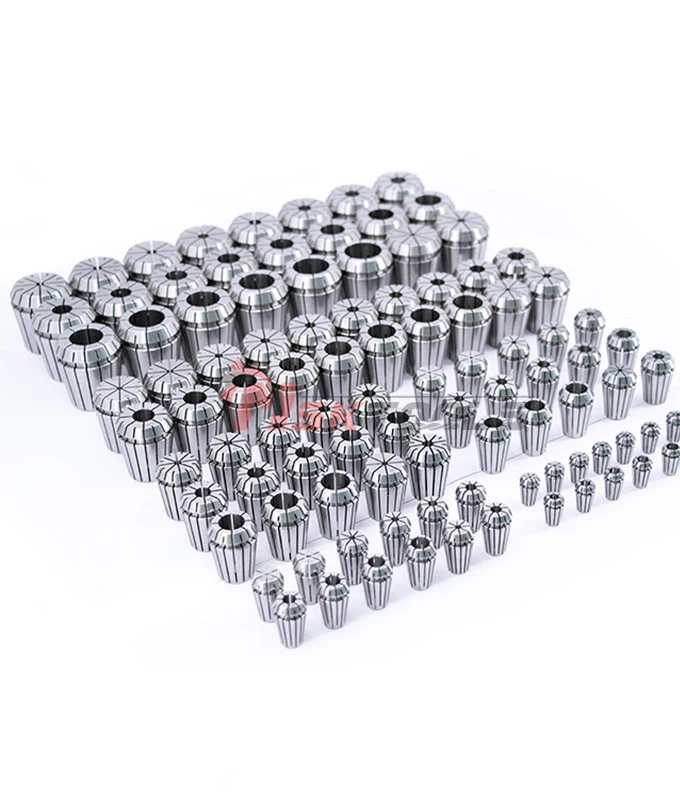

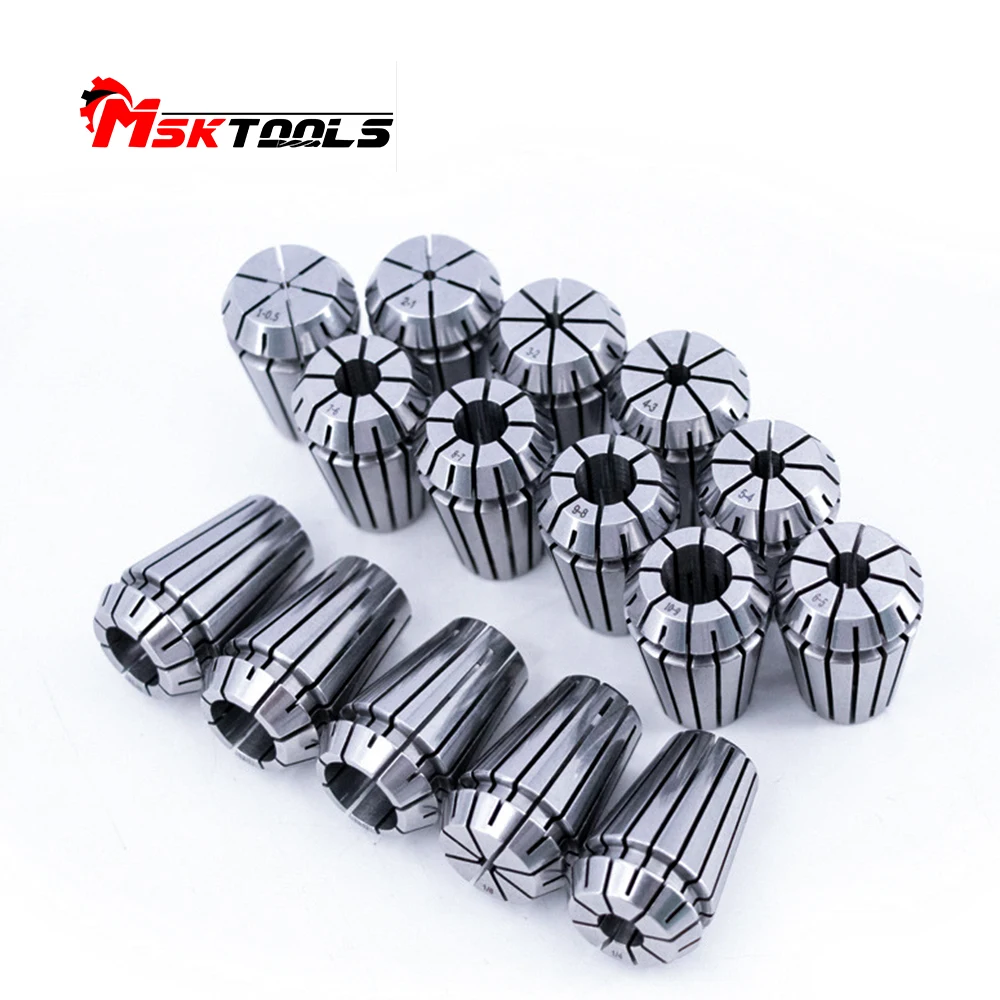

Detailed Images
Product Introduction
| ER11-15PCS/SET | ||||
| Model | D1 | Clamping Range | D2 | L |
| ER11(Metric system) | 1 | 1-0.5 | 11.5 | 18.5 |
| 1.5 | 1-1.5 | |||
| 2 | 2-1.5 | |||
| 2.5 | 2.5-2 | |||
| 3 | 3-2.5 | |||
| 3.5 | 3.5-3 | |||
| 4 | 4-3.5 | |||
| 4.5 | 4.5-4 | |||
| 5 | 5-.5 | |||
| 5.5 | 5.5-5 | |||
| 6 | 6-5.5 | |||
| 6.5 | 6.5-6 | |||
| 7 | 7-6.5 | |||
| ER11(imperial) | 1/8 | 1/8 | ||
| 1/4 | 1/4 | |||
| ER16-12PCS/SET | ||||
| Model | D1 | Clamping Range | D2 | L |
| ER16(Metric system) | 1 | 1-0.5 | 17 | 27.5 |
| 2 | 2-1 | |||
| 3 | 3-2 | |||
| 4 | 4-3 | |||
| 5 | 5-4 | |||
| 6 | 6-5 | |||
| 7 | 7-6 | |||
| 8 | 8-7 | |||
| 9 | 9-8 | |||
| 10 | 10-9 | |||
| ER16(imperial) | 1/8 | 1/8 | ||
| 1/4 | 1/4 | |||
| ER20-13PCS/SET | ||||
Model | D1 | Clamping Range | D2 | L |
| ER20(Metric system) | 3 | 3-2 | 21 | 31.5 |
| 4 | 4-3 | |||
| 5 | 5-4 | |||
| 6 | 6-5 | |||
| 7 | 7-6 | |||
| 8 | 8-7 | |||
| 9 | 9-8 | |||
| 10 | 10-9 | |||
| 11 | 11-10 | |||
| 12 | 12-11 | |||
| 13 | 13-12 | |||
| ER20(imperial) | 1/8 | 1/8 | ||
| 1/4 | 1/4 | |||
| ER25-15PCS/SET | ||||
| Model | D1 | Clamping Range | D2 | L |
| ER25(Metric system) | 4 | 4-3 | 21 | 34 |
| 5 | 5-4 | |||
| 6 | 6-5 | |||
| 7 | 7-6 | |||
| 8 | 8-7 | |||
| 9 | 9-8 | |||
| 10 | 10-9 | |||
| 11 | 11-10 | |||
| 12 | 12-11 | |||
| 13 | 13-12 | |||
| 14 | 14-13 | |||
| 15 | 15-14 | |||
| 16 | 16-15 | |||
| ER25(imperial) | 1/8 | 1/8 | ||
| 1/4 | 1/4 | |||
| ER32-20PCS/SET | ||||
| Model | D1 | Clamping Range | D2 | L |
| ER32(Metric system) | 3 | 3-2 | 33 | 40 |
| 4 | 4-3 | |||
| 5 | 5-4 | |||
| 6 | 6-5 | |||
| 7 | 7-6 | |||
| 8 | 8-7 | |||
| 9 | 9-8 | |||
| 10 | 10-9 | |||
| 11 | 11-10 | |||
| 12 | 12-11 | |||
| 13 | 13-12 | |||
| 14 | 14-13 | |||
| 15 | 15-14 | |||
| 16 | 16-15 | |||
| 17 | 17-16 | |||
| 18 | 18-17 | |||
| 19 | 19-18 | |||
| 20 | 20-19 | |||
| ER32(imperial) | 1/8 | 1/8 | ||
| 1/4 | 1/4 | |||
| ER32-20PCS/SET | ||||
| Model | D1 | Clamping Range | D2 | L |
| ER40(Metric system) | 5 | 5-7 | 41 | 46 |
| 6 | 6-5 | |||
| 7 | 7-6 | |||
| 8 | 8-7 | |||
| 9 | 9-8 | |||
| 10 | 10-9 | |||
| 11 | 11-10 | |||
| 12 | 12-11 | |||
| 13 | 13-12 | |||
| 14 | 14-13 | |||
| 15 | 15-14 | |||
| 16 | 16-15 | |||
| 17 | 17-16 | |||
| 18 | 18-17 | |||
| 19 | 19-18 | |||
| 20 | 20-19 | |||
| 21 | 21-20 | |||
| 22 | 22-21 | |||
| 23 | 23-22 | |||
| 24 | 24-23 | |||
| 25 | 25-24 | |||
| 26 | 26-25 | |||
| ER40(imperial) | 1/8 | 1/8 | ||
| 1/4 | 1/4 | |||

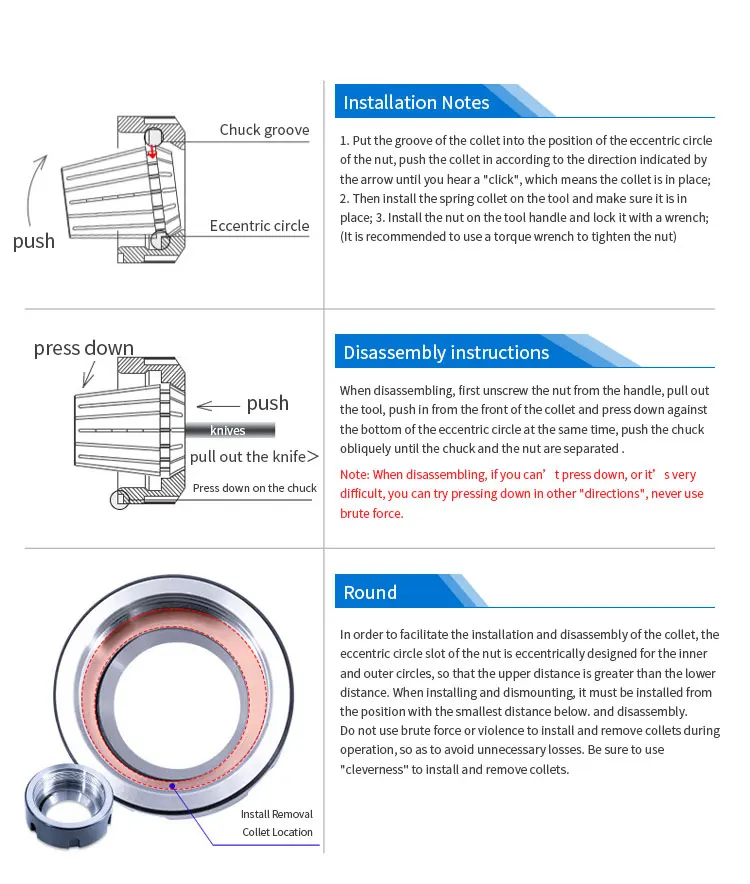

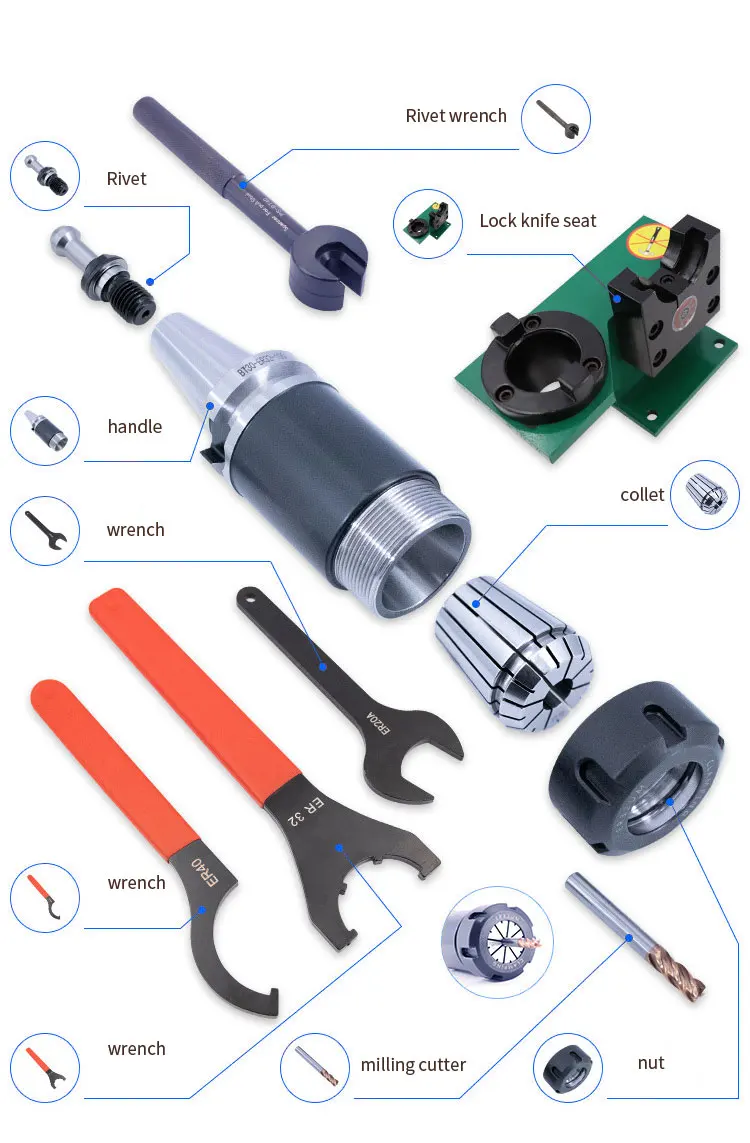

Installation example
