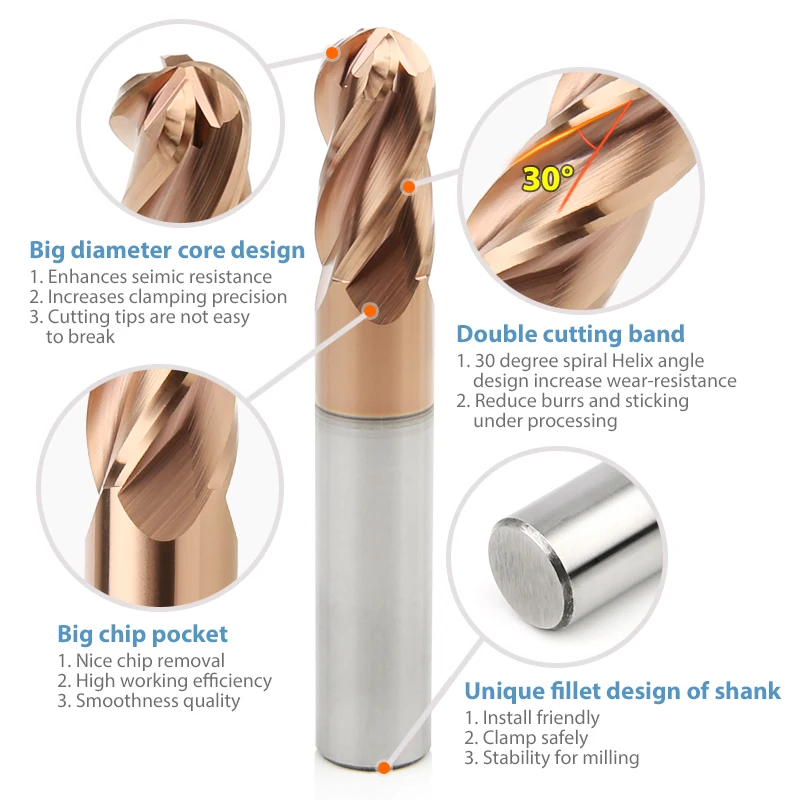

HRC 55 Carbide Micro Diameter Ball Nose End Mill 2 Flute 6mm 4mm Standard Ballnose Endmill Blade Milling Cutter
- Category: >>>
- Supplier: Shenzhen Phipps Technology Co. Ltd.
Share on (1600699707626):
Product Overview
Description
Product Paramenters
HRC 55 Carbide Micro-Diameter Ball Nose End Mill 2 Flute 6mm 4mm Standard Ballnose Endmill Blade Milling Cutter
Product Name | HRC 55 2/4 Flute d4-d20 Diameter Carbide Ballnose Endmill |
Material | 100% raw material |
Features | High Speed Cutting |
Processing Type | Metal Machining |
Precision | within 0 ~-0.01mm |
HRC | 55 |
Machine Type | CNC Milling Machine |
Flutes | 2 flutes and 4 flute |
Suitable for | Cast iron, carbon steel, alloy steel |
Specification | R2*8*d4*50L-2F HRC55 |
Super Raw Material
Item Grade | HRC45 (YG10X ) | HRC55 (YL10.2 & WF25) | HRC60 (Germany K44 &K40) | HRC65 (Sandvik H10F) |
Details | Grain size 0.7um Co10% Flexural strength 3320N/mm2 | Grain size 0.6um Co10% Flexural strength 4000N/mm2 | Grain size 0.5um Co12% Flexural strength 4300N/mm2 | Grain size 0.5um Co10% Flexural strength 4300N/mm2 |
Super Coating
End mill Grade | Coating Type | Color | Thickness (um) | Oxidation Temp.(°C) | Application |
HRC 45 | AlTiN | Black | 1.5-3 | 850°C | General steel |
HRC 55 | TiSiN | Bronze | 1.5-3 | 900°C | General steel, cast iron |
HRC 60 | Nano | Dark Black | 1-3 | 1100°C | High hard material, mould steel, cast iron etc |
HRC 65 | Naco | Blue | 2-4 | 1200°C | Titanium alloy, high temperature alloy, hardened Steel |
Products Description

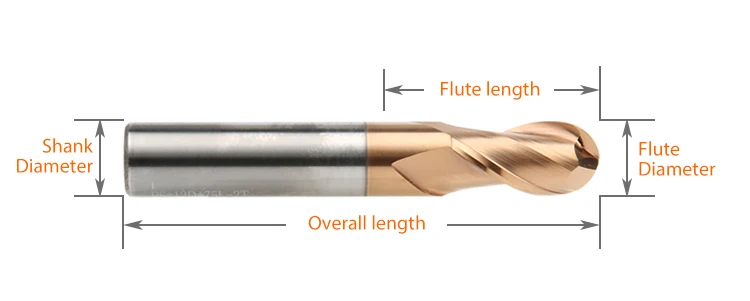

Specification | Flute Dia. | Flute Length | Shank Dia. | Overall length |
R1.5*6*3*50 | 3 | 6 | 3 | 50 |
R1.5*6*3*75 | 3 | 6 | 3 | 75 |
R1.5*6*3*100 | 3 | 6 | 3 | 100 |
R0.5*2*4*50 | 1 | 2 | 4 | 50 |
R0.75*3*4*50 | 1.5 | 3 | 4 | 50 |
R1*4*4*50 | 2 | 4 | 4 | 50 |
R1.25*5*4*50 | 2.5 | 5 | 4 | 50 |
R1.5*6*4*50 | 3 | 6 | 4 | 50 |
R1.75*7*4*50 | 3.5 | 7 | 4 | 50 |
R2*8*4*50 | 4 | 8 | 4 | 50 |
R2*8*4*75 | 4 | 8 | 4 | 75 |
R2*8*4*100 | 4 | 8 | 4 | 100 |
R0.5*2*4*75 | 1 | 2 | 4 | 75 |
R0.75*3*4*75 | 1.5 | 3 | 4 | 75 |
R1*4*4*75 | 2 | 4 | 4 | 75 |
R1.25*5*4*75 | 2.5 | 5 | 4 | 75 |
R1.5*6*4*75 | 3 | 6 | 4 | 75 |
R2.5*10*5*50 | 5 | 10 | 5 | 50 |
R2.5*10*5*75 | 5 | 10 | 5 | 75 |
R2.5*10*5*100 | 5 | 10 | 5 | 100 |
R0.5*2*6*50 | 1 | 2 | 6 | 50 |
R0.75*3*6*50 | 1.5 | 3 | 6 | 50 |
R1*4*6*50 | 2 | 4 | 6 | 50 |
R1.25*5*6*50 | 2.5 | 5 | 6 | 50 |
R1.5*6*6*50 | 3 | 6 | 6 | 50 |
R2*8*6*50 | 4 | 8 | 6 | 50 |
R2.5*10*6*50 | 5 | 10 | 6 | 50 |
R3*12*6*50 | 6 | 12 | 6 | 50 |
R3*12*6*75 | 6 | 12 | 6 | 75 |
R3*12*6*100 | 6 | 12 | 6 | 100 |
R3*12*6*150 | 6 | 12 | 6 | 150 |
R3.5*14*8*60 | 7 | 14 | 8 | 60 |
R4*16*8*60 | 8 | 16 | 8 | 60 |
R4*16*8*75 | 8 | 16 | 8 | 75 |
R4*16*8*100 | 8 | 16 | 8 | 100 |
R4*16*8*150 | 8 | 16 | 8 | 150 |
R4.5*18*10*75 | 9 | 18 | 10 | 75 |
R5*20*10*75 | 10 | 20 | 10 | 75 |
R5*20*10*100 | 10 | 20 | 10 | 100 |
R5*20*10*150 | 10 | 20 | 10 | 150 |
R5.5*22*12*75 | 11 | 22 | 12 | 75 |
R6*24*12*75 | 12 | 24 | 12 | 75 |
R6*24*12*100 | 12 | 24 | 12 | 100 |
R6*24*12*150 | 12 | 24 | 12 | 150 |
R7*28*14*80 | 14 | 28 | 14 | 80 |
R7*28*14*100 | 14 | 28 | 14 | 100 |
R7*28*14*150 | 14 | 28 | 14 | 150 |
R8*32*16*100 | 16 | 32 | 16 | 100 |
R8*32*16*150 | 16 | 32 | 16 | 150 |
R9*36*18*100 | 18 | 36 | 18 | 100 |
R9*36*18*150 | 18 | 36 | 18 | 150 |
R10*40*20*100 | 20 | 40 | 20 | 100 |
R10*40*20*150 | 20 | 40 | 20 | 150 |
Remarks: The milling cutter model marked with color is a common model.
Company Information
Shenzhen Phipps Technology Co.,Ltd. is a professional manufacturer of carbide engraving tools, focusing on high precision tungsten steel inserts, milling cutters, drill bits, engraving tools and various non-standard tools. For R&D,
production, sales and technical services, the company has introduced 20 world-class CNC grinders, high-end testing equipment and manufacturing from Germany, Australia and Japan. THe tool produced have the advantages of high precision, long life and high efficiency.
production, sales and technical services, the company has introduced 20 world-class CNC grinders, high-end testing equipment and manufacturing from Germany, Australia and Japan. THe tool produced have the advantages of high precision, long life and high efficiency.
Package & Shipment
FAQ
1) Are you manufacturer? Do you have factory?
We are professional manufacturer, have more than 12 years experience in this field.
2) When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
3) Is free shipping possible?
We don't offer free shipping service, but we will give you some discount if you buy large quantity products. And we have cooperation Express Companies, can offer you the best price of shipping cost.
We don't offer free shipping service, but we will give you some discount if you buy large quantity products. And we have cooperation Express Companies, can offer you the best price of shipping cost.
4) How long is your delivery time?
Generally it is 5-10 days if the goods are in stock, or it is 15-20 days if the goods are not in stock, it is according to quantity.
5) How can I pay?
we accept paypal as the sample. if large amount need pay by western union or TT.
6) Whats your MOQ?
We welcome your sample order to test our quality, we believe that you will find that we are the right supplier you are looking for. So no MOQ.
