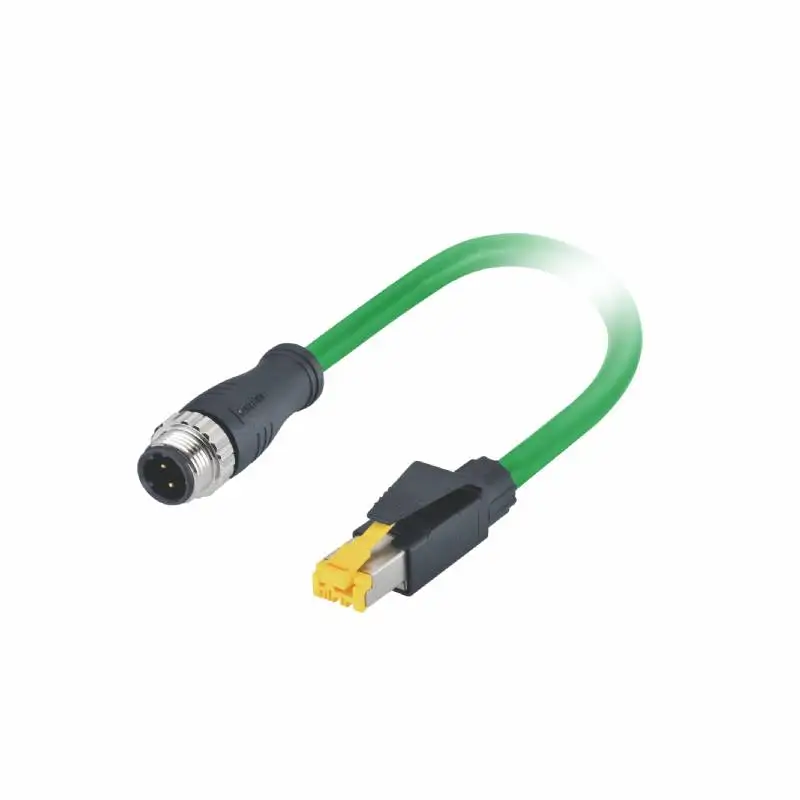

RJ45 male to M12 A Code male molded 1.5m Cat 5e SFTP 4x2x24AWG 5 million drag chain cable
- Category: >>>
- Supplier: Dongguan Cableforce Connector Co. Limited.
Share on (1600699716708):
Product Overview
Description
Products Description
RJ45 male to M12 A-Code male molded 1.5m Cat 5e SFTP 4x2x24AWG 5 million drag chain cable
●Reference Standard: IEC 61076-2-101, Profinet
● Rated current: 1A
● Rated voltage: 30V
● Insulation resistance: ≥100MΩ
● Contact resistance: ≤10mΩ
●Wire Gauge (size): 24AWG/ 0.25mm²
●Temperature Rating: -25°C ~ + 80°C
●Drag chain bending life: 5 million cycles
●Ethernet Catagory: Cat 5e (1000Mbps/100Mhz)
●Contacts Plating: 3μ" Gold plating thickness, 6μ" Gold plating thickness
● Cable Color: Black
● Inserts: PC
● Housing/ Outer Shell: PA66 + GF
● Compliance: RoHS compliant
● Pollution degree: 3
● Screw nut: Brass, CNC, nickel-plated
● Plug Mating Life: 500 times
● All the connectors can be customized, please Click Here to contact us to get what you need~
