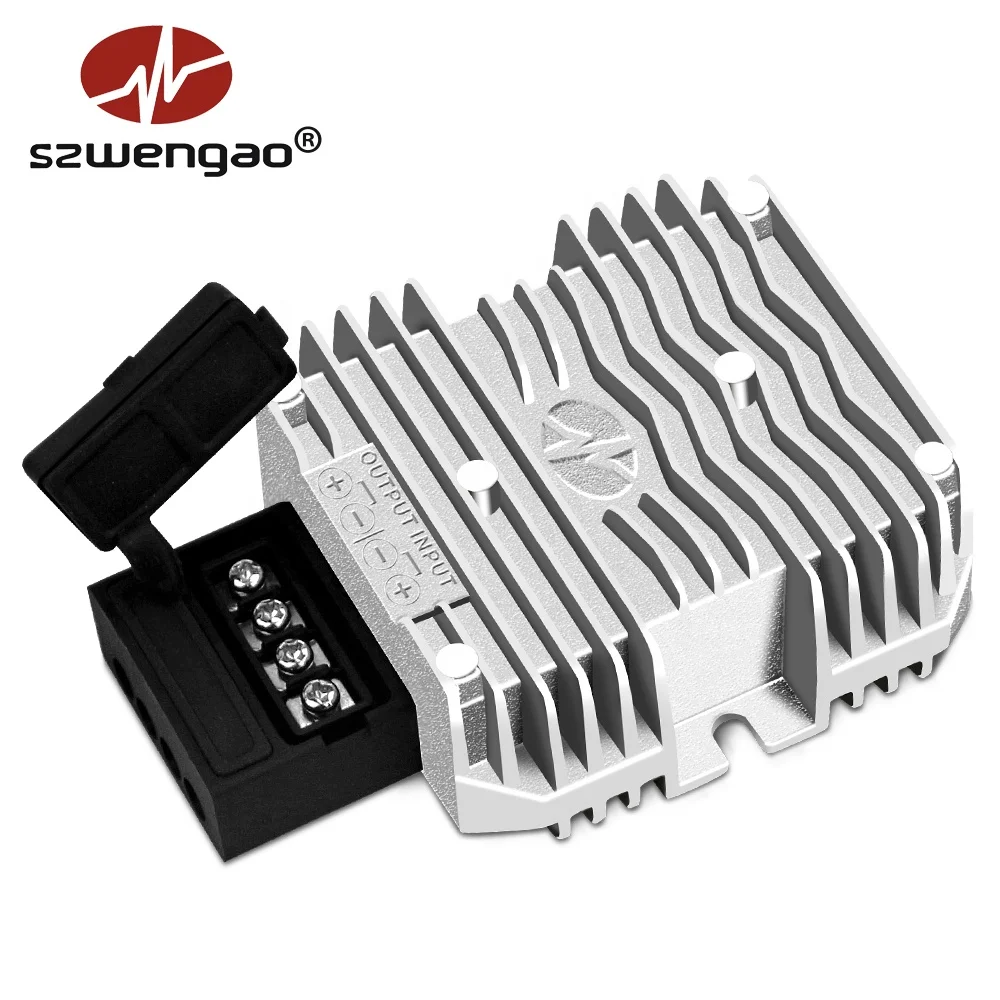

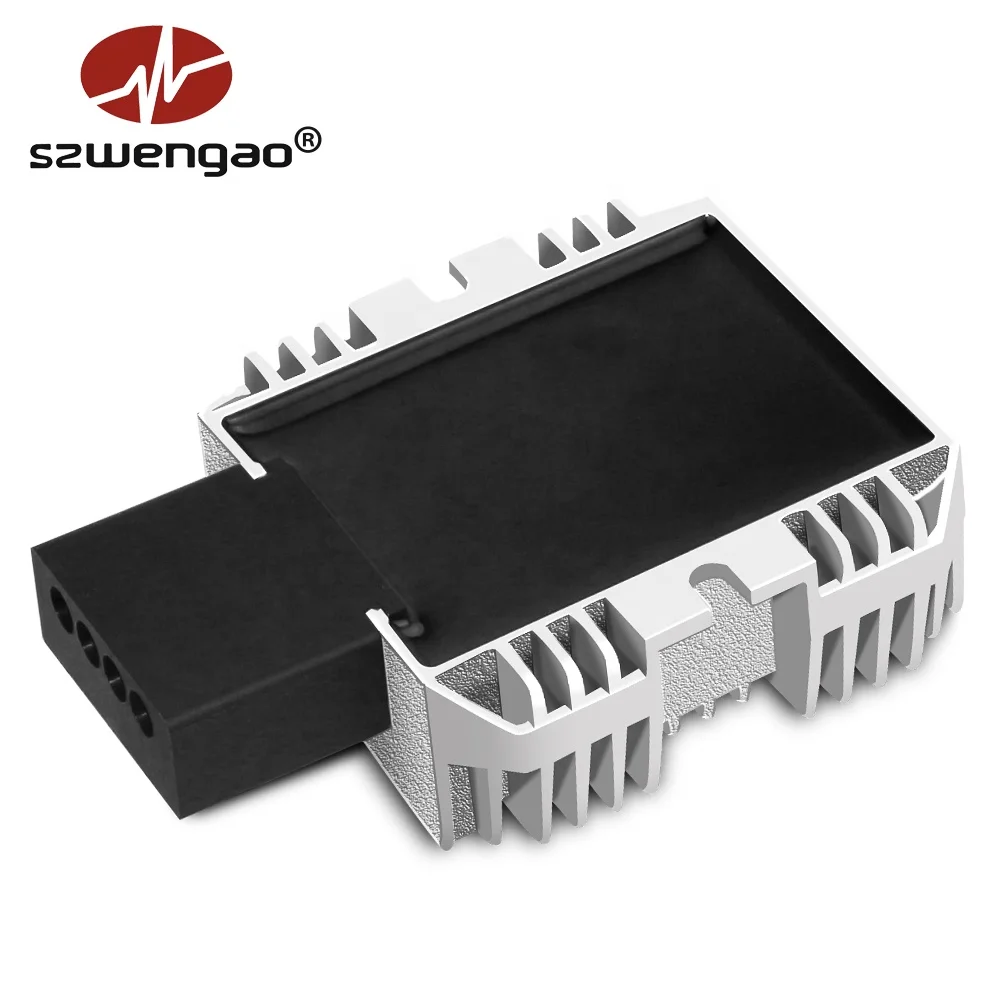

High Quality 12V Isolated Power Module Isolated DC to DC Converter 18 75V to 12V 10A For Cars Electromotor LED Market Etc.
- Category: Power Supplies >>>
- Supplier: Shenzhen Wengao Electronic Co. Ltd.
Share on (1600699725851):
Product Overview
Description
Product Paramenters
* Product Features

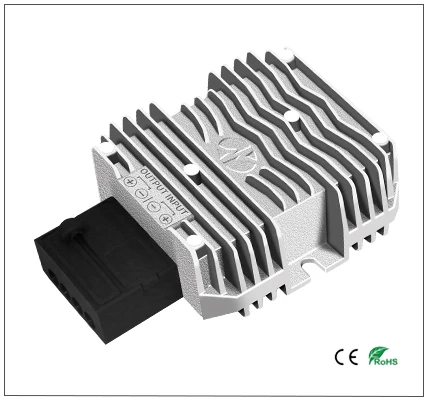

● Design meeting RoHS/CE
● High efficiency: 93% ( @ 48V input )
● Isolated between input and output
● Advanced switch mode design
● Mount in almost any location
● Over temperature protection
● Over-current protection
● Low-voltage protection
● Epoxy potting, waterproof protection
● Aluminum shell, surface mountable
● Cooling by free air convection
● 2 years limited warranty
Product name | 18-75V to 12V 10A Isolated DC-DC Converter | |
Brand | szwengao | |
Model no. | WGI10-24S12M/WGI10-48S12M | |
Input rated voltage | 24V DC/48V DC | |
Input voltage range | 18-75V DC | |
Efficiency | 92% ( @ 24V input ) /93% ( @ 48V input ) | |
Output voltage | 12V DC | |
Output max. rated current | 10A | |
Output max. rated power | 120W | |
Voltage regulation | < 1% | |
Load regulation | < 2% | |
No load loss | 15mA @24Vin/ 10mA@48Vin | |
Ripple & noise | 44-250mVp-p /22-250mVp-p | |
Working temperature | -40 ~ +80°c | |
Working humidity | 10% ~ 90%RH | |
Storage temperature | -40 ~ +85°c | |
Weight | ≤ 570g | |
Dimension | 74*74*29.5mm | |
Input connect type | Terminals | |
Output connect type | Terminals | |
Packing type | Box | |
Cooling | Cooling by free air convection | |
Note: specifications typical @ Ta=25 °C(77°F), Vin =48V, Vout =12V, unless otherwise specified. | ||

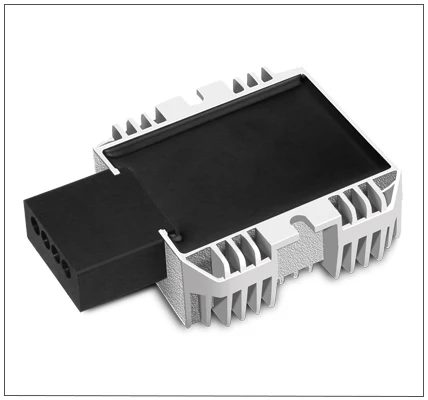

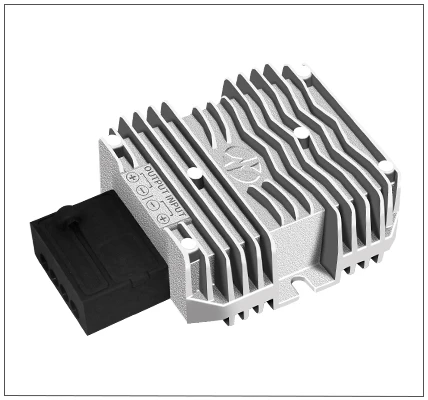

Product Pictures
NOTICE

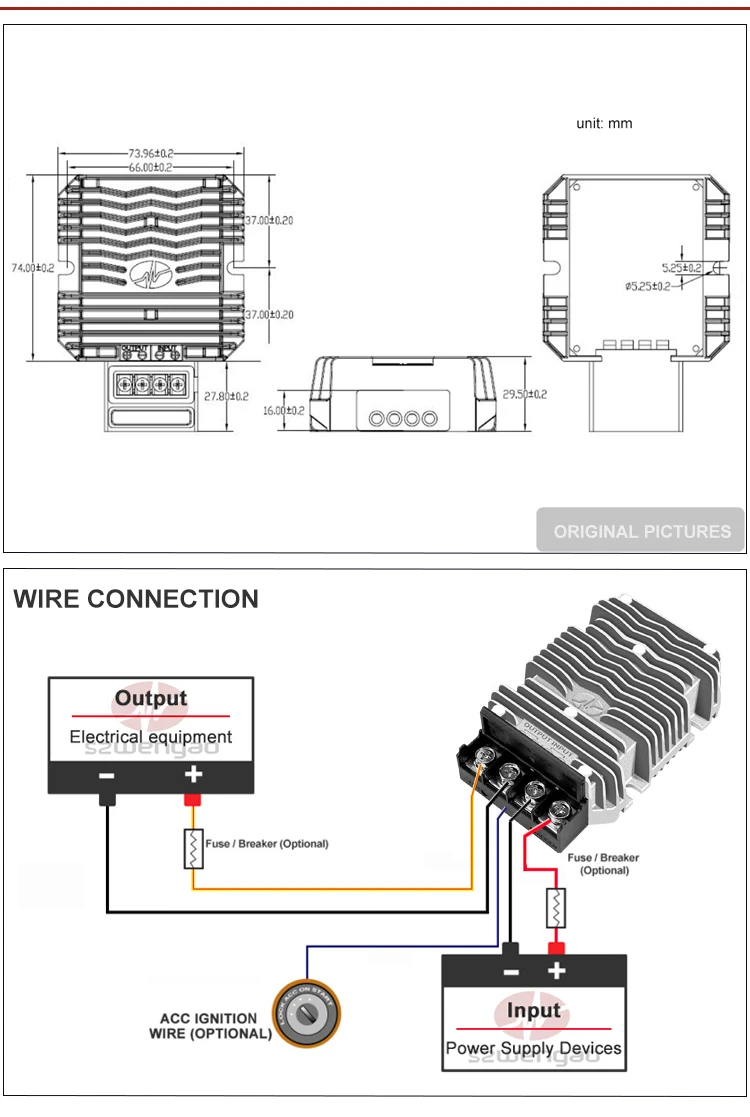

A. Be sure to make the correct connection according to the product nameplate and the wire marking. The wrong connection will cause the damage of the product, and even result in the danger of fire and so on.
B. To ensure safety, a fuse should be connected to the input terminal to prevent the permanent damage caused by wrong connection of positive and negative pole and over-voltage. Some products have been installed the fuse before leaving the factory, and due to the current reason, you’d better match fuse for those products with no fuse.

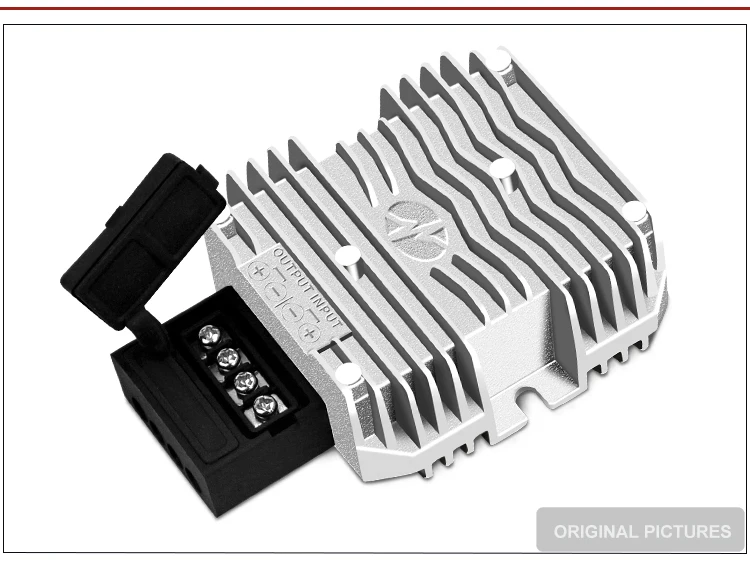

Details Images
ALUMINUM SHELL
Three-sided heat sinks, better heat conduction effect.
ORGANIC SILICA GEL POTTING
IP68 protection grade, waterproof, dustproof and anti-seismic.
NICKEL-PLATED TERMINALS
Simple, Reliable and Stable
IMPORTED COMPONENTS
Import of original industrial chips & capacitances ( such as TI, NCC, NICHICON and so on).
GIFT BOX
30PCS/CTN, Outer carton size 40*25*23CM
Total weight 18KGS/CTN
APPLICATIONS
Rail transit, communications, electrical equipment, ships, renewable energy, LED Marketplaces and so on..
