HBST 3000 Electronic digital brinell hardness tester with software metallographic hardness testing machine
- Category: >>>
- Supplier: Trojan (suzhou) Material Technology Co. Ltd.
Share on (1600699790037):
Product Overview
Description
Product description

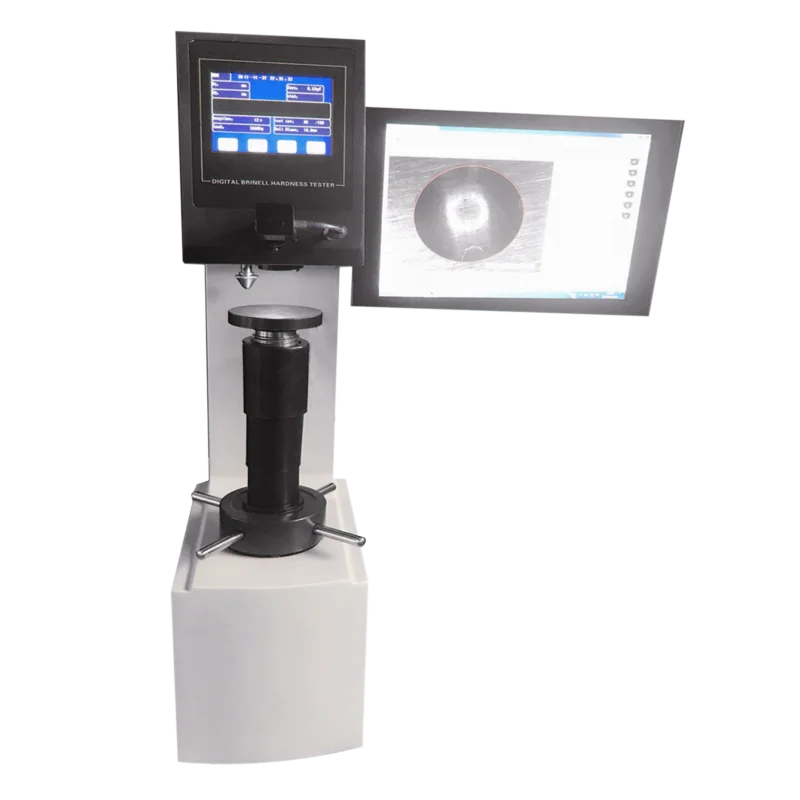

HBST-3000 Electronic digital brinell hardness tester with software
The HBST-3000 electronic digital display Brinell hardness tester is an optical, mechanical and electrical integrated product with a precise mechanical structure and a microcomputer-controlled closed-loop system. It is also the most advanced Brinell hardness
tester in the world today. The instrument eliminates weights, uses electric loading and unloading test force, feedback by a 0.5‰
precision pressure sensor, CPU control and can automatically compensate for the test force lost in the test. The indentation can
be directly measured on the instrument through the micrometer eyepiece, and the diameter of the indentation can be displayed on the LCD display and the Brinell hardness test (HBW) range can be automatically displayed under the current setting state. The
dwell time can also be set on the page.
Determine the Brinell hardness of ferrous metals, non-ferrous metals and bearing alloy materials, with a wide range of
applications, suitable for precise measurement of parallel planes, and stable and reliable surface measurement.
tester in the world today. The instrument eliminates weights, uses electric loading and unloading test force, feedback by a 0.5‰
precision pressure sensor, CPU control and can automatically compensate for the test force lost in the test. The indentation can
be directly measured on the instrument through the micrometer eyepiece, and the diameter of the indentation can be displayed on the LCD display and the Brinell hardness test (HBW) range can be automatically displayed under the current setting state. The
dwell time can also be set on the page.
Determine the Brinell hardness of ferrous metals, non-ferrous metals and bearing alloy materials, with a wide range of
applications, suitable for precise measurement of parallel planes, and stable and reliable surface measurement.
Product Features
Over-position automatic protection, automatic experiment process, unmanned operation error, large LCD liquid crystal display, intelligent menu prompts, convenient operation, high-precision reading microscope measurement system.
Specifications
Name | HBST-3000 |
Testing Range | 8-650HBW |
Test force | 1.839、2.452、7.355、9.807、29.42 KN（187.5、250、750、1000、3000KGF） |
Max. Height of sample | 280mm |
Distance from indenter center to the wall | 150mm |
Voltage | AC220V 50Hz |
Dimensions | 230*850*920mm |
Weight | 210Kg |
Company Profile
Customer Service
Trojan provides you with perfect consultation, installation training and thoughtful after-sales service! Your complete satisfaction is our goal.
Applications Laboratory
Trojan application engineers provide you with free technical consultation, product training and sample testing. TROJAN is not only a manufacturer and supplier of metallographic products, but also a service provider of complete metallographic application technology and solutions.
Engineering
Trojan has an experienced and professional mechanical and electrical design team to ensure the high performance and reliability of product quality, and can provide professional customized solutions according to the needs of customers.
Warehouse
Trojan warehouse has a large inventory of finished products, and regular products can be shipped within 1-2 days. And provide you with special customized products in the shortest time.

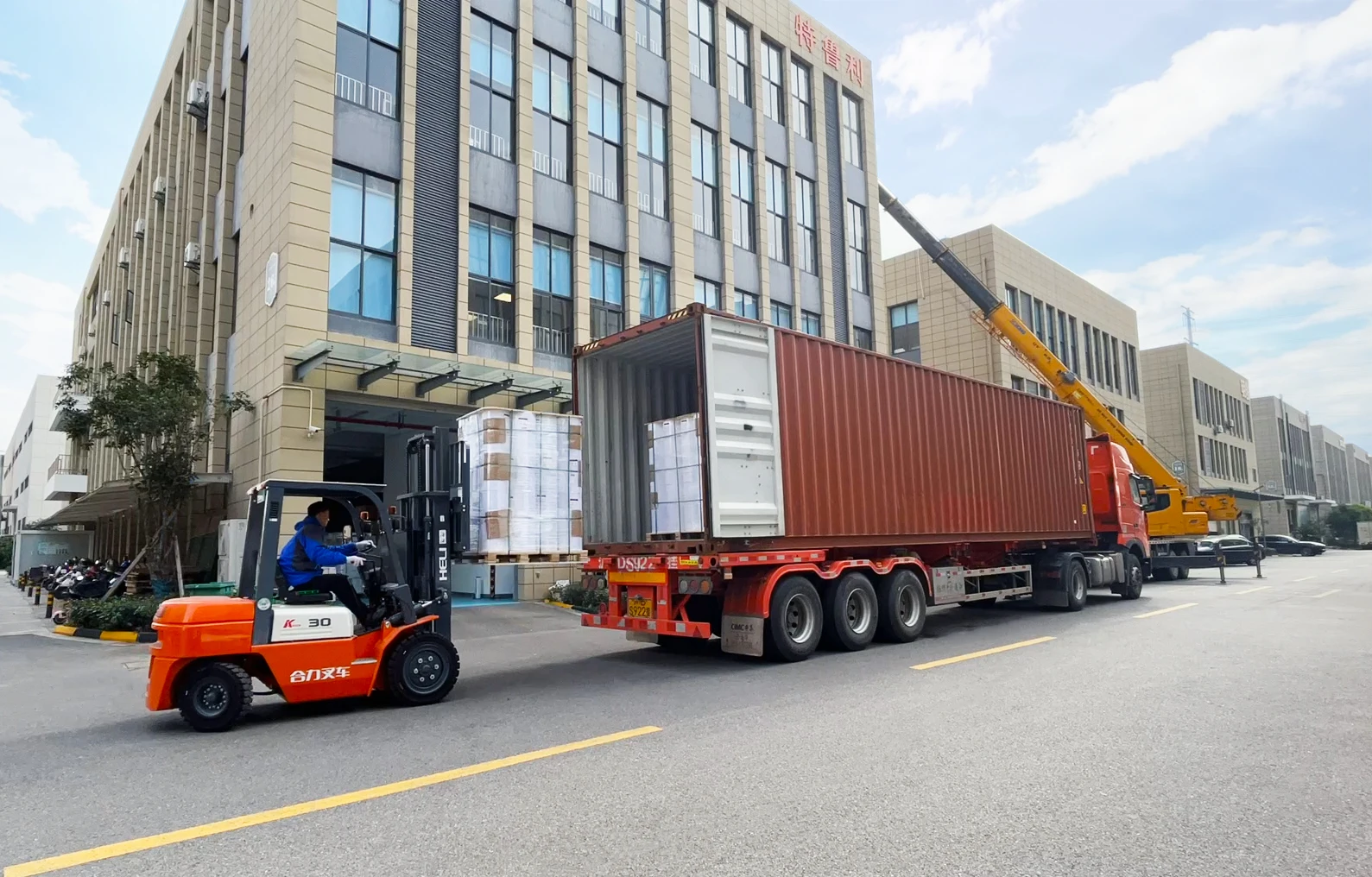

Shipping
Trojan provides you with the safest, economical and reliable transportation mode according to customer needs.
Environment
50KW solar power station Environmental protection is indispensable in business activities. Trojan has always adhered to the green
energy policy.
energy policy.
Consumables Manufacturing
Trojan provides you with a full range of metallographic consumables. All consumables are tested and certified by third-party institutions such as SGS.
Machine Manufacturing
Trojan Suzhou factory has an assembly workshop of 1500 square meters. All products have been strictly tested before leaving the factory. All the machine has obtained EU CE certification.
