Product Overview
Description
▪ Electronic handwheel for manual travel of X- and Y-axis come standard

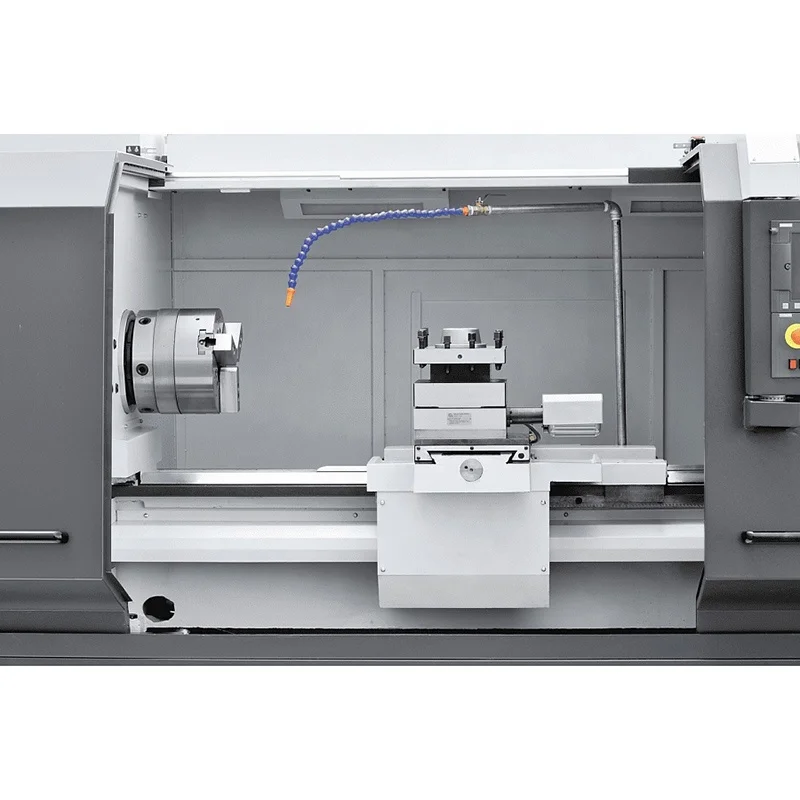

▪ Wide cross slide allows mounting of various tool post holders
▪ Stable tailstock with hydraulically adjustable tailstock spindle
▪ High rapid feed allows significant reduction of downtime.
▪ Main spindle features pre-tightened high-quality angular bearings, guarantees best
possible accuracy
▪ User-friendly, easy-to-understand Fanuc control 0i TF (5)
▪ Solid headstock features precisely bedded main spindle (spindle bore Φ104 mm)
▪ Wide cross slide allows mounting of various tool post holders

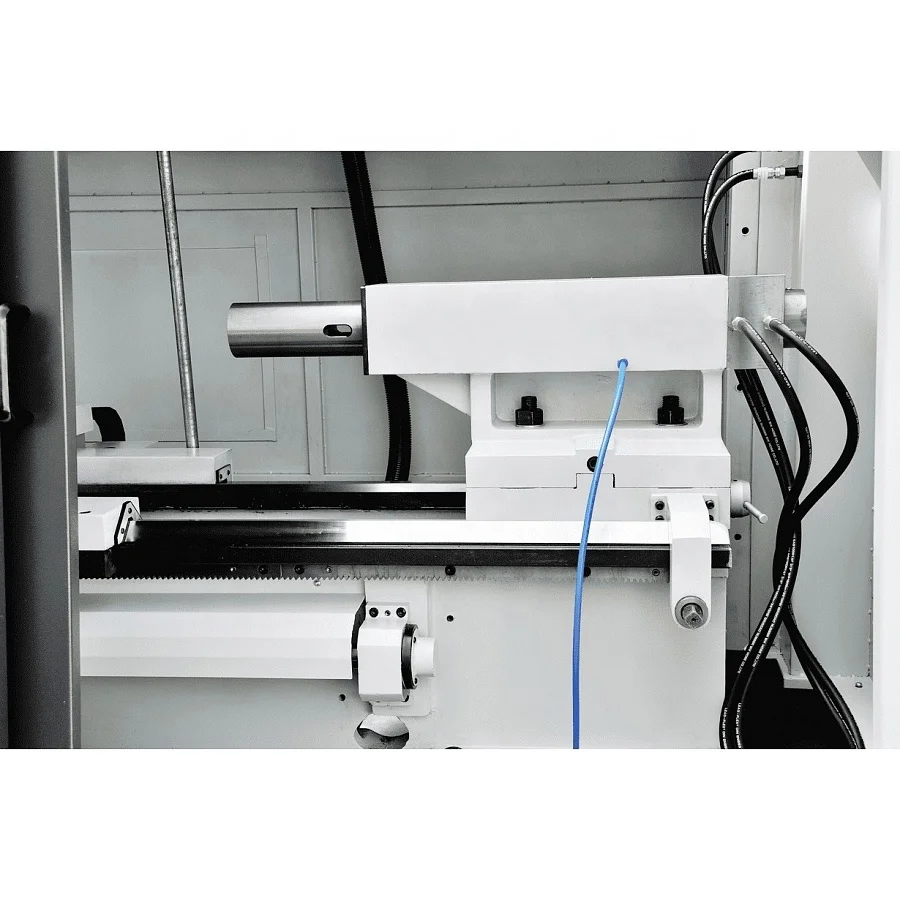

▪ Stable tailstock with hydraulically adjustable tailstock spindle
▪ High rapid feed allows significant reduction of downtime.
▪ Main spindle features pre-tightened high-quality angular bearings, guarantees best
possible accuracy
▪ User-friendly, easy-to-understand Fanuc control 0i TF (5)
▪ Solid headstock features precisely bedded main spindle (spindle bore Φ104 mm)

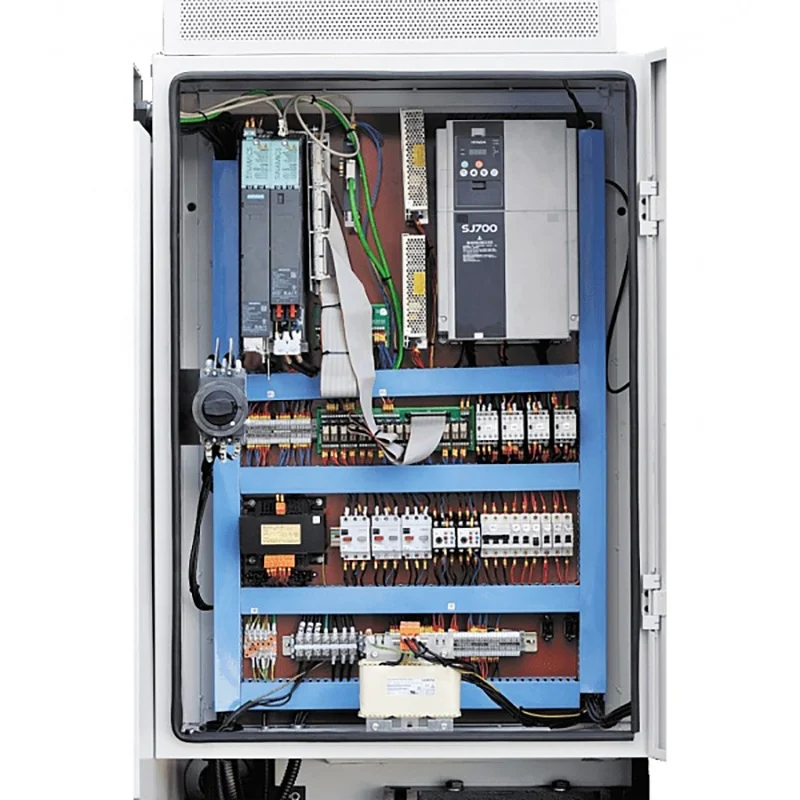

Siemens or Fanuc CNC System

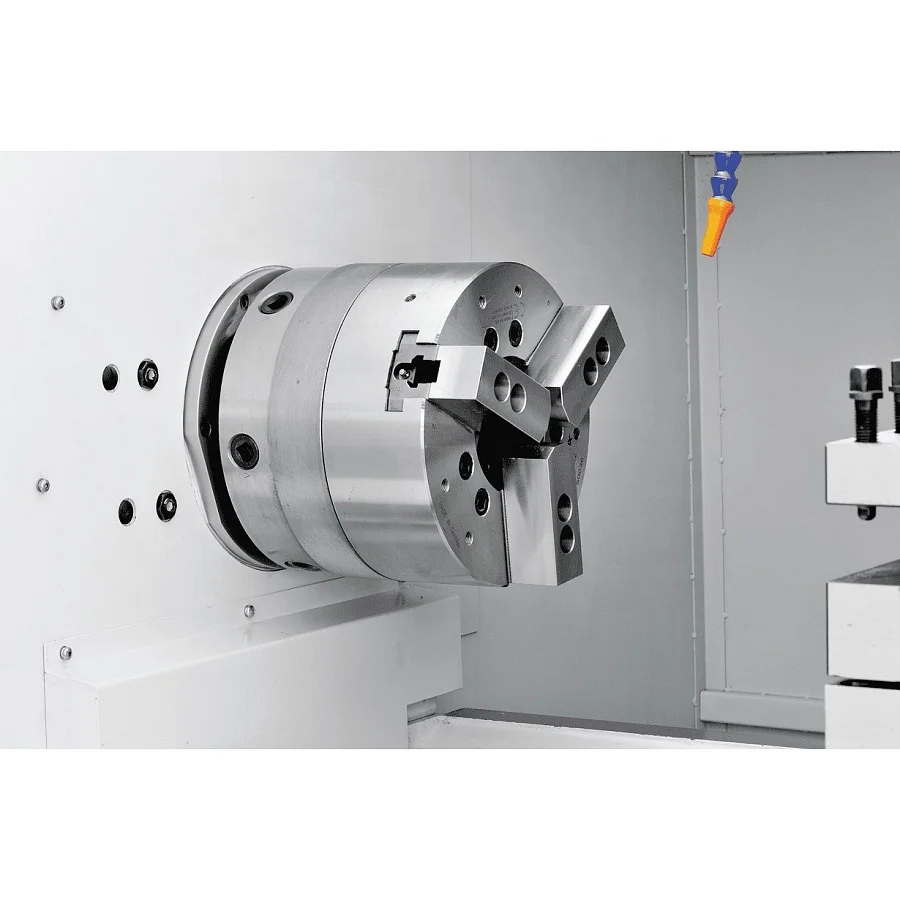

3-Jaw Hydraulic Chuck
6-station electrical tool changer
Technical Parameters
Model | CT-630 | CT-800 |
CAPACITY: | ||
Swing over bed | Φ630 mm | Φ800 mm |
Swing over cross slide | Φ360 mm | Φ500 mm |
Distance between centers | 1000/1500/2000/3000/4000 mm | 1000/1500/2000/3000/4000 mm |
Max. turning length | 900/1400/1900/2900/3900 mm | 900/1400/1900/2900/3900 mm |
Manual chuck dia. | 12" (305); 15" (380) /(mm) | 12" (305); 15" (380) /(mm) |
Hydraulic chuck dia. | 12" (305); 15" (380) /(mm) | 12" (305); 15" (380) /(mm) |
TRAVEL: | ||
Cross slide travel (X-axis) | 440 mm | 500 mm |
Longitudinal travel (Z-axis) | 1000/1500/2000/3000/4000 mm | 1000/1500/2000/3000/4000 mm |
X/Z-axis guide rails | sliding type | sliding type |
Bed width | 560 mm | 560 mm |
SPINDLE: | ||
Spindle speed | 40-90; 60-120; 120-360; 300-1000 rpm | 40-105; 80-205; 195-500; 385-1000 rpm |
Spindle step | 4 steps | 4 steps |
Spindle taper | D11/1:20 | D11/1:20 |
Spindle bore | Φ104 mm | Φ104 mm |
TOOL: | ||
Tool station number | 4; 6; 8; 12 pcs | 4; 6; 8; 12 pcs |
Tool section size | 40×40 mm | 40×40 mm |
TAIL STOCK: | ||
Tailstock quill taper | МK-6 | МK-6 |
Tailstock quill diameter | Φ100 mm | Φ100 mm |
Tailstock quill travel | 230 mm | 230 mm |
SPEED: | ||
X/Z-axis rapid traverse | 8/10 m/min | 8/10 m/min |
COOLANT: | ||
Coolant pump power | 0.37 kw | 0.37 kw |
POWER: | ||
Main motor power | 11; 15 kw | 11; 15 kw |
Main motor torque | 72; 98 N.m | 72; 98 N.m |
Spindle torque | 1800; 2450 N.m | 1800; 2450 N.m |
DIMENSIONS: | ||
Overall dimensions (L×W×H) | 3200/3700/4200/5200×1660×1820 mm | 3200/3700/4200/5200×1660×1820 mm |
Weight approx. | 3480/3780/4280/4780 kg | 3480/3780/4280/4780 kg |
Detailed Description
FAQ
1. How can I choose the most suitable machines ?
Re: Please tell us your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
You can also send us the products drawing ,we will choose the most suitable machines for you.
2. What's your main products of your company?
Re: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
3. What kinds of inspection you will do for each machine?
Re: For each assembly procedure, there is geometric accuracy test. After assembly, spindle accuracy will be tested by dynamical balance testing instrument; 3 axes accuracy will be tested by Ball bar. And laser interferometer to inspect positioning and repositioning accuracy. Then the inspection team will make full test before delivery and test piece will be done on each machine. Each workpiece will be inspected by CMM, so each machine performance can be checked and kept in record.
4. Can you supply turn-key solution?
Re: Of course, we have professional team of technical service & after sale service department, who can give you the perfect solution and meet your processing requirement. Besides, we also cooperated with professional fixture company and support with us.
5. What is the warranty time of machine?
Re: We have 14 months warranty after delivery. Within the warranty period, if there is any problem not caused by wrong operation, we will supply you the replacing parts from free. Even beyond the period, we will still supply the replacing parts with cost price.
6. What’s the delivery time, and what’s the package?
Re: Normally the delivery time is about 45-60 days. All our CNC machines are packed with the seaworthy wooden case/pallet, also applied with anti rust measures in advance. View drawing together if any parts disassembled.
