Low intensity LED solar led obstruction light/LED aircraft solar warning light/LED aviation solar light for high rise towers
- Category: >>>
- Supplier: Shenzhen Green Source Light Equipment Co. Ltd.
Share on (1600699822095):
Product Overview
Description

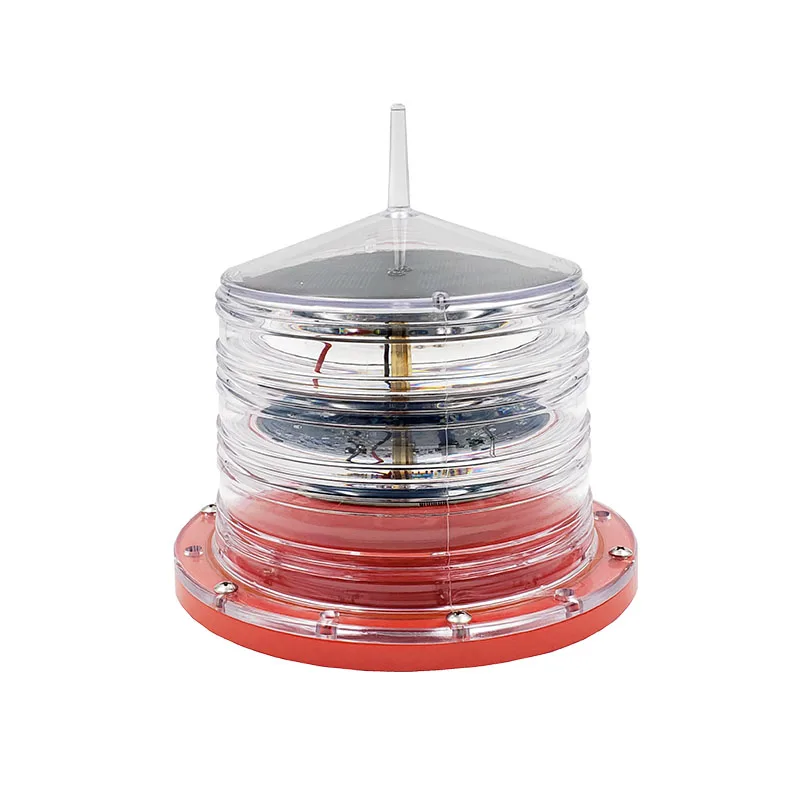

LED aviation solar light
IMarine Aquaculture Solar Powered LED Warning Strobe Light.
Adopts insert solar panel whose photo electric conversion efficiency is high to 19% integrated design, cooperate with solar dedicated lithium iron phosphate battery as power supply. Control circuit adopts micro-power consumption single chip controlling chip, which can control battery's charge and discharge statue.
Meanwhile, it can reduce controlling circuit's power consumption. Light source adopts high efficient LED chip, which has specific of high light intensity, low power consumption, long service life and so on.
Lampshade adopts PC material, which can corrosion resistance, anti-uv anti-shock. The base adopts marine-grade dedicated plastic material, it can apply to seaways and chemical plant that have hostile and strong corrosive environment.
Specification
Name | Parameter | Name | Parameter |
Type | GS-LS/E | Light Source Life | >100000 hours |
Power Provider | Mono-crystalline silicon solar panel | Optional Emitting Light Colors | Red, Amber Yellow, Green, Blue, White |
Battery Capacity | 3.2V3.3AH | Battery Type | Replaceable lithium iron phosphate battery |
Battery lifespan | >5years | Solar panel voltage | 5.5V |
Solar panel Power Consumption | 2W | Solar panel lifespan | >20years |
Power Consumption | ≤2W | Vertical Divergence | >10° |
Visual Range | 1~4 NM | Horizontal Out-put | 360° |
LED Quantity | 20pcs | Overall Size(mm) | 186mm(D)x190mm(H) |
Light Source | LED | Installation Size(mm) | D170mm x M6 |
Working temperature | -40℃~70℃ | Wind-speed Ability | 80m/s |
Storage temperature | -40℃~70℃ | Working mode | Flashing(20tims/min) |
Sun Switch Illumination Threshold | 300LUX±100LUX | Steady Burning Intensity | 32.5cd |
Continuous Burning Time in rainy days | >20 days (12 hours a day) | Flashing Intensity | 33cd |
Weight | 1.2kg | IP Protection | IP65 |
Features
1. Up to 4 nautical miles.Optional adjustable 1-4 NM
2. Based on LED technology, and its color complies to IALA Recommendations E 200-1..3.
3. Bird spike against bird drop.
4. Comprehensive protection is short-voltage, over-voltage, floating charge.
5. International-advanced cold and special LED with low power consumption, high brightness and service life of light source reaching 100,000 hours.
6. Strong corrosion resistance, rain and snow, shock and vibrations protection and UV protection.
7. Clean, renewable, green and reliable energy source.
8. Dusk-to-dawn operation: photocell, light can work at night automatically by photocell.
9. At least 7 days autonomy without sunshine(optional: 20 days).
10. Recyclable batteries with the lightest environmental.
11. IP68 protection standard, full sealing structure.
12.Optional GPS sync flash
13. Optional adjustable 256 flash characteristics
Structure Drawing

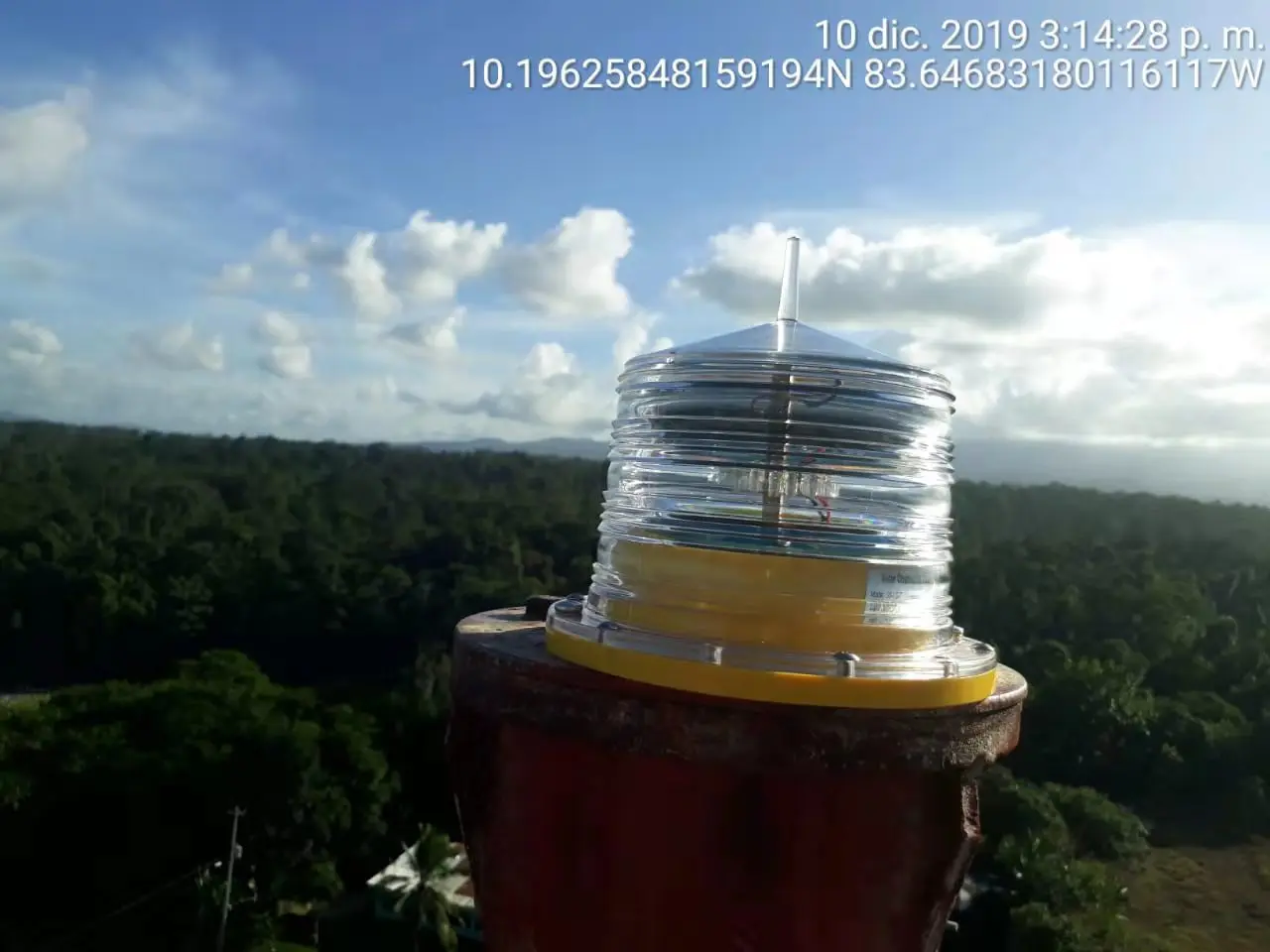

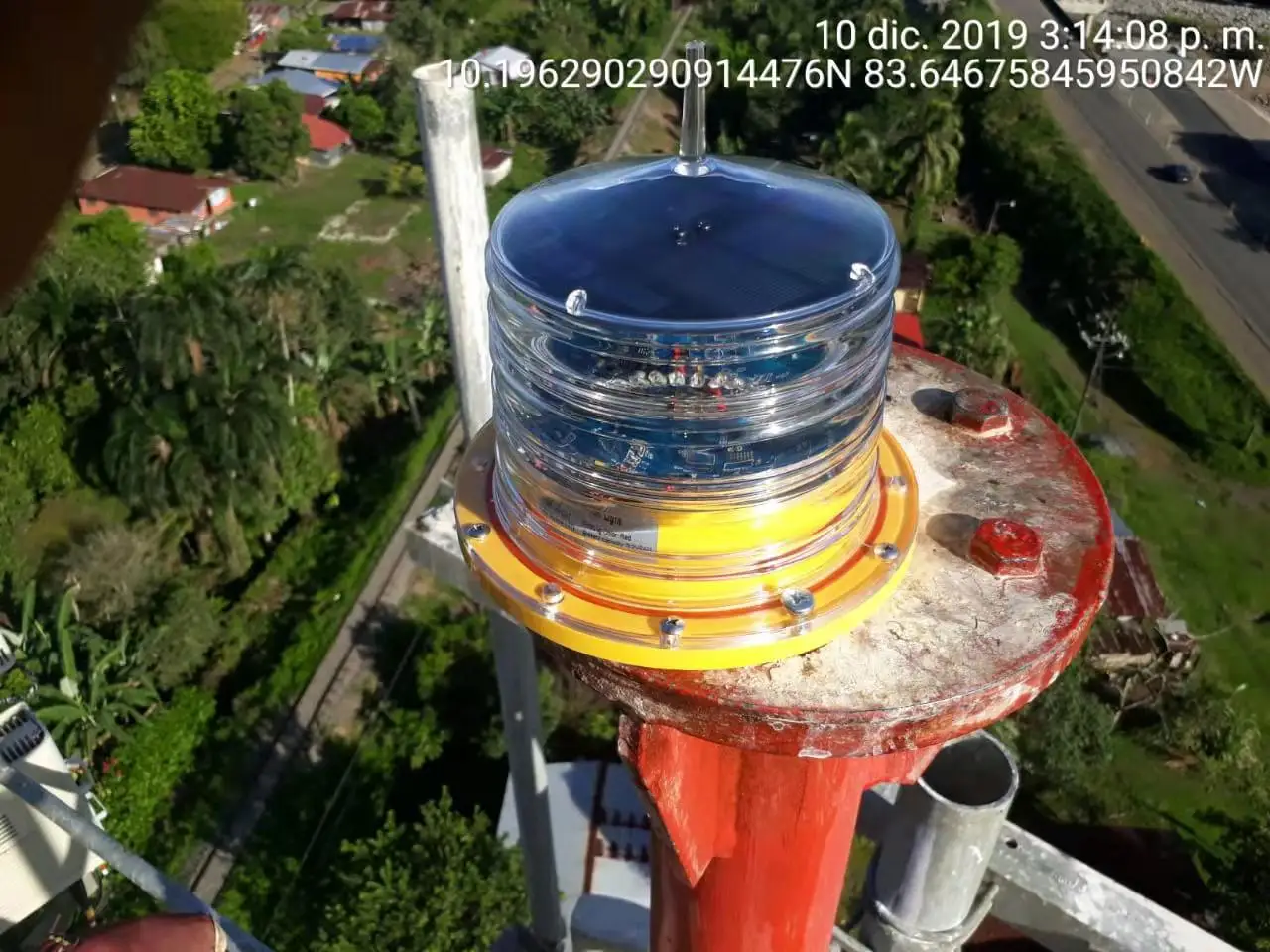

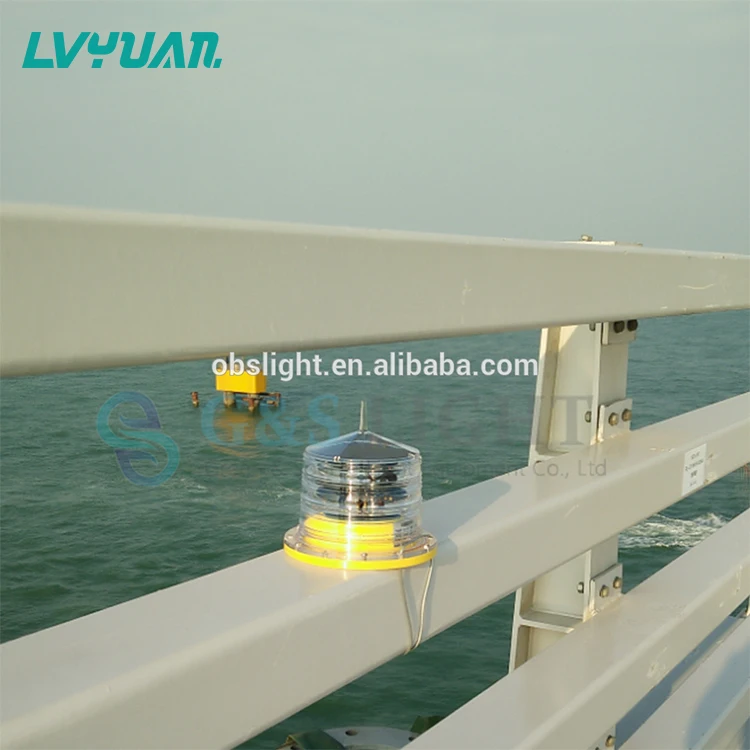

Project Case
Feedback
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
