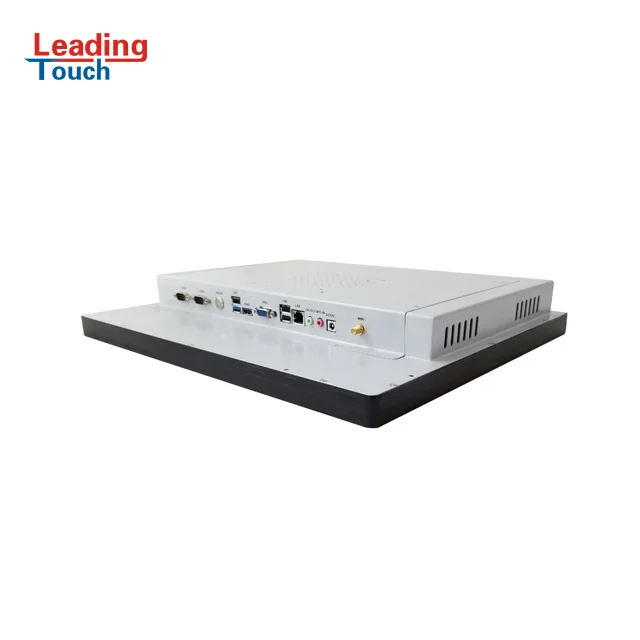

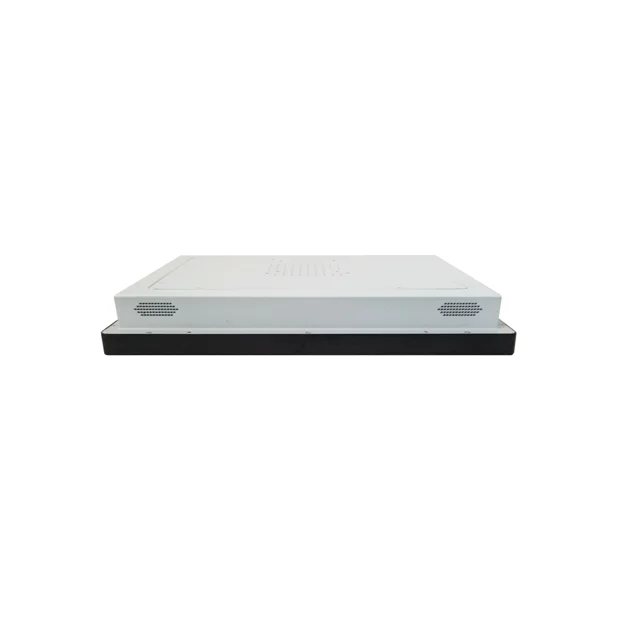

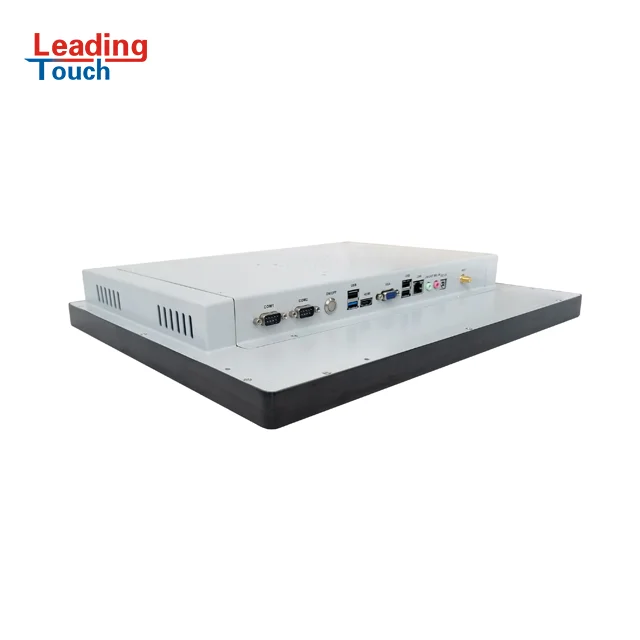

19 inch desktop touch screen fanless industrial pc lcd monitor X86 all in one pc with win 10 VGA/USB/Wifi
- Category: >>>
- Supplier: Leadingtouch Technology Co. Ltd.
Share on (1600699830710):
Product Overview
Description
Product Description

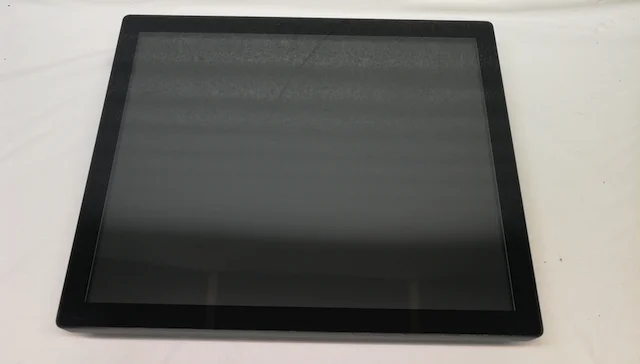

19” Project Capacitive All-in-one Touch Computer
LeadingTouch's TC-1952 is 19inch Project Capacitive All-in-one touch computer. Aluminum alloy front bezel, inside PCAP touch meet IP65 waterproof. Highlight display with anti-vandal tempered cover glass meet UL60950. Suitable for outdoor application, which is designed for Kiosk, digital signage, ATM, Gaming, Casino, Industrial, Education etc., is easily connected and installed by user.
Features

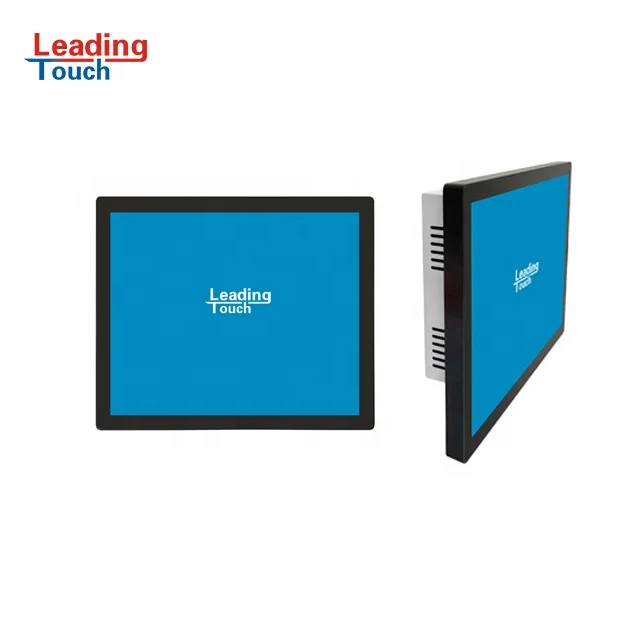

Zero-bezel flat touch computer, slim housing
10point multitouch project capacitive touch technology
Aluminum alloy front bezel, meet IP65 waterproof
Standard VESA mounting and four side bracket options
High brightness LED panel
3mm anti-vandal tempered cover glass meet UL60950 steel ball test
Efficient and stable intel computer system
Combinations of features indicate that LeadingTouch All-in-One PCAP Touch Computer is the best choice for you.
Model | TC-1952 | ||
Description | 19” AIO PCAP Multitouch Touch Computer | ||
DISPLAY | Display | 19“ 5:4 Active Matrix TFT LCD | |
Useful Screen Area | 377.3mm x 302mm | ||
Optimal Resolution | 1280 x 1024 | ||
Number of colors | 8bit,16.7 Million colors | ||
Brightness | 250cd/m² | ||
Contrast Ratio | 1000:1 (Typical) | ||
Viewing Angle | Horizontal: ±85°or 170°total | ||
Vertical: ±80°or 160°total | |||
CPU | Celeron J1900 1.99GHz(Intel i3,i5,i7 options) | ||
RAM | 4G or 8G | ||
Hard disk | 128G / 256G SSD or 500G STAT | ||

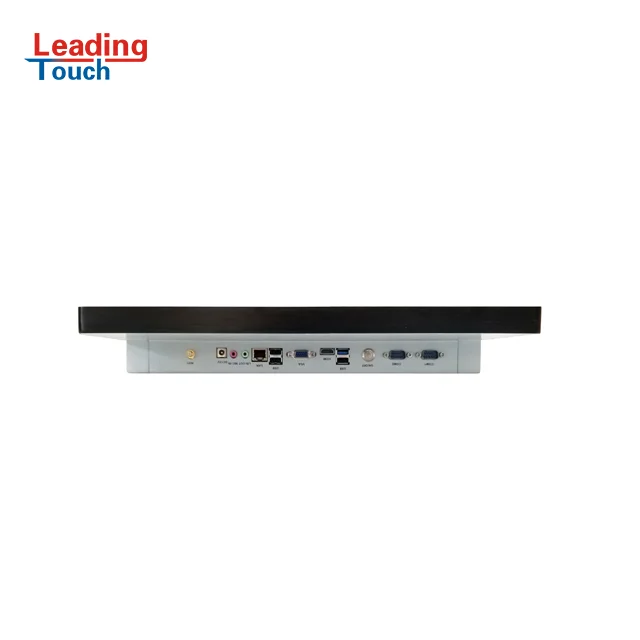

USB and COM Port | 2 x USB 3.0, 2 x USB 2.0,2 x COM(RS232) port | ||
Ethernet Port | 1 x LAN RJ45(Gigabit) | ||
Additional Video Out | 1 x HDMI and 1 x VGA out | ||
Wireless | Wi-Fi 802.11 a/b/g/n/ac | ||
Bluetooth | Bluetooth 4.0 | ||
Audio and Microphone | 1 x 3.5mm line out, and 1 x microphone out | ||
Speaker | 2x 12W internal speakers--- | ||
TOUCH | Touch Technology | Project capacitive touch technology | |
Response Time | 3ms | ||
Touch Resolution | 32767 x 32767 | ||
Touch Glass | 3mm Anti-vandal tempered glass meet UL60950 IK07 | ||
Sealability | Touchscreen sealed to Aluminum alloy-bezel IP65 | ||
Touchscreen sealed to LCD | |||
MTBF | 50,000 hours demonstrated | ||

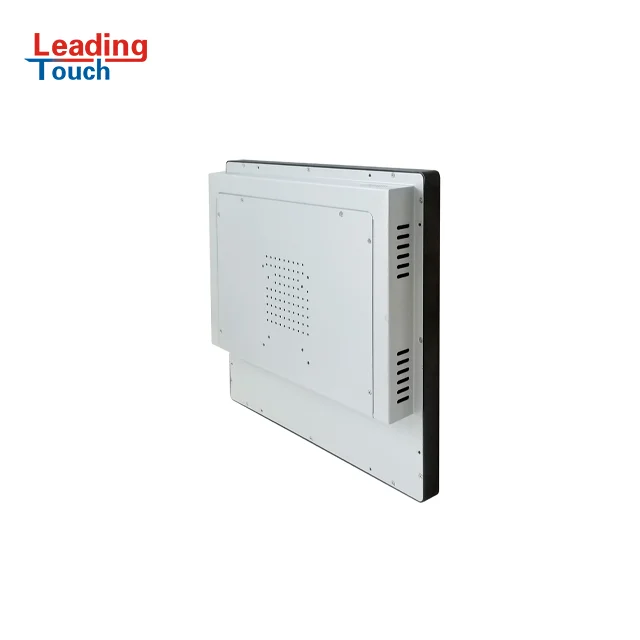

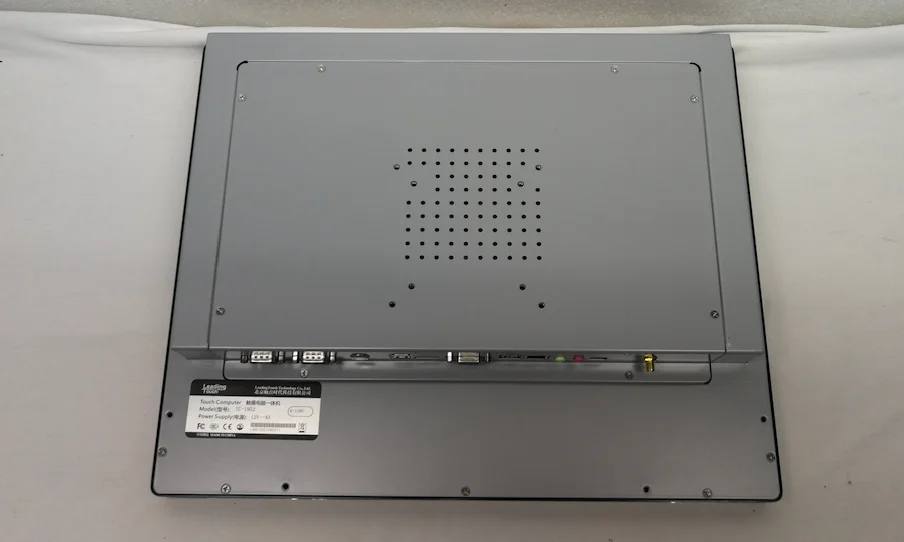

Mounting Options | VESA Mount, four-side bracket and stand option | ||
Power Supply | 100-240VAC, 50-60Hz | ||
Temperature Range | Operating: 0℃ to 50℃; Storage: -20℃ to 60℃ | ||
Humidity Range (no condensing) | Operating: 20%-80%; Storage: 10%-90% | ||
Product Dimension | 463.1mm x 391.3mm x 55.3mm | ||
Warranty | 1 year | ||
Agency Approvals | FCC, CE, RoHS | ||

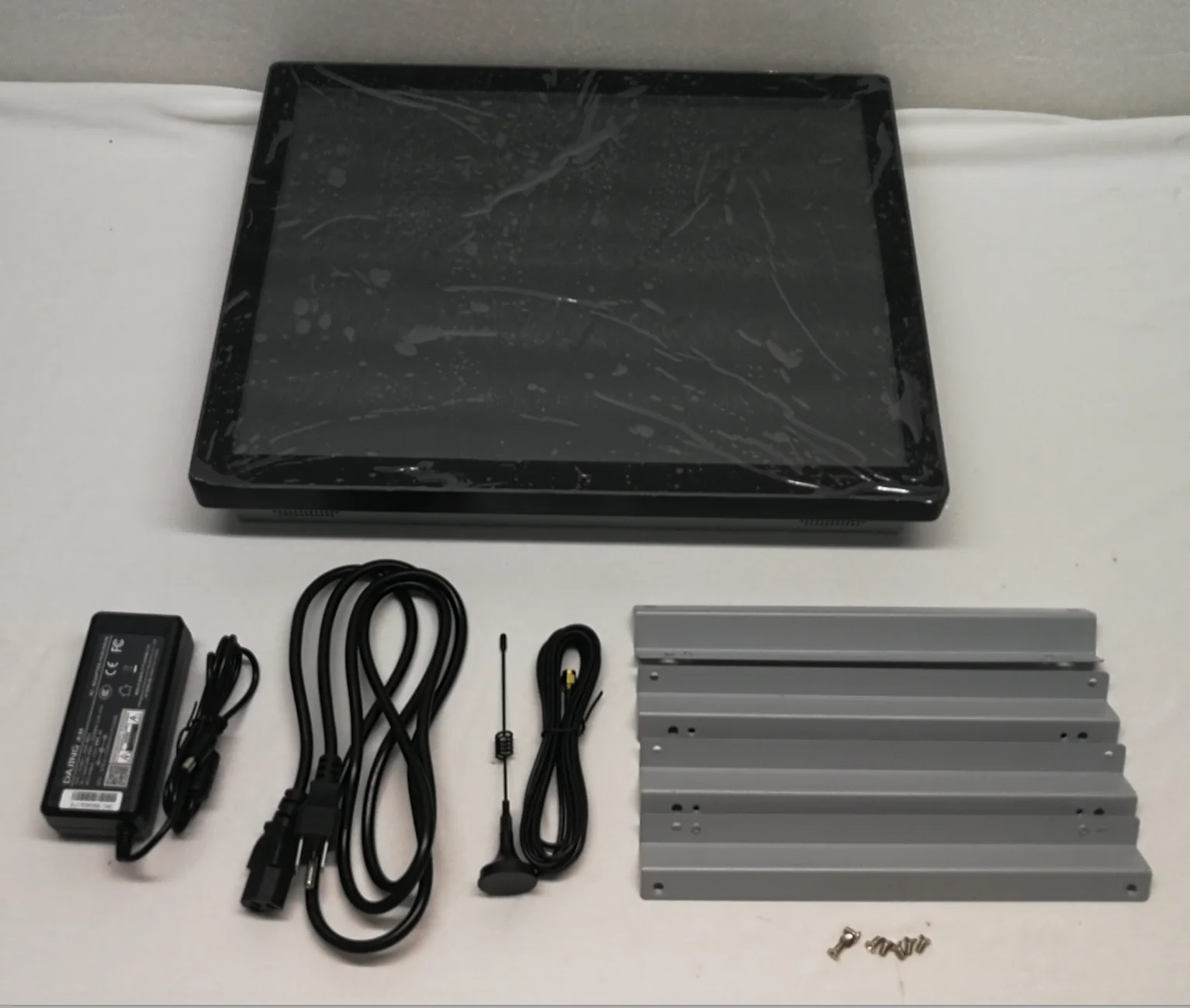

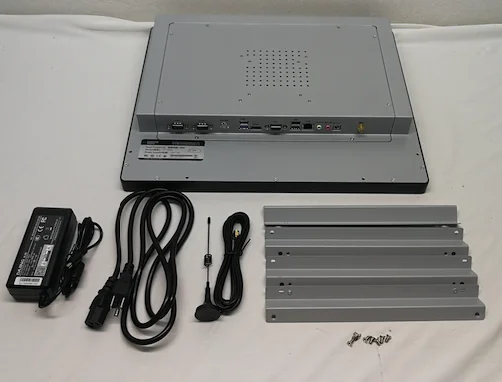

Packing & Delivery
Related Products
PCAP (Project Capacitive)
Open Frame Touch Monitor
Infrared (IR)
Open Frame Touch Monitor
Resistive
Open Frame Touch Monitor
Certifications
Our Company
Founded in 2001, LeadingTouch, the global leader in touch technology, develops, manufactures and markets a complete line of touch screen and touch monitor products, with PCAP, SAW, Infrared, Resistive touch technology. LeadingTouch offers the largest selection of touch screen technologies and LCD touch monitors and carefully designs each product for the demanding requirements of diverse applications, such as Industrial, Medical, POS, Kiosks, Retail, Hospital, Transportation, Office Automation, and Gaming.
FAQ
Q1: Are you a factory?
A1: Yes, we are a factory producing touch screen products, SAW, IR, Resistive, PCAP. Touch screen, Touch Monitor, Touch computer.
Q2: What certificates do you have?
A2: CE, FCC, CCC, RoHS, etc…If you have any other requirement, we can help apply the certificates.
Q3: Do you supply customized service?
A3: Yes, pls contact us for detail requirement.
Q4: What is your payment method?
A4: T/T, Paypal, Credit card, secure payment on alibaba.
Q5: What is your guarantee period?
A5: 1 Year.
Any needs, pls contact us freely :)
