Digital TV H264 Encoder 4 8 Input Encoder HDM I to IP Live Streaming Video Encoder
- Category: >>>
- Supplier: Hangzhou Dtvane Technology Co. Ltd.
Share on (1600699841605):
Product Overview
Description
Product Description
OVERVIEW

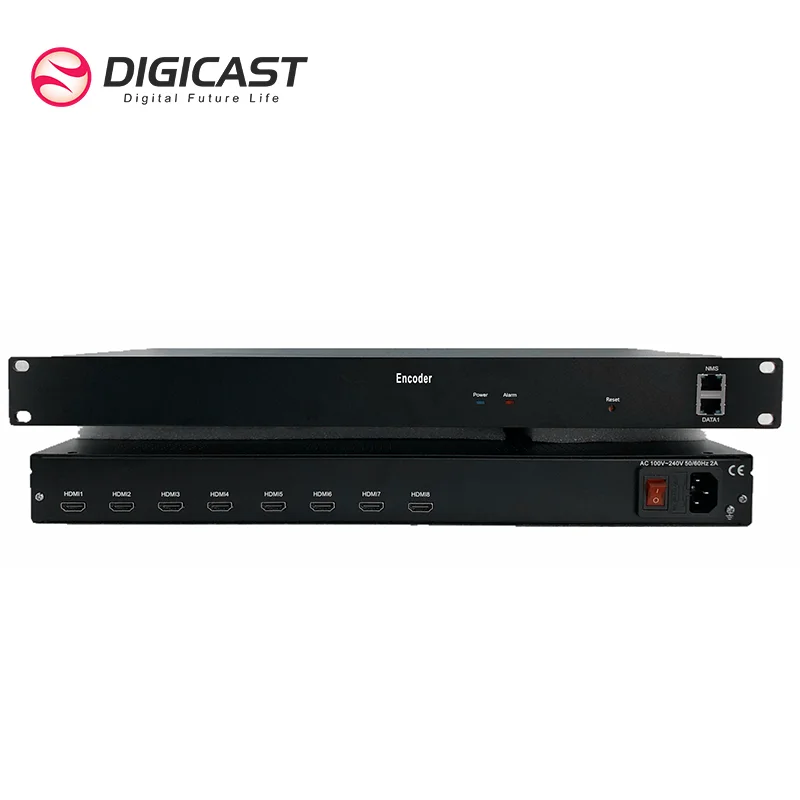

DMB-8820EC Series Multi-Channel H.264 HD Encoder features high performance, ultra-low latency and low bit rates for DTV systems, and adopts state-of-the-art compression technology (H.264/AVC) to achieve compression efficiency of the former MPEG-2 standard by over two times, as well as excellent resolution. Also audio encoding supports MPEG-1 Layer2.
DMB-8820E Encoder is the preferred device for content source encoding of DTV broadcasting system to address the ever-increasing demand for more premium viewing experiences. It is a cost-effective device newly developed by our company that integrates HDMI input and modulation. The device supports 4 or 8 channel HDMI input, 1 Gigabit IP input/output; MPTS output and SPTS output.
Support OSD function, can insert subtitles, station logo, QR code, etc. It has the characteristics of high integration, high performance and low cost. A single device integrates a set of front-end system functions, which is very suitable for digital TV transmission systems such as hotels, clubs, hospitals, and baths.
Features
* Advanced video compression: H.264/AVC
* Input interface: 4/8 channel HDMI input
* The GigE Data Port in front panel support 128*IP SPTS input,1*MPTS & 127*SPTS UDP/RTP IP output
* Multi-pass look ahead CBR encoding
* Built-in PCR capability
* Support multiplexing with external 2*ASI in, 2*ASI output for option, ASI option(Extra cost), LED screen option(Extra cost)
* Equipped with empty packets filtering of IP out
* Support Web management and online upgrade
* Managed via Ethernet interface
* Input interface: 4/8 channel HDMI input
* The GigE Data Port in front panel support 128*IP SPTS input,1*MPTS & 127*SPTS UDP/RTP IP output
* Multi-pass look ahead CBR encoding
* Built-in PCR capability
* Support multiplexing with external 2*ASI in, 2*ASI output for option, ASI option(Extra cost), LED screen option(Extra cost)
* Equipped with empty packets filtering of IP out
* Support Web management and online upgrade
* Managed via Ethernet interface
Specification | ||||||
Video Encoding | Video compression: H.264/AVC Video inputs: 4/8 *HDMI The Input Resolution: 1920x1080P, 1920x1080i, 1280x720P, 720x576i, 720x480i The Output Resolution: 1920×1080@30P, 1920×1080@25P, 1280×720@30P, 720×576@25P, 720x480@25P Encoding: MPEG-4 AVC/H.264 Bit-rate : 1Mbps~13Mbps Rate Control : CBR | |||||
Audio Encoding | Encoding: MPEG-1 Layer 2/AAC Bit-rate: 64kbps, 128Kbps, 192kbps, 224kbps, 256kbps, 320kbps, 384kbps Sampling rate: 44.1Khz, 48KHz | |||||
IP Streaming Output | RJ45 Port 1000M GbE Port Input: 128* UDP/RTP IP SPTS/MPTS Output: 4*MPTS & 256*SPTS UDP/RTP | |||||
Control AND Monitoring | Interface: 1*RJ-45, 100/1000M Base-T network interface Remote control: web-based management | |||||
Physical And Power | Voltage: 100 to 120/200 to 240V AC ±10%; 50/60Hz Consumption: 60W Relative humidity: 10%~90%(non-condensing) Dimensions: 440mm(W)×270(D)mm×40mm(H) Weight: 6 KGS | |||||
Application
DIGICAST BRAND Economic Encoder by widely application for Hotels , Schools , Sport bars , Hospital , Churches , Event Streaming , Conference Live Streaming , Concert Event Streaming etc.
* IPTV & OTT system
* Internet TV
* Digital Signage Project
* Remote Video Conference
* Video Monitoring
* Live Streaming
* Digital TV Broadcasting System
* Digital TV Programs Transmission
* Hotel TV System
* Head-end system of Digital TV branch network
* CATV Broadcasting system
*Edge side of Digital TV backbone network
Recording&Broadcasting
Online Meeting&Recording
Launcher
Real-time Recording
Low latency Sport Live Streaming
Home enjoyment
