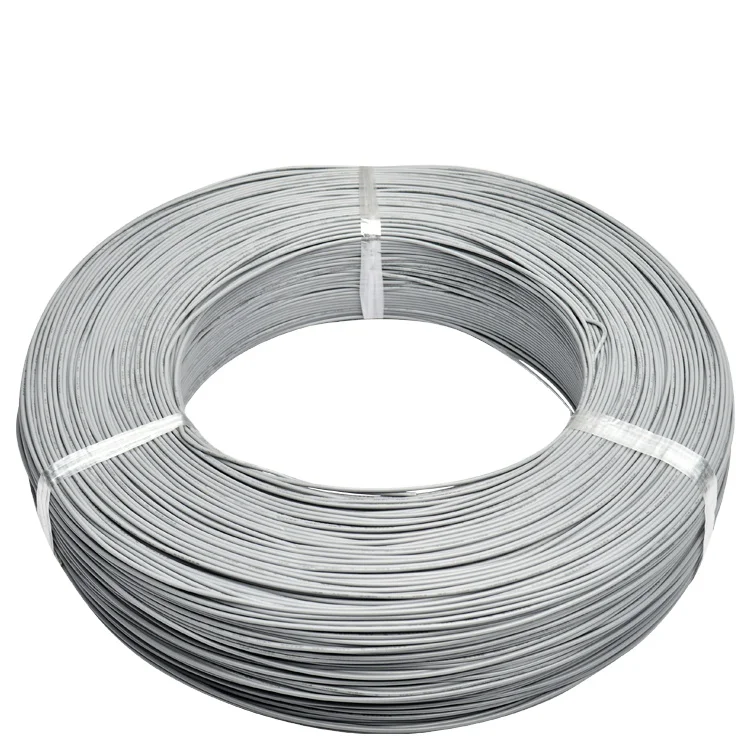

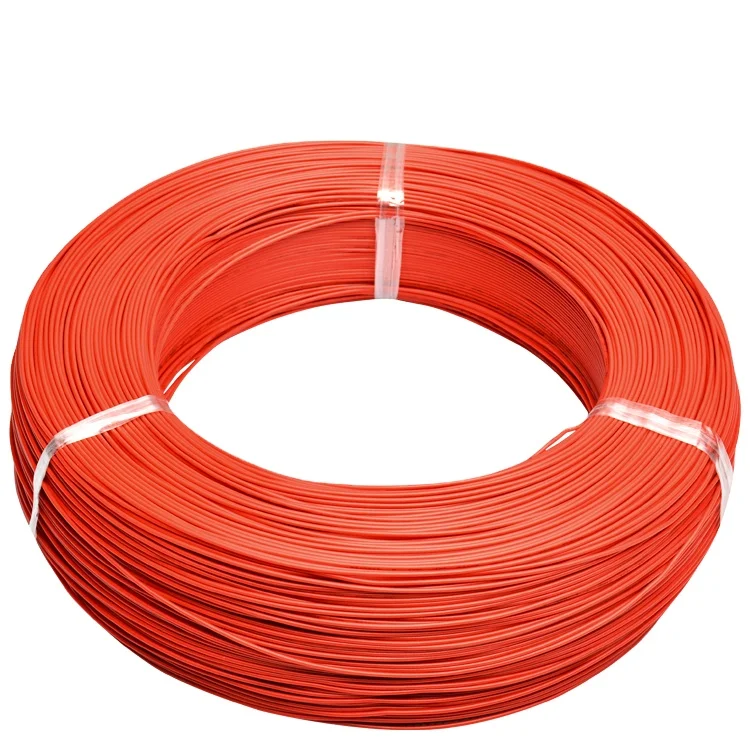

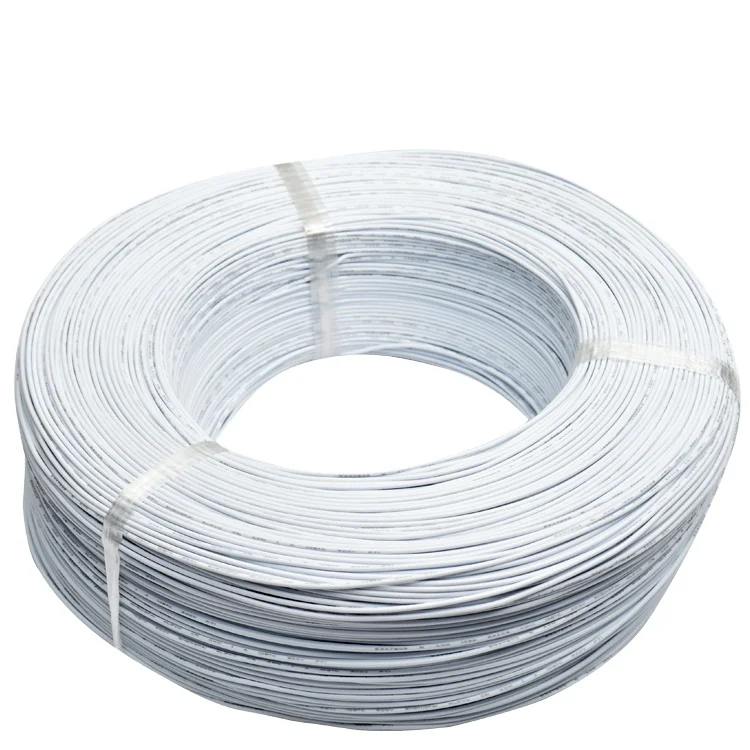

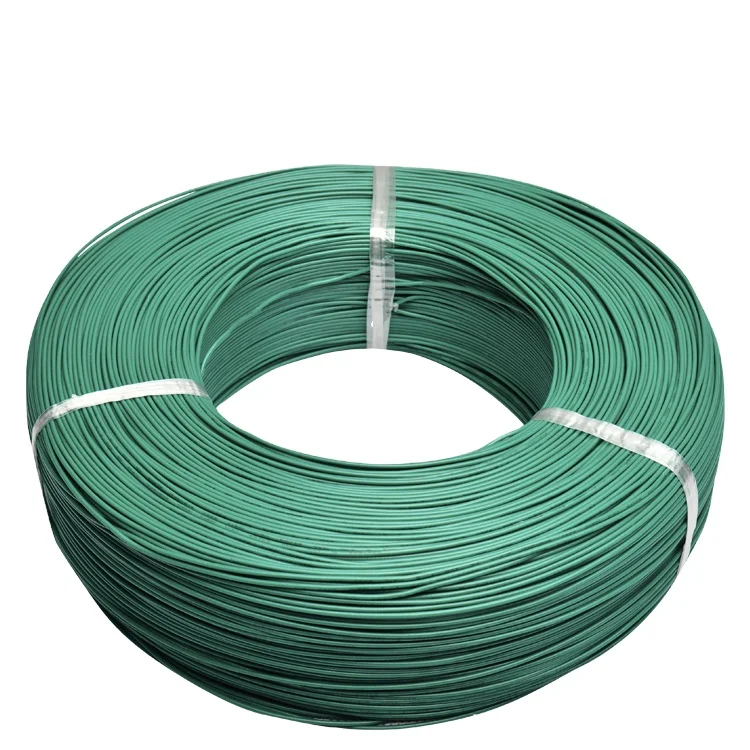

FREE SAMPLE Li12YC11Y(TP) 0.14MM 0.25MM PVC insulation multi core bare stranded copper electrical cable wire
- Category: >>>
- Supplier: Triumph Cable Co. Ltd.
Share on (1600699861698):
Product Overview
Description
Product Description
Product name | Li12YC11Y(TP) MULTI CORE WIRE CABLE |
Conductor material | BARE COPPER |
Insulation material | PVC insulation |
Color | CUSTOM COLOR |
Temperature range | 90ºC |
Rated voltage | 600V,1000V,2000V |
OEM | Acceptable |
Features | Must pass UL VW-1 and Ft1 vertical flame retardant tests, with uniform insulation thickness |
Uses | Outdoor photovoltaic installation Wire |
Advantage | Inventory spot, one roll up purchase |
Sample | Free sample |
Product Specification
Conductor | INSULATION | Approx Cable Weight (kg/km) | |
No. of Pairs & Nominal Cross Sectional Area (Sq. mm) | Approx. Cable Diameter (mm) | Approx. Copper Weight (kg/km | Approx Cable Weight (kg/km) |
| 2 x 2 x 0.14 | 5.4 | 14.3 | 38 |
| 3 x 2 x 0.14 | 5.5 | 17.3 | 43 |
| 4 x 2 x 0.14 | 6 | 21.5 | 52 |
| 6 x 2 x 0.14 | 6.9 | 29.2 | 68 |
| 8 x 2 x 0.14 | 7.6 | 36.2 | 82 |
| 10 x 2 x 0.14 | 8.2 | 43.3 | 97 |
| 12x 2 x 0.14 | 8.8 | 50 | 110 |
| 16x 2 x 0.14 | 9.8 | 63.9 | 138 |
| 20x 2 x 0.14 | 10.7 | 75.4 | 162 |
| 25x 2 x 0.14 | 11.7 | 92.1 | 195 |
| 2 x 2 x 0.25 | 6.6 | 22 | 55 |
| 3 x 2 x 0.25 | 6.7 | 26.8 | 64 |
| 4 x 2 x 0.25 | 7.4 | 33.5 | 78 |
| 6 x 2 x 0.25 | 8.6 | 45.6 | 104 |
| 8x 2 x 0.25 | 9.6 | 57.4 | 129 |
| 10 x 2 x 0.25 | 10.5 | 69.4 | 154 |
| 16 x 2 x 0.25 | 11.3 | 80.8 | 177 |
| 25 x 2 x 0.25 | 12.7 | 102.8 | 223 |
| 2 x 2 x 0.34 | 15.3 | 151.7 | 322 |
| 3 x 2 x 0.34 | 6.8 | 25.9 | 60 |
| 4 x 2 x 0.34 | 6.9 | 32.2 | 71 |
| 6 x 2 x 0.34 | 7.6 | 40.4 | 87 |
| 8 x 2 x 0.34 | 8.9 | 56.5 | 117 |
| 10 x 2 x 0.34 | 9.9 | 71.8 | 146 |
| 16 x 2 x 0.34 | 10.8 | 87 | 174 |
| 25 x 2 x 0.34 | 11.6 | 101.2 | 200 |
