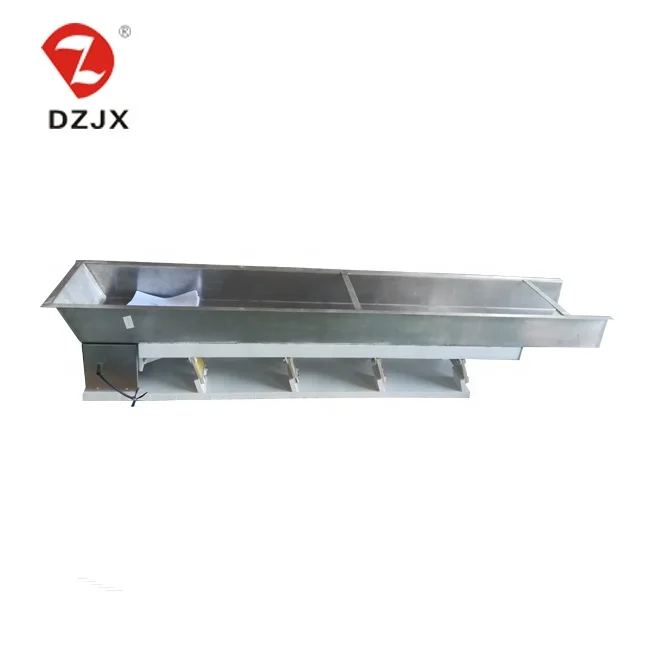

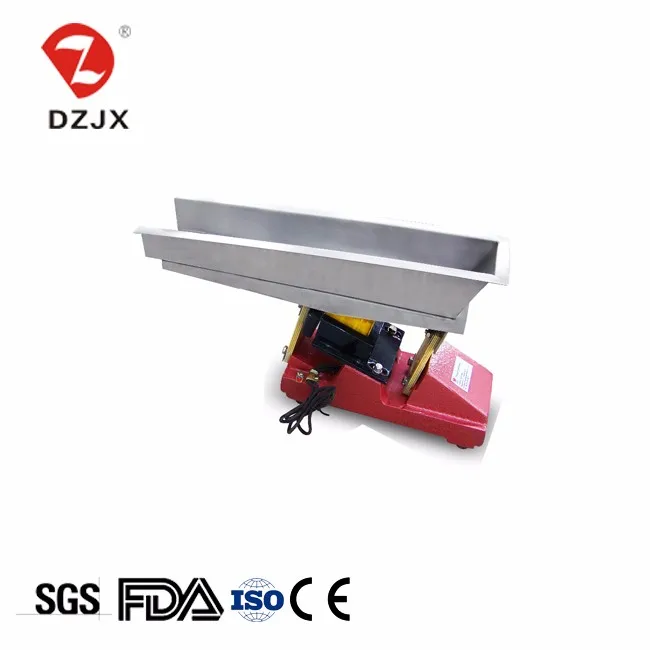

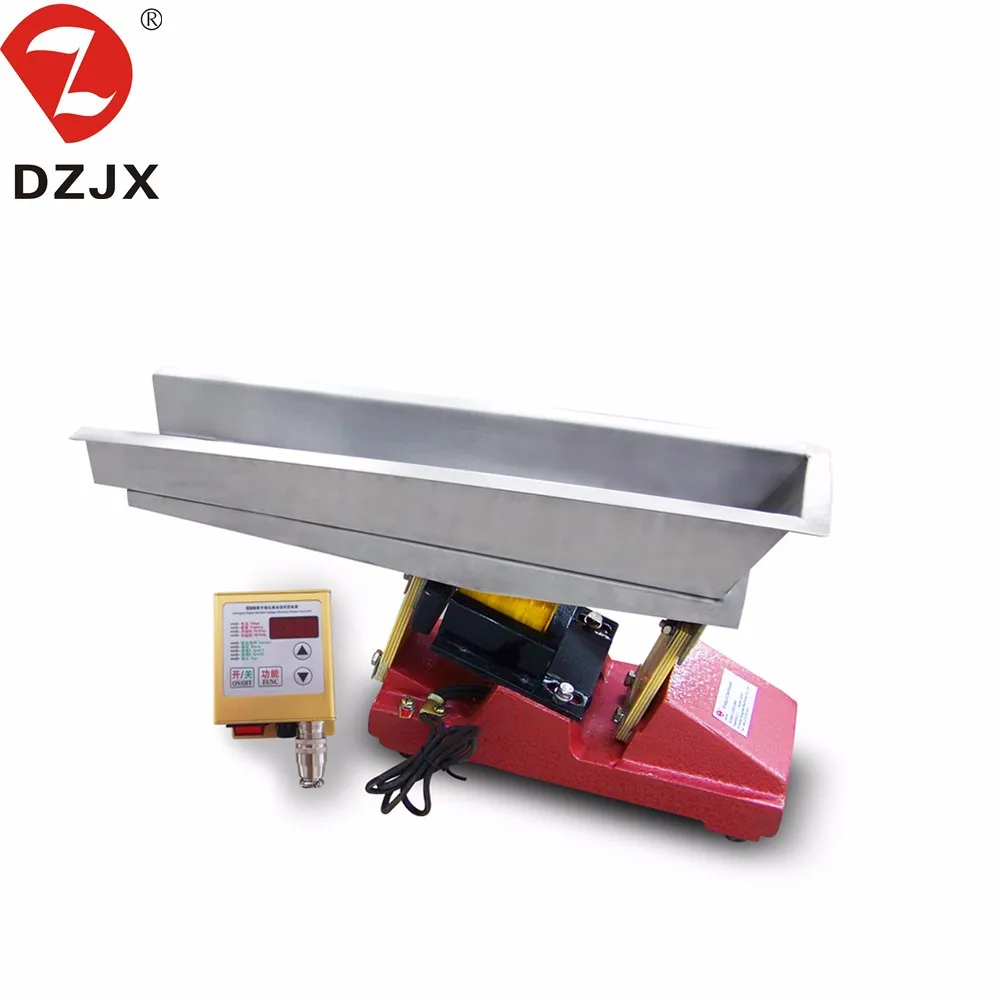

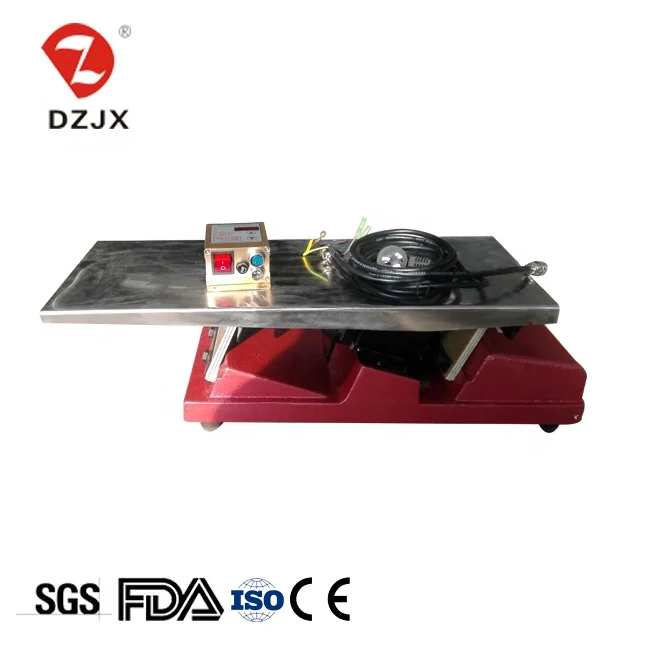

Factory Price Small Hopper Electromagnetic Vibrating Feeder Machine DZ China 0.1 6.0t/h CE ISO SGS 3000r/min Electric Provided
- Category: >>>
- Supplier: Xinxiang Dongzhen Machinery Co. Ltd.Xinxiang Ltd.
Share on (1600699865280):
Product Overview
Description
Product Description
Working Principle
GZV series vibratory feeder is composed of feeding groove, elastic system, armature, core, coil, stand and damping spring
The groove body and armature connected with the groove body constitute mass mt, and the machine base and the iron core and coil connected with it constitute mass m2. M1 and m2 are connected by a plate spring to form a double particle near-resonance system.
The electromagnetic coil is supplied by single-phase alternating current through SCR half-wave rectification, and the system vibrates under the action of electromagnetic force.
In the process of vibration, the feeder chute continuously throws the material forward to achieve the purpose of feeding
Technical Parameter
Model | GZV 1 | GZV 2 | GZV 3 | GZV 4 | GZV 5 | GZV 6 |
Capacity(t/h) | 0.1 | 0.5 | 1 | 2 | 4 | 6 |
Double Amplitud(mm) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
Frequency(r/m) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
Power(W) | 5 | 8 | 20 | 25 | 30 | 50 |
Weight(kg) | 4 | 7 | 12 | 18 | 27 | 45 |
Voltage(V) | 220V | 220V | 220V | 220V | 220V | 220V |
Application
Vibrating feeders are widely used in mining, building-
material, silicate and chemical industry in the crushing and
screening plants.In the Sand-Stone production line

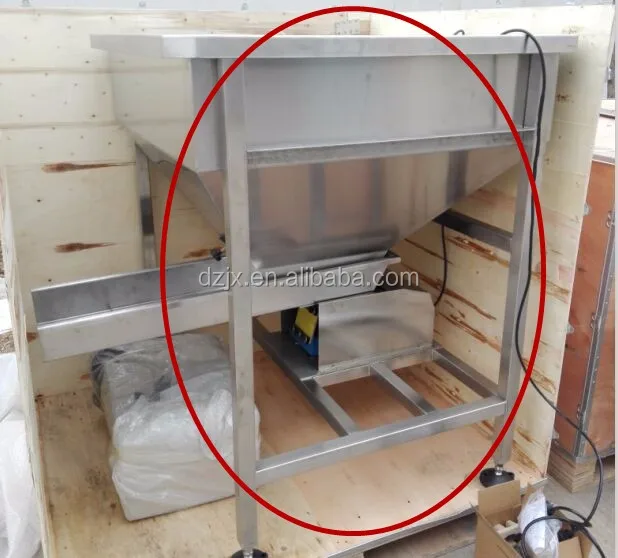

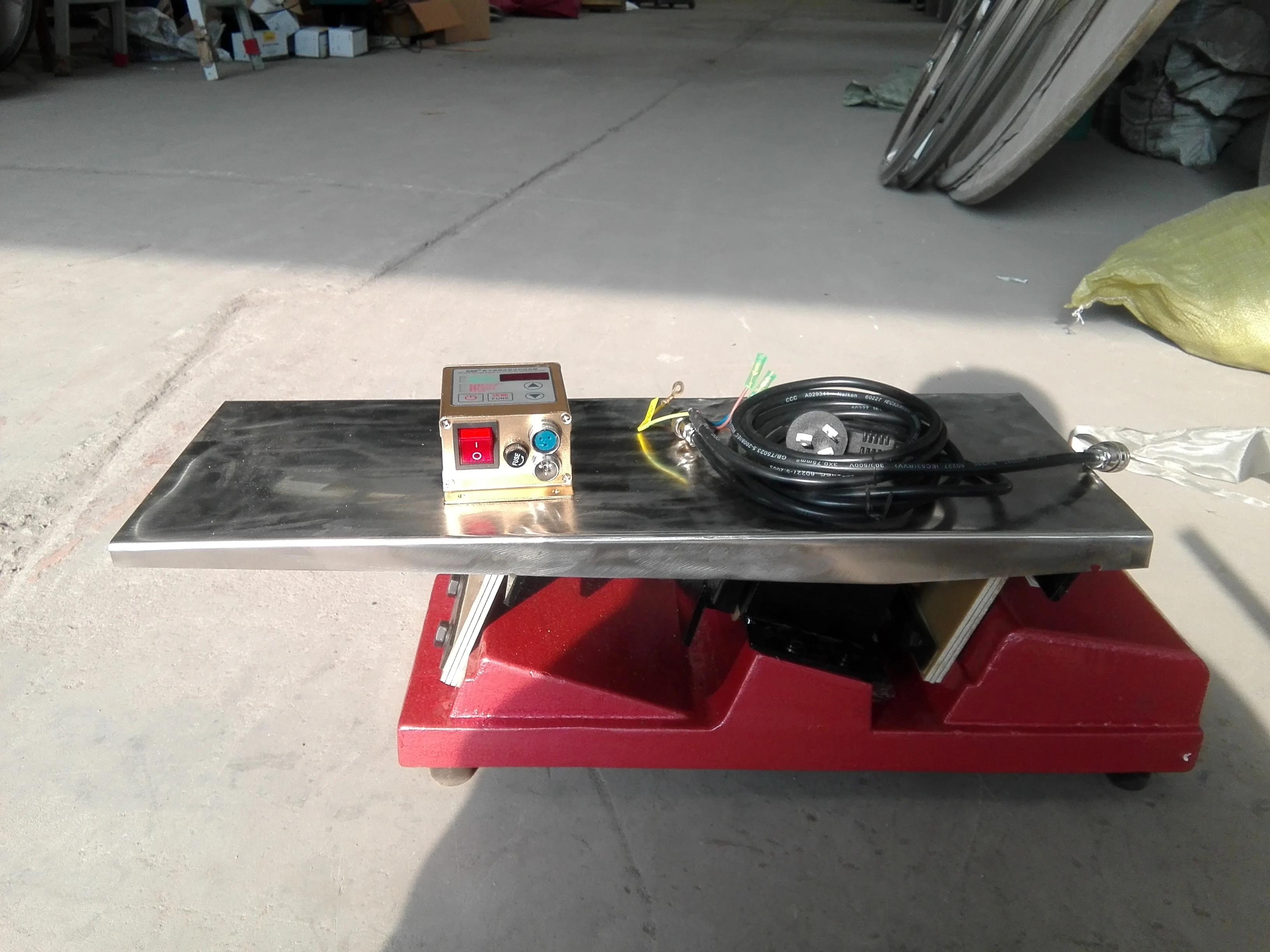

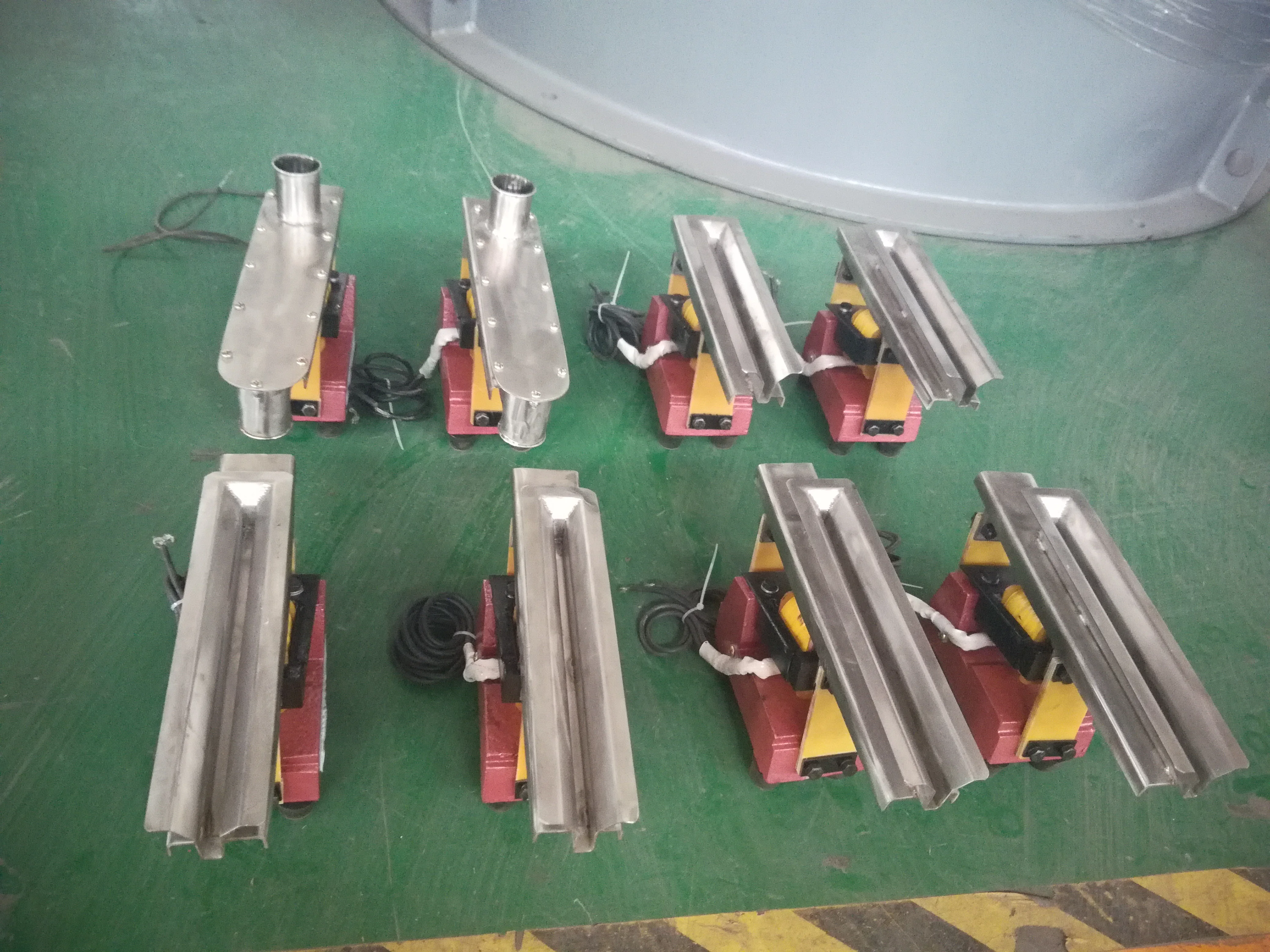

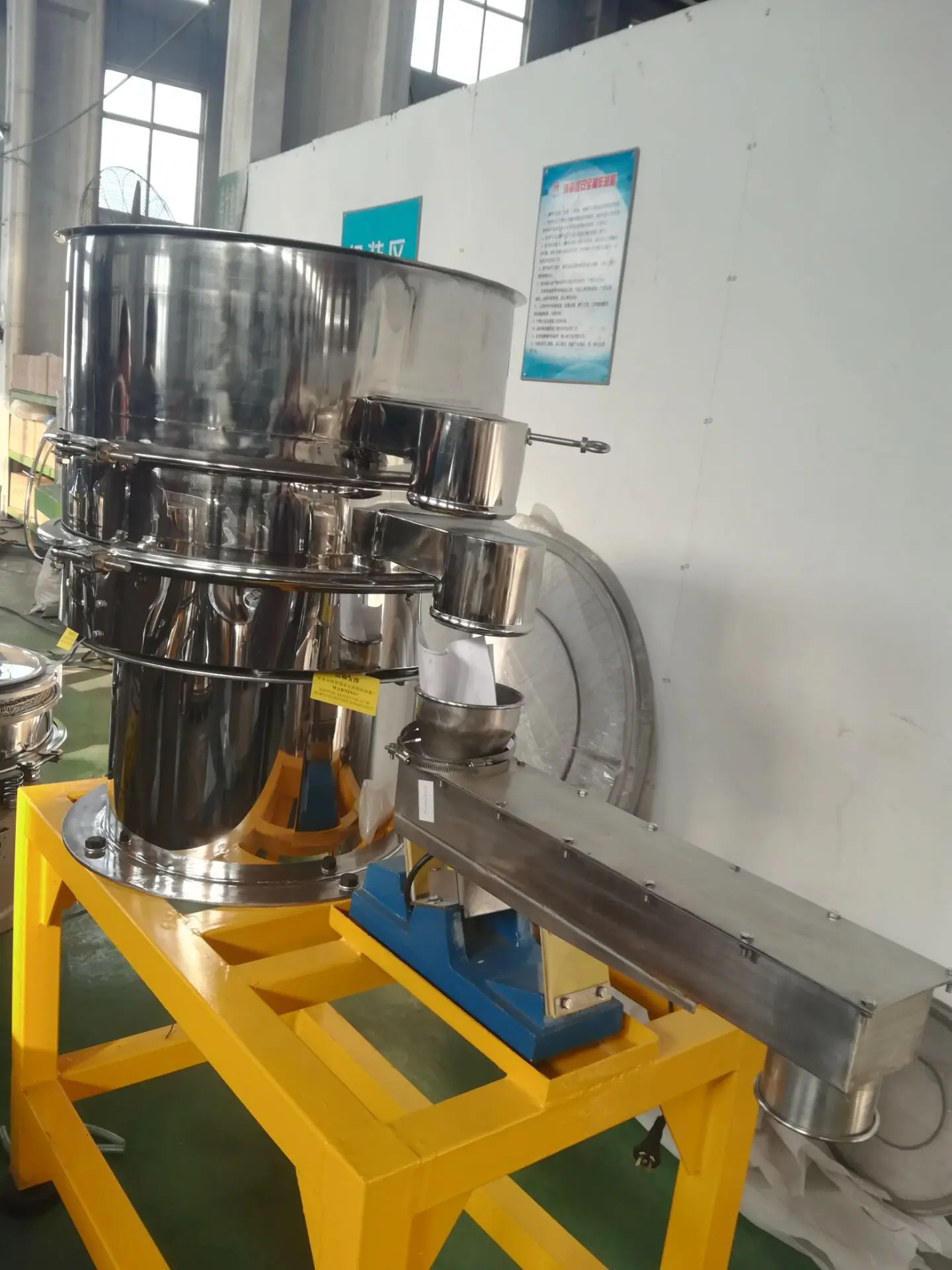

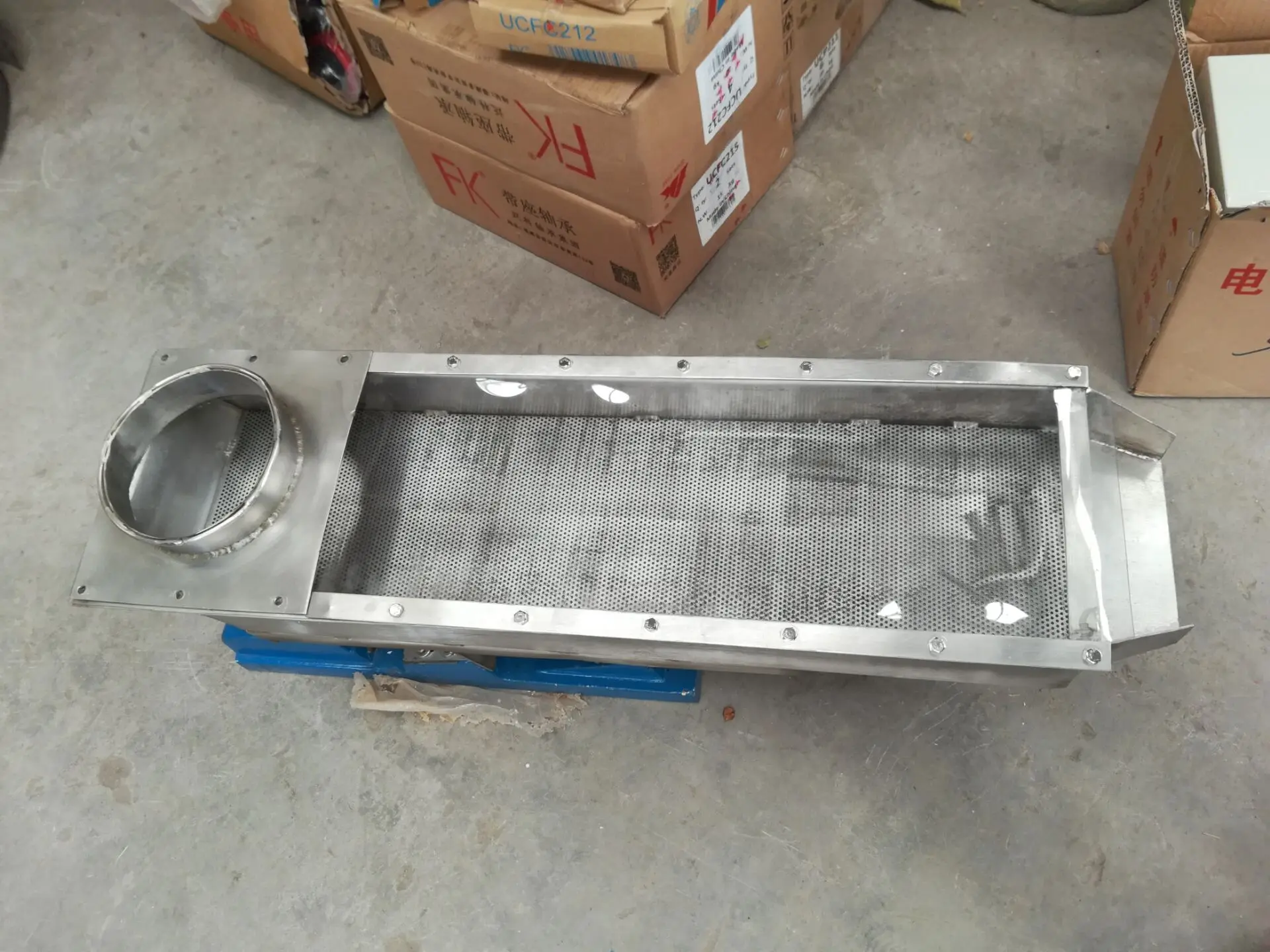

Detailed Images
Packing & Delivery
Our Service
1. Pre-sale service:
a. In order to let each customer know better about the performance and requirements, we provide these services
b. To send each potential customer the detailed production information and company profile
c. According the user's different needs, we work to recommend and guide for them
d. To help them select the appropriate equipment
2. Service during sale:
a. Do good communication with customers, so that each part can exchange the information.
b. Deliver on time as per the contract clause.
3. After-sale service:
a. To track the customer's feedback after receiving the equipment
b. Any product quality we receive, the technical personnel will guide to solve the problem
c. All the products have three guarantees
d. Provide technical exchanges
e. Do well about the work of maintenance and service
Our Company
Xinxiang Dongzhen Machinery Co., Ltd is a manufacturer of vibrating screens, centrifugal sifters, tumbler screens, gyratory screens with well-equipped testing equipment and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in mining, pharmacy, food, chemical, metal powder and other industries.
FAQ
Q:What factors I need to get a quotation?
A: Material bulk density, mesh size(length & angle for conveying series) & ideal capacity for proper type, granularity distribution is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry. With our experienced quality control team, we are trying to offer most of our customers the product with bset quality. However, we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.
Q: How do your after-sale service work if the product got damaged?
A: In the gurantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
Q: How could I trust your promise?
A: Firstly, you may check the assessment on our website certified by the appraisal agency Bureau Veritas;
secondly, we attend at least 4 to 6 international industry exhibitions held in China annually, like the Food Ingredients China, China International Battery Fair, CPhI, ICSE BioPh China, ICIF China, etc. We usually met our customers there for negotiation;Thirdly, company inspection always available, if you have any representative or you would like to come to our site, we offer free shuttle from Zhengzhou airport to our company, welcome your visit.
