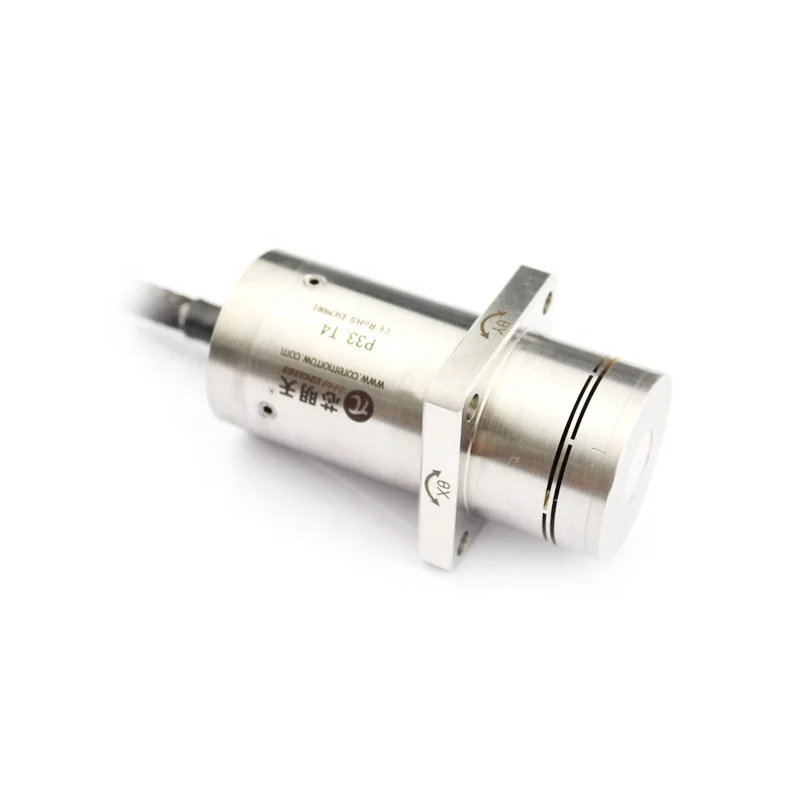

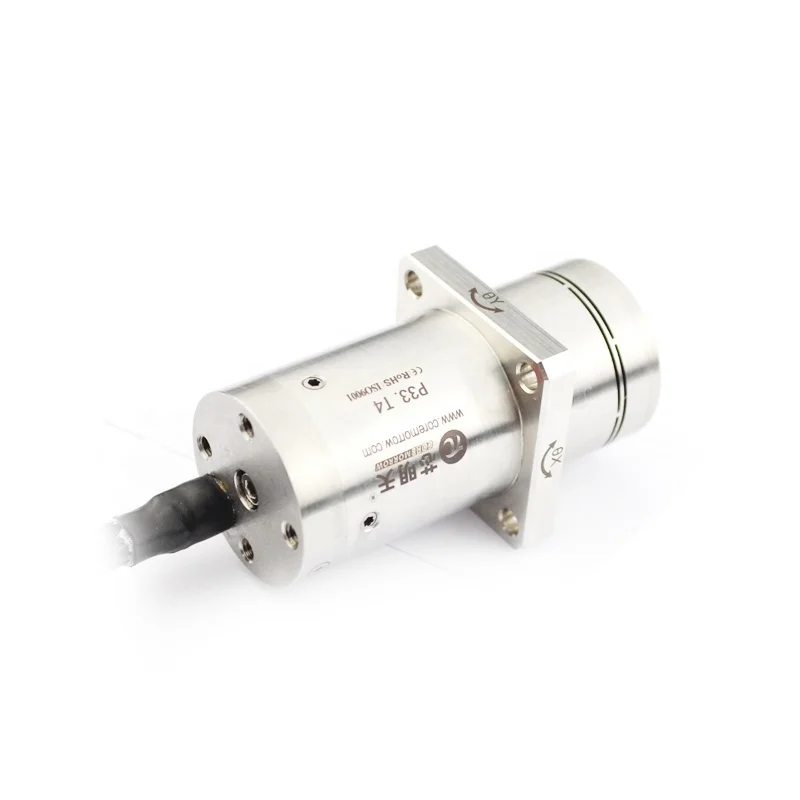

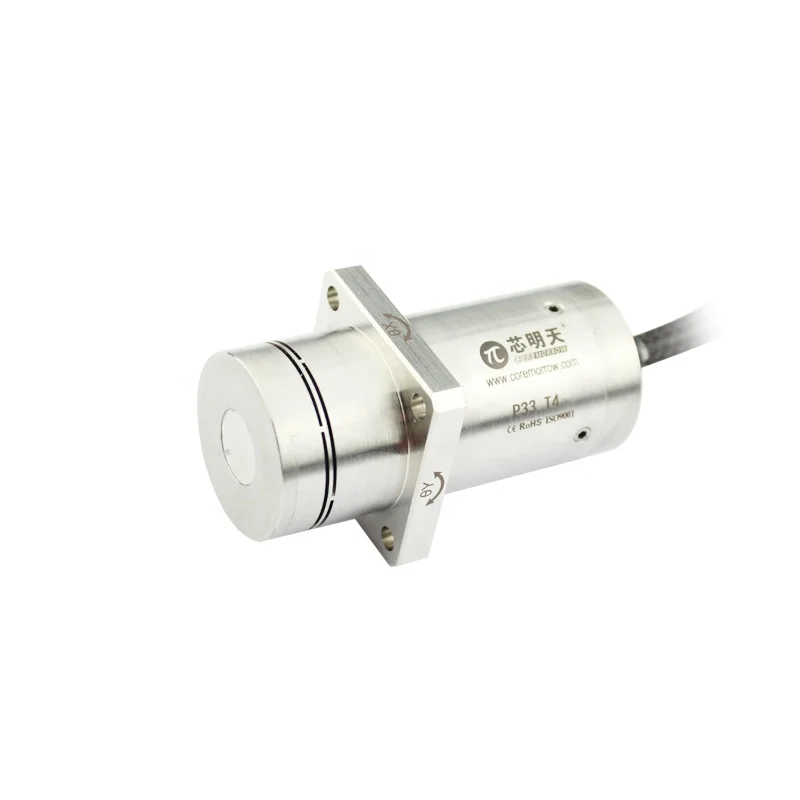

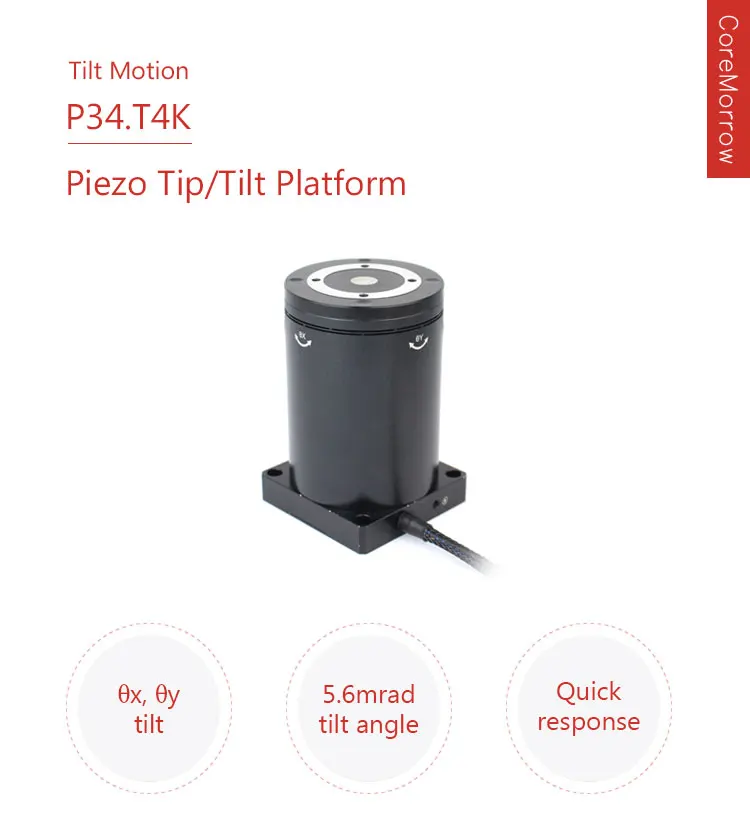

P34.T4K automatic industry piezo fast steering mirror for 3D form and surface analysis piezoelectric positioner tilt stage

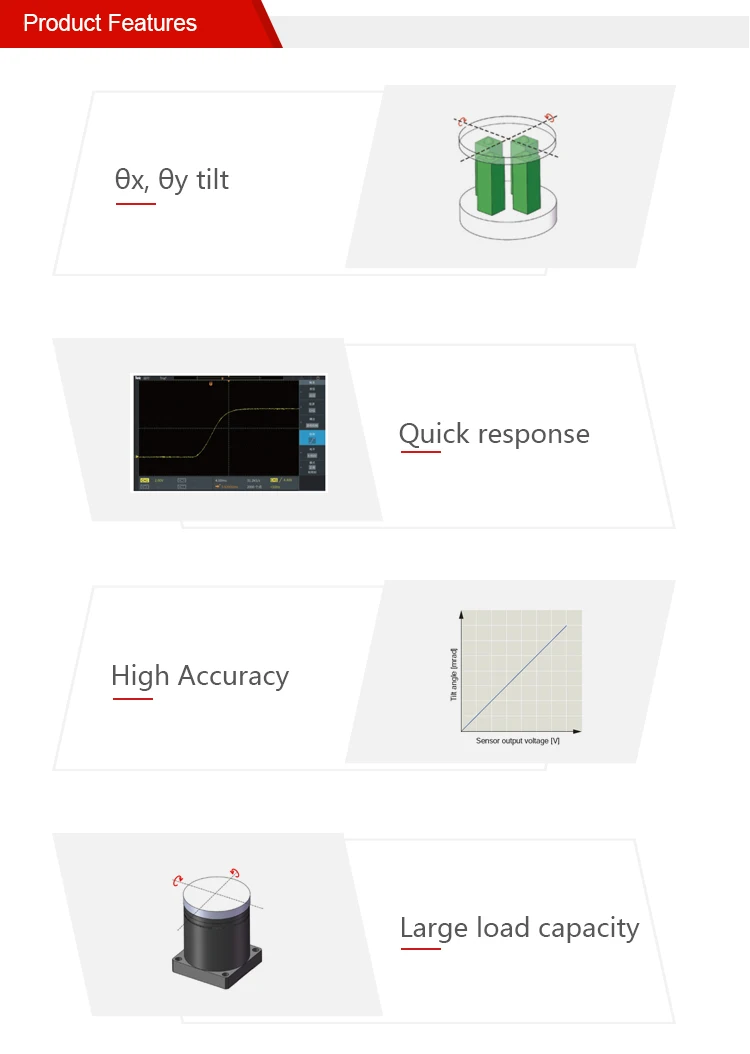

Product Overview

Description



Type	K - open loop	P34.T4K	Units
Active axes		θx, θy
Tilt angle		±2.5/axis(0~120V)	mrad±10%
Tilt angle		±3/axis(0~150V)	mrad±10%
Resolution		0.2( ≈ 0.04")	μrad
Unloaded resonant frequency		0.9	kHz±20%
Unloaded step time		4	ms±20%
El. capacitance		14.5/axis	μF±20%
Operating temperature[1]		-20~80	℃
Material		Steel

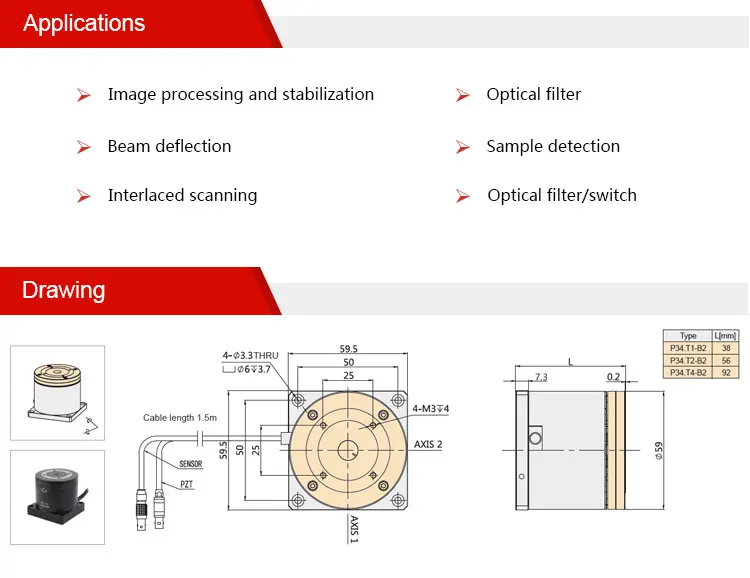

Platform Length L		92	mm
Mass		800	g±5%
Cable length[2]		1.5	m±10mm

 Note: Technical data are measured by CoreMorrow E00/E01 series piezo controller. Max driving voltage could be -20V~150V, 0~120V is recommended for long-term and high-reliable operation.Unless otherwise specified, the above parameters are measured at room temperature about 25°C.
[1] Custom ultralow temperature and ultrahigh vacuum versions are available.
[2] Custom cable length and connector is available.
Note: The parallelism of the moving platform is about 20μm, and the roughness is about 1.6 to 3.2. Please contact the sales engineer for confirmation before purchase.
