Complete Set of artificial intelligent system logic controller of water cooled 2 compressors water chiller is one stop solution
- Category: >>>
- Supplier: Shanghai Bowa International Trading Co. Ltd.
Share on (1600699963085):
Product Overview
Description
Product Overview
System logic controller of dual independent refrigerant circle water chiller with water cooled condenser
A refrigeration system and method of refrigeration employ dual refrigeration circuits. Each circuit has an independent compressor, condenser and evaporator. In one refrigeration circuit, the flow of the refrigerant from the condenser to the evaporator is regulated in response to variations in the heat load at the evaporator while, in the other refrigeration circuit, the refrigerant is passed from the condenser to the evaporator at a substantially constant rate of flow. The refrigeration system can be used as a cooling system, including an air conditioning system, and as a heat pump. The evaporator in both circuits may be incorporated within a common heat exchanger as may the two condensers. Additionally, the flow of the refrigerant from the condenser to the evaporator in one refrigeration circuit may be regulated in response to variations in the heat load in the evaporator in that refrigeration circuit by a thermal/electronic expansion valve.

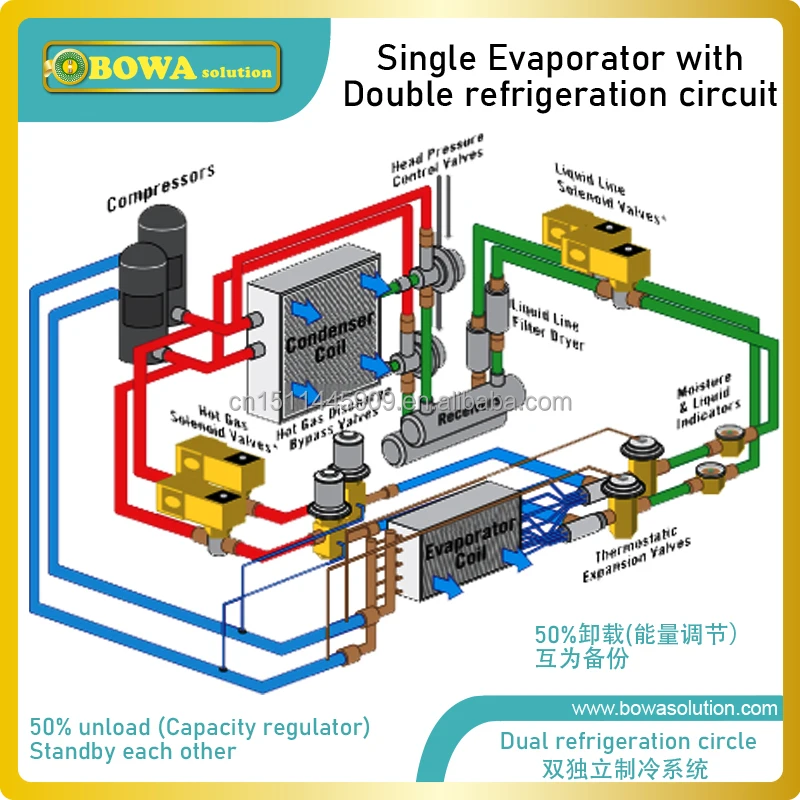

With larger systems, two independent refrigerant circuits are commonly used to follow the changes in cooling demand better and to increase system reliability. If one circuit malfunctions, the side remaining in operation may still provide sufficient cooling until help arrives. Dual evaporators running with both circuits active operates no differently from a high-efficiency single circuit evaporator with full contact between refrigerant and secondary fluid. Even if one refrigerant circuit is closed, i.e. half-load operation, all secondary fluid channels remain in contact with the active refrigerant channel. All the secondary fluid will still receive heat exchange, and the leaving water temperature will therefore be the same as for full-load operation provided the water flow is also halved. This allows the part-load evaporation temperature to remain at a high level, resulting in increased efficiency at part load. Because secondary fluid channels will surround the active refrigerant circuit, the evaporating process will also remain fully stable..
FEATURES AT A GLANCE
* Single cooling is available
* Single heating is available
* Cooling / Heating shift is available
* Universal controller for air source heat pump products with (single compressor)
* Advanced algorithms
* Perfect logic
* Easy operation and installation
* English interface and manual
* With main EEV stepper motor driver
* With EVI EEV stepper motor driver
* With liqiud injection switch on/off
* Phase protector integrated
* Current detector
* Complete protection for motors
* NTC sensors inputs
* Quick wiring
Dual independent refrigerant circles
screw compressor chiller
Dual compressor brine unit
PRODUCT SPECIFICATIONS
PRODUCT CONFIGURATION
EEV executor
Thermostatic balance
In geothermal heat pump
SIMILAR PRODUCTS
FAQ
Q1：Is it suitable for our system?
A1：Please consult our technican from BOWA SOLUTION
