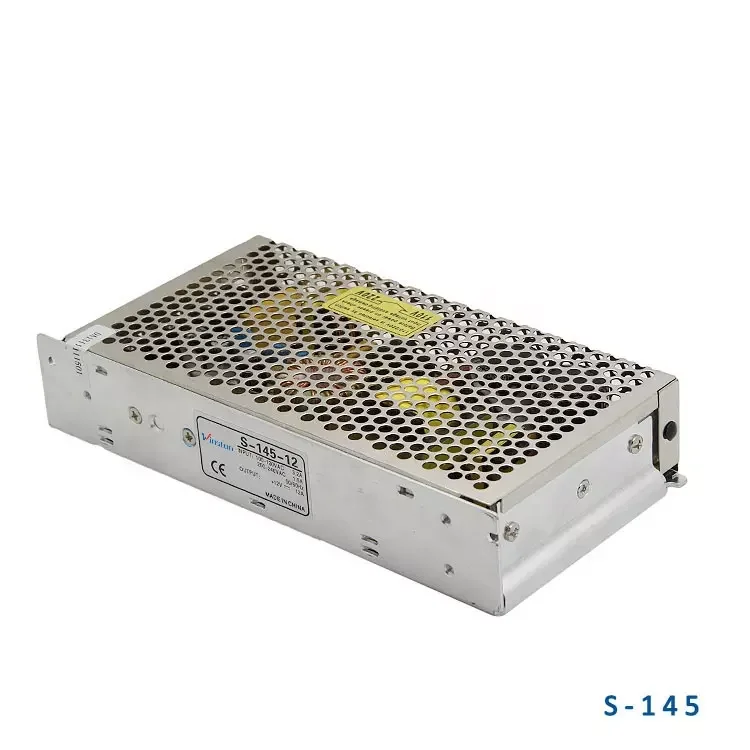

S 145 Smps 145W AC To DC 5V 12V 18V 24V 36V 48V Power Supply
- Category: >>>
- Supplier: Yueqing Winston Electric Co. Ltd.
Share on (1600699968014):
Product Overview
Description
S-145 Smps 145W AC To DC 5V 12V 18V 24V 36V 48V Power Supply
Application
Technical data
| Model | S-145-5 | S-145-12 | S-145-18 | S-145-24 | S-145-36 | S-145-48 |
| Specification | ||||||
| DC output voltage | 5V | 12V | 18V | 24V | 36V | 48V |
| DC output current | 0-25A | 0-12A | 0-8A | 0-6A | 0-4A | 0-3A |
| Wave and noise | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Inlet stability | ±0.5% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% |
| Load stablity | ±0.5% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% |
| Efficiency | 70% | 80.5% | 80.5% | 83.5% | 83.5% | 83.5% |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| AC input voltage range | 90-132VAC/180-264VAC by switch 254-370VDC 47~63Hz | |||||
| AC Impact current | Cold-start current 35A-115VAC 60A/230VAC | |||||
| Overload proctection | 105%-150% cut off the output, automatic recovery | |||||
| Over-voltage protection | 115%-150% shut down O/P voltage, re-power on to recover | |||||
| Setup rise hold up time | 100ms, 50ms, 20ms/230VAC at full load | |||||
| Withstand voltage | Input and output internal:1.5KVAC,Input and enclosure:1.5KVAC,Output and enclosure:0.5KVAC | |||||
| Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | |||||
| Working temperature and humidity | -10°C~+50°C(Refer to output derating curve),20%~90%RH | |||||
| Overall dimension | 199*98*38mm | |||||
| Weight | 0.7Kgs | |||||
