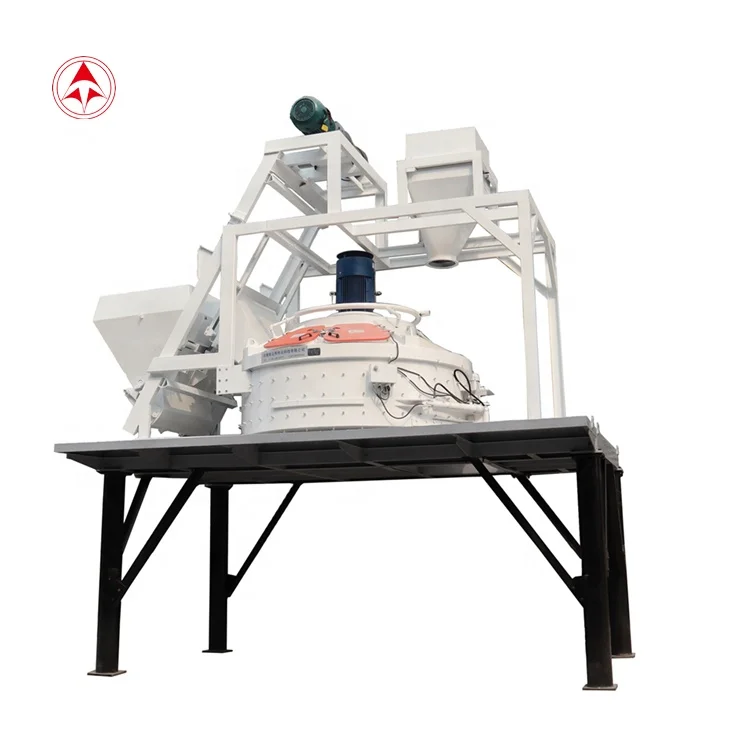

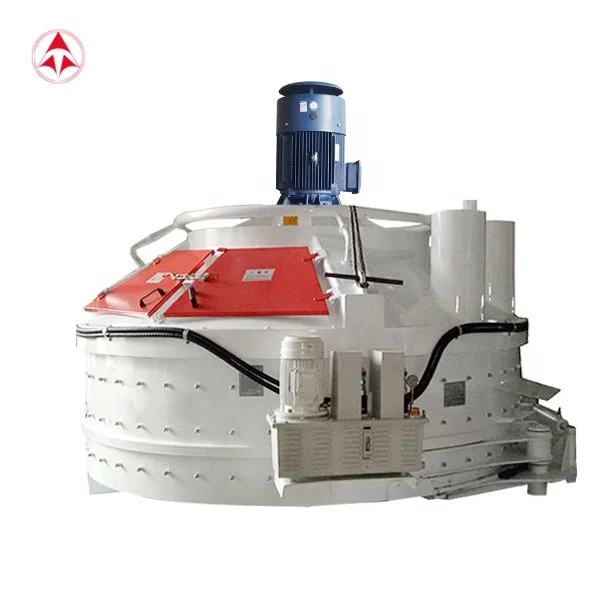

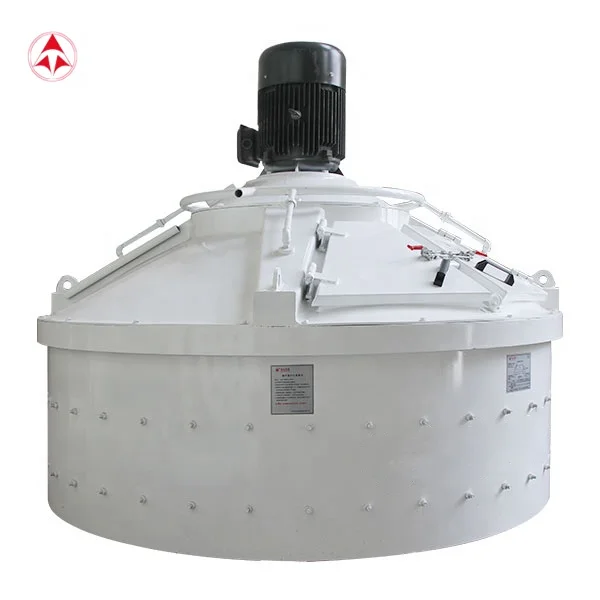

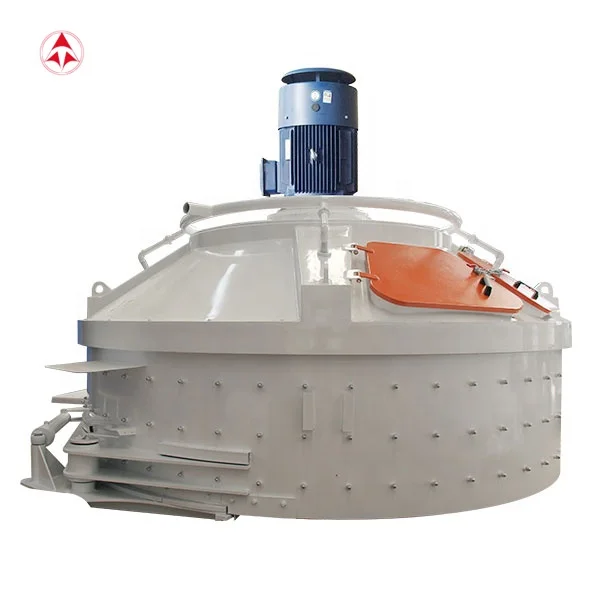

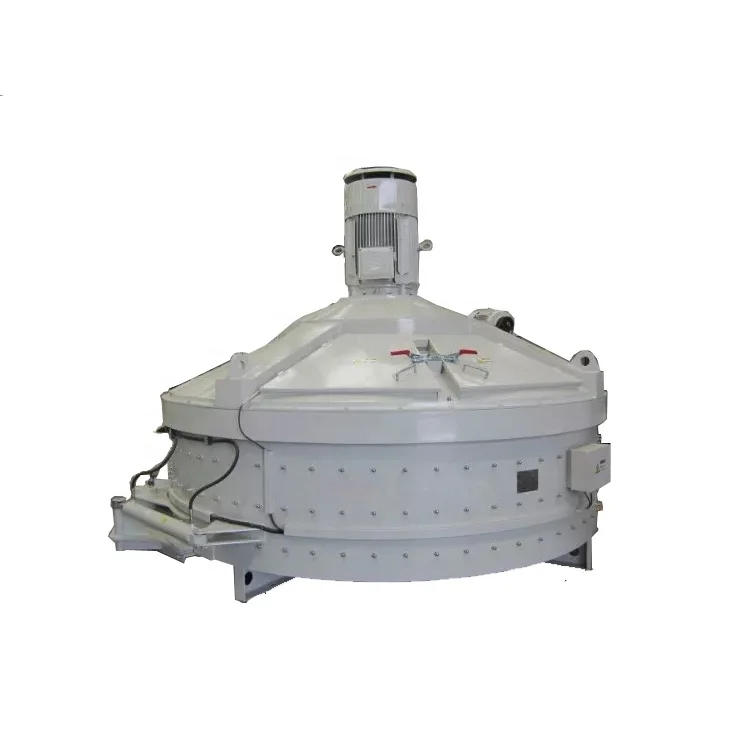

High efficient CMP 1500 planetary stirrer Economical Hydraulic Discharge 1.5 m3 Heavy Duty Vertical Shaft Precast Cement
- Category: >>>
- Supplier: Henan Zhongbangweiye Technologies Co. Ltd.
Share on (1600699991027):
Product Overview
Description
Product Overview
Economical Hydraulic Discharge 1.5m3 Heavy Duty Vertical Shaft Pan Precast Cement Concrete Mixer for Concrete Block Making Machine
CMP Series Planetary concrete Mixer has the advantages of smooth transmission, high mixing efficiency, high homogeneity (no dead Angle stirring), unique sealing environment without leakage of slurry and material, strong durability, easy internal cleaning and large maintenance space.The vertical shaft mixer is not only suitable for the mixing of ordinary commercial concrete and precast concrete, but also can be used for the mixing of glass, ceramics, refractories and other
products.And it has solved all kinds of high performance concrete mixing problems at present.
products.And it has solved all kinds of high performance concrete mixing problems at present.

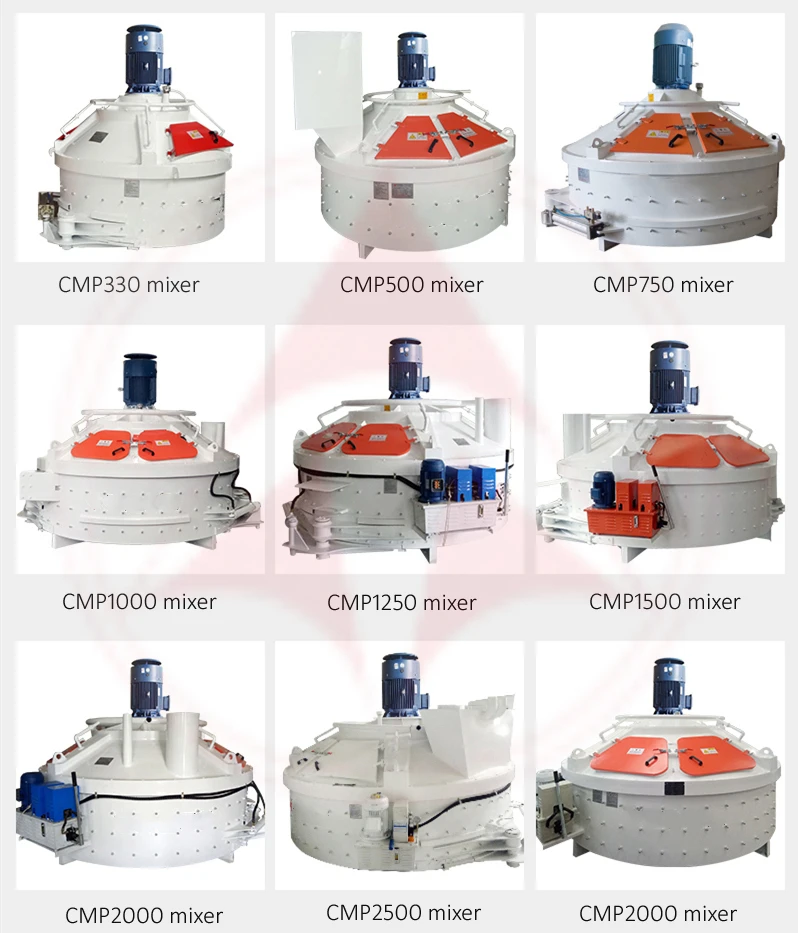

The model of vertical axis planetary mixer is CMP series, including CMP330, CMP500,CMP750, CMP1000, CMP1500, CMP2000, CMP3000 and other models.
Users can choose standard type and rapid mixing equipment according to the actual production needs.
Users can choose standard type and rapid mixing equipment according to the actual production needs.
FEATURES AT A GLANCE
Excellent quality and superior service
Refractory Mixer/Concrete Mixer/Wet mix mortar
Hydraulic discharging
Planetary trajectory stirring
PRODUCT CONFIGURATION
Vertical planetary
PLC control
Hydraulic system
CMP Series Planetary concrete Mixer Structure
Vertical planetary concrete mixer is mainly composed of transmission device, mixing device, discharging device, maintenance safety device,measuring device, cleaning device and so on.

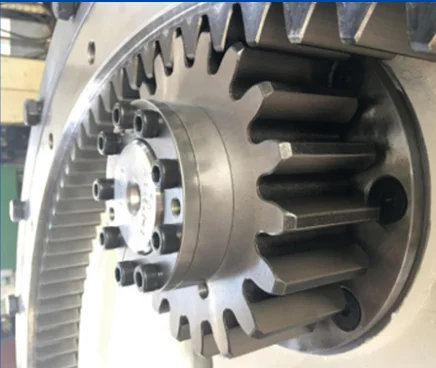

1.Actuating device.
The transmission device adopts the company's specially designed hard gear reducer to drive.An elastic coupling or hydraulic coupler is installed between the motor and the reducer.
The power generated by the reducer makes the stirring arm do both rotation and revolution,and makes the scraper arm do revolution.Thus, the stirring motion has both revolution and rotation, the stirring motion track is complex, the stirring motion is strong, high efficiency, and the stirring quality is uniform.

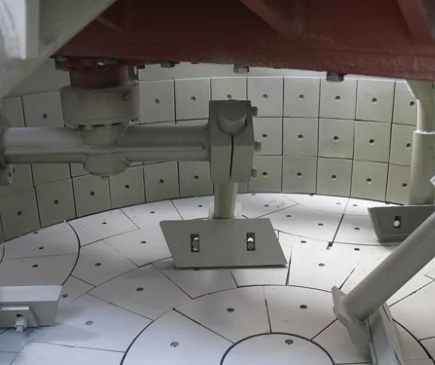

2.Stirring apparatus:.
For mixing different materials, lining board can choose cast iron, Sweden imported HARDOX wear-resistant plate and high wear-resistant surfacing materials.The high nickel alloy stirring blade is more resistant to wear and tear, and the polyurethane blade is optional.
3.Sprinkler head device:.
According to years of industry experience accumulation, the water system of mixer adopts spiral spray nozzle, which can spray a
large area, effectively prevent the material from blocking the nozzle, and make the material mix more evenly.
large area, effectively prevent the material from blocking the nozzle, and make the material mix more evenly.

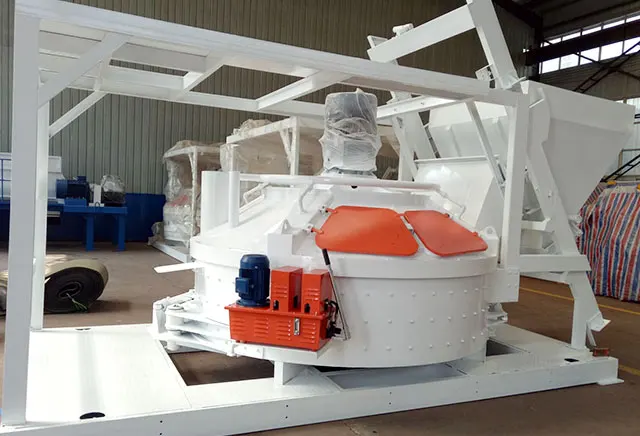

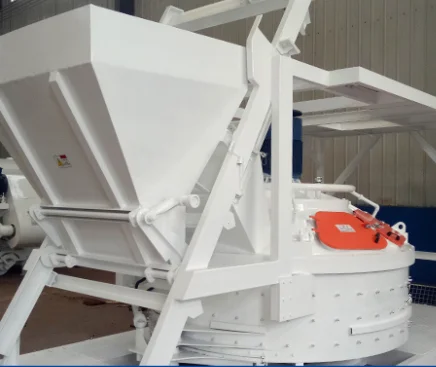

4.Lifting hopper.
Optional aggregate lifting hopper, unloading door automatically open the feed door on the
mixer during unloading. When the hopper falls, the feed door is automatically closed to prevent dust spillover during mixing, to achieve environmental protection. Measure powder, aggregate and water according to requirements.
mixer during unloading. When the hopper falls, the feed door is automatically closed to prevent dust spillover during mixing, to achieve environmental protection. Measure powder, aggregate and water according to requirements.

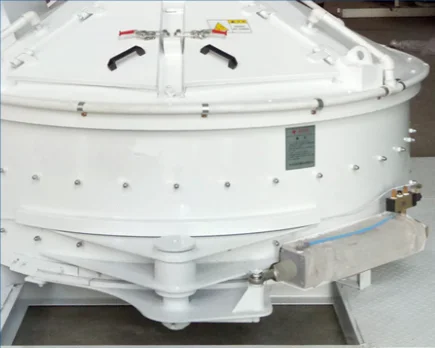

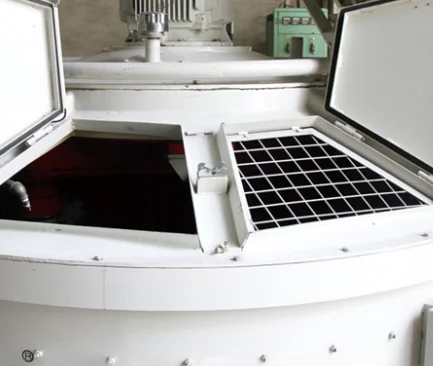

5.Facilities for inspection:
Large size access door is easy maintenance and cleaning.The safety control device of key ensures that the motor cannot operate even if the power switch is switched when the access door is opened.The hydraulic discharging system is equipped with a manual opening device, which can be opened manually in the case of power failure.
6.Safety device:
The unloading door is equipped with a limit switch, which can conveniently set the size of the door according to the need.Up to three
discharge doors can be opened.
discharge doors can be opened.
Main advantages of vertical planetary mixer:
1.Specially designed stirring device makes the stirring speed more faster and more even.
2.Mixing blade is more wear-resistant;Elastic coupling and hydraulic coupler (optional item) can effectively protect the
transmission system from impacting of overload.
3.Specially developed gearbox can effectively distribute the power balance to various mixing devices to ensure the low noise operation of the mixer, even under harsh production conditions.
4.Large size access door for easy access and cleaning.
5.High pressure cleaning device and moisture content tester are available.
2.Mixing blade is more wear-resistant;Elastic coupling and hydraulic coupler (optional item) can effectively protect the
transmission system from impacting of overload.
3.Specially developed gearbox can effectively distribute the power balance to various mixing devices to ensure the low noise operation of the mixer, even under harsh production conditions.
4.Large size access door for easy access and cleaning.
5.High pressure cleaning device and moisture content tester are available.
Main types of materials for blade and liner of vertical shaft planetary mixer:
(1) wear resistant alloy inserts
(2) surfacing welding materials
(3) high chromium alloy
(4) stainless steel
(5) ceramic materials
(6) polyurethane material
High wear resistant rubber and cast stone material.
(2) surfacing welding materials
(3) high chromium alloy
(4) stainless steel
(5) ceramic materials
(6) polyurethane material
High wear resistant rubber and cast stone material.

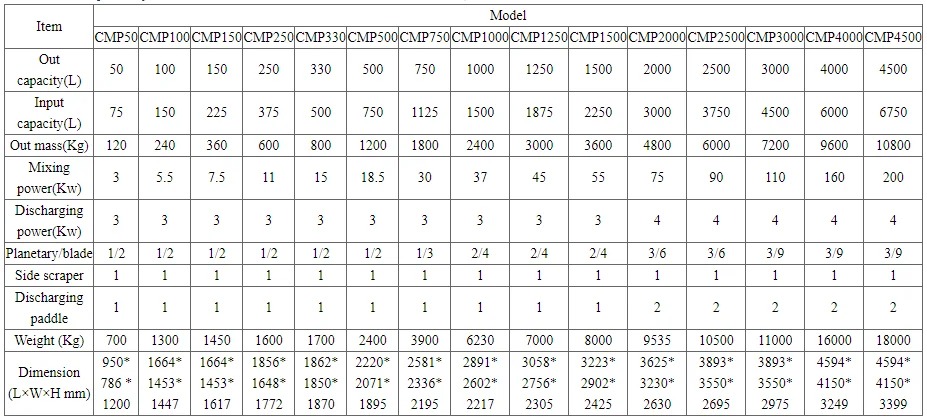

The Parameter of CMP Series Planetary Concrete
All kinds of models show .
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

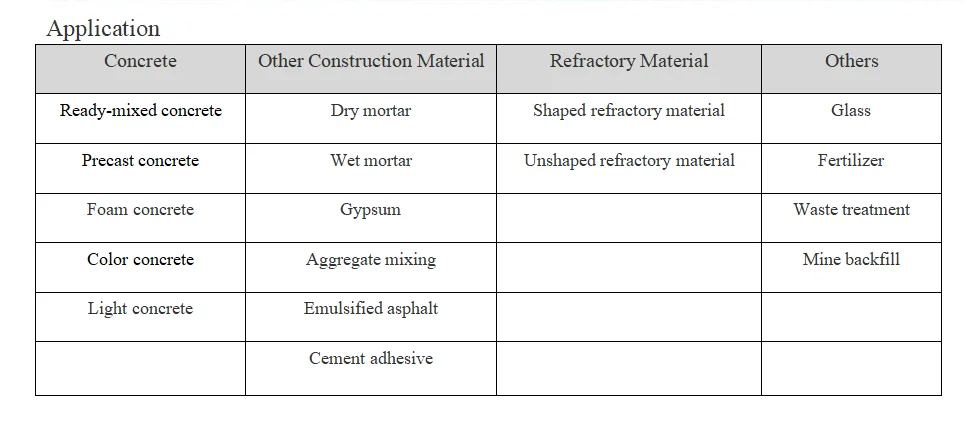

The usage of mixer.

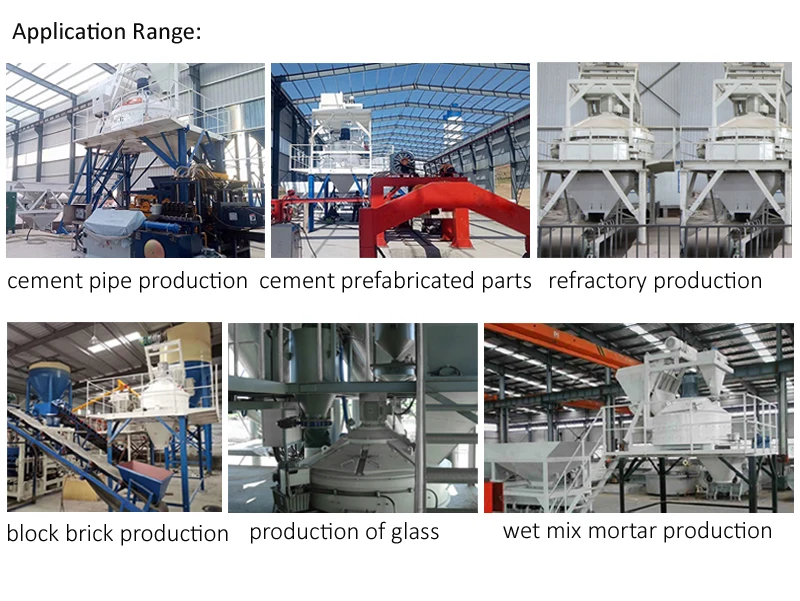

The vertical planetary mixers are suitable for all kinds of large and medium-sized building construction, hydroelectric, highway,port, bridge, airport, large. It’s the ideal equipment of medium-sized prefabricated components factory and commercial concrete production plant .
This series of products can be used as concrete mixing station with different types of PL series batching machines, and can also be used as the main machine of wet mortar mixing station and PC mixing station.
It can mix all kinds of high quality dry rigid concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and various mortar.Which is suitable for all kinds of construction engineering , cement products manufacturers and PC prefabricated components factory.
This series of products can be used as concrete mixing station with different types of PL series batching machines, and can also be used as the main machine of wet mortar mixing station and PC mixing station.
It can mix all kinds of high quality dry rigid concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and various mortar.Which is suitable for all kinds of construction engineering , cement products manufacturers and PC prefabricated components factory.
Successful Project
Project in Thailand
Project in India
Project in Russia

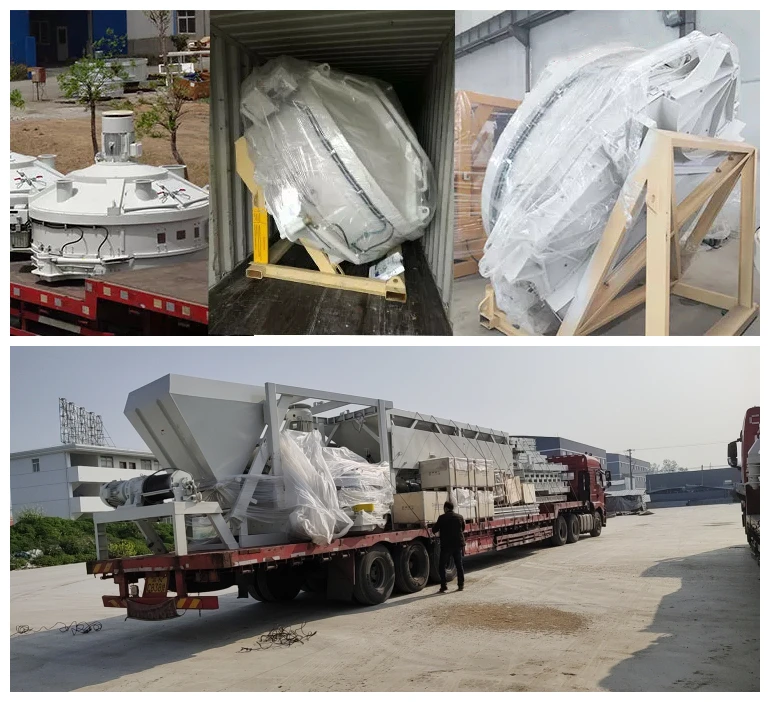

SHIPPING AND PACKING
shipping site
1. Less than 330L planetary concrete mixer, adopting standard export plywood packaging.
2. More than 330L planetary concrete mixer, will use naked packaging.
2. More than 330L planetary concrete mixer, will use naked packaging.
CERTIFICATION AND PATENT

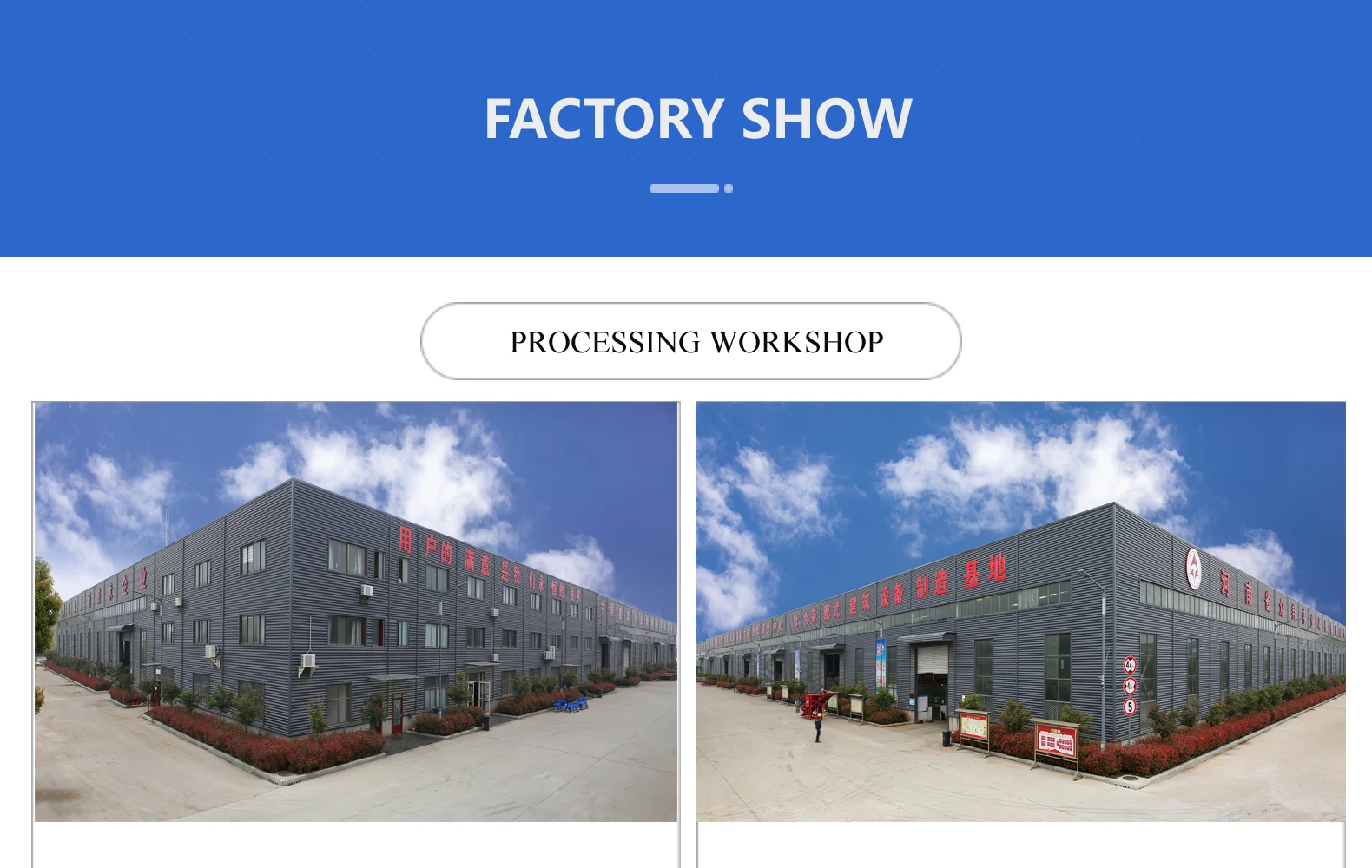

Company Introduction
Henan Zhongbangweiye Technologies Co., Ltd （Original Luohe Zhongbangweiye Machinery manufacturing Co.,Ltd）was established in 2004.The company is located in the industrial district of Linying County, Henan Province,China. It’s a production of construction machinery, building materials machinery, set research and development, production, sales as one of the modern enterprises.
The main products JQT series of lightweight partition wall panel extrusion machine and automatic JQTd light wall panel production lines, LMJ the model wall panel production line and mixing station, which are exported
to the Middle East, Southeast Asia and other foreign market. It has made outstanding contributions to the construction of national urbanization and the promotion of new wall materials, and has won higher economic and social benefits for customers. The company also enjoys a high reputation in the same industry.
to the Middle East, Southeast Asia and other foreign market. It has made outstanding contributions to the construction of national urbanization and the promotion of new wall materials, and has won higher economic and social benefits for customers. The company also enjoys a high reputation in the same industry.
FAQ
In order to confirm which type planetary concrete mixer suitable for your job, could you please help us to confirm the following information:
1. What is your project with the mixer, for mixing concrete or refractory?
2. What is the mixing capacity you require?
3. Do you need pneumatic discharge door or hydraulic discharge door?
4. What is the voltage you require?
3. Do you need pneumatic discharge door or hydraulic discharge door?
4. What is the voltage you require?
