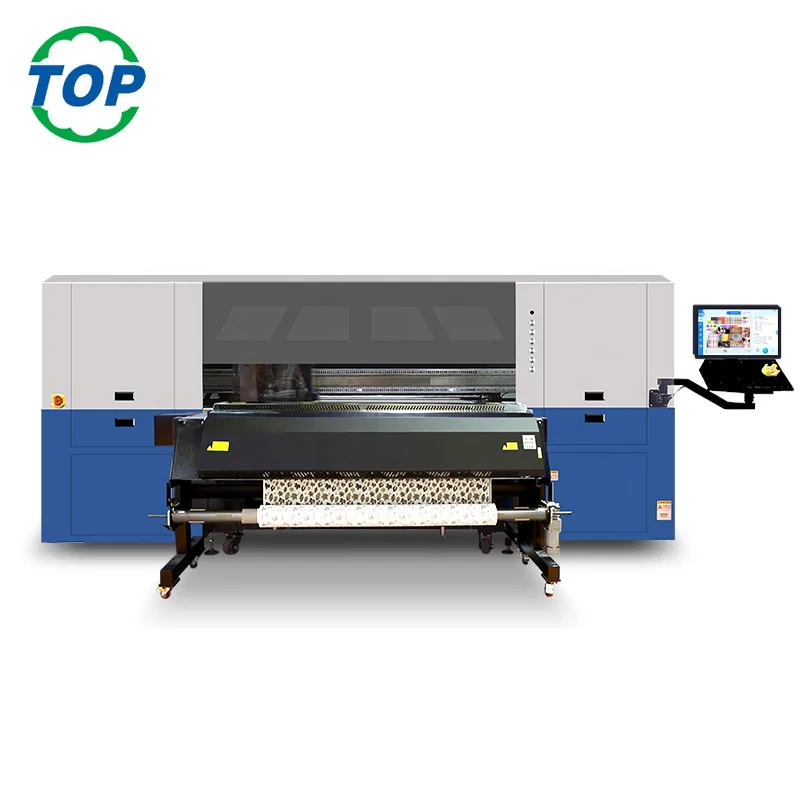

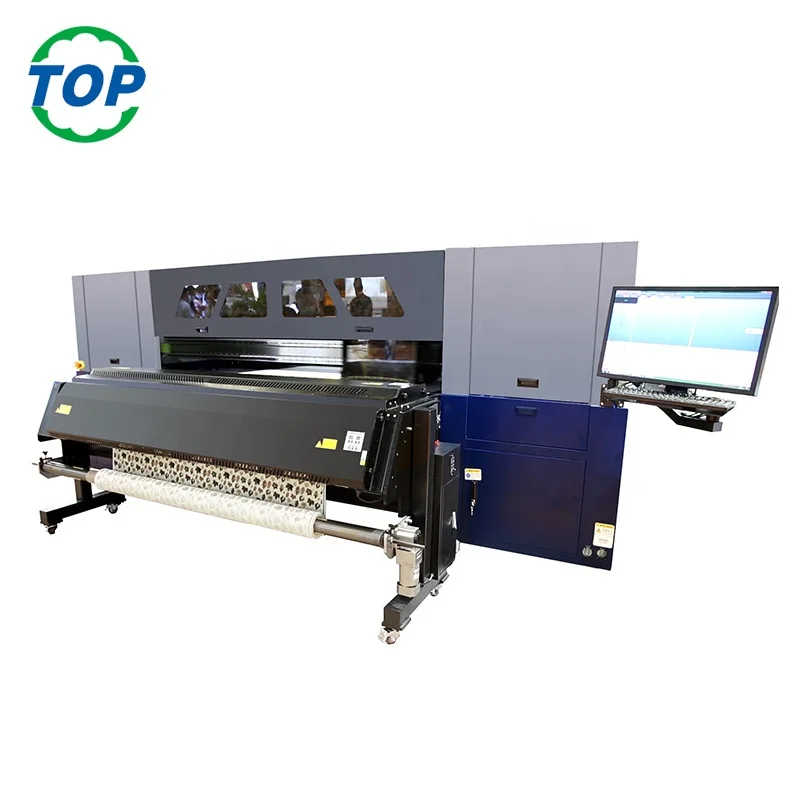

8 heads Roll to Roll Cotton Fabric Direct pigment Printing Garment digital Textile Belt printing machine

Models

           CD1800

 Print head

Epson i3200

 Number of print heads

8&16pcs heads

  Media

Width

1850mm

Thickness

Maxiumum 3.00mm

Roll outer Diameter

Maximum210mm(12inch),76.2mm(3inch),

50.8(2inch)

Roll weight

Maximum 40kg

Media take-up system

Moment and constant tension take-up adjustable tension split wire feeding

Types

Cotton, linen, silk and other materials

Printing width

1800mm

  Printing Resolution(dots per inch)

720*2400dpi

   Inks

Types

Reactive/acid/dispersion/paint ink

Ink Capacity

3.5L

Ink curing unit

Integrated Tri-Heating System Extend

Infrated heating and cooling system

Interface

High speed USB3.0/Lan port

Power-saving feature

Automatic sleep feature

Voltage and frequency

Required power capacity

AC220V+-10% 50/60 Hz

Maximum35A(Printer 15A,Heater 25A)

Rip software

Neostampa/MT/PP

Environment

Room temperature 23-28degree

Humidity:60%-80%(non-condensing)

Printer Dimensions

Machine(L*W*H)3750x1050mmx1670mm

Package(L*W*H)3950x1250x1880mm

Printing Modes

Printing Speed

360*1200dpi(2pass)

150sqm/hour

720*1200dpi(4pass)

86sq m/hour

720*1800dpi(6pass)

58sq m/hour

720*2400dpi(8pass

45sq m/hour

Print Links System Requirements

Operating system

CPU

RAM

Video card and monitor

Free hard-disk space

Hard-disk file system

Optical drive

Other requirements

Windows7/10(64bit)

8gb or more recommended

A resolution of 1280x1024 or more recommended

80gb or more recommended

NTFS Format

DVD-ROM drive

Ethernet or USB port

Internet connection and web browser to software Registration

Please note: Considering that you will be using software such as Illustrator

We recommend that you use as high performance computer as possible to reduce Rip processing time.

We also recommend using a hard disk that has large enough capacity,

As print files are often tens of GB in size (or larger) when data is high resolution.
