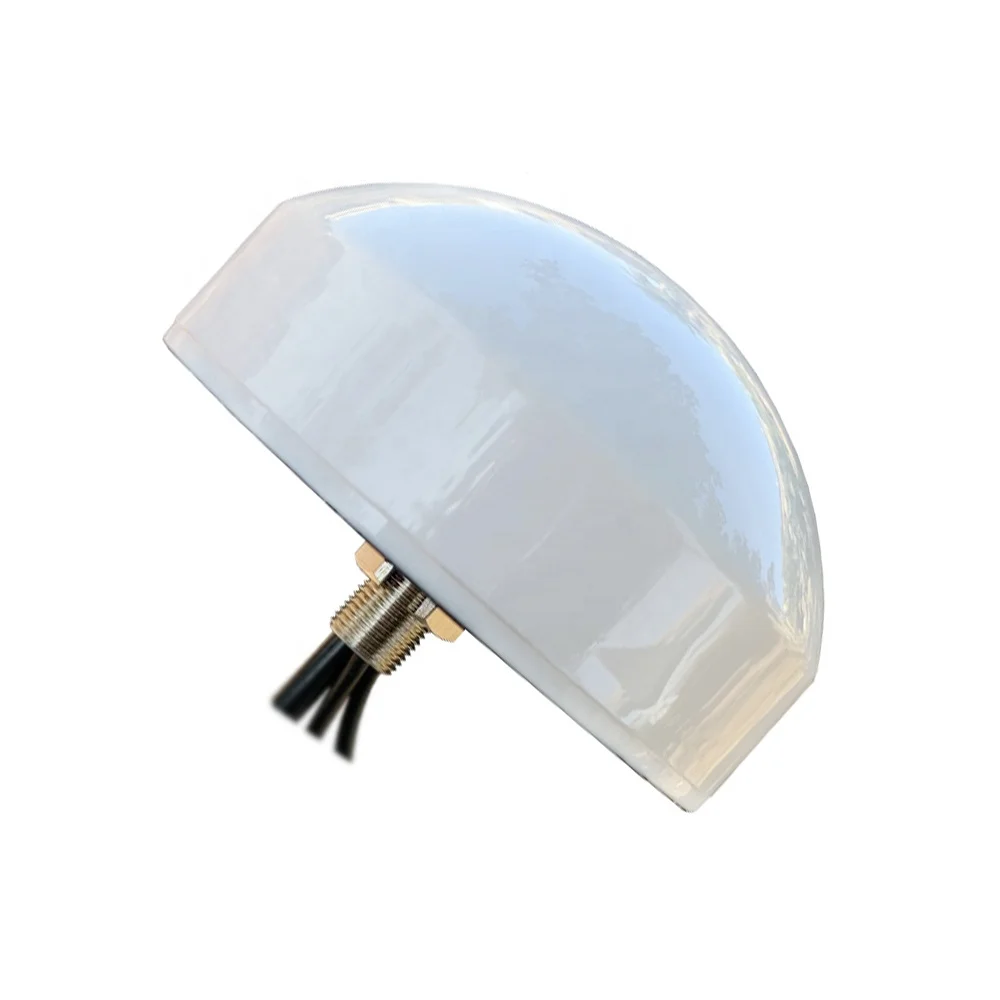

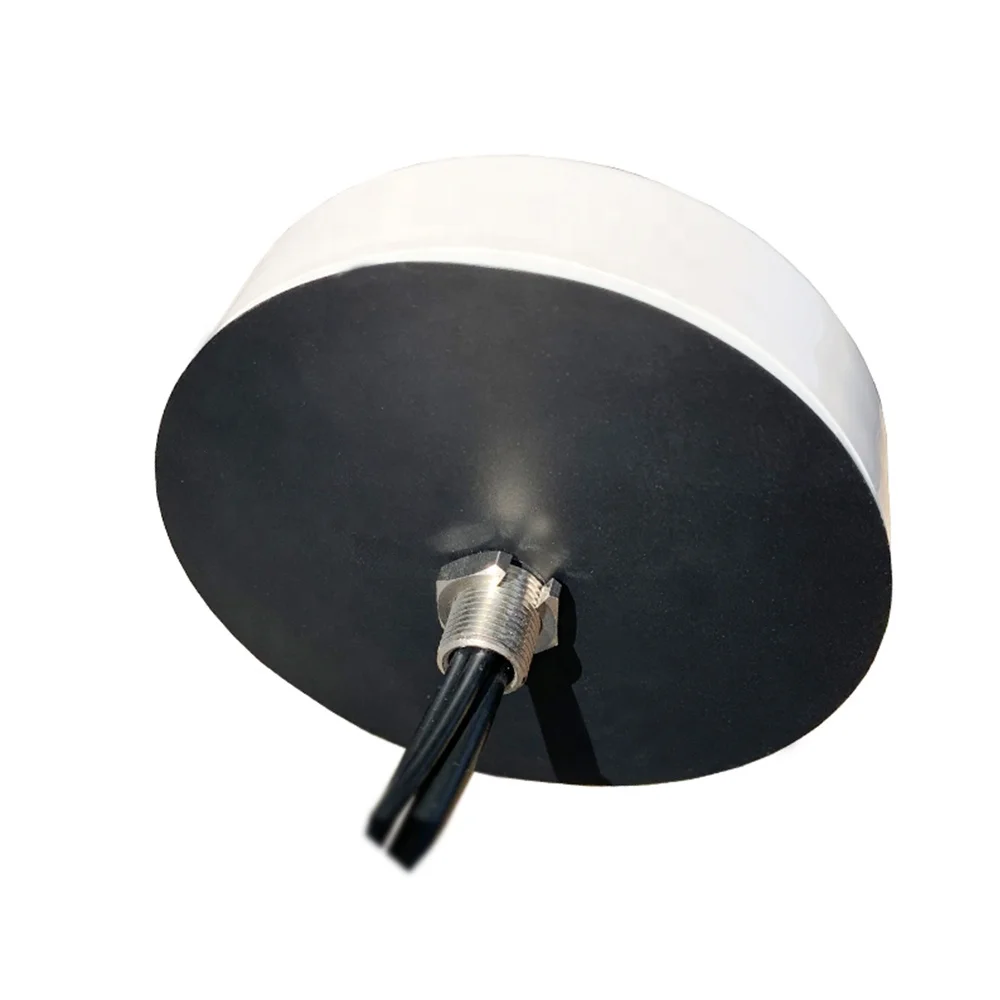

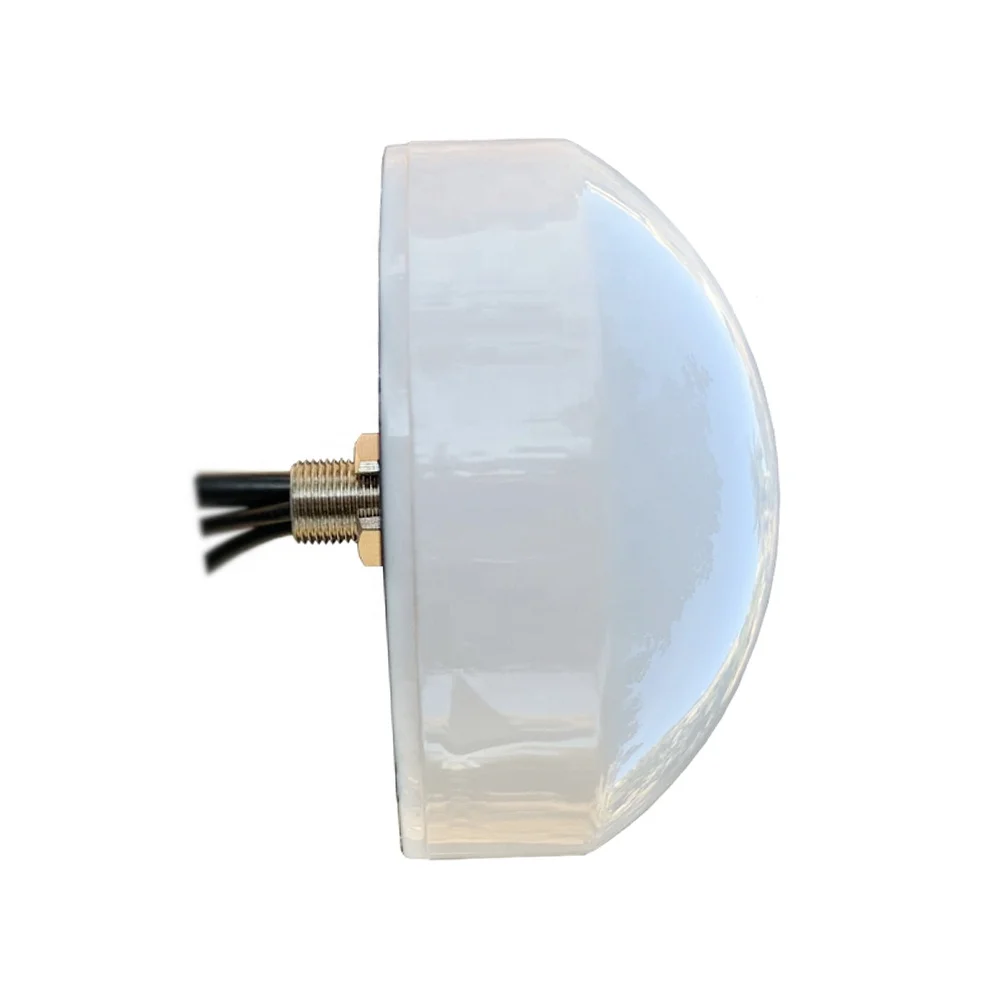

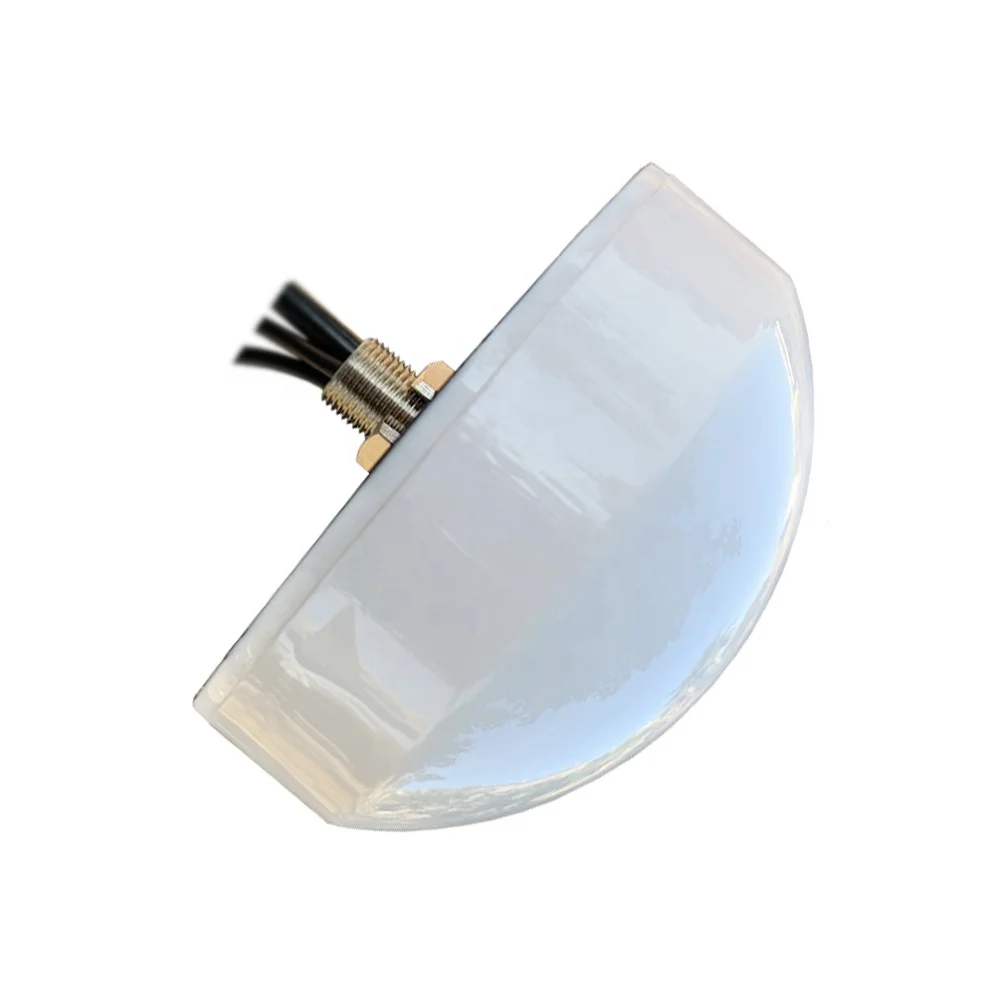

28 / 2dB Typical 1575.42 1606MHz GPS LTE WIFI Combined Antenna GPS ANTENNA vhf antenna sma
- Category: >>>
- Supplier: Nanjing Shinewave Technology Co. Ltd.
Share on (1600700012780):
Product Overview
Description

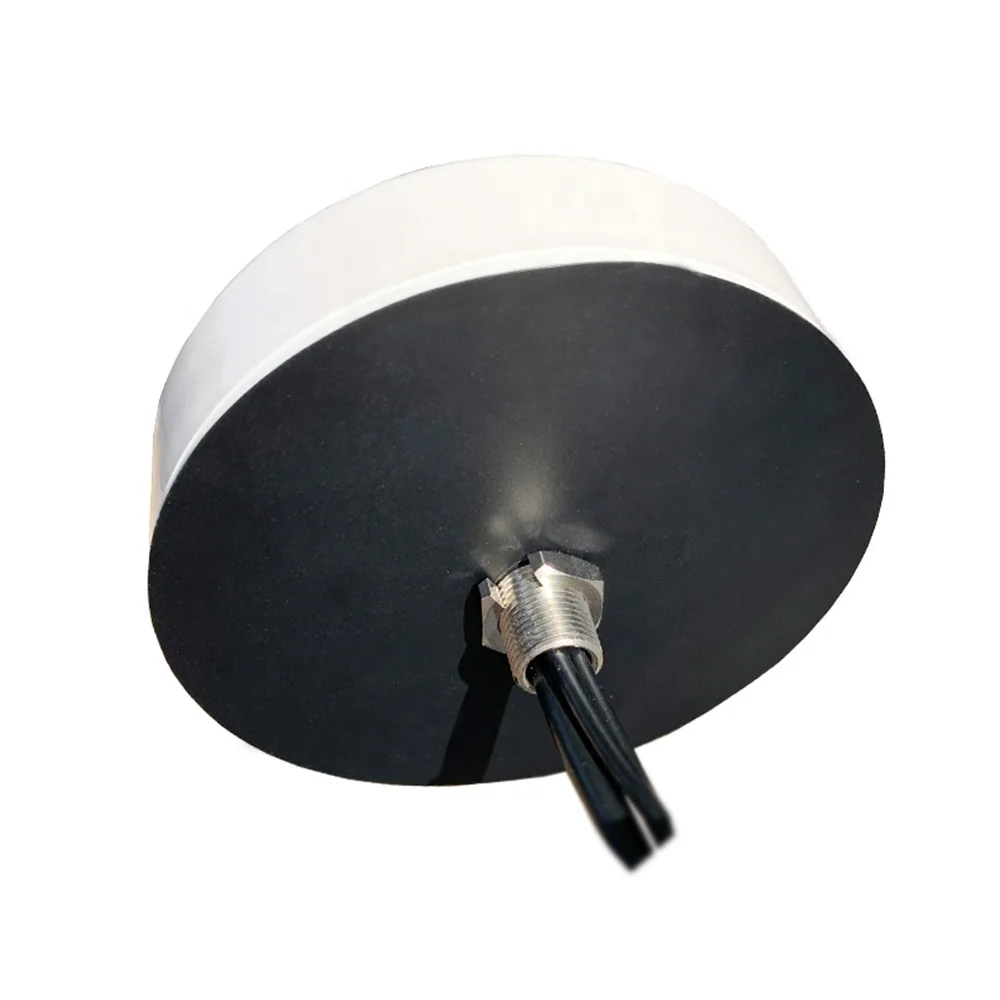

Product Display
Product Description:
WIFI+GPS+LTE frequency combination antenna has high gain, stable operation, light weight, small size, convenient installation and concealment. ABS material can be used in GPS/LTE/WIFI module system or multi-band combination equipment at the same time.
MECHANICAL SPECIFICATIONS
Electrical Characteristics | ||
GPS part: | ||
Frequency | 1575.42-1606MHz | |
Bandwidth | ±5 MHz | |
Gain | 28±2dB Typical | |
SWR | ＜2.0 | |
Polarization Mode | RHCP | |
Radiation | Omni | |
Power | 50W | |
Input Impedance | 50Ώ | |
Noise Figure | 1.5dB | |
DC Voltage | 2.2-5.0V | |
DC Current | 5-15mA | |
Antenna Material | ABS | |
LTE Part: | ||
Frequency | 698-960/1710-3800MHz | |
SWR | ≤2.0;Max2.5 | |
Gain | 3dBi | |
Polarization Mode | Linear | |
Input Impedance | 50Ω | |
WIFI Part: | ||
Frequency | 2400-2483/4900-5825MHz | |
SWR | ＜2.0 | |
Gain | 3dBi | |
Polarization Mode | Linear | |
Input Impedance | 50Ω | |
Mechanical Parameter | ||
Installation Mode | Screw | |
shell | White | |
lineshape | GPS/WIFI:RG174,LTE:RG58U | |
line supervisor | 3x1M(can be customization) | |
connect/get in touch | 3xSMA Male(can be customization) | |
Operating temperature | -40°C~+80°C | |
temperature | 55%-75%RH | |
Waterproof grade | IP65 | |
Humidity | 95%~100%RH | |
Size | Ф95x50mm | |
Weight | 166g | |
