Заводская цена, промышленная каменная дробилка Ep 400 3, конвейерная лента для добычи угля
- Category: Rubber Belts >>>
- Supplier: Qingdao,Global,Belting,Co.,Limited
Share on:
Product Overview
Description
Factory Price Industrial Stone Crusher Ep 400 3 Conveyor Belt For Coal Mining
Products Description

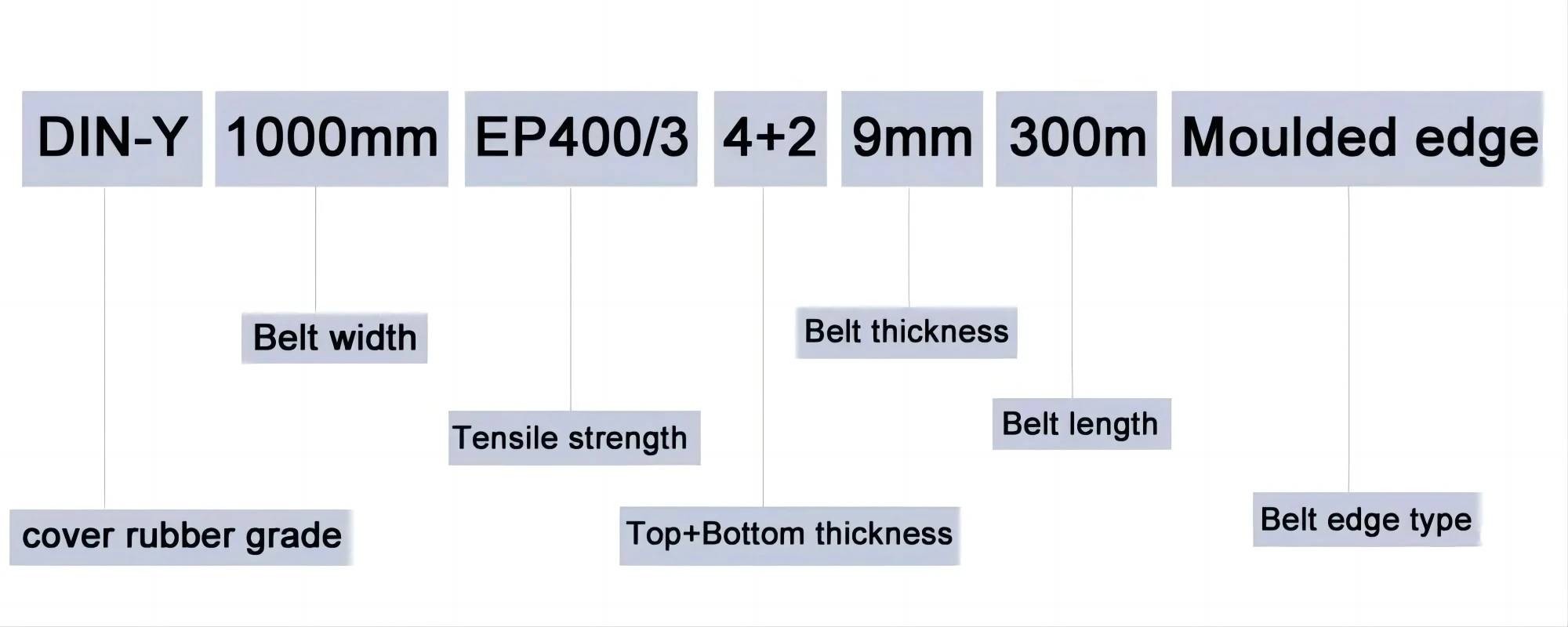

Product Standard
Cover Rubber grade | 6MPA,10MPA,12MPA,14MPA,15MPA,17MPA,16MPA,20MPA,18MPA,24MPA,25MPA, | DIN-X,Y,W RMA-1,RMA-2 N17,M24 | |
Belt width (mm) | 300mm-3200mm | 18",20",24",30",36",40",42" 48",60",72",78",86",94" | |
Tensile strength | EP80-EP630 | 330PIW, 440PIW | |
Top+Bottom thickness | customizable | customizable | |
Belt thickness | customizable | customizable | |
Belt length | customizable | customizable | |
Belt edge type | moulded edge or cut edge | ||

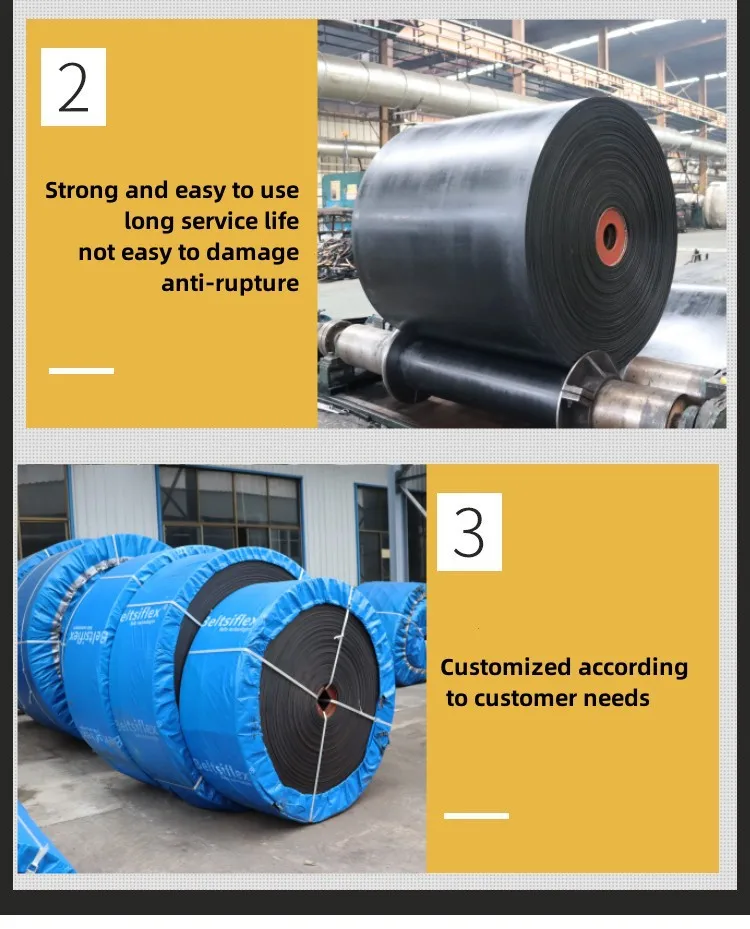

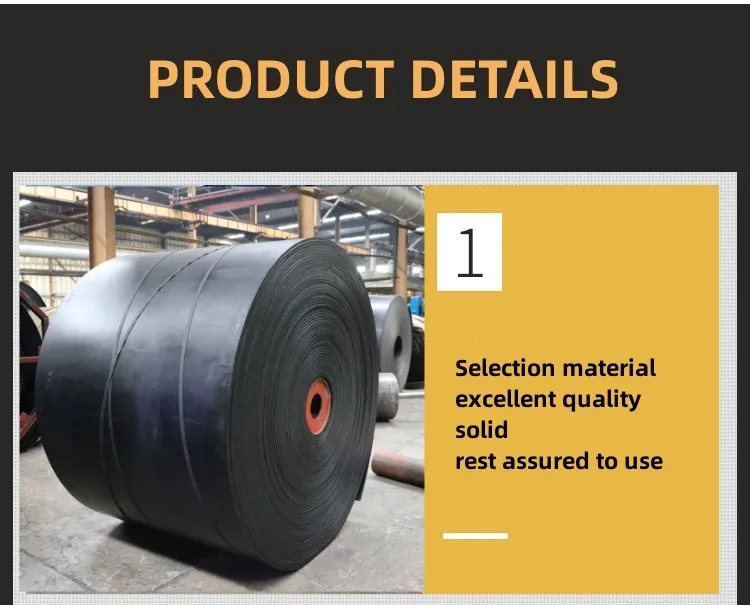

Details Images
Product Feature：

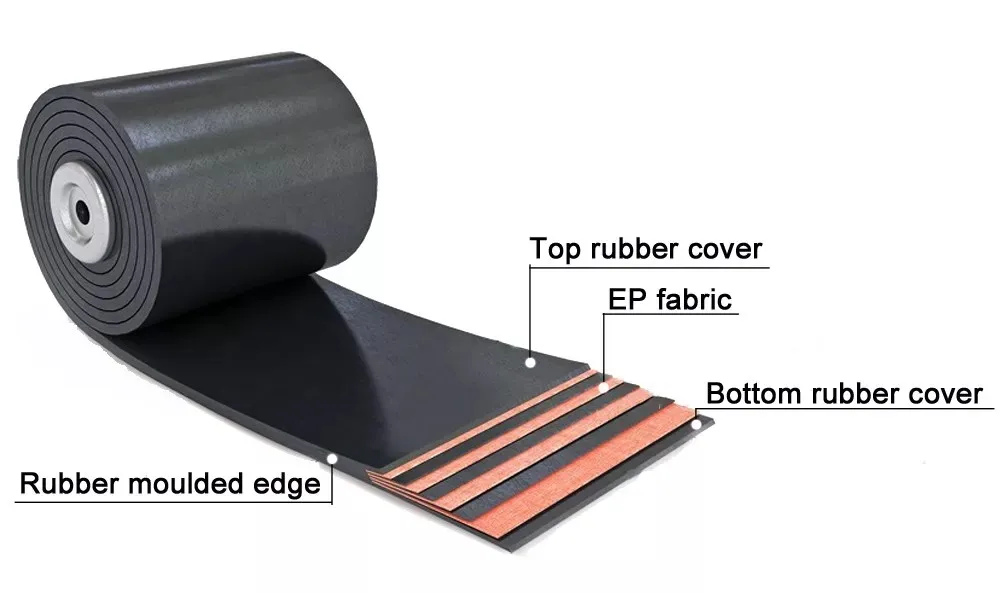

Polyester Conveyor Belt Is Also Known As Ep Belt. Its Tensile Body Is A Canvas Interwoven With Polyester In Warp Direction And Nylon Plain In Weft Direction. Its Biggest Advantage Is Small Warp Elongation And Good Weft Grooving. Good Water Resistance, Wet Strength Does Not Reduce, The Product Layer Adhesion, Flexion Resistance, Temperature Change When The Extension Is Small, So It Is Suitable For Large Load, High Speed, Medium And Long Distance Material Transport.
Product Paramenters
Specification & Technical Parameter | ||||||||||||||||||
Fabric Texture | Fabric Type | Fabric Thickness(mm/p) | Strength Series(N/mm) | Thickness of Cover Rubber(mm) | Width Range(mm) | |||||||||||||
Warp | Weft | 2 ply | 3 ply | 4 ply | Top Cover Rubber | Bottom Cover Rubber | ||||||||||||
Polyester（E P） | Polyamide （P） | EP-80 | 1.00 | 160 | 240 | 320 | 0-12 | 0-10 | 300-6000 | |||||||||
EP-100 | 1.00 | 200 | 300 | 400 | ||||||||||||||
EP-125 | 1.05 | 250 | 375 | 500 | ||||||||||||||
EP-150 | 1.10 | 300 | 450 | 600 | ||||||||||||||
EP-170 | 1.10 | 340 | 510 | 680 | ||||||||||||||
EP-200 | 1.20 | 400 | 600 | 800 | ||||||||||||||
EP-250 | 1.40 | 500 | 750 | 1000 | ||||||||||||||
EP-300 | 1.60 | 600 | 900 | 1200 | ||||||||||||||
EP-350 | 1.70 | 1050 | 1400 | |||||||||||||||
EP-400 | 1.90 | 1600 | ||||||||||||||||
EP-500 | 2.10 | 2000 | ||||||||||||||||
Adhesion And Elongation Property | ||||||||||
Belt Core Material | Bonding Strength | elongation | ||||||||
Between Plies(N/mm) | Between Cover and Fabric Ply N/mm | Longitudinal Elongation At Break S ≥ | Longitudinal Reference Force Elongation ≤ | |||||||
Thickness of Cover Layer ≤1.5mm | Thickness of Cover ≥1.5mm | |||||||||
Polyester canvas | ≥5 | ≥4.5 | ≥5 | ≥10% | ≤45 | |||||
Classification Of Cover Rubber As Follows | ||||||||||
Cover Grade | Tensile Strength | Elongation At Break ≥ | Wear Loss ≤ | Tensile Strength Ang Elongation At Break After Aging | ||||||
Mpa | Kgf/c㎡ | % | mm³ | % | ||||||
M | 24 | 240 | 450 | 450 | -25 ~ +25 | |||||
W | 18 | 180 | 400 | 400 | -25 ~ +25 | |||||
Z | 15 | 150 | 150 | 350 | -25 ~ +25 | |||||
Recommend Products
Company Profile
Product packaging
FAQ
1.Are you a manufacturer or a trading company?
We are a manufacturer.
2. What does your company mainly produce?
The company is committed to the production of various uses of conveyor belt, product performance, long service life, widely used in coal, metallurgy, hydropower, building materials, sand, port, etc.
3.Do you provide samples?
Please contact our customer service for sample details
4.What is MOQ?
It depends on different products. Pls contact us for specific quantity.
5. How to ship?
For samples, International express. For big orders, the cheapest way is by sea.
6.How to place an order?
You could send us an inquiry to any of our sales representative for details order information. We will explain details for you.
