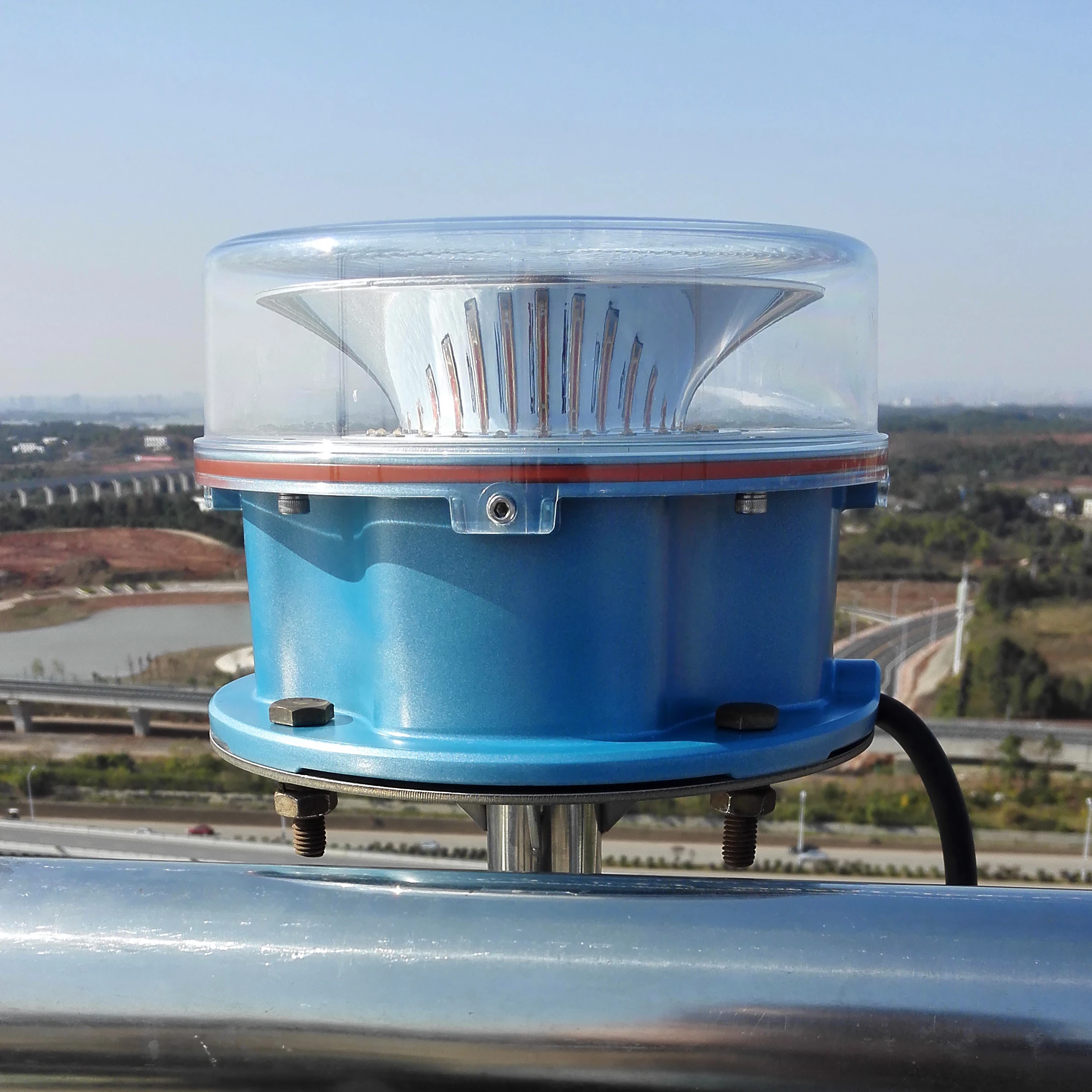

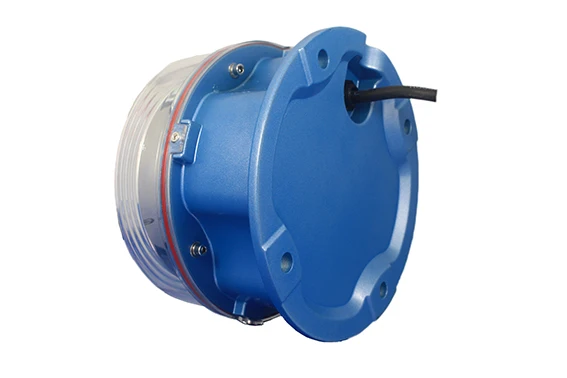

Red flashing with light intensity 2000cd LED medium intensity aircraft beacon light to tower blocks tower cranes bridge chimney
- Category: >>>
- Supplier: Hunan Chendong Technology Co. Ltd.
Share on (1600700028086):
Product Overview
Description
Product Description

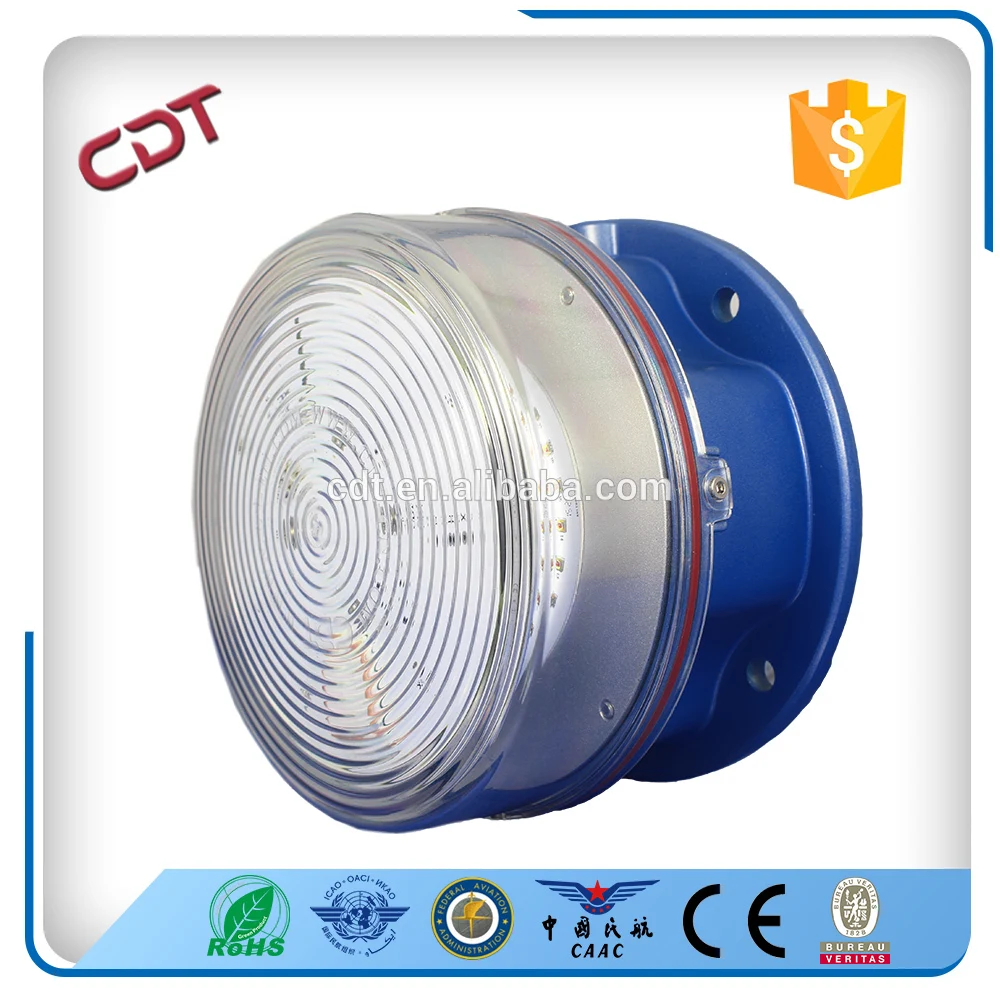

Medium intensity L865 2000cd obstruction light and LED aircraft warning light

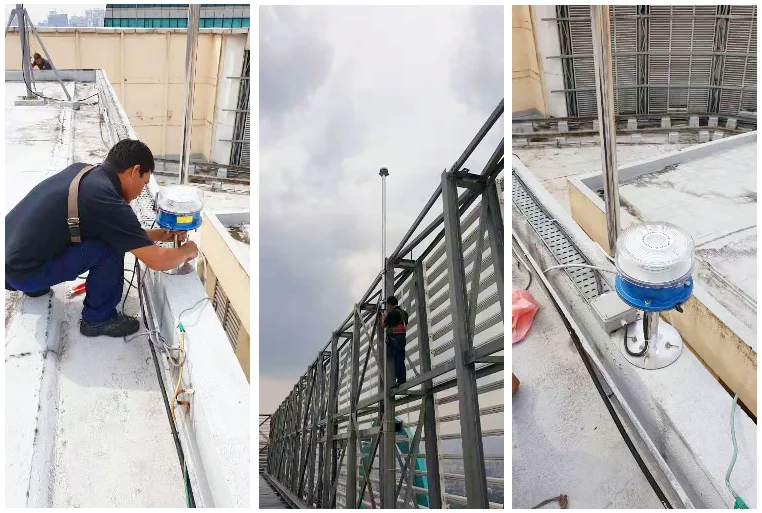

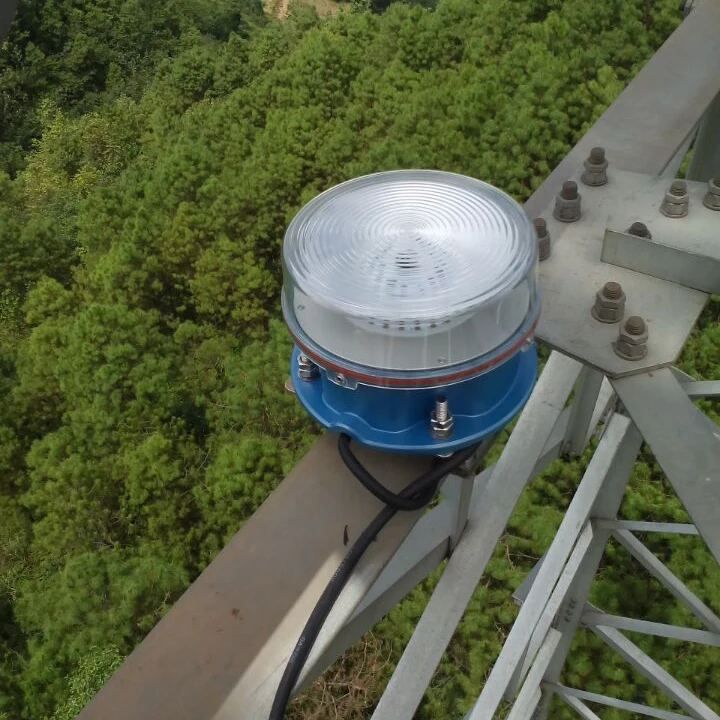

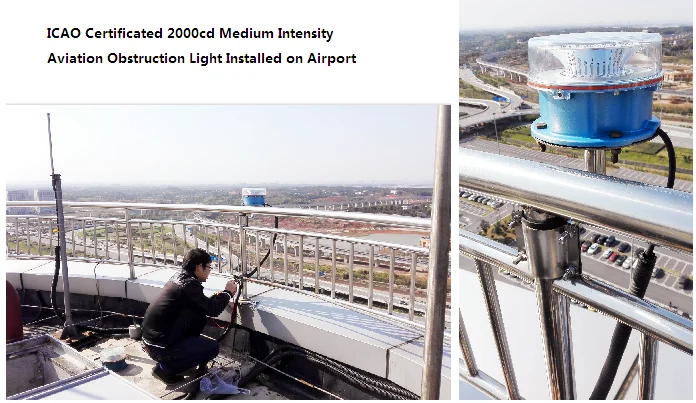

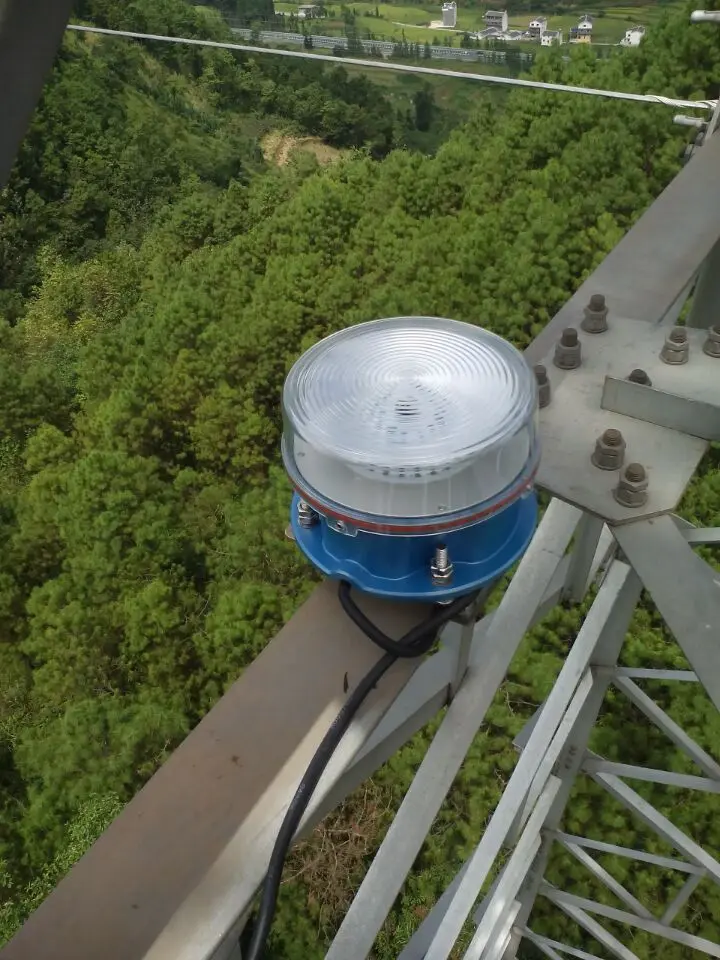

Project case
Actually,most of this kind of medium intensity aircraft warning light CK-16 are used in the high buidings,chimneys,electrical towers,
Application
* Suitable for installation on fixed buildings, structures, such as electric power towers, communication towers, chimneys,
high-rise buildings, large bridges, large port machinery, large construction machinery, wind turbines and other obstacles.
high-rise buildings, large bridges, large port machinery, large construction machinery, wind turbines and other obstacles.
* Environmental conditions for use:
* Operating temperature: -40 ° C ┉ +55 ° C;
* Relative humidity: 0% to 95%;
* Wind power: no more than 240km/h;
* Rain: exposed to rain in any wind direction;
* Salt spray: exposed to salt spray;
* Irradiation: exposed to solar radiation.
* Operating temperature: -40 ° C ┉ +55 ° C;
* Relative humidity: 0% to 95%;
* Wind power: no more than 240km/h;
* Rain: exposed to rain in any wind direction;
* Salt spray: exposed to salt spray;
* Irradiation: exposed to solar radiation.
Detailed Images

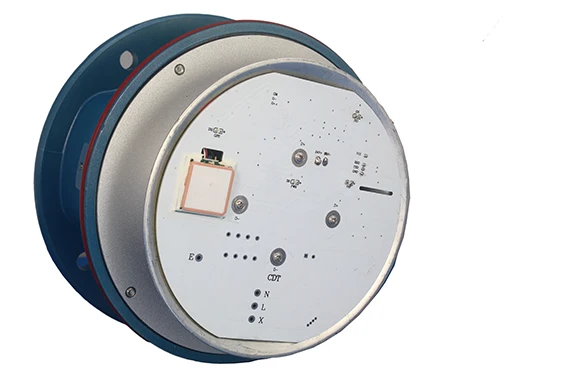

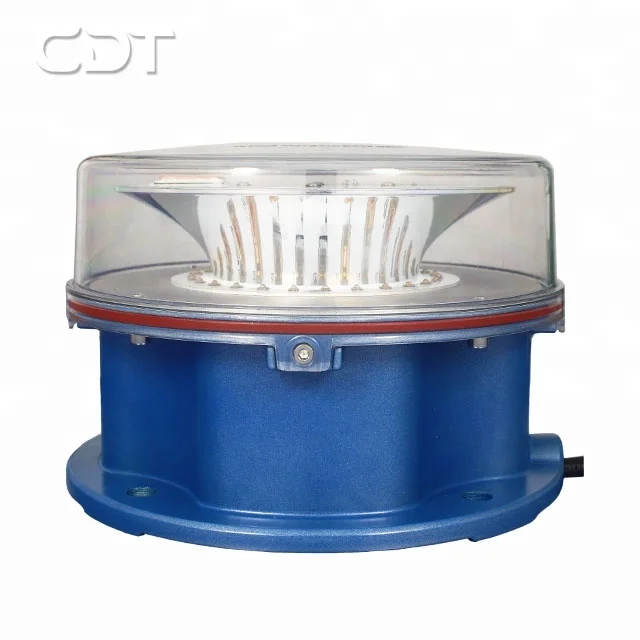

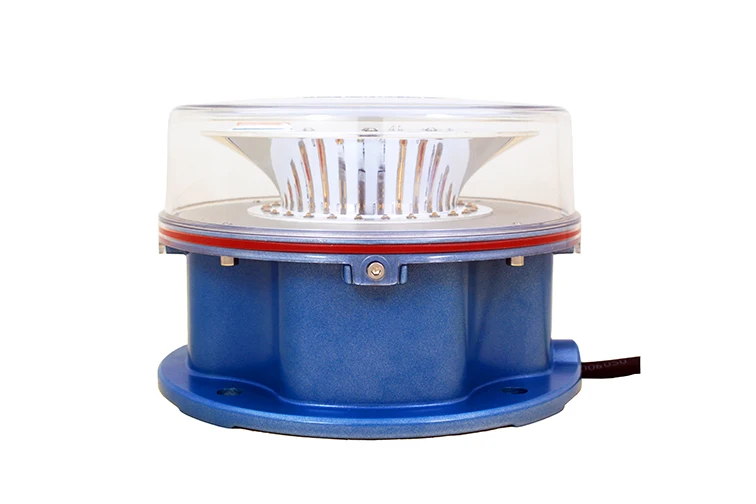

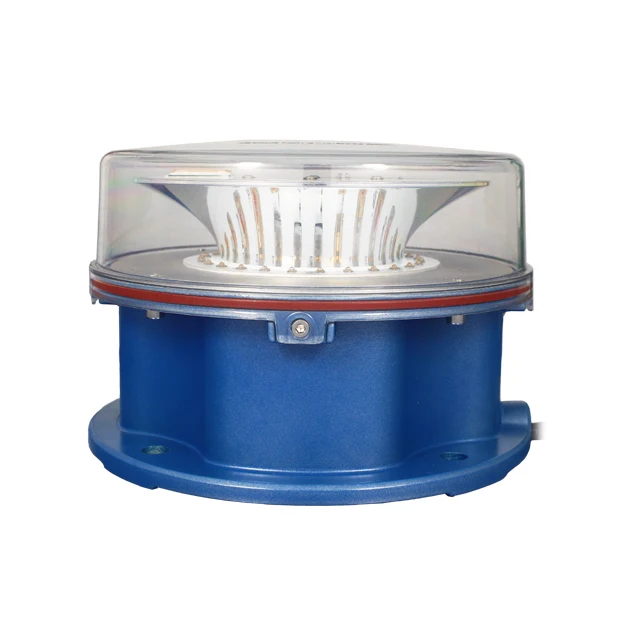

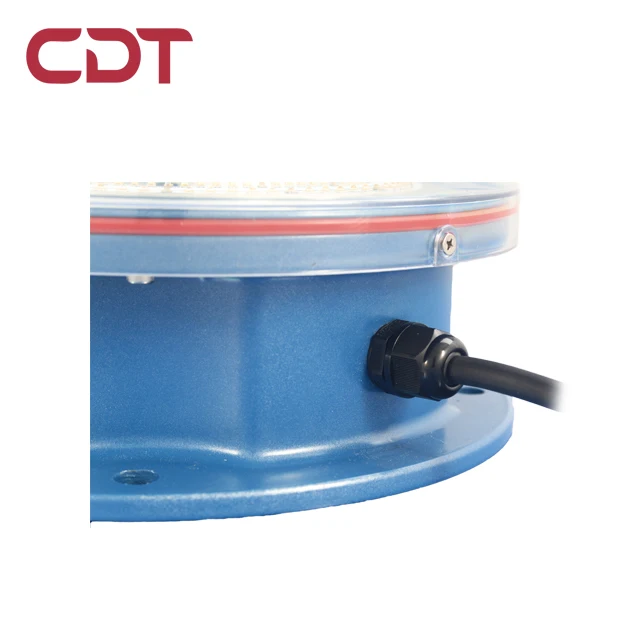

Product detail drawing
Technical Characteristic
* The lampshade is made of UV (UV) resistant PC (polycarbonate) material with a transparency of over 95%. It has flame retardant,non-toxic, excellent electrical insulation, dimensional stability, corrosion resistance, high temperature resistance and cold resistance.* The lamp base is characterized by high strength, corrosion resistance and aging resistance.
* Reflector based on the principle of reflection, the light utilization rate is over 95%, and the light exit angle can be more
accurate, the visible distance is farther, and the light pollution is completely eliminated.
* The light source uses a high-efficiency, low-power, long-life, high-brightness LED cold light source.
* The power supply is designed for equal supply voltage synchronization signal levels and isintegrated into the power cable to eliminate damage caused by incorrect installation.
* Lightning protection: The internal self-contained anti-surge device makes the circuit work more reliable.
* The complete set of lamps and lanterns adopts full packaging technology, which is resistant toimpact, vibration and corrosion,and can be used in harsh environments for a long time. The structure is light and firm, and the installation is simple.
Introduction of product advantages
Precautions
* All connections must be wired in strict accordance with the wiring diagram, otherwise the lamps may be damaged. Please check the logo and instructions carefully.
* The power supply of this model controller is AC220-230V, 50HZ/60HZ. It is forbidden to use other power sources, such as AC380V,otherwise the lamps will be damaged.
* Avoid installation at the top and bottom of the building. If installed on the top floor of a building, it is best to connect the ground wire to the lightning protection belt or install a lightning rod to avoid lightning strikes.
* When working on the product, it is strictly forbidden to open any part of the lamp body to prevent danger.
* This product will have a temperature rise during operation, which is normal.
* This product is a sealed structure. Non-professional maintenance personnel should not disassemble it. Once found, the company will not guarantee it.
* The power supply of this model controller is AC220-230V, 50HZ/60HZ. It is forbidden to use other power sources, such as AC380V,otherwise the lamps will be damaged.
* Avoid installation at the top and bottom of the building. If installed on the top floor of a building, it is best to connect the ground wire to the lightning protection belt or install a lightning rod to avoid lightning strikes.
* When working on the product, it is strictly forbidden to open any part of the lamp body to prevent danger.
* This product will have a temperature rise during operation, which is normal.
* This product is a sealed structure. Non-professional maintenance personnel should not disassemble it. Once found, the company will not guarantee it.

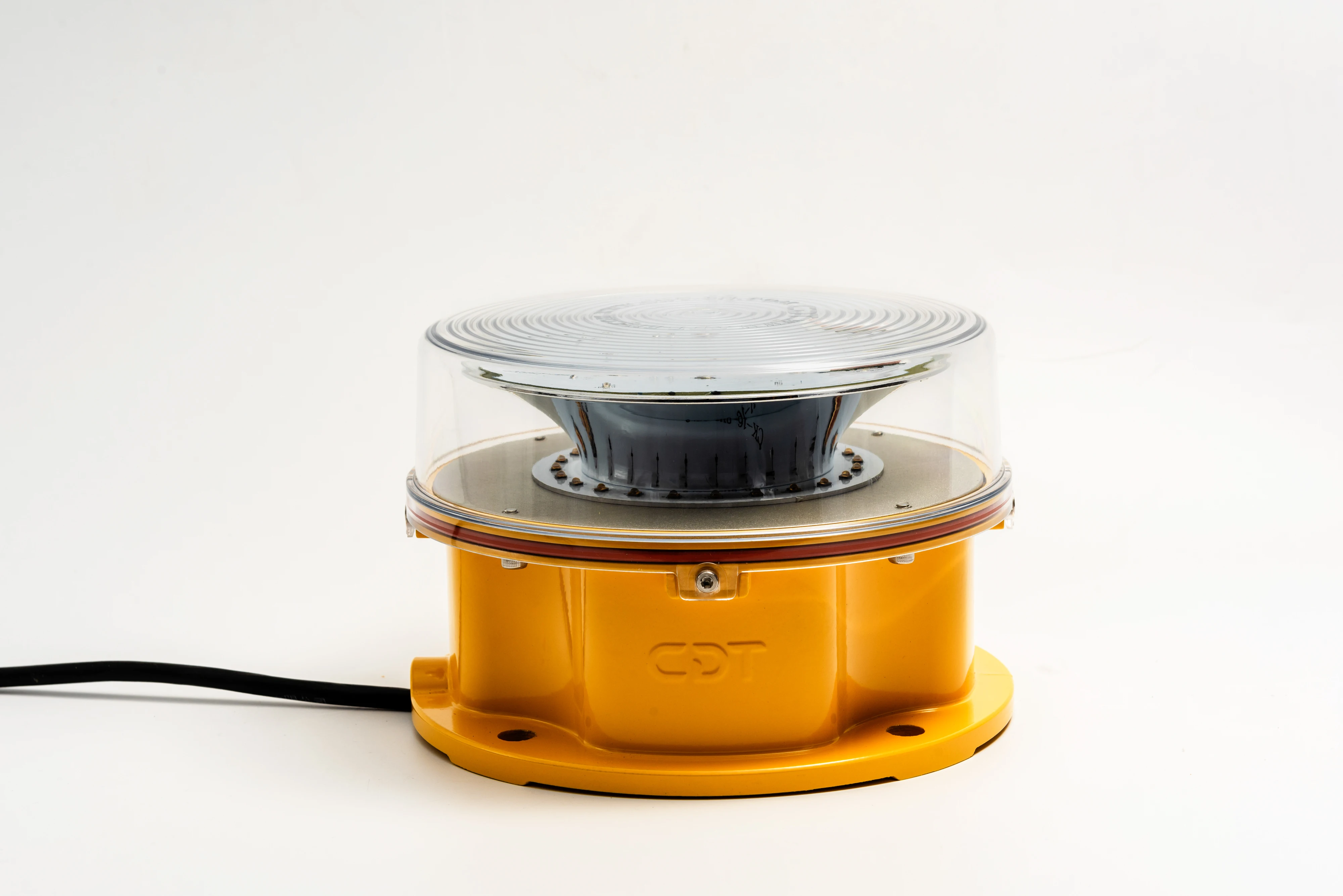

Product Presentation
Product introduction:
Product Name | Medium intensity L865 aircraft warning light type B CK-16 |
Material | Alluminum Alloy+PC cover |
Voltage | Input AC100-260V or DC12V-48V |
Power consumption | 10W |
Dimension | Φ210mm×140mm |
Lamp Source | LED |
Emmiting Color | Red |
Flashing Frequency | 20-60 FPM |
Beam Angle | 360° horizontal beam angle≥7°vertical beam spread |
Light Intensity | 2000 cd |
Life Span | 100,000 Hours |
Ingress Protection | IP65 |
Net. Weight | 3.5 kg |
Wind Load | 240Km/h |
Size introduction and size picture
Size and Net Weight
Size: Φ210mm×140mm
Net Weight: 3.5 kg

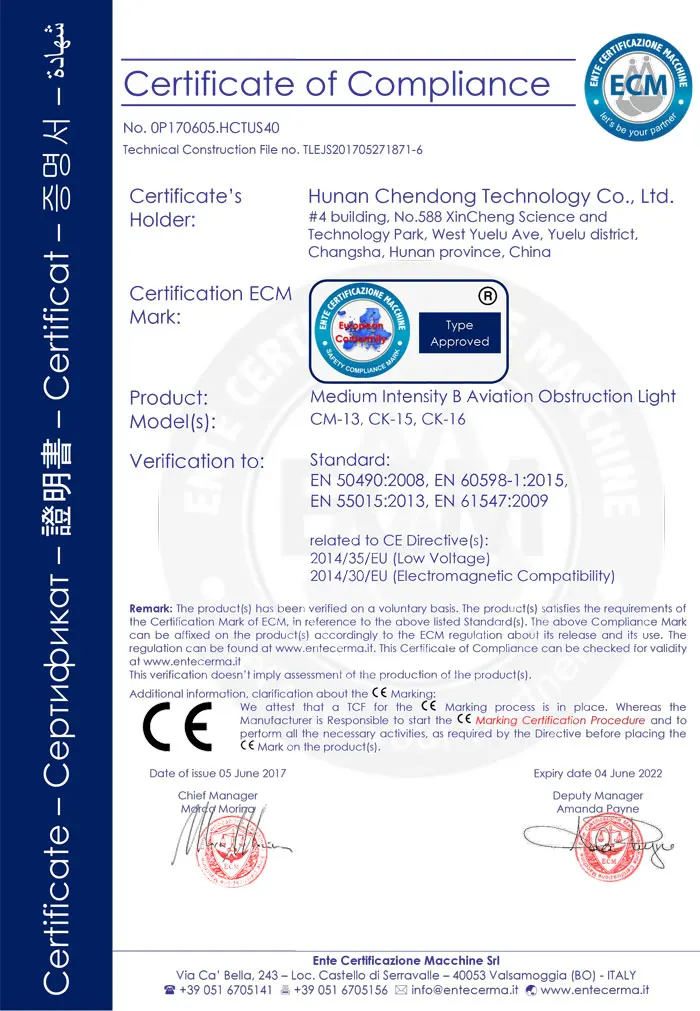

Certificate
Related Products

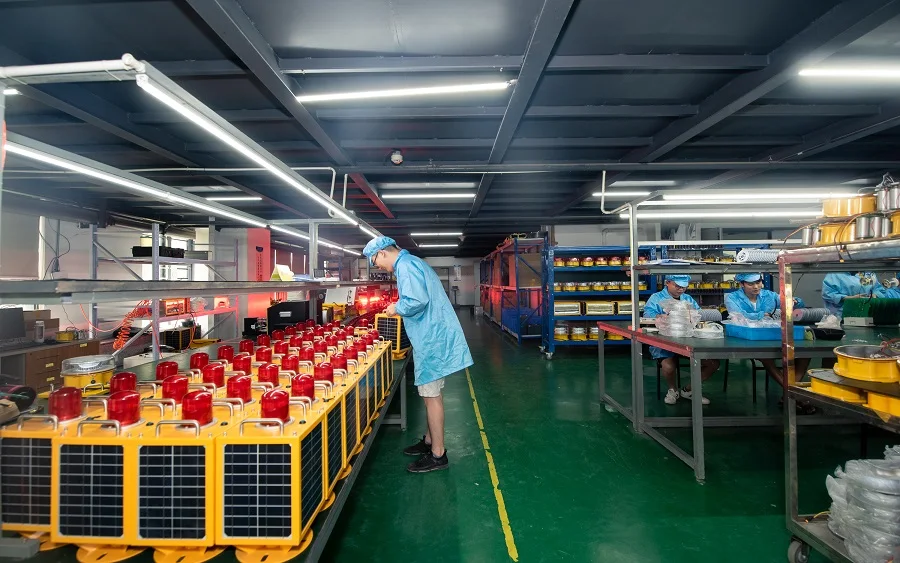

Company Introduction
Established in 2012, Hunan Chendong Technology Co., Ltd (CDT) is located in the historic city of Changsha, Hunan. Where is known as Yulu Mountain, a part among Nanyue Hengshan Mountain and Yuelu Academy with a thousand years history. CDT is a hi-tech company that focus on R&D, production and sale all kinds of aviation obstruction light and green light for airport navigation.CDT has approved by ISO9001, CAAC and ICAO, owned numerous patents. And keep long terms cooperation with enterprises as ZTE,State Grid Corporation of China, China Southern Power Grid, CAH, CWAG and Hunan Airport Management Group etc.
As a pioneer in aviation obstruction light, CDT expands overseas market at the same time. We have exported to over 50 countries in Southeast Asia, Middle East, America, Africa and Oceania.CDT take innovation and factualism, honesty and trustworthiness as our operation principle, and promise to offer the most competitive price, thoughtful services and excellent products.Now, we are dedicating to making CDT a century enterprise in aviation obstruction lights field. To become a healthier, safer and more environment friendly hi-tech company, CDT are here to serve airports throughout the world.
As a pioneer in aviation obstruction light, CDT expands overseas market at the same time. We have exported to over 50 countries in Southeast Asia, Middle East, America, Africa and Oceania.CDT take innovation and factualism, honesty and trustworthiness as our operation principle, and promise to offer the most competitive price, thoughtful services and excellent products.Now, we are dedicating to making CDT a century enterprise in aviation obstruction lights field. To become a healthier, safer and more environment friendly hi-tech company, CDT are here to serve airports throughout the world.
Packing&Shipping
FAQ
Comments about our products and service
Why Choose us?
1.We are the Factory of aviation obstruction light.Best quality.Best performance,Best service.
2.All products are passed QC inspection.
3.CE,RoHS,ICAO Certificate.
4.Short Time delivery.Competitive price.
5.24Hours online technical support and lifetime after-sale services.
What's the warranty？
Our warranty is 3 years.
What's the delivery time?
Our delivery time is different as different quantities. Usually,the order quantity is below 50 pcs,the production time is 7 days.
Why Choose us?
1.We are the Factory of aviation obstruction light.Best quality.Best performance,Best service.
2.All products are passed QC inspection.
3.CE,RoHS,ICAO Certificate.
4.Short Time delivery.Competitive price.
5.24Hours online technical support and lifetime after-sale services.
What's the warranty？
Our warranty is 3 years.
What's the delivery time?
Our delivery time is different as different quantities. Usually,the order quantity is below 50 pcs,the production time is 7 days.
What's the other certificates?
