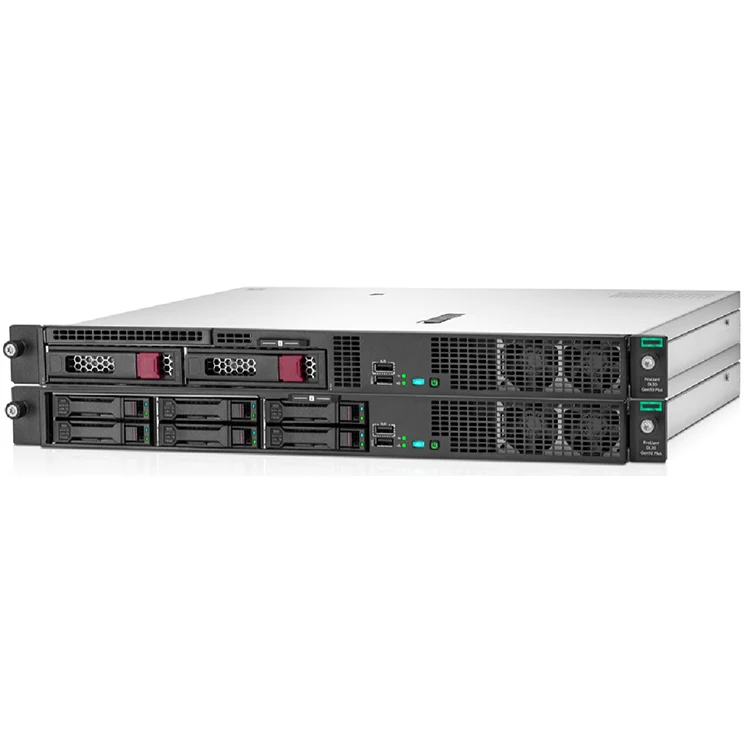

High Performance DL20 Gen10 Plus 1u Rack Server Intel Xeon Processor Sever

Product Overview

Description

DL20 Gen10 Plus HpE Server



The reliable HPE ProLiant DL20 Gen10 Plus server delivers a compact and versatile server with enhanced security at an affordable price. Deploy the portable short-depth rack form factor in small, remote, or branch offices, as a compact yet powerful point of sale platform in transport, retail, and hospitality environments, or as a flexible configuration for customization in space constrained environments of military and government customers. Blending performance, reliability, and manageability, this 1 socket, 1U server featuring Intel® Xeon® E processors provides unique enterprise-class capabilities at a great value—making it an ideal rack server platform for growing businesses, enterprises, and service providers. Outstanding configuration flexibility caters to a variety of business requirements, and a wide range of qualified options fits a variety needs.



What’s New

• Supports latest Intel® Xeon® E-2300 and Pentium® processors up to 8 cores and 3200MT/s UDIMM with support for Intel® Software Guard Extensions. Intel® SGX is an architecture extension designed to increase the security of application code and data.

• Dedicated iLO Management Port & serial port option kit for faster and more secure data transmission

• 3200 MT/s HPE DDR4 Standard Memory UDIMM offering 8GB, 16GB, and 32GB. Max 128GB memory capacity.

• Support for onboard M.2 NVMe/SATA SSD.



Technical Specifications



Processor	Intel ® Xeon ® E-2300 series, 4-8 cores, maximum power 95W

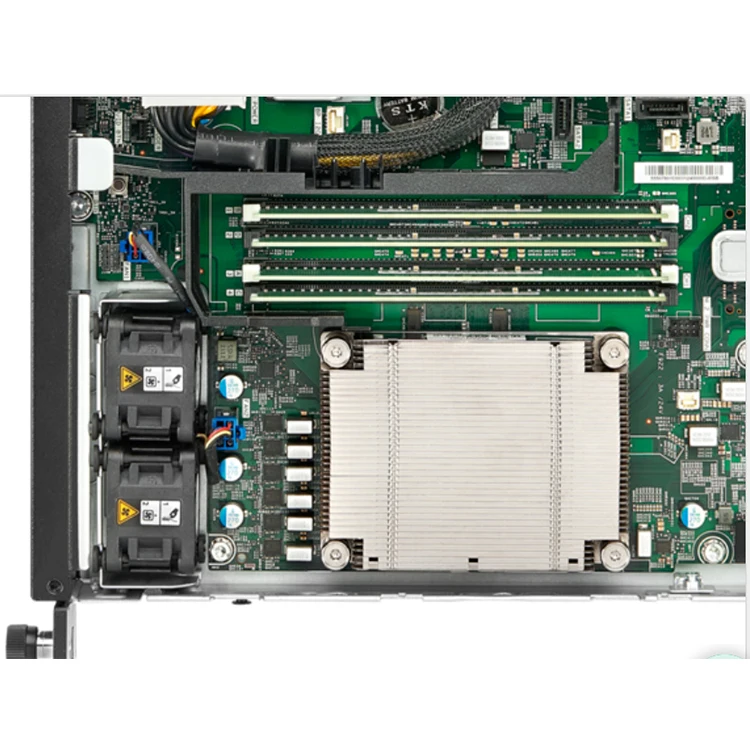

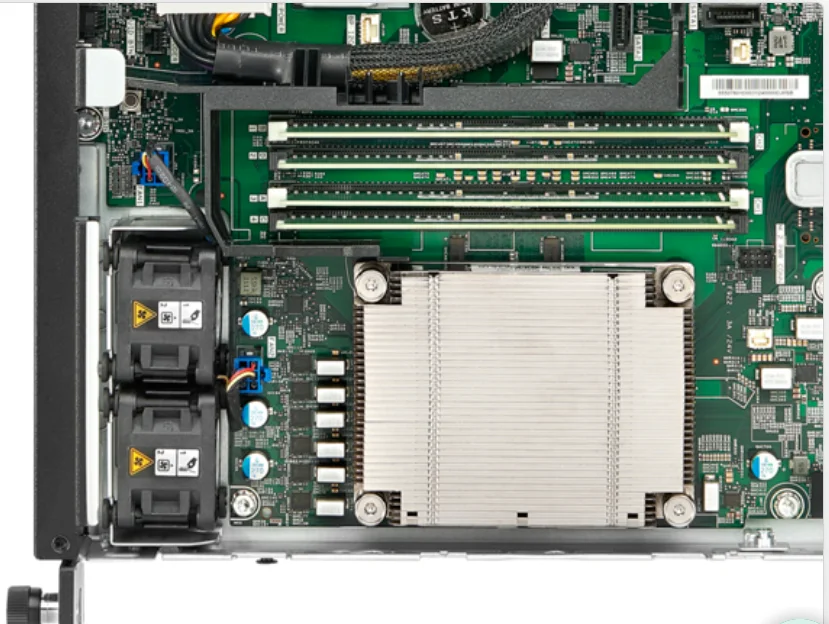

Memory	Supports four DDR4 DIMMs with a maximum rate of 3200MT/s and a maximum capacity of 128GB
Storage Controller	Intel ® VROC SATA (formerly known as Intel ® RSTe)
Controller	Two non-hot-swappable 3.5-inch SATA/SAS disks Two hot-swappable 3.5-inch SATA/SAS disks 4 + 2 hot-swappable 2.5-inch SATA/SAS/NVMe disks
Network	HPE embedded 1Gb dual port BCM5720 network adapter
Expansion Slots	Supports a maximum of two PCIe 4.0 slots

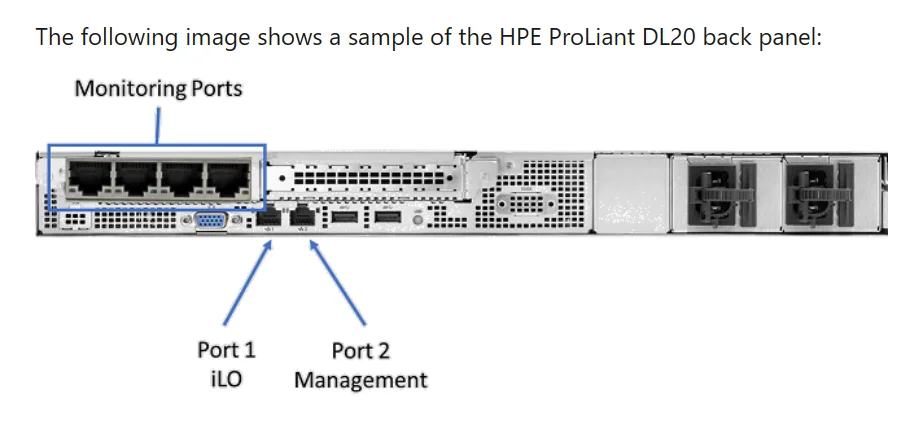

Interface	iLO port on the front, VGA and serial port on the rear 4 USB 3.2 ports (1 front, 1 rear, 2 built-in)
Management	iLO Standard Edition is standard, and iLO Advanced Edition and OneView Advanced Edition are optional Supports HPE iLO 5, SUM, and RESTful interface tools Support for mobile application software APP
Power Supply and Heat Dissipation	Optional maximum 800W 1+1 hot-swappable redundant power supply, high performance cooling fan
Working temperature	5℃ - 45℃
Dimensions	4.32 x 43.46 x 38.22 cm (H x W x D)











Chassis Types

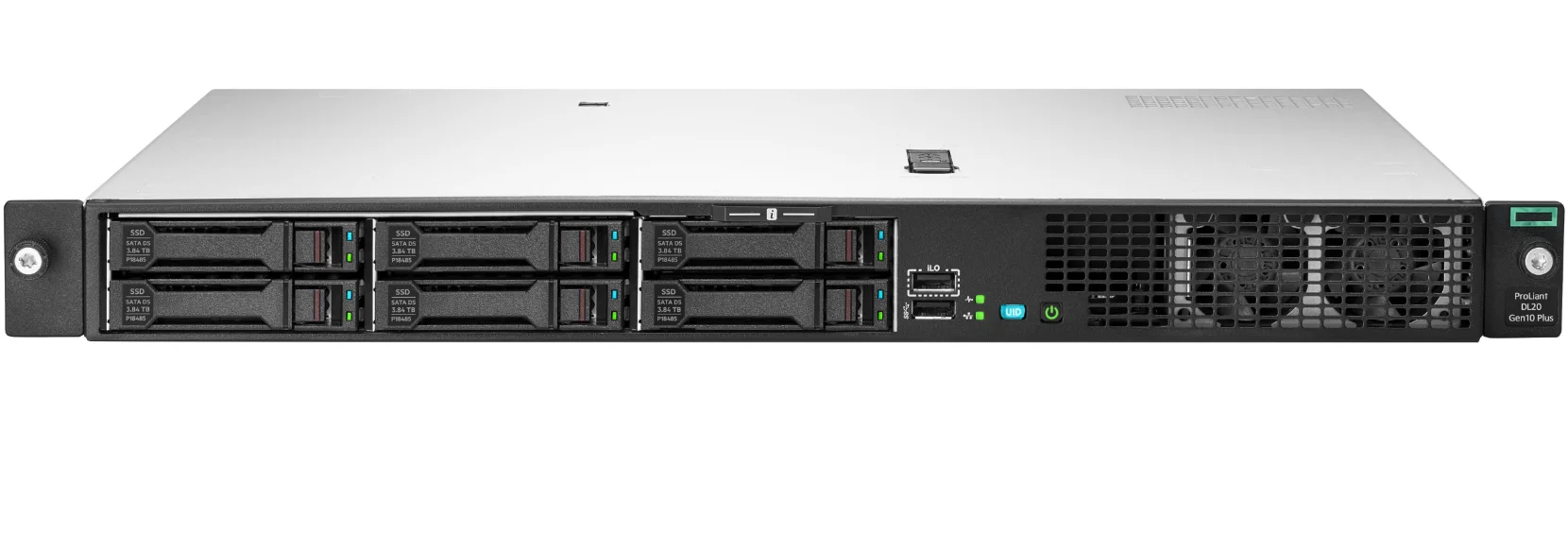

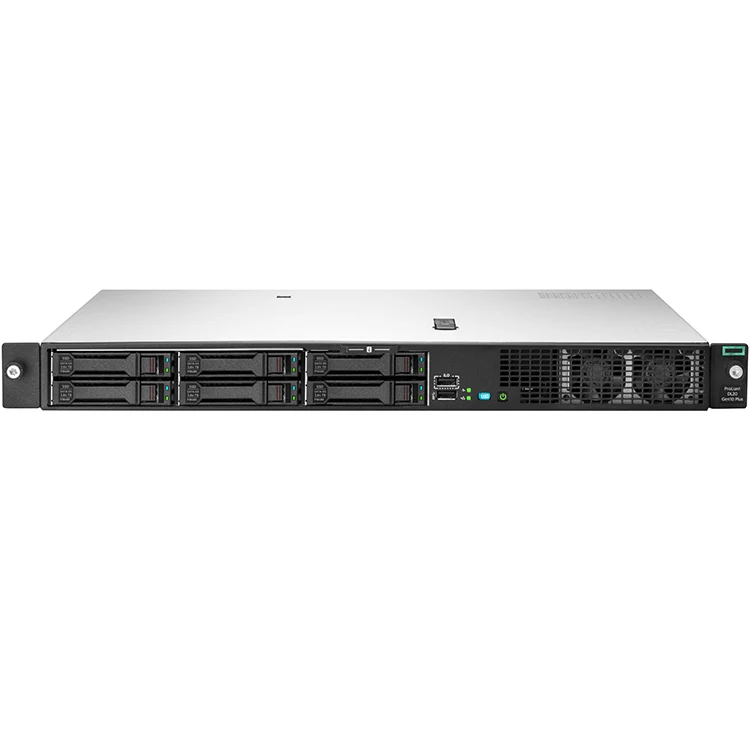

• 4 SFF with options supporting: +2 SFF

• 2 LFF Hot Plug

• 2 LFF Non Hot Plug

System Fans

• Includes 3 performance single rotor non-hot plug and non-redundant fans

Notes: This applies for all three chassis: 2LFF NHP, 2LFF HP and 4SFF HP













Processors

Intel Xeon E Processors are designed to deliver the best combination of performance, built-in capabilities, and cost-effectiveness. Choose one of the following processors based on the model.

Notes:

− For more information regarding Intel Xeon processors.

− This table covers the public offering only.

− Models indicated by “G” are limited to local display. Intel processor graphic full features are not supported on Intel Xeon E2300 server platforms.









Memory Notes:

− The maximum memory speed depends on processor model.

− For Server Memory Population Rules for HPE ProLiant Gen10 Plus Servers with Intel Xeon E-2300 Processors

For General Server Memory and DIMM Population Rules and Guidelines for Gen10 Plus

Memory Protection

• ECC







Power Supply

• HPE 290W Non-redundant FIO Power Supplies

− P21649-B21, HPE DL20 Gen10 Plat 290W FIO Power Supply Kit

− P45476-B21, HPE ProLiant DL20 Gen10 Plus 290W FIO Power Supply Kit

Notes:

− Both 290W Power Supplies support both Pre-Configured Models and Configured Factory Integrated Models

− P21649-B21, Available in 92% efficency

− P45476-B21, Available in 94% efficiency, currently available in EMEA only



• HPE Redundant Power Supplies

− 865408-B21, HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes: Available in 94% efficiency.

− 865434-B21, HPE 800W Flex Slot -48VDC Platinum Hot Plug Low Halogen Power Supply Kit

Notes: Flex Slot -48VDC power supplies support power efficiency of up to 94%.

− P45948-B21, HPE DL20 Gen10 Plus RPS FIO Enable Kit

Notes: RPS Kit required and must be added when using redundant power supplies
