DPB 420 Pharmaceutical syringe automatic blister paper packaging machine
- Category: >>>
- Supplier: Shenzhen Nuoya Pharmaceutical Equipment Co. Ltd.
Share on (1600700100968):
Product Overview
Description

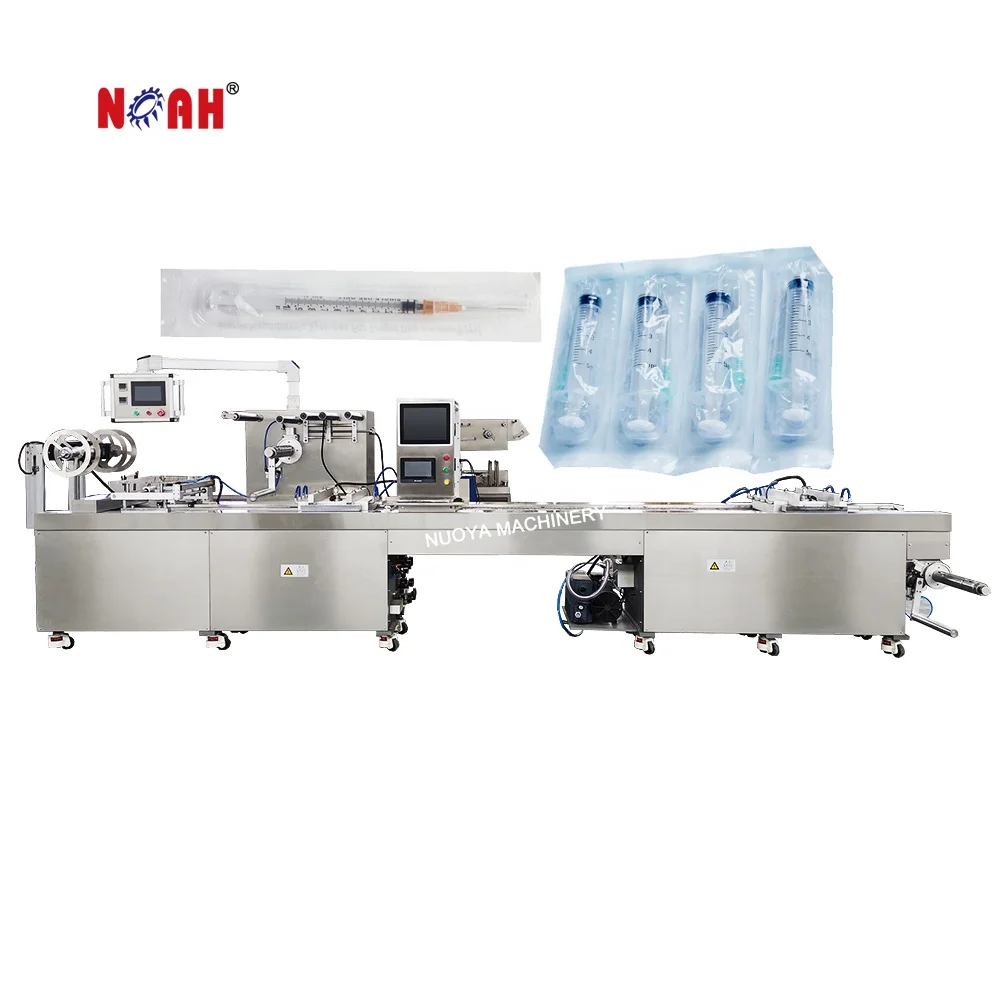

DPB-420 Pharmaceutical syringe automatic blister paper packaging machine
Products Description
Model | DPB-420 | ||||||
Package Scope | Suitable for package of many sensitive anti-pollution materials and medical apparatus and instruments, Chinese and western medicine, electron, chemical product and foodstuff. | ||||||
Capability (times/minute) | (1) 20 syringe needles/time (2)1ml 11 injectors/time, 2.5ml 10 injectors/time,5ml 9 injectors/time, 10ml 8 injectors/time | ||||||
Packing Frequency | 6-16 times / min | ||||||
Package Materials | Paper-plastic, Aluminum-plastic, Plastic-plastic and other Compound Film suitable for heat sealing(or the hard plastic less than 0.2mm ), width of upper film is 400mm and the lower is 420mm . | ||||||
Maximum inner dimension(mm) | 375*154* 50mm (L*W*D) | ||||||
Out Dimensions | 5000*980* 1860mm (L*W*H) | ||||||
Power(kw) | 10kw | ||||||
Weight(kg) | 1900kg | ||||||
Product introduction:
It is successful to develop the latest soft plastic packing machine in china by our factory and widely used in the packing of medical apparatus(syringe needle, injector), Chinese and western medicine, electron component, chemical product, food as well as sensitive anti-pollution materials.
It can synchronously finish the full process of heating in matching for PVC strip, forming by negative pressure simultaneously, filling, plate net-pattern sealing, batch number printing, vertical and cross cutting, and transferring the final product. It is a high automatic machine.
It is successful to develop the latest soft plastic packing machine in china by our factory and widely used in the packing of medical apparatus(syringe needle, injector), Chinese and western medicine, electron component, chemical product, food as well as sensitive anti-pollution materials.
It can synchronously finish the full process of heating in matching for PVC strip, forming by negative pressure simultaneously, filling, plate net-pattern sealing, batch number printing, vertical and cross cutting, and transferring the final product. It is a high automatic machine.
Main feature:
Mould located by male pin, convenience of changing mould.
Mould located by male pin, convenience of changing mould.
